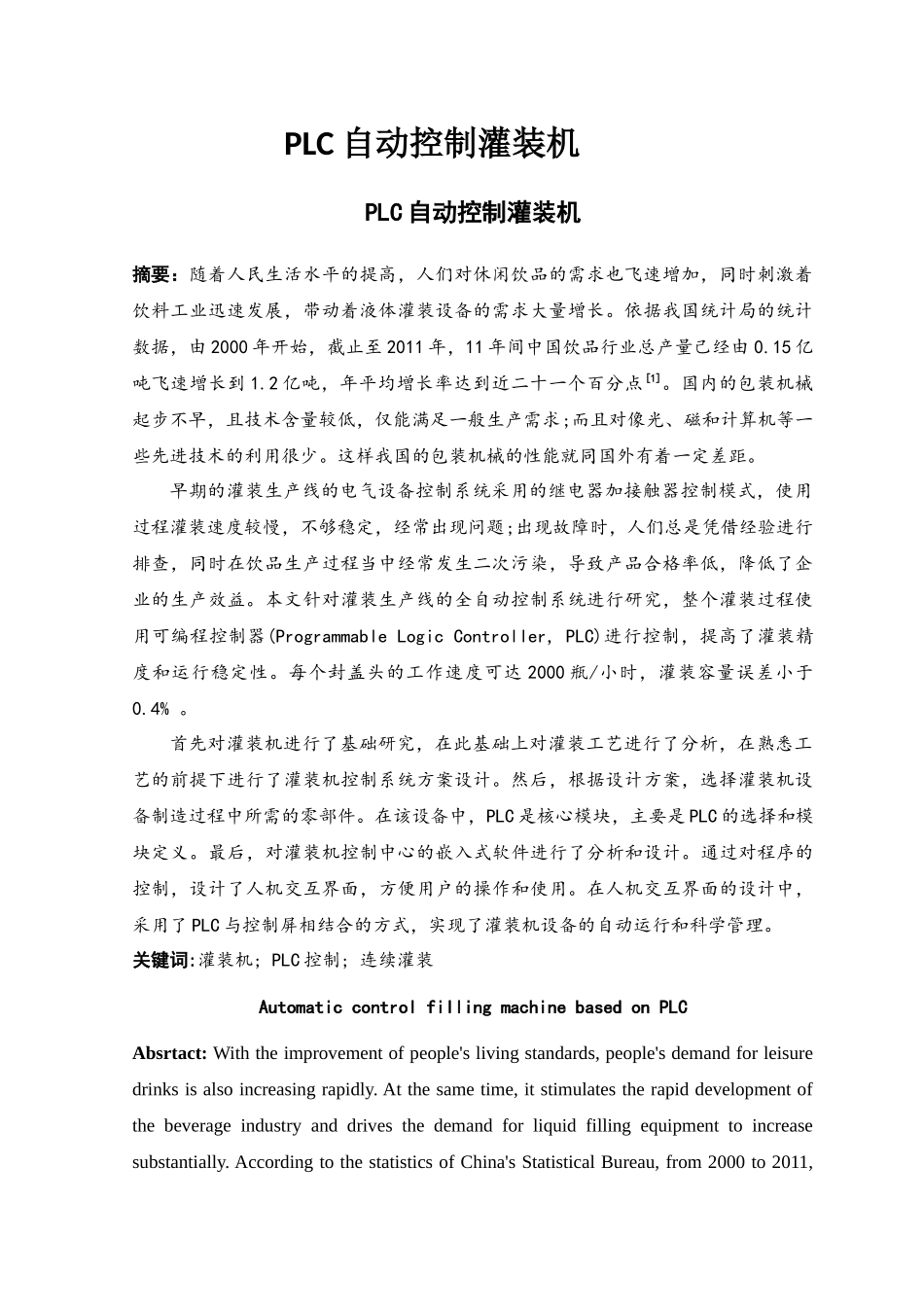

PLC自动控制灌装机PLC自动控制灌装机摘要:随着人民生活水平的提高,人们对休闲饮品的需求也飞速增加,同时刺激着饮料工业迅速发展,带动着液体灌装设备的需求大量增长。依据我国统计局的统计数据,由2000年开始,截止至2011年,11年间中国饮品行业总产量己经由0.15亿吨飞速增长到1.2亿吨,年平均增长率达到近二十一个百分点[1]。国内的包装机械起步不早,且技术含量较低,仅能满足一般生产需求;而且对像光、磁和计算机等一些先进技术的利用很少。这样我国的包装机械的性能就同国外有着一定差距。早期的灌装生产线的电气设备控制系统采用的继电器加接触器控制模式,使用过程灌装速度较慢,不够稳定,经常出现问题;出现故障时,人们总是凭借经验进行排查,同时在饮品生产过程当中经常发生二次污染,导致产品合格率低,降低了企业的生产效益。本文针对灌装生产线的全自动控制系统进行研究,整个灌装过程使用可编程控制器(ProgrammableLogicController,PLC)进行控制,提高了灌装精度和运行稳定性。每个封盖头的工作速度可达2000瓶/小时,灌装容量误差小于0.4%。首先对灌装机进行了基础研究,在此基础上对灌装工艺进行了分析,在熟悉工艺的前提下进行了灌装机控制系统方案设计。然后,根据设计方案,选择灌装机设备制造过程中所需的零部件。在该设备中,PLC是核心模块,主要是PLC的选择和模块定义。最后,对灌装机控制中心的嵌入式软件进行了分析和设计。通过对程序的控制,设计了人机交互界面,方便用户的操作和使用。在人机交互界面的设计中,采用了PLC与控制屏相结合的方式,实现了灌装机设备的自动运行和科学管理。关键词:灌装机;PLC控制;连续灌装AutomaticcontrolfillingmachinebasedonPLCAbsrtact:Withtheimprovementofpeople'slivingstandards,people'sdemandforleisuredrinksisalsoincreasingrapidly.Atthesametime,itstimulatestherapiddevelopmentofthebeverageindustryanddrivesthedemandforliquidfillingequipmenttoincreasesubstantially.AccordingtothestatisticsofChina'sStatisticalBureau,from2000to2011,thetotaloutputofChina'sbeverageindustryhasincreasedrapidlyfrom115milliontonsto120milliontons,withanaverageannualgrowthrateofnearly21percentagepoints[1].Domesticpackagingmachinerystartedearly,andthetechnologycontentislow,whichcanonlymeetthegeneralproductionneeds;moreover,theuseofsomeadvancedtechnologiessuchasoptical,magneticandcomputerisverylittle.Inthisway,theperformanceofpackagingmachineryinourcountryhasacertaingapwiththatinforeigncountries.Therelayandcontactorcontrolmodeadoptedbytheelectricalequipmentcontrolsystemoftheearlyfillingproductionlineisslowinfillingprocess,unstableandoftenhasproblems.Whentherearefaults,peoplealwaysrelyonexperiencetocheck,andatthesametime,secondarypollutionoftenoccursintheproductionprocessofdrinks,whichleadstolowqualifiedrateofproductsandreducestheproductionefficiencyofenterprises.Inthispaper,thefullautomaticcontrolsystemoffillingproductionlineisstudied.Thewholefillingprocessiscontrolledbyprogrammablelogiccontroller(PLC),whichimprovesfillingaccuracyandoperationstability,andintegratescleaning,fillingandcappingoftheproductionline.Theworkingspeedofeachcapcanreach2000bottlesperhour,andthefillingcapacityerrorislessthan0.4%.Firstly,thebasicresearchonfillingmachineisdone,andonthisbasis,thefillingprocessisanalyzed,andthecontrolsystemschemedesignoffillingmachineiscarriedoutundertheconditionoffamiliaritywiththeprocess.Then,accordingtothedesignscheme,thecomponentsneededinthemanufacturingprocessoffillingmachineequipmentareselected.Inthisequipment,PLCisthecoremodule,mainlytheselectionandmoduledefinitionofPLC.Atlast,theembeddedsoftwareofthecontrolcenteroffillingmachineisanalyzedanddesigned.Throught...
