某屠宰厂生产废水处理工程设计VIP免费

某屠宰厂生产废水处理工程设计_第1页
1/64
某屠宰厂生产废水处理工程设计_第2页
2/64
某屠宰厂生产废水处理工程设计_第3页
3/64

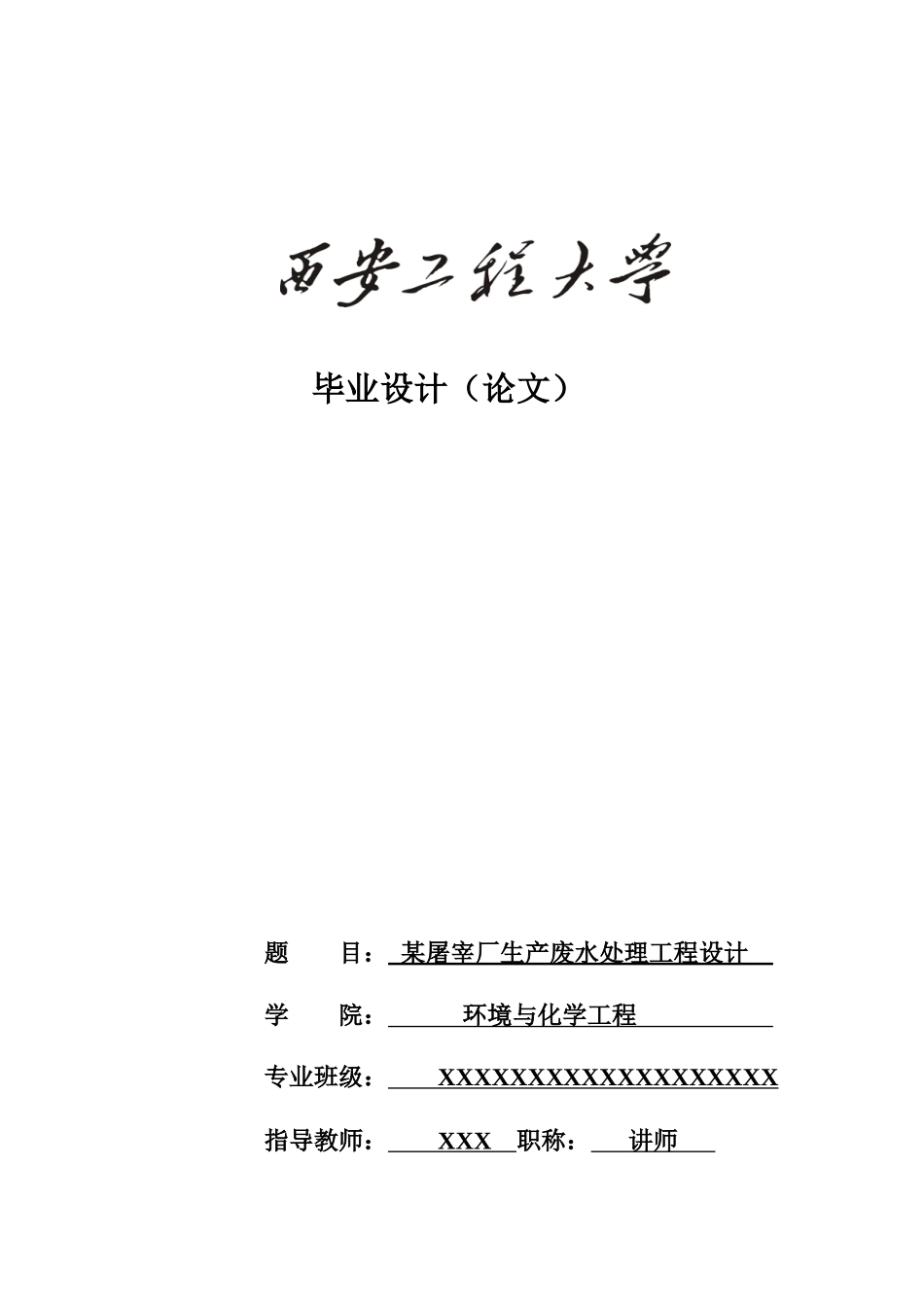

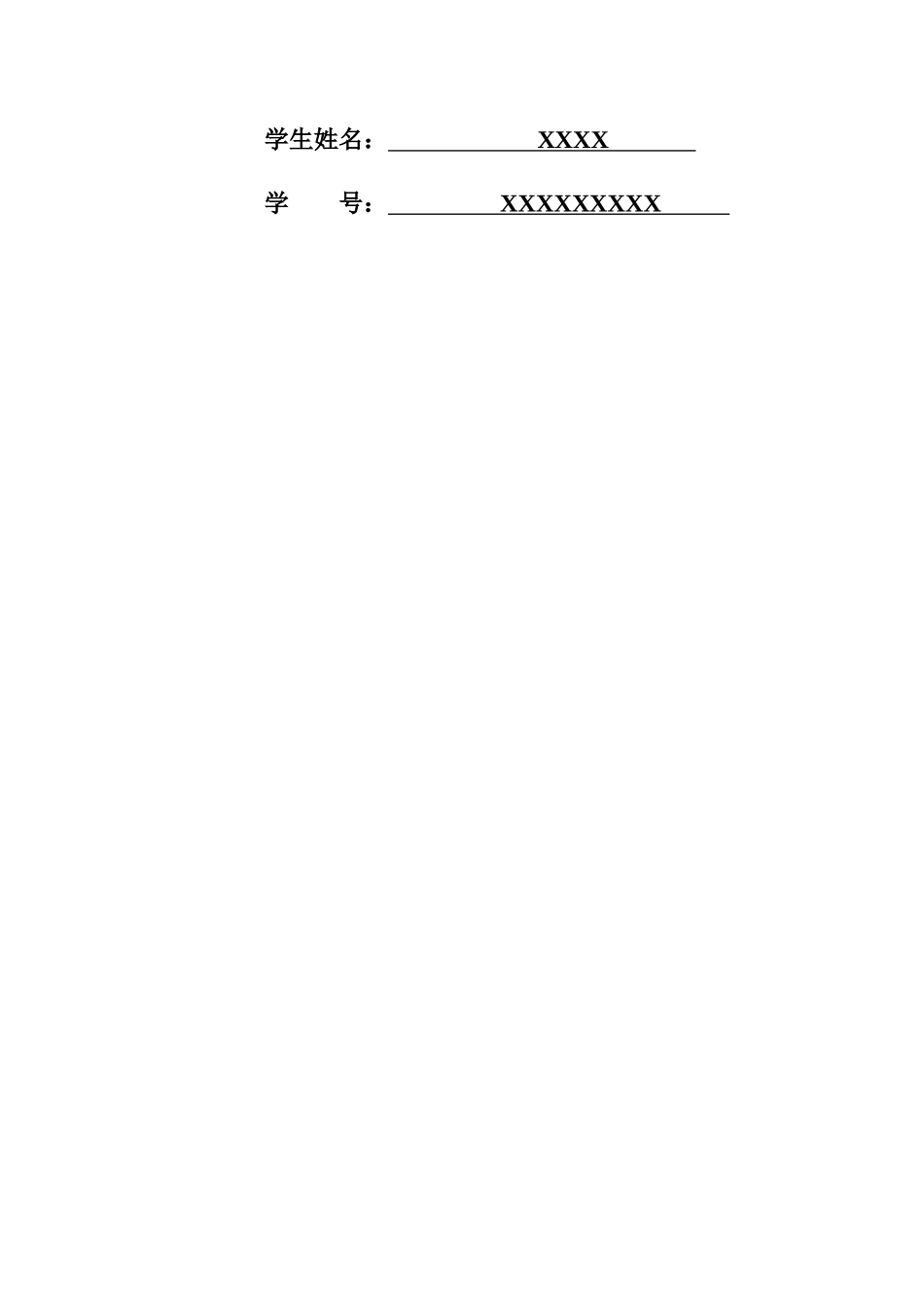

毕业设计(论文)题目:某屠宰厂生产废水处理工程设计学院:环境与化学工程专业班级:XXXXXXXXXXXXXXXXXXX指导教师:XXX职称:讲师学生姓名:XXXX学号:XXXXXXXXX摘要本设计为屠宰厂生产废水处理设计,设计过程为初步设计。屠宰废水水质的主要特点是含有大量的有机物,属高浓度有机废水,故其生化需氧量也较大。该屠宰废水处理厂的处理水量为1800m3/d,不考虑远期发展。原污水中各项指标为BOD浓度为1000mg/L,COD浓度为1800mg/L,SS浓度为800mg/L。因该废水COD值较大,不经处理会对环境造成巨大污染,故要求处理后出水达《肉类加工工业水污染物排放标准》一级排放标准即:BOD≤25mg/L,COD≤80mg/L,SS≤70mg/L。经分析知该处理水属易生物降解又无明显毒性的废水,可采用两级生物处理以使出水达标。一级处理主要采用物理法,用来去除水中的悬浮物质和无机物。二级处理主要采用生物法,包括厌氧生物处理法中的UASB法和好氧生物处理法中的SBR法,可有效去除水中的BOD、COD。整个工艺具有投资少,处理效果好,工艺简单,占地面积省,运行稳定,能耗少的优点。关键词:屠宰废水处理,高浓度有机废水,格栅,气浮池,UABA法,SBR法ABSTRACTThisdesignisoneslaughterhousewastewatertreatment.Thedegreeofthedesingisinapreliminaryphase.Themaindistinguishingfeatureoftheslaughterhousewastewatertreatmentisthatitcontainsthemassiveorganicmatters,soitbelongstothehighdemandisalsohing.Thewaterwhichneedstotreatmentintheslaughterhousewastewatertreatmentplantis1800m3/d,regardelessofthespecifiedfuturedevelopment.Varioustargetintherawwastewateris:theconcentrationofBODis1000mg/L,theconcentrationofCODis1800mg/L,theconcentrationofSSis800mg/L.fortheslaughterhousewastewater’sCODishigh,itcouldpollutetheenvironmentifdrainedbeforetreatment,soitrequesttheslaughterhousewastewaterwhichdrainedmustbestrictlytreatedtotheoneeffluencestandardinthecountry,whichisasfollowing:BOD≤25mg/L,COD≤80mg/L,SS≤70mg/L.Aftertheanalysis,thequalityofthisprocessingwaterbelongstothewastewaterthateasybiologydegradeandnothavetheobviouspoison,couldusetwolevelsofbiologicaltreatmenttocausethewaterdrainedmeetthedesignatedstandard.firstlevelofprocessingmainlyusesthephysicalmethods,whichremovesthesuspendedmatterandtheinorganicsubstanceinthesewage.Secondlevelsofprocessingmainlyusesthebiologymethods,consistsofUASBofdemandoxygenbiologymethodsandSBRofanaerobicoxygenbiologymethods,whichcouldremoveBOD,CODinthewastewater.Theentirtechnologicalprocesshavethecharacterisiticsoflowerinvestment,goodtreatmenteffect,easytechnologyprocess,usingsmallarea,runningsteady,andconsuminglowerenergy.KEYWORDS:slaughterhousewastewatertreatment,highconcentrationoforganicwastewater,screens,flotation,UASBtechnology,SBRtechnology目录摘要............................................................................................................................2前言............................................................................................................................1第1章概论................................................................................................................21.1设计任务及依据............................................................................................21.1.1设计任务.............................................................................................21.1.2设计依据.............................................................................................21.2设计要求........................................................................................................21.3设计原则......
