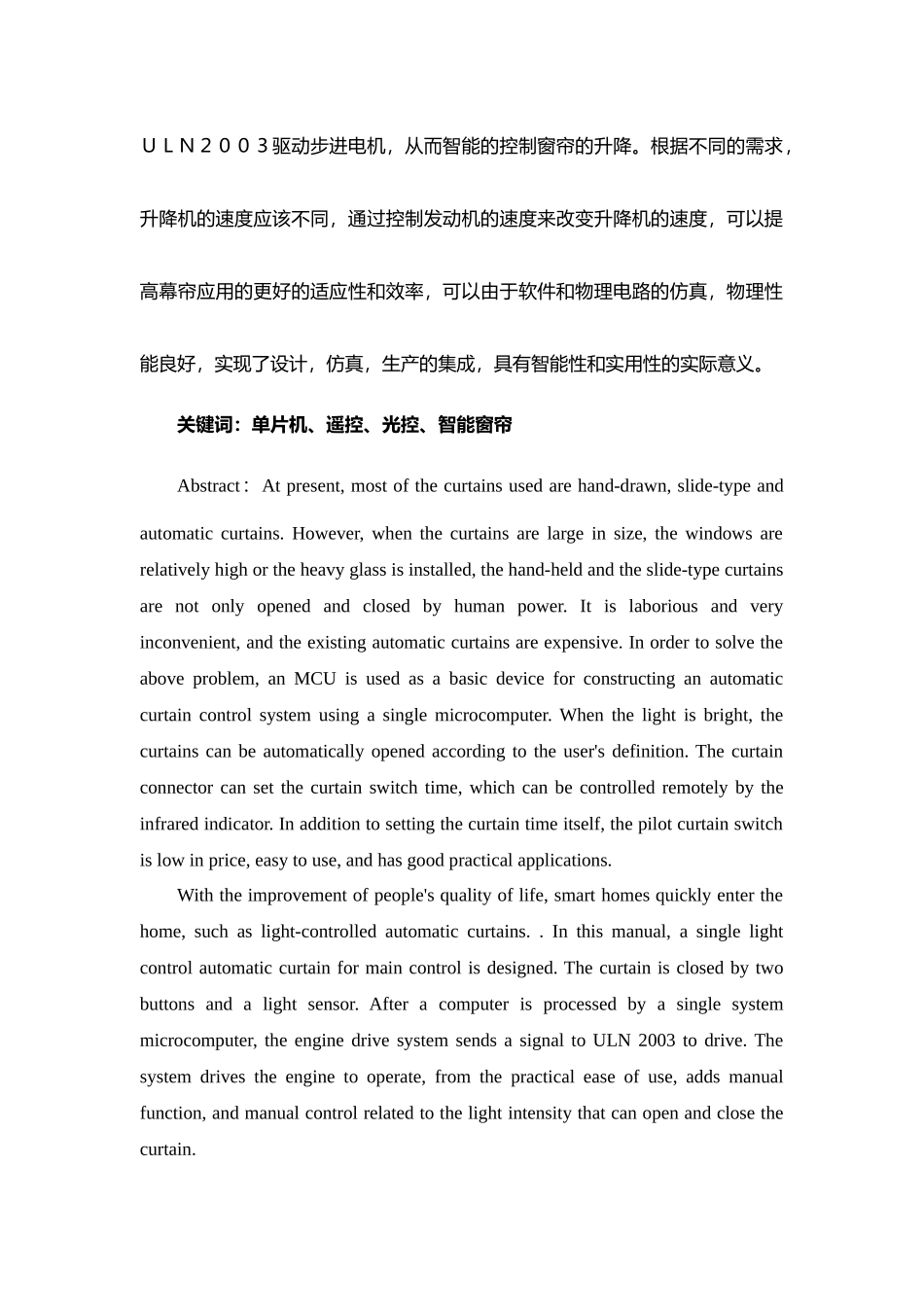

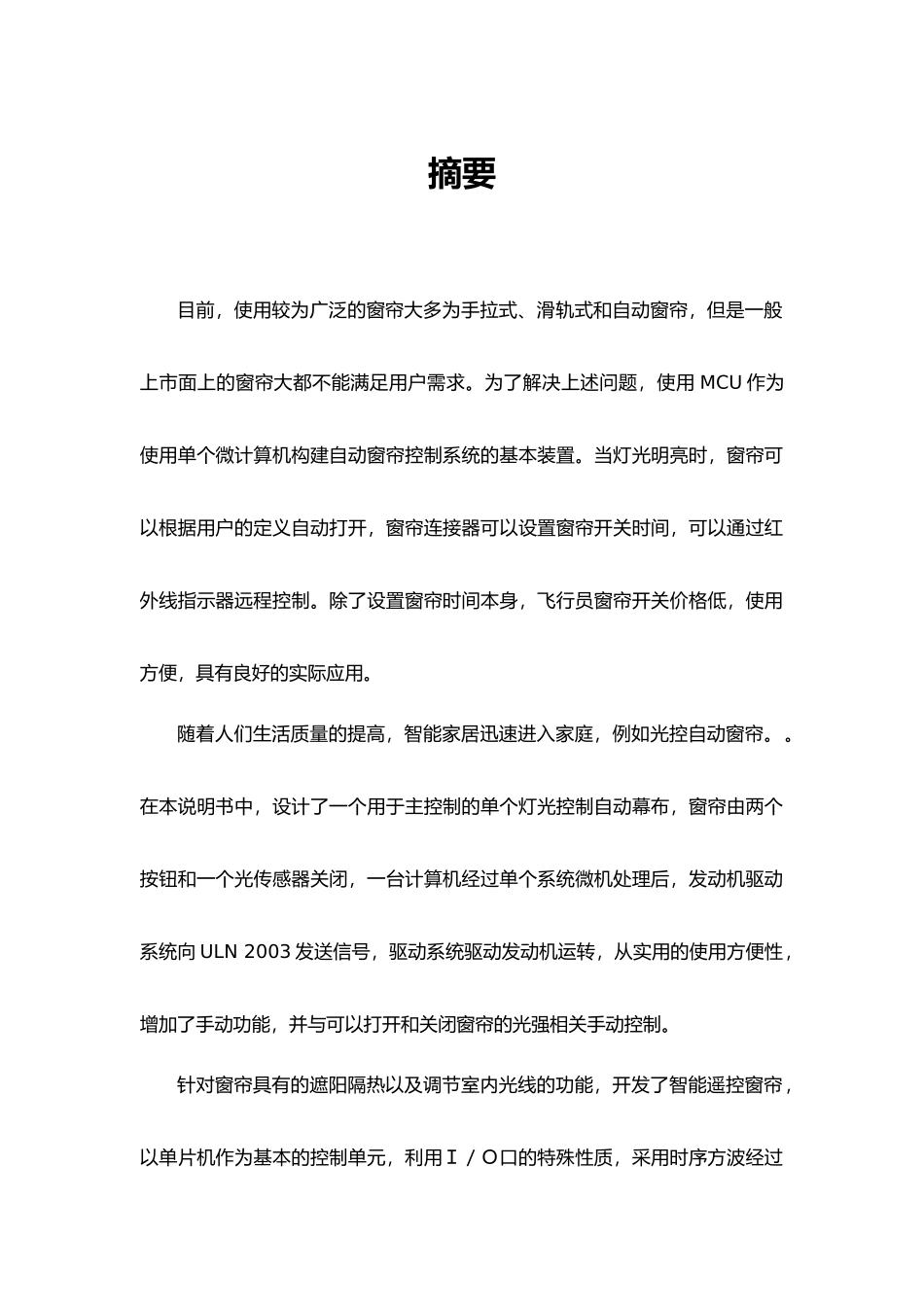

摘要目前，使用较为广泛的窗帘大多为手拉式、滑轨式和自动窗帘，但是一般上市面上的窗帘大都不能满足用户需求。为了解决上述问题，使用MCU作为使用单个微计算机构建自动窗帘控制系统的基本装置。当灯光明亮时，窗帘可以根据用户的定义自动打开，窗帘连接器可以设置窗帘开关时间，可以通过红外线指示器远程控制。除了设置窗帘时间本身，飞行员窗帘开关价格低，使用方便，具有良好的实际应用。随着人们生活质量的提高，智能家居迅速进入家庭，例如光控自动窗帘。。在本说明书中，设计了一个用于主控制的单个灯光控制自动幕布，窗帘由两个按钮和一个光传感器关闭，一台计算机经过单个系统微机处理后，发动机驱动系统向ULN2003发送信号，驱动系统驱动发动机运转，从实用的使用方便性，增加了手动功能，并与可以打开和关闭窗帘的光强相关手动控制。针对窗帘具有的遮阳隔热以及调节室内光线的功能，开发了智能遥控窗帘，以单片机作为基本的控制单元，利用Ｉ／Ｏ口的特殊性质，采用时序方波经过ＵＬＮ２００３驱动步进电机，从而智能的控制窗帘的升降。根据不同的需求，升降机的速度应该不同，通过控制发动机的速度来改变升降机的速度，可以提高幕帘应用的更好的适应性和效率，可以由于软件和物理电路的仿真，物理性能良好，实现了设计，仿真，生产的集成，具有智能性和实用性的实际意义。关键词：单片机、遥控、光控、智能窗帘Abstract：Atpresent,mostofthecurtainsusedarehand-drawn,slide-typeandautomaticcurtains.However,whenthecurtainsarelargeinsize,thewindowsarerelativelyhighortheheavyglassisinstalled,thehand-heldandtheslide-typecurtainsarenotonlyopenedandclosedbyhumanpower.Itislaboriousandveryinconvenient,andtheexistingautomaticcurtainsareexpensive.Inordertosolvetheaboveproblem,anMCUisusedasabasicdeviceforconstructinganautomaticcurtaincontrolsystemusingasinglemicrocomputer.Whenthelightisbright,thecurtainscanbeautomaticallyopenedaccordingtotheuser'sdefinition.Thecurtainconnectorcansetthecurtainswitchtime,whichcanbecontrolledremotelybytheinfraredindicator.Inadditiontosettingthecurtaintimeitself,thepilotcurtainswitchislowinprice,easytouse,andhasgoodpracticalapplications.Withtheimprovementofpeople'squalityoflife,smarthomesquicklyenterthehome,suchaslight-controlledautomaticcurtains..Inthismanual,asinglelightcontrolautomaticcurtainformaincontrolisdesigned.Thecurtainisclosedbytwobuttonsandalightsensor.Afteracomputerisprocessedbyasinglesystemmicrocomputer,theenginedrivesystemsendsasignaltoULN2003todrive.Thesystemdrivestheenginetooperate,fromthepracticaleaseofuse,addsmanualfunction,andmanualcontrolrelatedtothelightintensitythatcanopenandclosethecurtain.Inviewoftheshadinginsulationofcurtainsandthefunctionofadjustingindoorlight,theintelligentremotecontrolcurtainsweredeveloped.Withthesingle-chipmicrocomputerasthebasiccontrolunit,thespecialcharacteristicsoftheI/Oportwereused,andthesteppedsquarewavewasdrivenbyULN2003todrivethesteppingmotor.Controltheliftingofthecurtains.Accordingtodifferentneeds,thespeedoftheelevatorshouldbedifferent.Bychangingthespeedoftheenginetochangethespeedoftheelevator,theadaptabilityandefficiencyofthecurtainapplicationcanbeimproved.Thephysicalperformancecanbeimprovedduetothesimulationofsoftwareandphysicalcircuits.Design,simulation,productionintegration,practicalandpracticalmeaningKeywords:singlechipmicrocomputer,remotecontrol,lightcontrol,intelligentcurtain目录摘要...................................................................................................................1第一章绪论......................................................................................
