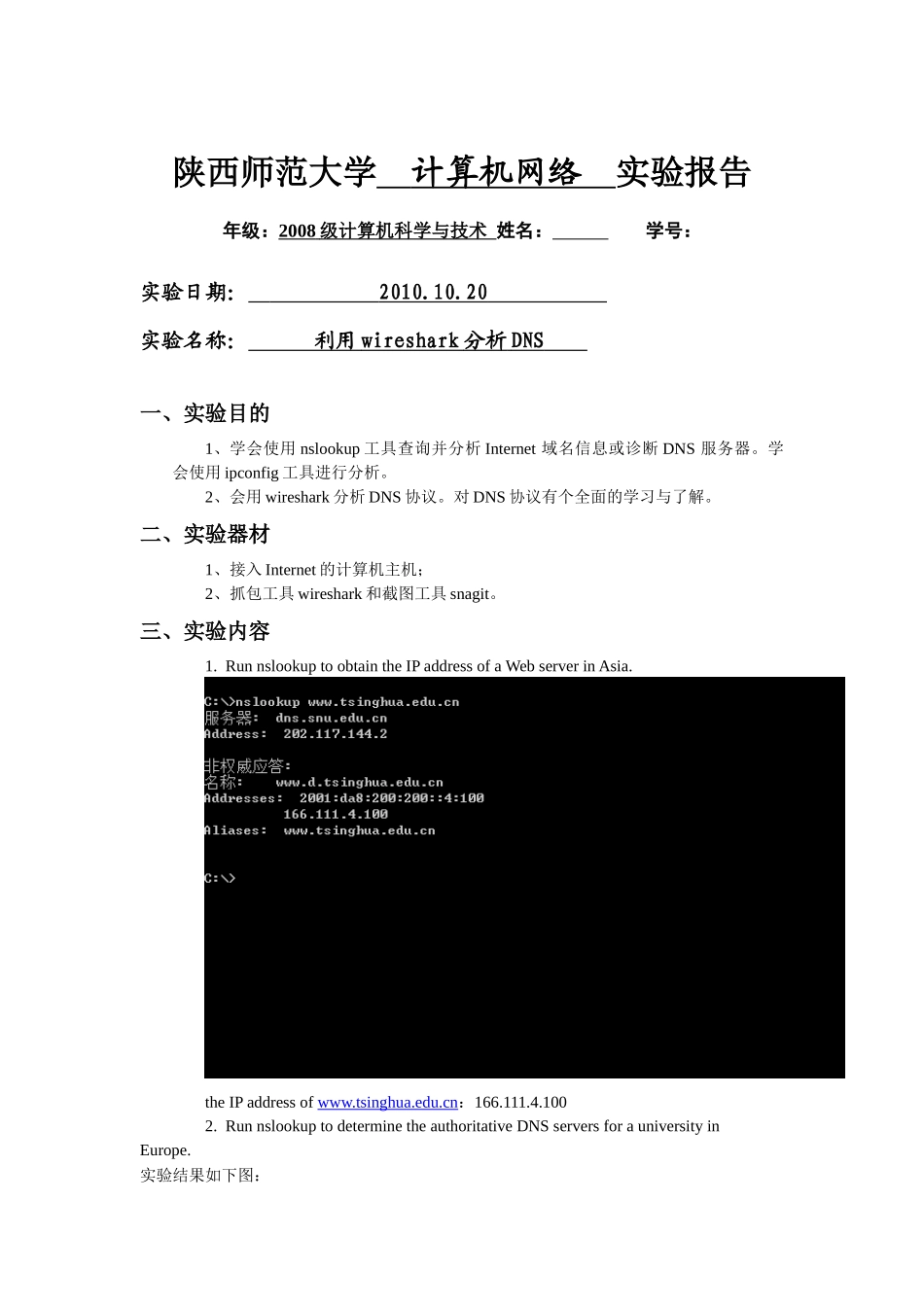

实验四利用wireshark分析DNS实验报告_第1页
1/11

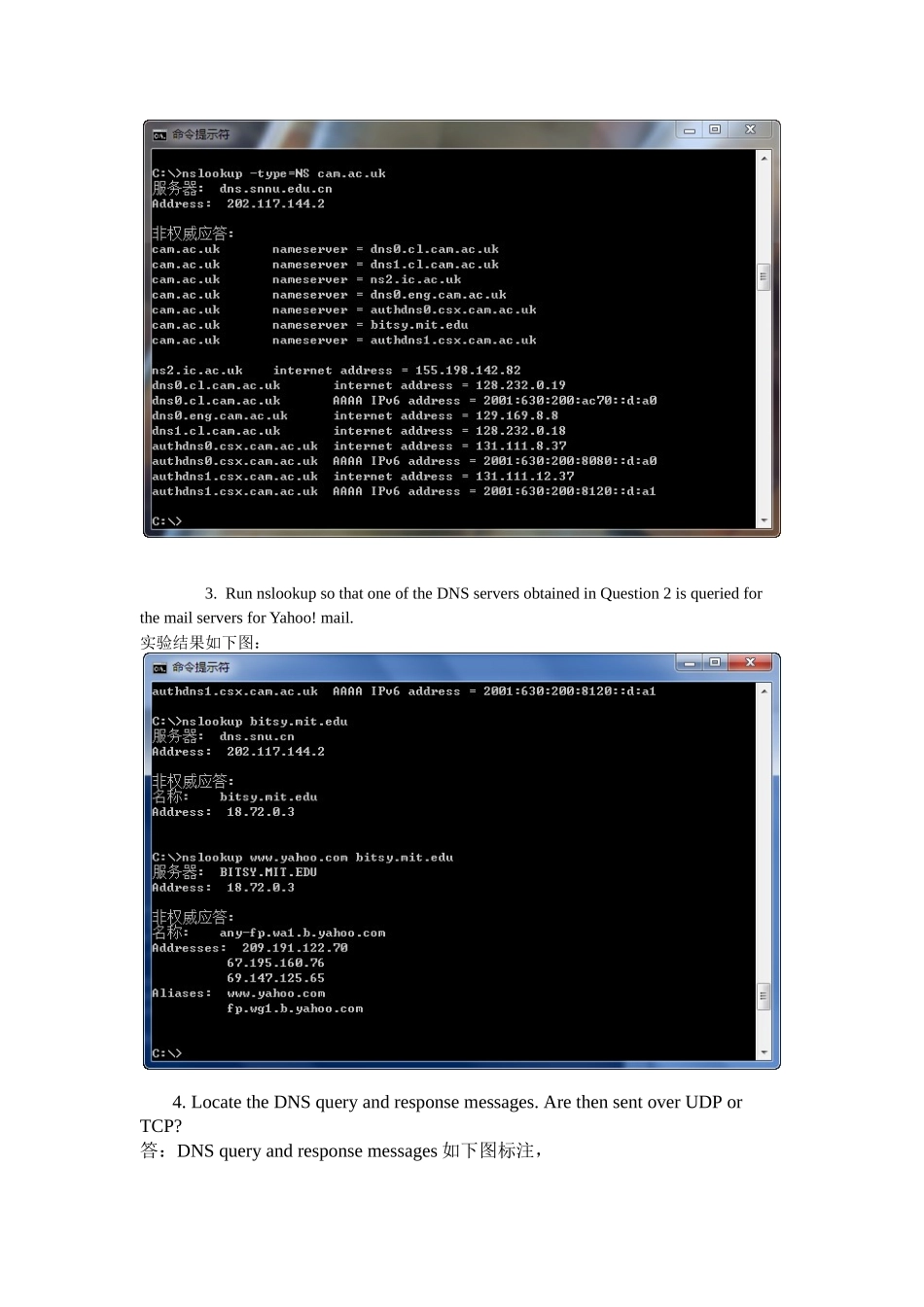

实验四利用wireshark分析DNS实验报告_第2页
2/11

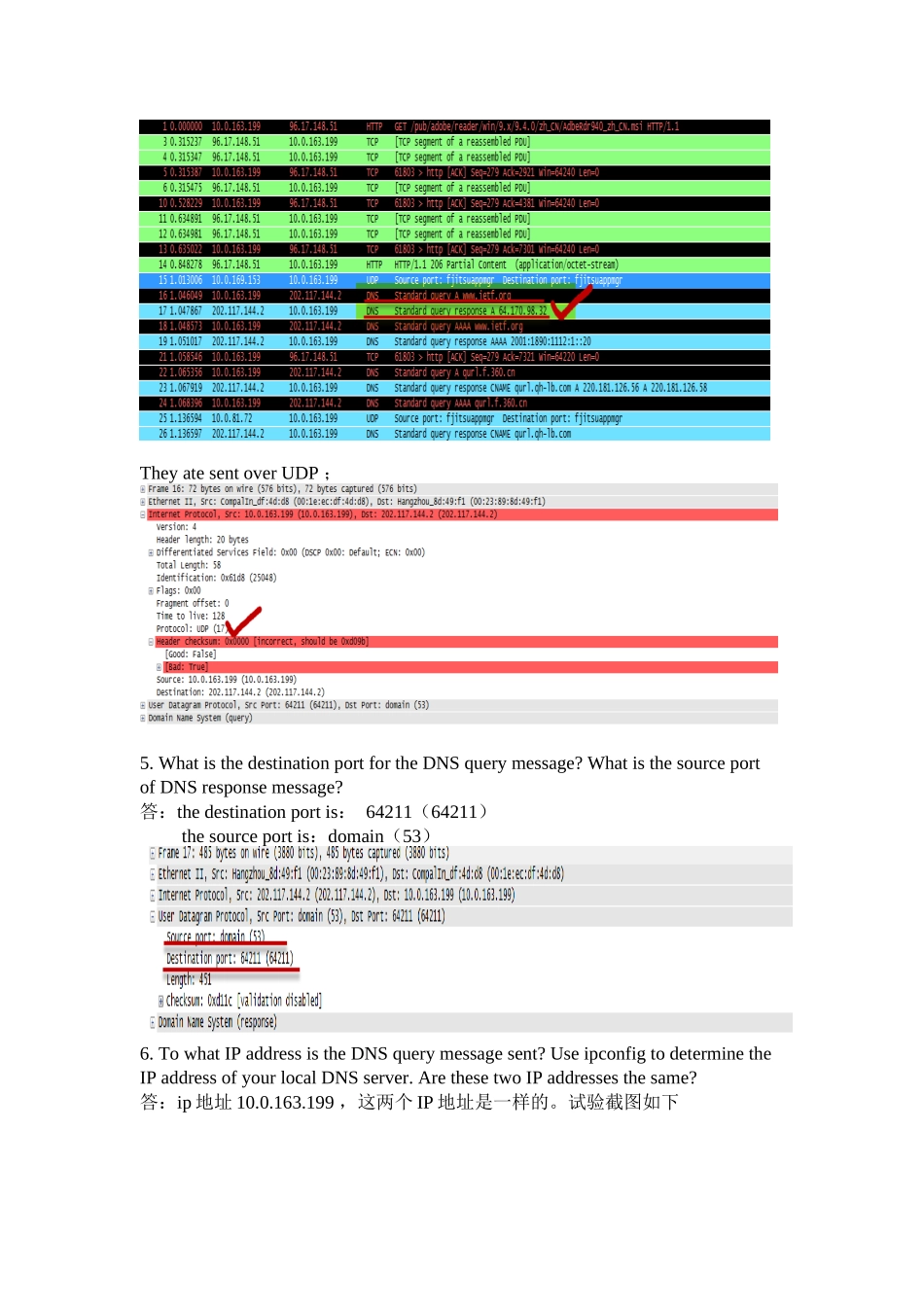

实验四利用wireshark分析DNS实验报告_第3页
3/11
陕西师范大学计算机网络实验报告年级:2008级计算机科学与技术姓名:学号:实验日期:2010.10.20实验名称:利用wireshark分析DNS一、实验目的1、学会使用nslookup工具查询并分析Internet域名信息或诊断DNS服务器。学会使用ipconfig工具进行分析。2、会用wireshark分析DNS协议。对DNS协议有个全面的学习与了解。二、实验器材1、接入Internet的计算机主机;2、抓包工具wireshark和截图工具snagit。三、实验内容1.RunnslookuptoobtaintheIPaddressofaWebserverinAsia.theIPaddressofwww.tsinghua.edu.cn:166.111.4.1002.RunnslookuptodeterminetheauthoritativeDNSserversforauniversityinEurope.实验结果如下图:3.RunnslookupsothatoneoftheDNSserversobtainedinQuestion2isqueriedforthemailserversforYahoo!mail.实验结果如下图:4.LocatetheDNSqueryandresponsemessages.ArethensentoverUDPorTCP?答:DNSqueryandresponsemessages如下图标注,TheyatesentoverUDP;5.WhatisthedestinationportfortheDNSquerymessage?WhatisthesourceportofDNSresponsemessage?答:thedestinationportis:64211(64211)thesourceportis:domain(53)6.TowhatIPaddressistheDNSquerymessagesent?UseipconfigtodeterminetheIPaddressofyourlocalDNSserver.ArethesetwoIPaddressesthesame?答:ip地址10.0.163.199,这两个IP地址是一样的。试验截图如下7.ExaminetheDNSquerymessage.What“Type”ofDNSqueryisit?Doesthequerymessagecontainany“answers”?答:“Type”ofDNSqueryis(hostaddress)没有包含“answer”;8.ExaminetheDNSresponsemessage.Howmany“answers”areprovided?Whatdoeachoftheseanswerscontain?答:“answers”如下图:9.ConsiderthesubsequentTCPSYNpacketsentbyyourhost.DoesthedestinationIPaddressoftheSYNpacketcorrespondtoanyoftheIPaddressesprovidedintheDNSresponsemessage?答:10.Thiswebpagecontainsimages.Beforeretrievingeachimage,doesyourhostissuenewDNSqueries?答:myhostissuedon’tissuenewDNSqueries。11.WhatisthedestinationportfortheDNSquerymessage?WhatisthesourceportofDNSresponsemessage?答:thedestinationportfortheDNSquerymessage:thesourceportofDNSresponsemessage:他们是相同的。12.TowhatIPaddressistheDNSquerymessagesent?IsthistheIPaddressofyourdefaultlocalDNSserver?IPaddress:202.117.144.2ThisistheIPaddressofmydefaultlocalDNSserver(202.117.144.2)13.ExaminetheDNSquerymessage.What“Type”ofDNSqueryisit?Doesthequerymessagecontainany“answers”?答:“Type”ofDNSquery“answers”:14.ExaminetheDNSresponsemessage.Howmany“answers”areprovided?Whatdoeachoftheseanswerscontain?答:15.Provideascreenshot.16.TowhatIPaddressistheDNSquerymessagesent?IsthistheIPaddressofyourdefaultlocalDNSserver?IPaddress:202.117.144.2他们是相同的。17.ExaminetheDNSquerymessage.What“Type”ofDNSqueryisit?Doesthequerymessagecontainany“answers”?18.ExaminetheDNSresponsemessage.WhatMITnameserversdoestheresponsemessageprovide?DoesthisresponsemessagealsoprovidetheIPaddressesoftheMITnamesers?答:MITnameservers如下划线thisresponsemessagedon’tprovidetheIPaddressesoftheMITnamesers。19.Provideascreenshot.20.TowhatIPaddressistheDNSquerymessagesent?IsthistheIPaddressofyourdefaultlocalDNSserver?Ifnot,whatdoestheIPaddresscorrespondto?Ipaddress:18.72.0.3ThisisnottheIPaddressofmydefaultlocalDNSserver。theIPaddresscorrespondtobit.mit.edu21.ExaminetheDNSquerymessage.What“Type”ofDNSqueryisit?Doesthequerymessagecontainany“answers”?type如下图:Answer如下图:22.ExaminetheDNSresponsemessage.Howmany“answers”areprovided?Whatdoeseachoftheseanswerscontain?答:3个answer23.Provideascreenshot.四、实验总结1、通过实验学会了对DNS协议的分析,能借助于nslookup和ipconfig对DNS进行分析。2、通过实验让自己更清楚的认识了域名的定义。3、学会了ipconfig的相关操作,能熟练的运用ipconfig进行操作。
