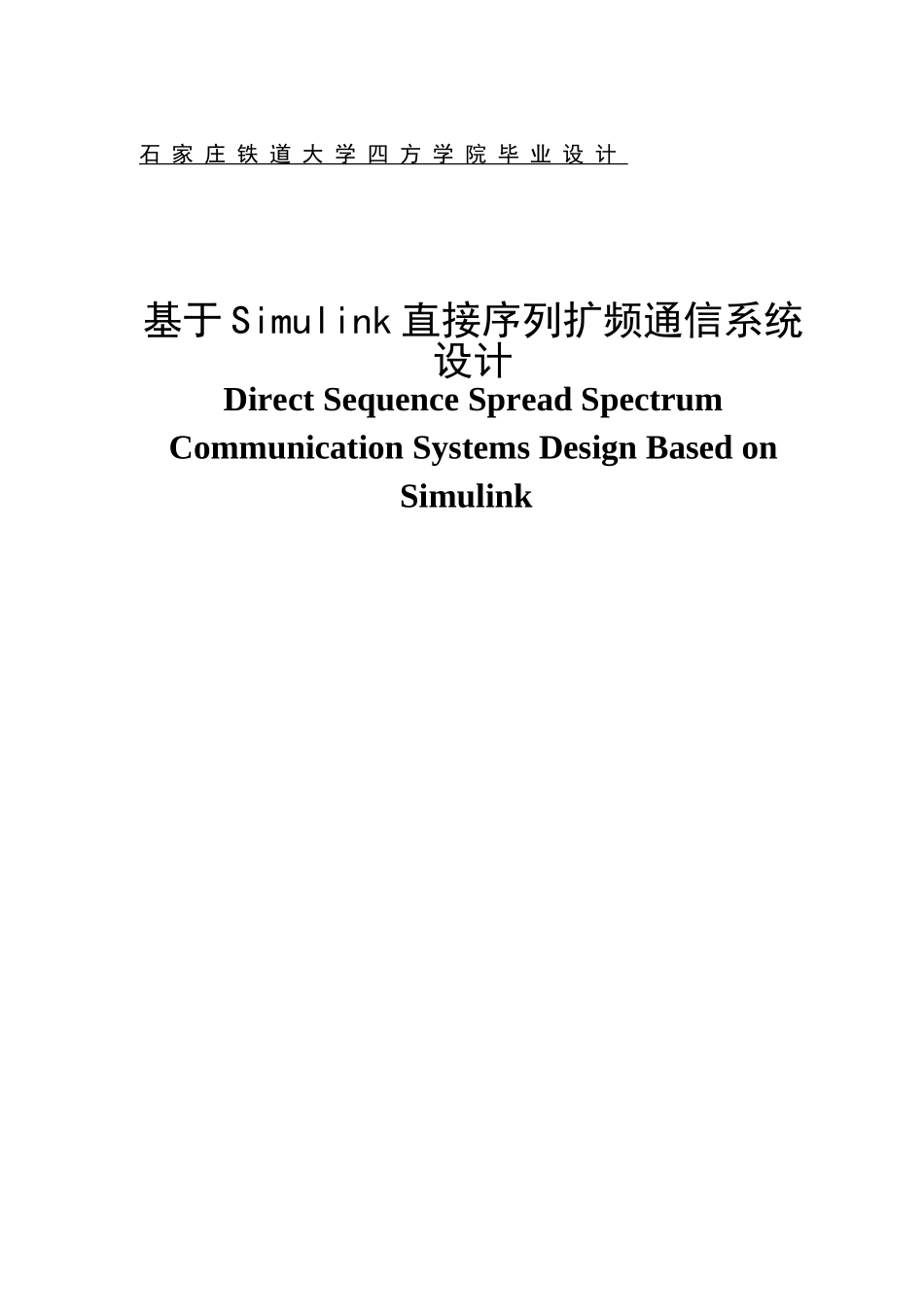

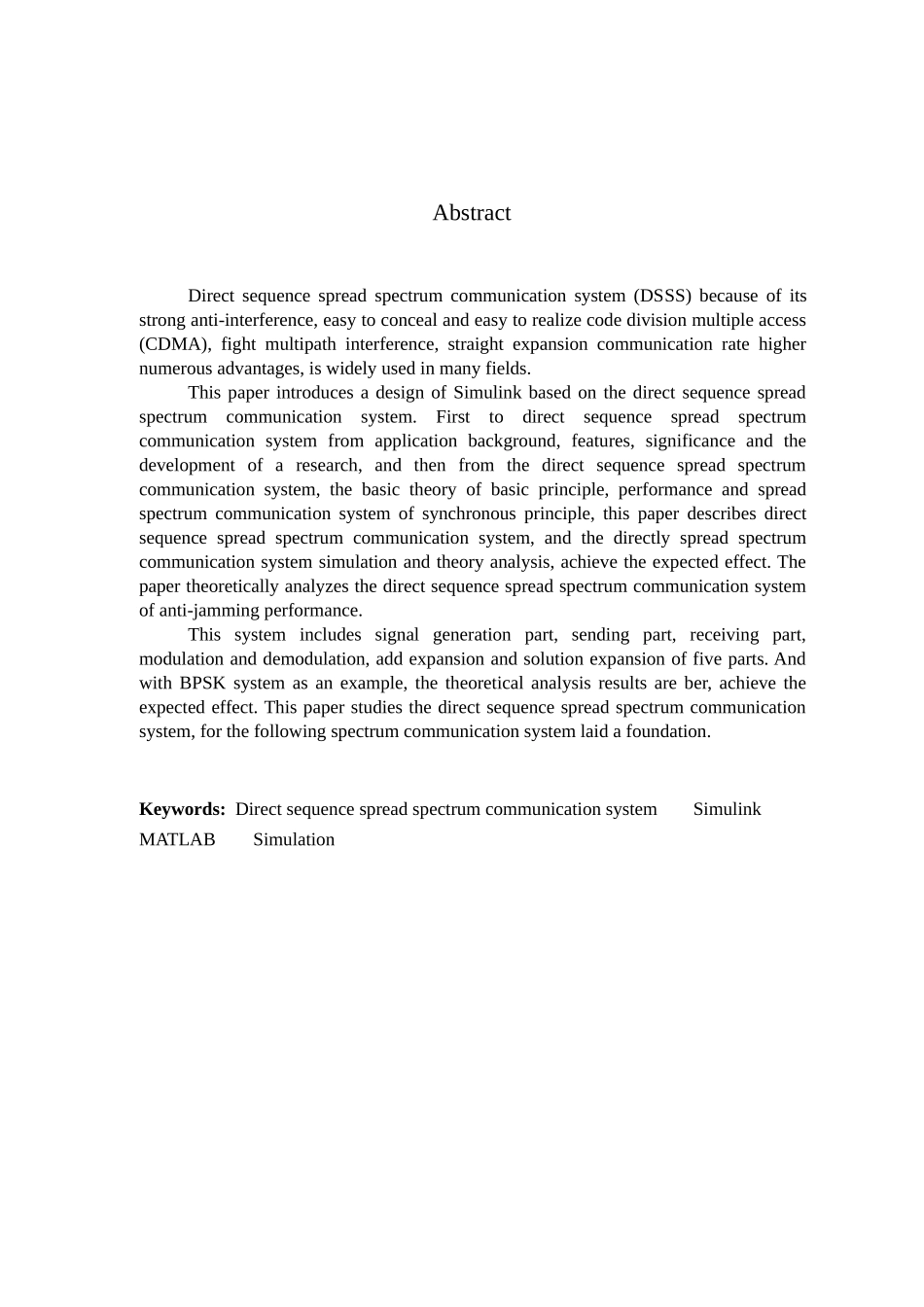

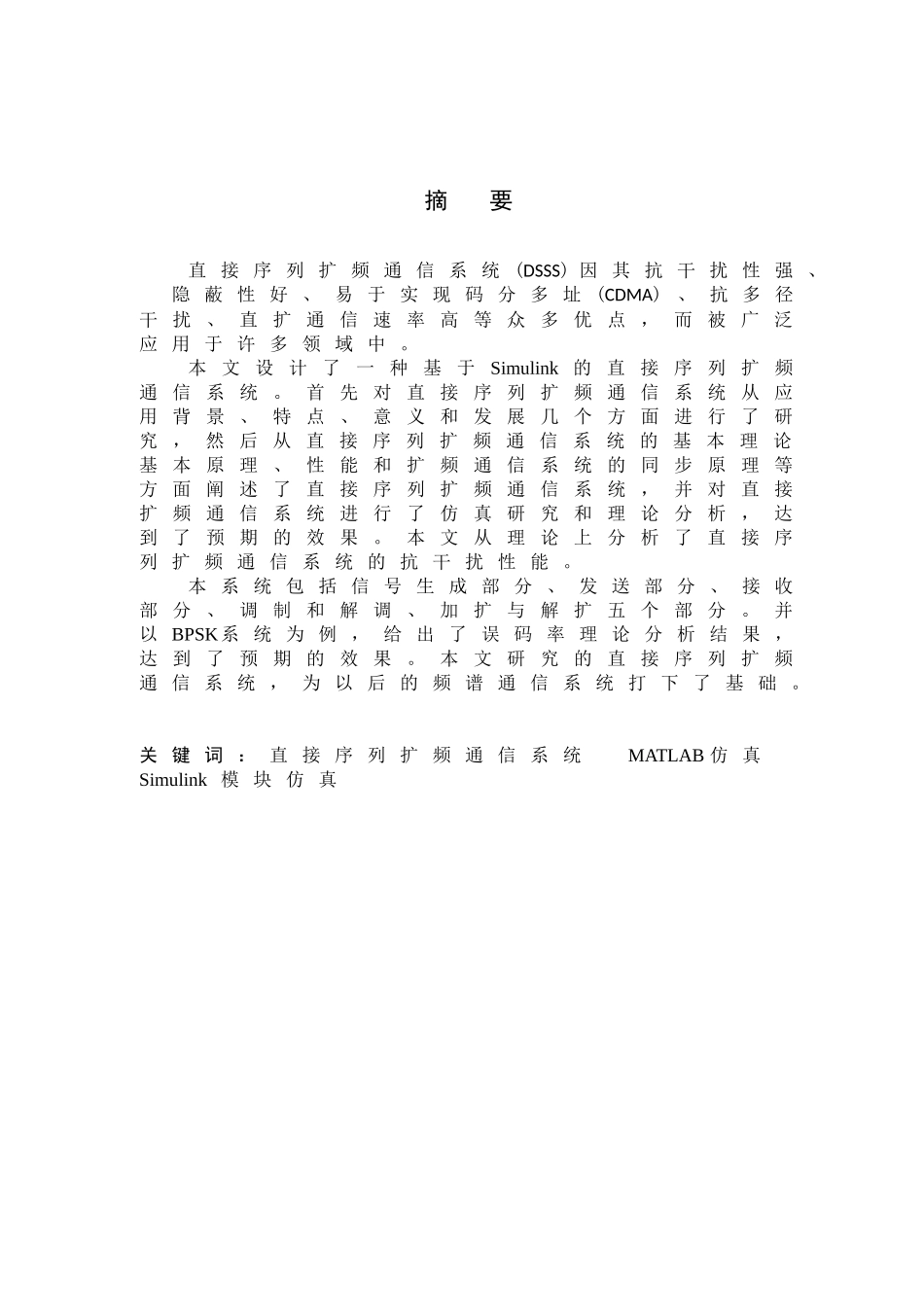

石家庄铁道大学四方学院毕业设计基于Simulink直接序列扩频通信系统设计DirectSequenceSpreadSpectrumCommunicationSystemsDesignBasedonSimulink摘要直接序列扩频通信系统(DSSS)因其抗干扰性强、隐蔽性好、易于实现码分多址(CDMA)、抗多径干扰、直扩通信速率高等众多优点,而被广泛应用于许多领域中。本文设计了一种基于Simulink的直接序列扩频通信系统。首先对直接序列扩频通信系统从应用背景、特点、意义和发展几个方面进行了研究,然后从直接序列扩频通信系统的基本理论基本原理、性能和扩频通信系统的同步原理等方面阐述了直接序列扩频通信系统,并对直接扩频通信系统进行了仿真研究和理论分析,达到了预期的效果。本文从理论上分析了直接序列扩频通信系统的抗干扰性能。本系统包括信号生成部分、发送部分、接收部分、调制和解调、加扩与解扩五个部分。并以BPSK系统为例,给出了误码率理论分析结果,达到了预期的效果。本文研究的直接序列扩频通信系统,为以后的频谱通信系统打下了基础。关键词:直接序列扩频通信系统MATLAB仿真Simulink模块仿真AbstractDirectsequencespreadspectrumcommunicationsystem(DSSS)becauseofitsstronganti-interference,easytoconcealandeasytorealizecodedivisionmultipleaccess(CDMA),fightmultipathinterference,straightexpansioncommunicationratehighernumerousadvantages,iswidelyusedinmanyfields.ThispaperintroducesadesignofSimulinkbasedonthedirectsequencespreadspectrumcommunicationsystem.Firsttodirectsequencespreadspectrumcommunicationsystemfromapplicationbackground,features,significanceandthedevelopmentofaresearch,andthenfromthedirectsequencespreadspectrumcommunicationsystem,thebasictheoryofbasicprinciple,performanceandspreadspectrumcommunicationsystemofsynchronousprinciple,thispaperdescribesdirectsequencespreadspectrumcommunicationsystem,andthedirectlyspreadspectrumcommunicationsystemsimulationandtheoryanalysis,achievetheexpectedeffect.Thepapertheoreticallyanalyzesthedirectsequencespreadspectrumcommunicationsystemofanti-jammingperformance.Thissystemincludessignalgenerationpart,sendingpart,receivingpart,modulationanddemodulation,addexpansionandsolutionexpansionoffiveparts.AndwithBPSKsystemasanexample,thetheoreticalanalysisresultsareber,achievetheexpectedeffect.Thispaperstudiesthedirectsequencespreadspectrumcommunicationsystem,forthefollowingspectrumcommunicationsystemlaidafoundation.Keywords:DirectsequencespreadspectrumcommunicationsystemSimulinkMATLABSimulation目录第1章绪论11.1直接扩频通信系统的应用背景11.2直接扩频通信系统的意义11.3直接扩频通信系统的特点11.4直接扩频通信系统的发展3第2章直接扩频通信系统技术42.1直接序列扩频基本理论42.1.1扩频通信的理论基础42.1.2扩频增益和抗干扰容限52.2直接序列扩频的基本原理62.3直接序列扩频的基本原理92.3.1直扩系统的抗干扰性92.3.2直扩系统的抗截获性102.3.3直扩码分多址通信系统112.3.4直扩系统的抗多径干扰性能112.3.5直扩测距定时系统122.3.6扩频序列通信系统的同步原理12第3章基于Simulink的直接序列扩频通信系统的仿真143.1直接序列扩频通信系统功能模块的连接及设置143.1.1功能模块的连接143.1.2直接序列扩频通信系统功能模块的连接及设置173.2直接序列扩频通信系统功能的实现233.3总结28第4章直接扩频通信系统性能分析294.1直接序列扩频系统误码率的仿真294.2仿真结果分析314.3结论32第5章应用33参考文献34致谢35附录36附录A外文资料36I石家庄铁道大学四方学院毕业设计第1章绪论1.1直接扩频通信系统的应用背景直接序列扩频技术是当今人们所熟知的扩频技术之一。这种技术是将要发送的信息用伪随机码(PN码)扩展到一个很宽的频带上去,在接收端,用与发端扩展用的伪随机码对接收到的扩频信号进行相关处理,恢复出发送的信息。它是二战期间开发的,最初的用途是为军事通信...
