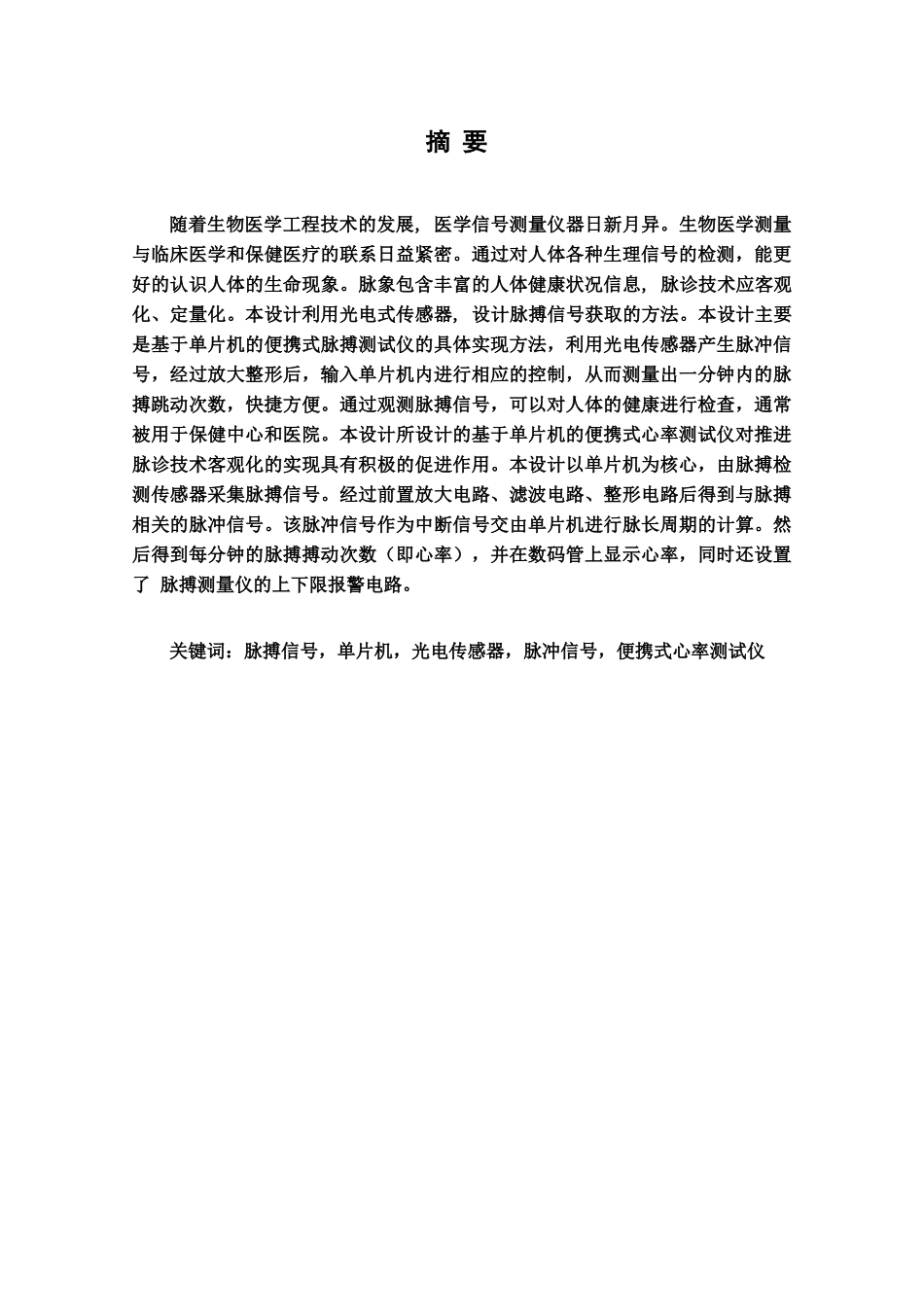

河南城建学院本科毕业设计（论文）摘要摘要随着生物医学工程技术的发展,医学信号测量仪器日新月异。生物医学测量与临床医学和保健医疗的联系日益紧密。通过对人体各种生理信号的检测，能更好的认识人体的生命现象。脉象包含丰富的人体健康状况信息,脉诊技术应客观化、定量化。本设计利用光电式传感器,设计脉搏信号获取的方法。本设计主要是基于单片机的便携式脉搏测试仪的具体实现方法，利用光电传感器产生脉冲信号，经过放大整形后，输入单片机内进行相应的控制，从而测量出一分钟内的脉搏跳动次数，快捷方便。通过观测脉搏信号，可以对人体的健康进行检查，通常被用于保健中心和医院。本设计所设计的基于单片机的便携式心率测试仪对推进脉诊技术客观化的实现具有积极的促进作用。本设计以单片机为核心，由脉搏检测传感器采集脉搏信号。经过前置放大电路、滤波电路、整形电路后得到与脉搏相关的脉冲信号。该脉冲信号作为中断信号交由单片机进行脉长周期的计算。然后得到每分钟的脉搏搏动次数（即心率），并在数码管上显示心率，同时还设置了脉搏测量仪的上下限报警电路。关键词：脉搏信号，单片机，光电传感器，脉冲信号，便携式心率测试仪I河南城建学院本科毕业设计（论文）AbstractAbstractWiththedevelopmentofthebiomedicalengineeringtechnology,themedicalsignalmeasuringinstrumentischangingeveryday.Biomedicalmeasurementandclinicalmedicineandhealthcareincreasinglycloseties.Wecouldbetterunderstandthephenomenonofhuman.lifethroughvariousphysiologicalsignaldetectionofthehumanbody.Pulseinclusionsrichstateofthehealthinformation,Byusingopticalsensors,Withthehighdevelopmentofelectronicsandcomputernowadays,thepulsediagnosingtechnologyshouldbeobjectiveandquantitive.thistextaccesstothepulsesignaldesignmethods.Thispapermainlyintroducestheconcreterealizationmethodfordigitalpulsecounter,whichusesphotoelectricsensorstogeneratepulsesignal.ThepulsesignalisamplifiedandregeneratedtoinputintoMCUtocarryoutcorrespondingcontrol,asaresultthepulsenumberperaminuteismeasured.Theuseofthepulsecounterisquickandconvenient.Throughobservingthepulsesignal,humanhealthcanbeinspected,itisusuallyusedinhealthcarecentersandthehospitals.Inmydesign,PortableheartratemeasuringinstrumentbasedonMCUhasapositiveroleinpromotingtheobjectiveofthepulsetechnology.Keywords:Pulse，MCU，PhotoelectricSensor，PulseSignal，PortableII河南城建学院本科毕业设计（论文）目录目录摘要...........................................................................................................................................................IAbstract.................................................................................................................................................II1绪论.........................................................................................................................................................11.1课题设计背景.......................................................................................................................11.2国内外研究现状...................................................................................................................21.3设计的主要内容...................................................................................................................32系统的总体设计方案.......................................................................................................................42.1系统的总体设计...................................................................................................................42.2方案的对比和论证.......
