基于单片机的步进电机电路控制设计英文文献及翻译VIP专享VIP免费

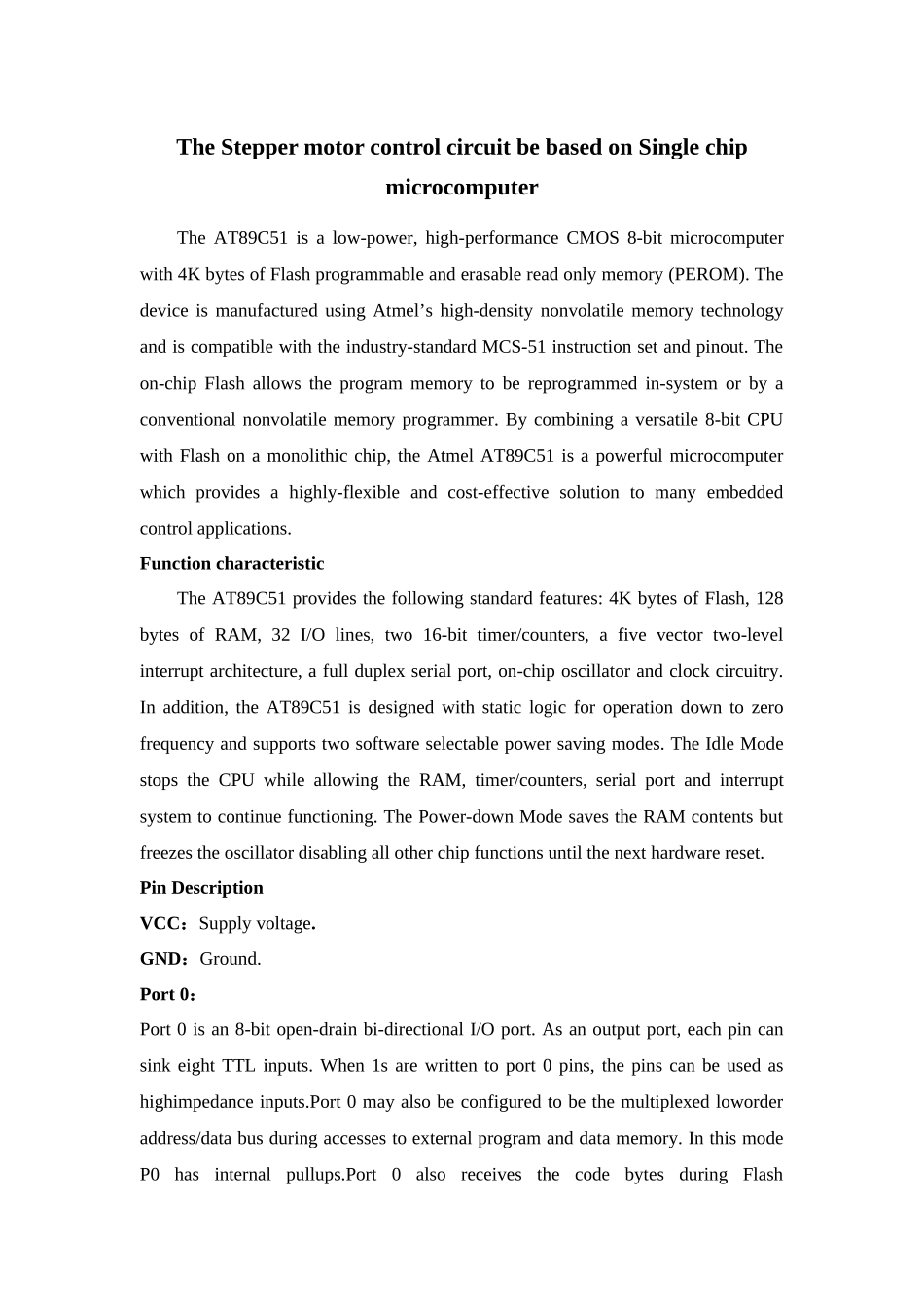

TheSteppermotorcontrolcircuitbebasedonSinglechipmicrocomputerTheAT89C51isalow-power,high-performanceCMOS8-bitmicrocomputerwith4KbytesofFlashprogrammableanderasablereadonlymemory(PEROM).ThedeviceismanufacturedusingAtmel’shigh-densitynonvolatilememorytechnologyandiscompatiblewiththeindustry-standardMCS-51instructionsetandpinout.Theon-chipFlashallowstheprogrammemorytobereprogrammedin-systemorbyaconventionalnonvolatilememoryprogrammer.Bycombiningaversatile8-bitCPUwithFlashonamonolithicchip,theAtmelAT89C51isapowerfulmicrocomputerwhichprovidesahighly-flexibleandcost-effectivesolutiontomanyembeddedcontrolapplications.FunctioncharacteristicTheAT89C51providesthefollowingstandardfeatures:4KbytesofFlash,128bytesofRAM,32I/Olines,two16-bittimer/counters,afivevectortwo-levelinterruptarchitecture,afullduplexserialport,on-chiposcillatorandclockcircuitry.Inaddition,theAT89C51isdesignedwithstaticlogicforoperationdowntozerofrequencyandsupportstwosoftwareselectablepowersavingmodes.TheIdleModestopstheCPUwhileallowingtheRAM,timer/counters,serialportandinterruptsystemtocontinuefunctioning.ThePower-downModesavestheRAMcontentsbutfreezestheoscillatordisablingallotherchipfunctionsuntilthenexthardwarereset.PinDescriptionVCC：Supplyvoltage.GND：Ground.Port0：Port0isan8-bitopen-drainbi-directionalI/Oport.Asanoutputport,eachpincansinkeightTTLinputs.When1sarewrittentoport0pins,thepinscanbeusedashighimpedanceinputs.Port0mayalsobeconfiguredtobethemultiplexedloworderaddress/databusduringaccessestoexternalprogramanddatamemory.InthismodeP0hasinternalpullups.Port0alsoreceivesthecodebytesduringFlashprogramming,andoutputsthecodebytesduringprogramverification.Externalpullupsarerequiredduringprogramverification.Port1Port1isan8-bitbi-directionalI/Oportwithinternalpullups.ThePort1outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort1pinstheyarepulledhighbytheinternalpullupsandcanbeusedasinputs.Asinputs,Port1pinsthatareexternallybeingpulledlowwillsourcecurrent(IIL)becauseoftheinternalpullups.Port1alsoreceivesthelow-orderaddressbytesduringFlashprogrammingandverification.Port2Port2isan8-bitbi-directionalI/Oportwithinternalpullups.ThePort2outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort2pinstheyarepulledhighbytheinternalpullupsandcanbeusedasinputs.Asinputs,Port2pinsthatareexternallybeingpulledlowwillsourcecurrent,becauseoftheinternalpullups.Port2emitsthehigh-orderaddressbyteduringfetchesfromexternalprogrammemoryandduringaccessestoexternaldatamemorythatuse16-bitaddresses.Inthisapplication,itusesstronginternalpullupswhenemitting1s.Duringaccessestoexternaldatamemorythatuse8-bitaddresses,Port2emitsthecontentsoftheP2SpecialFunctionRegister.Port2alsoreceivesthehigh-orderaddressbitsandsomecontrolsignalsduringFlashprogrammingandverification.Port3Port3isan8-bitbi-directionalI/Oportwithinternalpullups.ThePort3outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort3pinstheyarepulledhighbytheinternalpullupsandcanbeusedasinputs.Asinputs,Port3pinsthatareexternallybeingpulledlowwillsourcecurrent(IIL)becauseofthepullups.Port3alsoservesthefunctionsofvariousspecialfeaturesoftheAT89C51aslistedbelow:Port3alsoreceivessomecontrolsignalsforFlashprogrammingandverification.RSTResetinput.Ahighonthispinfortwomachinecycleswhiletheoscillatorisrunningresetsthedevice.ALE/PROGAddressLatchEnableoutputpulseforlatchin...
