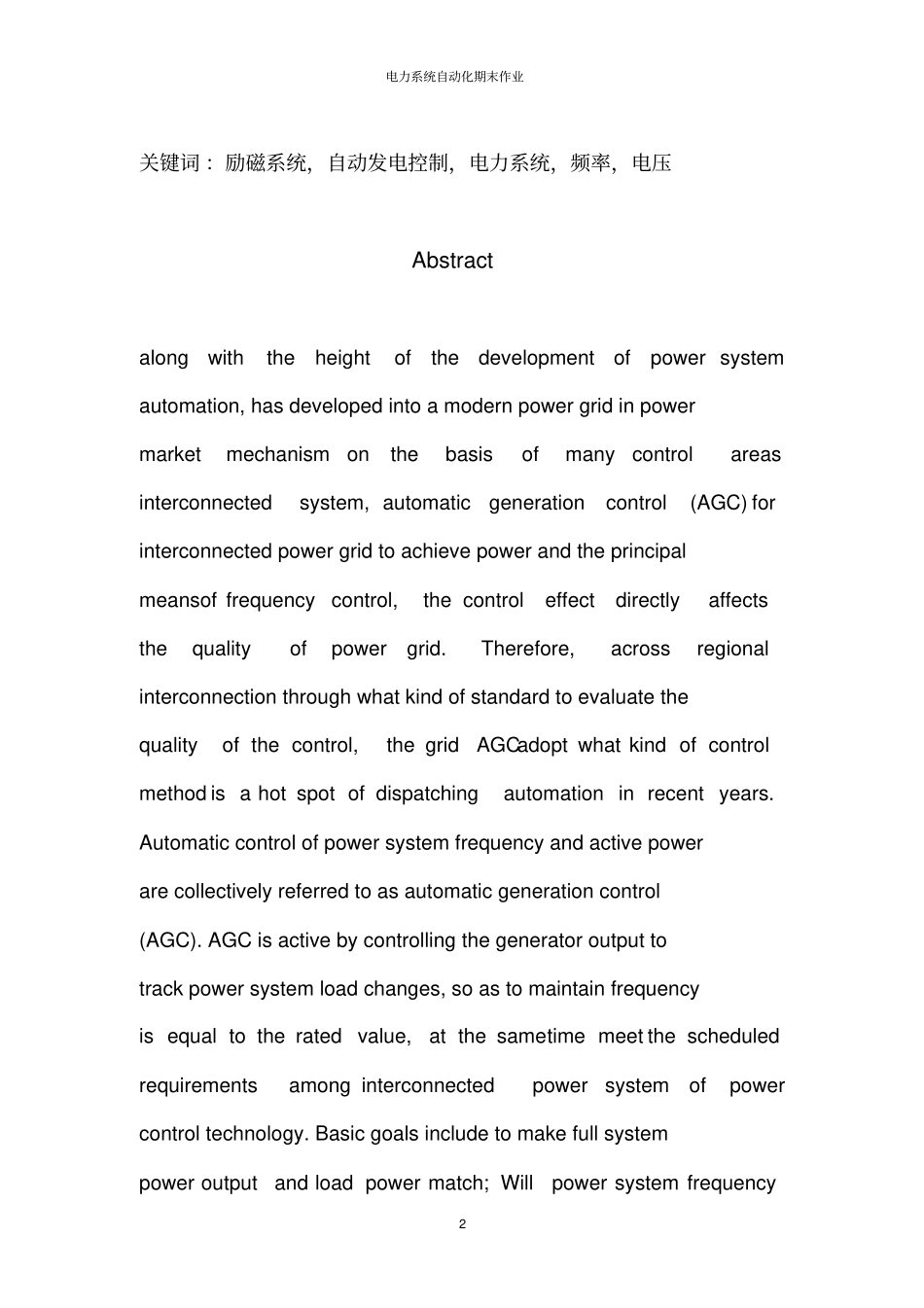

11/6/2018电力系统自动化期末作业电力系统自动化期末作业题目:包括励磁系统的自动发电控制(AGC)学号:P101813449姓名:汤小桥专业班级:10级电气工程及其自动化1班学院:电气工程学院指导教师:杨晶显老师电力系统自动化期末作业1包括励磁系统的自动发电控制(AGC)摘要:随着电力系统自动化的高度发展,现代电网已发展成为在电力市场机制的基础上多控制区域的互联系统,自动发电控制(AGC)作为互联电网实现功率和频率控制的主要手段,其控制效果直接影响着电网品质。因此,跨大区互联电网通过什么样的标准对其控制质量进行评价,电网AGC采用什么样的控制方法是近年来调度自动化关注的一个热点问题。电力系统频率和有功功率自动控制统称为自动发电控制(AGC)。AGC是通过控制发电机有功出力来跟踪电力系统负荷变化,从而维持频率等于额定值,同时满足互联电力系统间按计划要求交换功率的一种控制技术。基本目标包括使全系统的发电出力和负荷功率相匹配;将电力系统的频率偏差调节到零,保持系统频率为额定值;及控制区域间联络线的交换功率与计划值相等,实现各区域内有功功率的平衡。本论文紧紧围绕这一具有重要现实意义的课题展开了研究和讨论,介绍了带励磁系统的自动发电控制电网AGC技术的实现与发展,带励磁系统的同步发电机LFC和AVR控制方案,发电机的调速系统模型的基本组成及其设计和控制策略。最后通过一个孤立发电站的组合仿真框图及其技术参数,搭建混合SIMULINK仿真框图进行仿真,当励磁系统参数变化时求出其频率偏差和机端电压响应,通过仿真结果来分析频率控制和电压控制的关系。电力系统自动化期末作业2关键词:励磁系统,自动发电控制,电力系统,频率,电压Abstractalongwiththeheightofthedevelopmentofpowersystemautomation,hasdevelopedintoamodernpowergridinpowermarketmechanismonthebasisofmanycontrolareasinterconnectedsystem,automaticgenerationcontrol(AGC)forinterconnectedpowergridtoachievepowerandtheprincipalmeansoffrequencycontrol,thecontroleffectdirectlyaffectsthequalityofpowergrid.Therefore,acrossregionalinterconnectionthroughwhatkindofstandardtoevaluatethequalityofthecontrol,thegridAGCadoptwhatkindofcontrolmethodisahotspotofdispatchingautomationinrecentyears.Automaticcontrolofpowersystemfrequencyandactivepowerarecollectivelyreferredtoasautomaticgenerationcontrol(AGC).AGCisactivebycontrollingthegeneratoroutputtotrackpowersystemloadchanges,soastomaintainfrequencyisequaltotheratedvalue,atthesametimemeetthescheduledrequirementsamonginterconnectedpowersystemofpowercontroltechnology.Basicgoalsincludetomakefullsystempoweroutputandloadpowermatch;Willpowersystemfrequency电力系统自动化期末作业3deviationtoadjusttozero,maintainingsystemfrequencyforrating;Linkexchangebetweenpowerandcontrolareaandplanvaluesareequal,andrealizetheregionalbalanceofactivepower.Hasimportantpracticalsignificancethispapercloselyaroundthesubject,studiesanddiscussionsareintroducedwithexcitationsystemofpowergridAGCautomaticgenerationcontroltechnologyimplementationanddevelopment,withLFCandexcitationsystemofsynchronousgeneratorAVRcontrolschemeofgeneratorspeedcontrolsystemmodelofthebasiccompositionandthedesignandcontrolstrategy.Finallythroughacombinationofisolatedpowerstationsimulationblockdiagramanditstechnicalparameters,structures,hybridSIMULINKblockdiagramforsimulation,whentheexcitationsystemparameterschangeresponse,findoutthevoltageofthefrequencydeviationandthemachinethroughthesimulationresultsfortheanalysisoffrequencycontrolandvoltagecontroloftherelationship.[Keywords]Excitationsystem,automaticpowercontrol,powersystem,thefrequencyandvoltage电力系统自动化期末作业4目录摘要:..........................................
