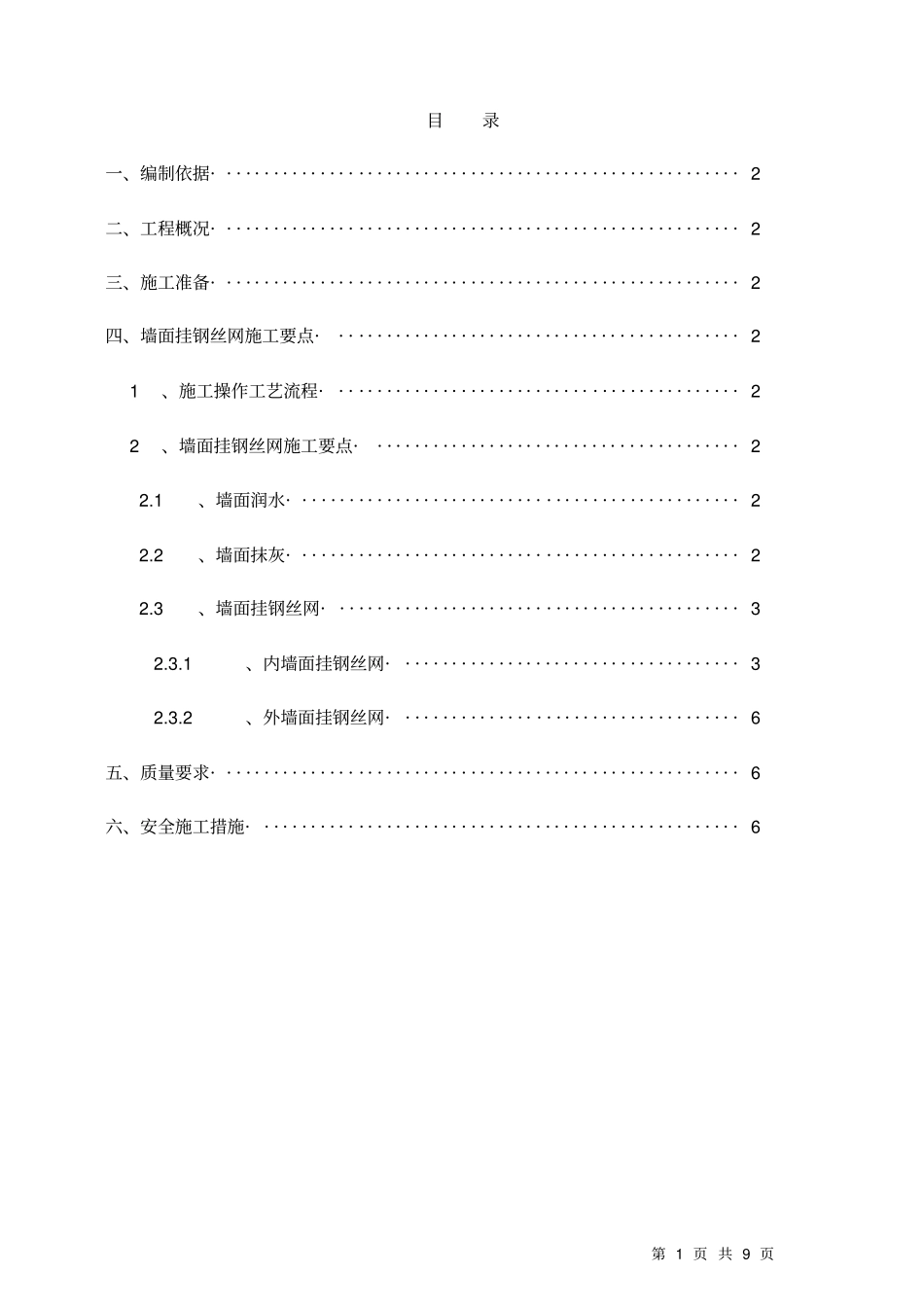

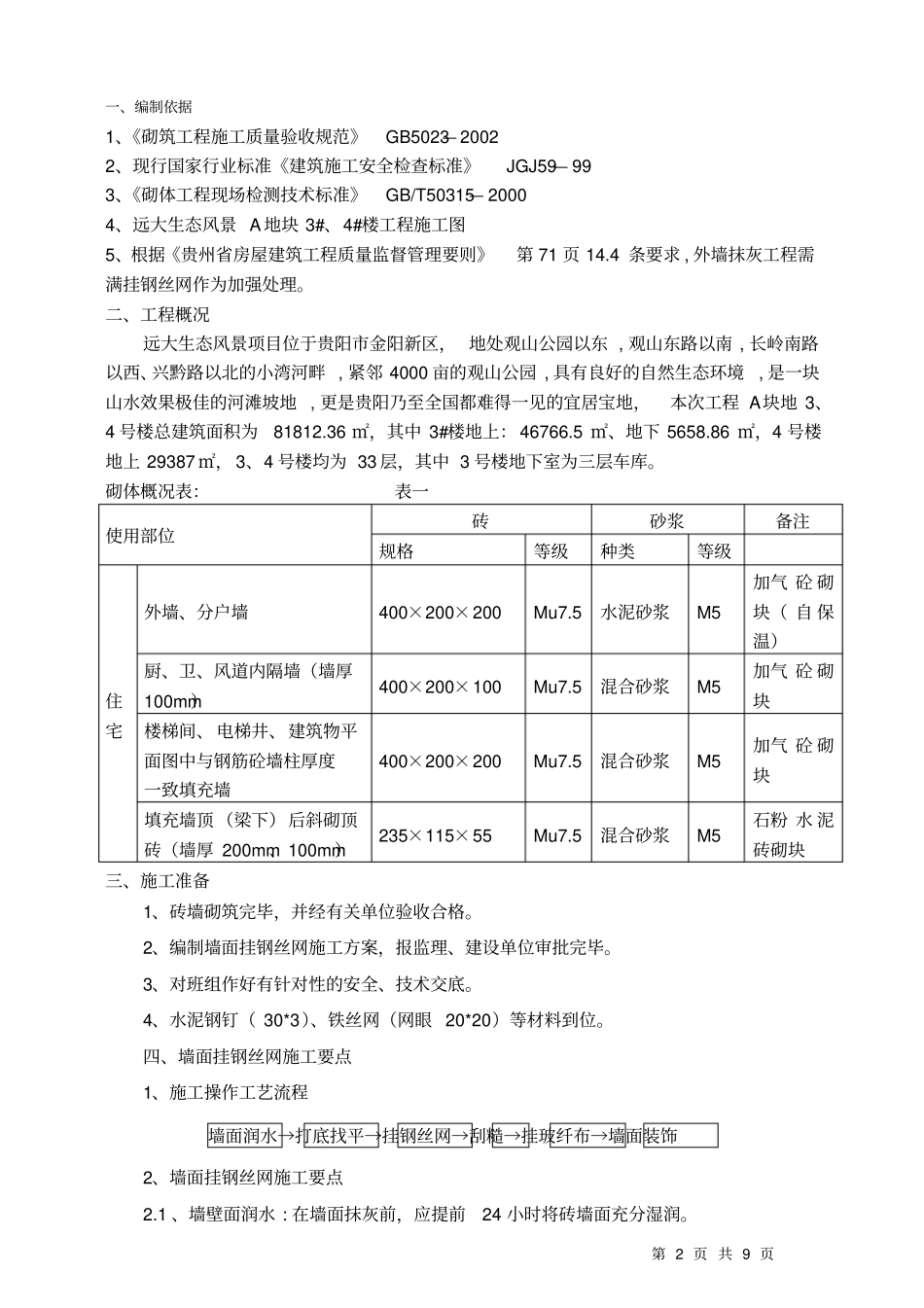

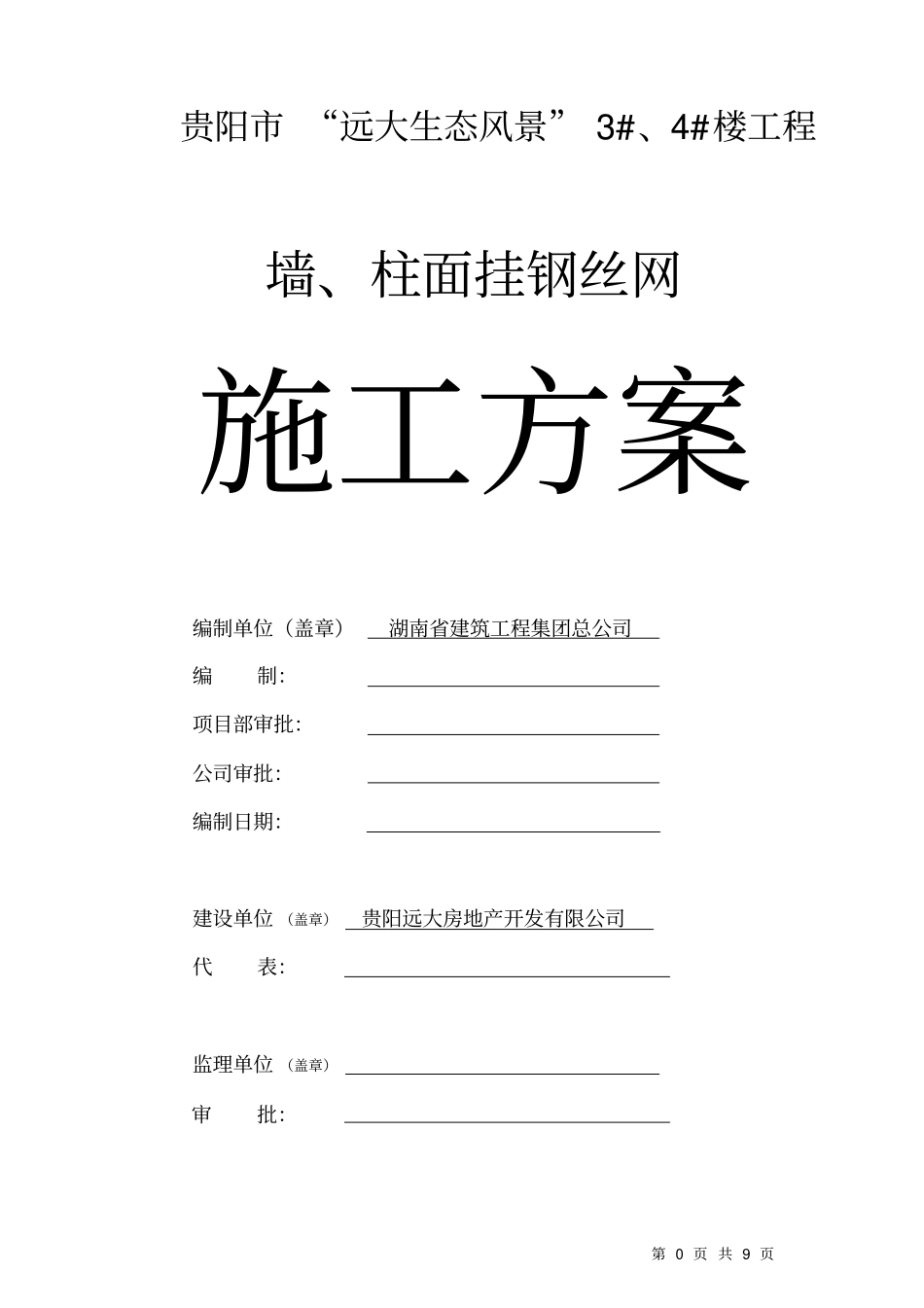

第0页共9页贵阳市“远大生态风景”3#、4#楼工程墙、柱面挂钢丝网施工方案编制单位（盖章）湖南省建筑工程集团总公司编制：项目部审批：公司审批：编制日期：建设单位（盖章）贵阳远大房地产开发有限公司代表：监理单位（盖章）审批：第1页共9页目录一、编制依据························································2二、工程概况························································2三、施工准备························································2四、墙面挂钢丝网施工要点············································21、施工操作工艺流程············································22、墙面挂钢丝网施工要点········································22.1、墙面润水················································22.2、墙面抹灰················································22.3、墙面挂钢丝网············································32.3.1、内墙面挂钢丝网·····································32.3.2、外墙面挂钢丝网·····································6五、质量要求························································6六、安全施工措施····················································6第2页共9页一、编制依据1、《砌筑工程施工质量验收规范》GB5023—20022、现行国家行业标准《建筑施工安全检查标准》JGJ59—993、《砌体工程现场检测技术标准》GB/T50315—20004、远大生态风景A地块3#、4#楼工程施工图5、根据《贵州省房屋建筑工程质量监督管理要则》第71页14.4条要求,外墙抹灰工程需满挂钢丝网作为加强处理。二、工程概况远大生态风景项目位于贵阳市金阳新区，地处观山公园以东,观山东路以南,长岭南路以西、兴黔路以北的小湾河畔,紧邻4000亩的观山公园,具有良好的自然生态环境,是一块山水效果极佳的河滩坡地,更是贵阳乃至全国都难得一见的宜居宝地，本次工程A块地3、4号楼总建筑面积为81812.36㎡，其中3#楼地上：46766.5㎡、地下5658.86㎡，4号楼地上29387㎡，3、4号楼均为33层，其中3号楼地下室为三层车库。砌体概况表：表一使用部位砖砂浆备注规格等级种类等级住宅外墙、分户墙400×200×200Mu7.5水泥砂浆M5加气砼砌块（自保温）厨、卫、风道内隔墙（墙厚100mm）400×200×100Mu7.5混合砂浆M5加气砼砌块楼梯间、电梯井、建筑物平面图中与钢筋砼墙柱厚度一致填充墙400×200×200Mu7.5混合砂浆M5加气砼砌块填充墙顶（梁下）后斜砌顶砖（墙厚200mm、100mm）235×115×55Mu7.5混合砂浆M5石粉水泥砖砌块三、施工准备1、砖墙砌筑完毕，并经有关单位验收合格。2、编制墙面挂钢丝网施工方案，报监理、建设单位审批完毕。3、对班组作好有针对性的安全、技术交底。4、水泥钢钉（30*3）、铁丝网（网眼20*20）等材料到位。四、墙面挂钢丝网施工要点1、施工操作工艺流程墙面润水→打底找平→挂钢丝网→刮糙→挂玻纤布→墙面装饰2、墙面挂钢丝网施工要点2.1、墙壁面润水:在墙面抹灰前，应提前24小时将砖墙面充分湿润。第3页共9页2.2、墙面抹灰；在挂钢丝网前，在钢丝网底部的墙面上抹水泥砂浆打底找平，其厚度约为墙面抹灰层厚度的1/2。2.3、墙面挂钢丝网2.3.1、内墙面挂钢丝网在内墙面（含地下室内墙面）不同材料交接处挂一层钢丝网，钢丝网采用水泥钢钉线...
