发动机检测技术研究(毕业论文)VIP免费

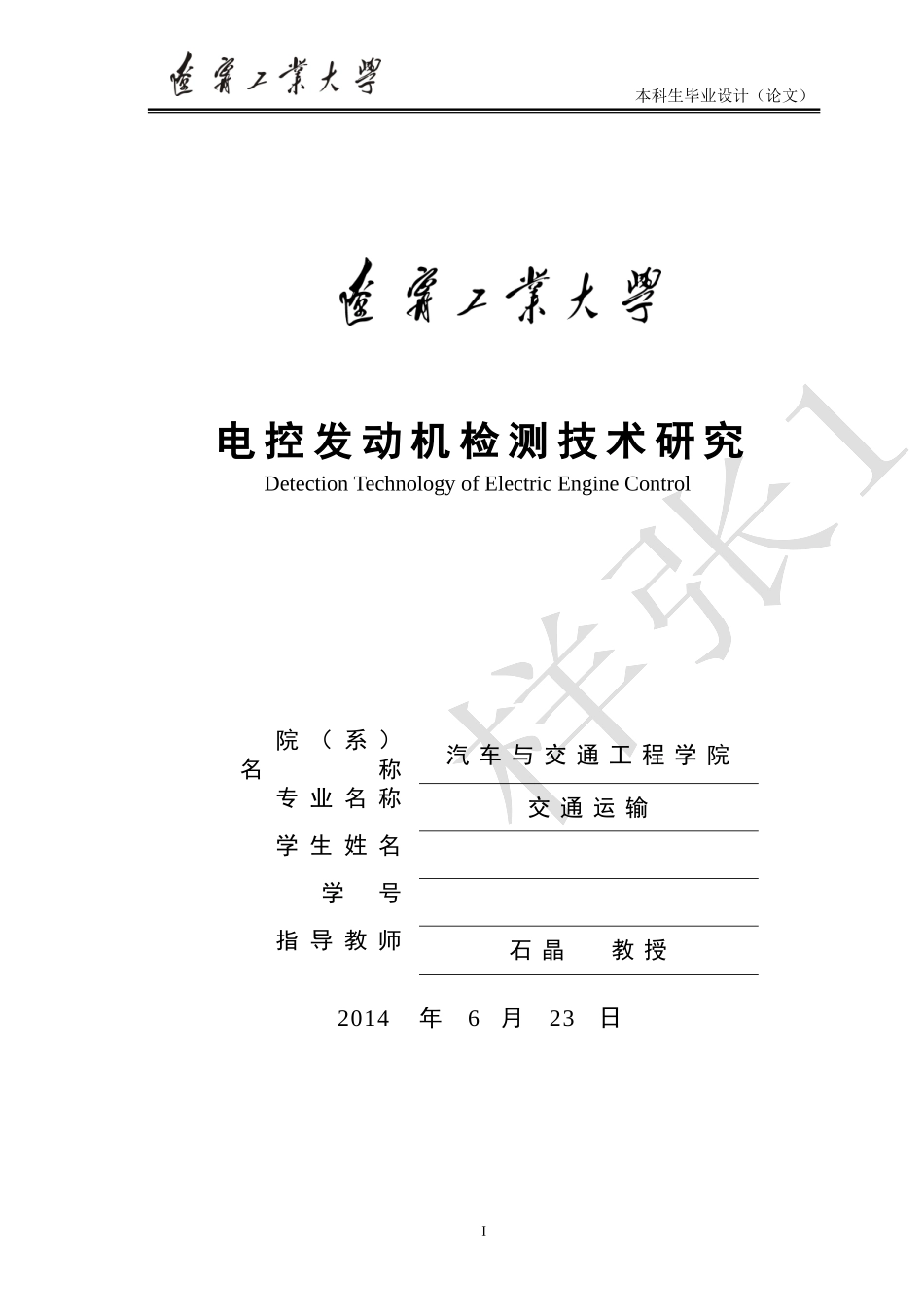

发动机检测技术研究(毕业论文)_第1页
1/79

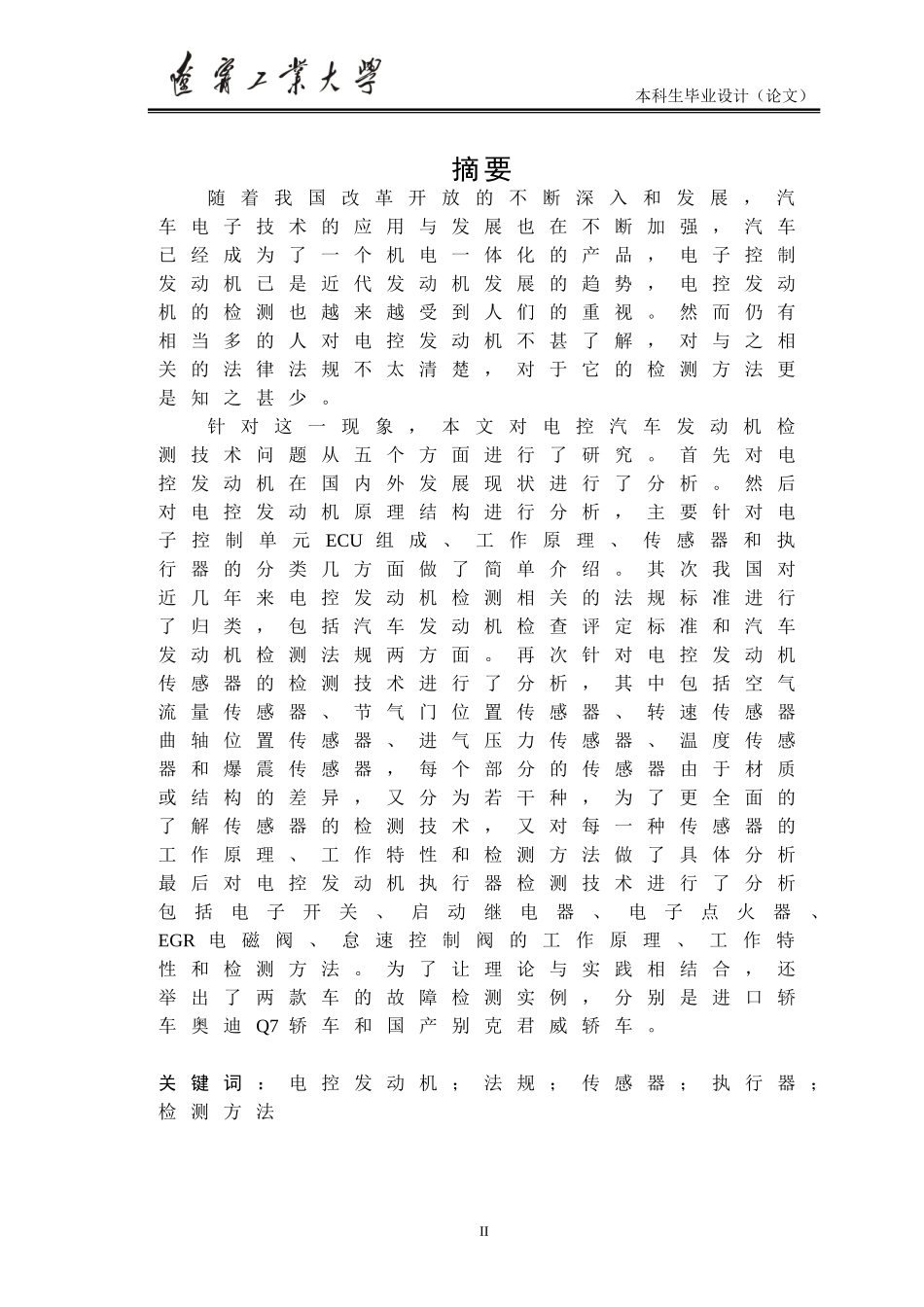

发动机检测技术研究(毕业论文)_第2页
2/79

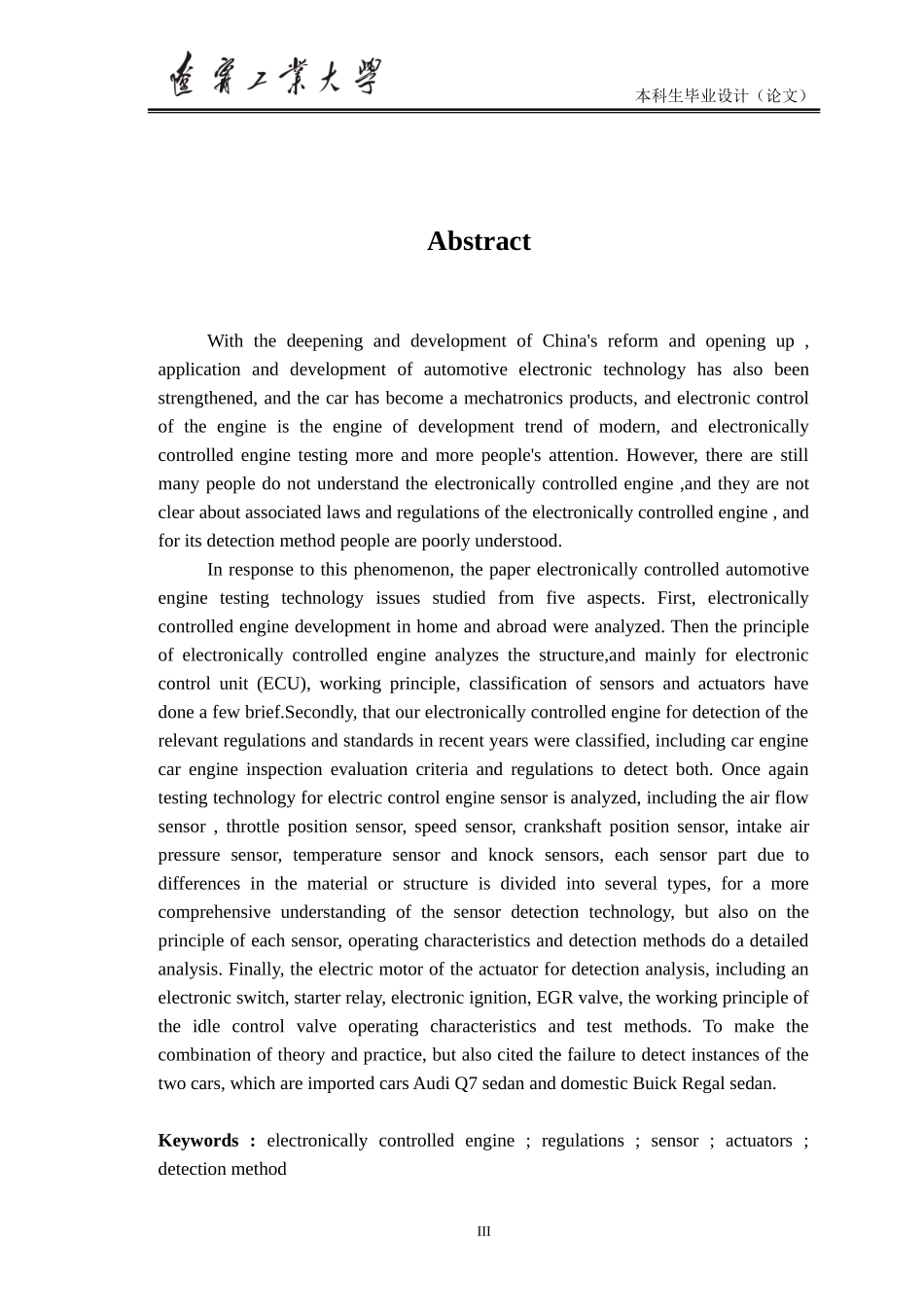

发动机检测技术研究(毕业论文)_第3页
3/79
I本科生毕业设计(论文)电控发动机检测技术研究DetectionTechnologyofElectricEngineControl院(系)名称汽车与交通工程学院专业名称交通运输学生姓名学号指导教师石晶教授2014年6月23日II本科生毕业设计(论文)摘要随着我国改革开放的不断深入和发展,汽车电子技术的应用与发展也在不断加强,汽车已经成为了一个机电一体化的产品,电子控制发动机已是近代发动机发展的趋势,电控发动机的检测也越来越受到人们的重视。然而仍有相当多的人对电控发动机不甚了解,对与之相关的法律法规不太清楚,对于它的检测方法更是知之甚少。针对这一现象,本文对电控汽车发动机检测技术问题从五个方面进行了研究。首先对电控发动机在国内外发展现状进行了分析。然后对电控发动机原理结构进行分析,主要针对电子控制单元ECU组成、工作原理、传感器和执行器的分类几方面做了简单介绍。其次我国对近几年来电控发动机检测相关的法规标准进行了归类,包括汽车发动机检查评定标准和汽车发动机检测法规两方面。再次针对电控发动机传感器的检测技术进行了分析,其中包括空气流量传感器、节气门位置传感器、转速传感器曲轴位置传感器、进气压力传感器、温度传感器和爆震传感器,每个部分的传感器由于材质或结构的差异,又分为若干种,为了更全面的了解传感器的检测技术,又对每一种传感器的工作原理、工作特性和检测方法做了具体分析最后对电控发动机执行器检测技术进行了分析包括电子开关、启动继电器、电子点火器、EGR电磁阀、怠速控制阀的工作原理、工作特性和检测方法。为了让理论与实践相结合,还举出了两款车的故障检测实例,分别是进口轿车奥迪Q7轿车和国产别克君威轿车。关键词:电控发动机;法规;传感器;执行器;检测方法III本科生毕业设计(论文)AbstractWiththedeepeninganddevelopmentofChina'sreformandopeningup,applicationanddevelopmentofautomotiveelectronictechnologyhasalsobeenstrengthened,andthecarhasbecomeamechatronicsproducts,andelectroniccontroloftheengineistheengineofdevelopmenttrendofmodern,andelectronicallycontrolledenginetestingmoreandmorepeople'sattention.However,therearestillmanypeopledonotunderstandtheelectronicallycontrolledengine,andtheyarenotclearaboutassociatedlawsandregulationsoftheelectronicallycontrolledengine,andforitsdetectionmethodpeoplearepoorlyunderstood.Inresponsetothisphenomenon,thepaperelectronicallycontrolledautomotiveenginetestingtechnologyissuesstudiedfromfiveaspects.First,electronicallycontrolledenginedevelopmentinhomeandabroadwereanalyzed.Thentheprincipleofelectronicallycontrolledengineanalyzesthestructure,andmainlyforelectroniccontrolunit(ECU),workingprinciple,classificationofsensorsandactuatorshavedoneafewbrief.Secondly,thatourelectronicallycontrolledenginefordetectionoftherelevantregulationsandstandardsinrecentyearswereclassified,includingcarenginecarengineinspectionevaluationcriteriaandregulationstodetectboth.Onceagaintestingtechnologyforelectriccontrolenginesensorisanalyzed,includingtheairflowsensor,throttlepositionsensor,speedsensor,crankshaftpositionsensor,intakeairpressuresensor,temperaturesensorandknocksensors,eachsensorpartduetodifferencesinthematerialorstructureisdividedintoseveraltypes,foramorecomprehensiveunderstandingofthesensordetectiontechnology,butalsoontheprincipleofeachsensor,operatingcharacteristicsanddetectionmethodsdoadetailedanalysis.Finally,theelectricmotoroftheactuatorfordetectionanalysis,includinganelectronicswitch,starterrelay,electronicignition,EGRvalve,theworkingprincipleoftheidlecontrolvalveoperatingcharacteristicsandtestmethods.Tomakethecombinationoftheoryandpractice,butalsocitedthefailuretodetectinstancesofthetwocars,whichareimportedcarsAudiQ7sedan...
