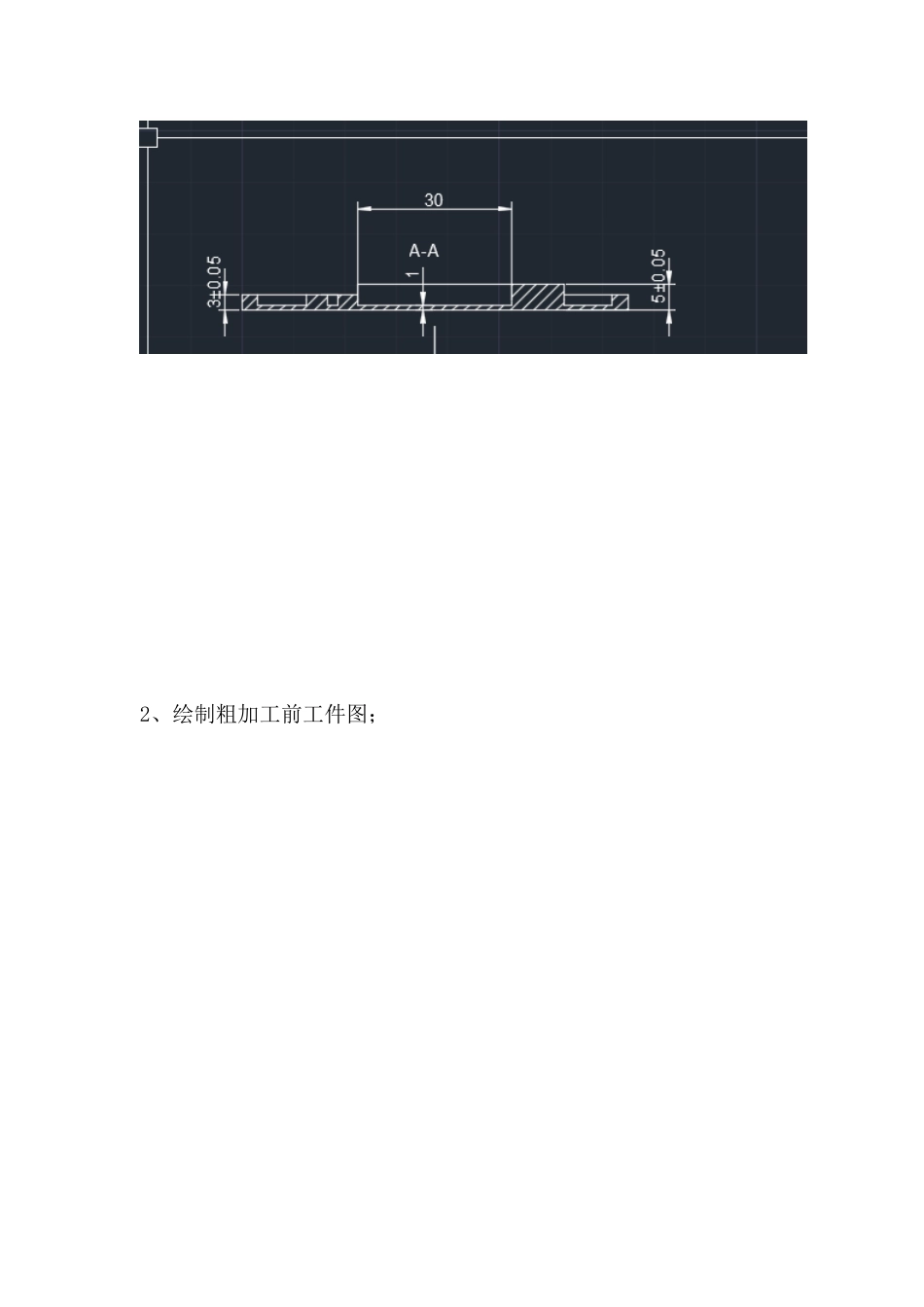

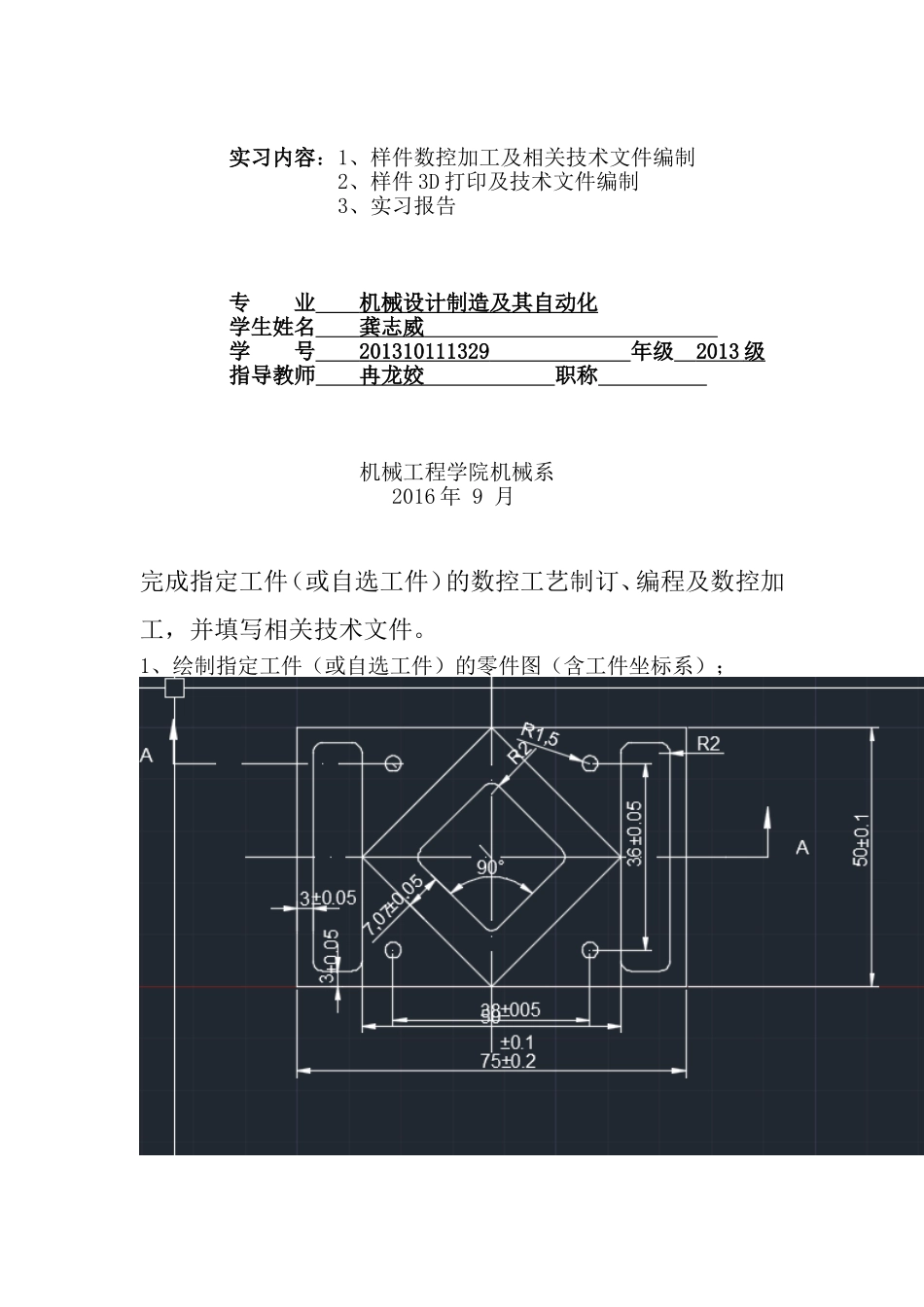

先进制造技术综合实训实习报告实习题目加工87号零件学院机械工程学院专业机械设计制造及其自动化学生姓名龚志威学号201310111329年级2013级指导教师冉龙姣职称2016年9月机械工程学院机械系成先进制造技术综合实训任务书实习题目加工87号零件实习内容：1、样件数控加工及相关技术文件编制2、样件3D打印及技术文件编制3、实习报告专业机械设计制造及其自动化学生姓名龚志威学号201310111329年级2013级指导教师冉龙姣职称机械工程学院机械系2016年9月完成指定工件（或自选工件）的数控工艺制订、编程及数控加工，并填写相关技术文件。1、绘制指定工件（或自选工件）的零件图（含工件坐标系）；2、绘制粗加工前工件图；3、设计粗加工及精加工的刀具运动轨迹(以图、文说明)，完成数值计算；（1）粗加工刀具轨迹图（2）精加工刀具轨迹图4、填写下列表格：数控加工工艺卡数控加工工艺卡产品名称及代号零件名称图纸号工序号工步号工序内容程序号刀具号刀补号主轴转速r/m进给速度mm/m背吃刀量mm备注1铣2mm平面116002001.52铣左右2mm凹槽116002001.53在凸台上铣4mm凹槽116002001.54铣φ3mm4个孔116002001.55精铣116002001.5编制审核时间数控加工刀具卡数控加工刀具卡产品名称及代号零件名称图纸号87号零件编号加工内容刀具名称、规格刀补号及补偿量备注1粗加工零件φ3立式铣刀编制审核时间数控加工程序单G90G92X0Y0刀具在工件坐标的起始位置G00Z10G00X-36.5Y24Z2S600M03G01Z-2F50刀具下降到-2mm处，进给速度为50mm/minX-3.621Y24F150X-5.121Y22.5X-36.5Y22.5X-36.5Y21X-6.621Y21X-8.121Y19.5X-36.5Y19.5X-36.5Y18X-9.621Y18X-11.121Y16.5X-36.5Y16.5X-36.5Y15X-12.621Y15X-14.121Y13.5X-36.5Y13.5X-36.5Y12X-15.621Y12X-17.121Y10.5X-36.5Y10.5X-36.5Y9X-18.621Y9X-20.121Y7.5X-36.5Y7.5X-36.5Y6X-21.621Y6X-23.121Y4.5X-36.5Y4.5X-36.5Y3X-24.621Y3X-26.121Y1.5X-36.5Y1.5X-36.5Y0X-27Y0G00Z2X-27.621Y0G01Z-2F50X-26.121Y-1.5X-36.5Y-1.5X-36.5Y-3X-24.621Y-3X-23.121Y-4.5X-36.5Y-4.5X-36.5Y-6X-21.621Y-6X-20.121Y-7.5X-36.5Y-7.5X-36.5Y-9X-18.621Y-9X-17.121Y-10.5X-36.5Y-10.5X-36.5Y-12X-15.621Y-12X-14.121Y-13.5X-36.5Y-13.5X-36.5Y-15X-12.621Y-15X-11.121Y-16.5X-36.5Y-16.5X-36.5Y-18X-9.621Y-18X-8.121Y-19.5X-36.5Y-19.5X-36.5Y-21X-6.621Y-21X-5.121Y-22.5X-36.5Y-22.5X-36.5Y-24X-3.621Y-24G00Z2X3.621Y24G01Z-2F50X36.5Y24F150X36.5Y22.5X5.121Y22.5X6.621Y21X36.5Y21X36.5Y19.5X8.121Y19.5X9.621Y18X36.5Y18X36.5Y16.5X11.121Y16.5X12.621Y15X36.5Y15X36.5Y13.5X14.121Y13.5X15.621Y12X36.5Y12X36.5Y10.5X17.121Y10.5X18.621Y9X36.5Y9X36.5Y7.5X20.121Y7.5X21.621Y6X36.5Y6X36.5Y4.5X23.121Y4.5X24.621Y3X36.5Y3X36.5Y1.5X26.121Y1.5X27.621Y0X27Y0G00Z2X27.621Y0G01Z-2F50X36.5Y0F150X36.5Y-1.5X26.121Y-1.5X24.621Y-3X36.5Y-3X36.5Y-4.5X23.121Y-4.5X21.621Y-6X36.5Y-6X36.5Y-7.5X20.121Y-7.5X18.621Y-9X36.5Y-9X36.5Y-10.5X17.121Y-10.5X15.621Y-12X36.5Y-12X36.5Y-13.5X14.121Y-13.5X12.621Y-15X36.5Y-15X36.5Y-16.5X11.121Y-16.5X9.621Y-18X36.5Y-18X36.5Y-19.5X8.121Y-19.5X6.621Y-21X36.5Y-21X36.5Y-22.5X5.121Y-22.5X3.621Y-24X36.5Y-24G00Z2X-33Y20.5G01Z-4F50X-33Y-20.5F150X-32Y-20.5X-32Y20.5X-30.5Y20.5X-30.5Y-20.5X-29Y-20.5X-29Y20.5X-27.5Y20.5X-27.5Y-20.5G00Z2X33Y20.5G01Z-4F50X33Y-20.5F150X32Y-20.5X32Y20.5X30.5Y20.5X30.5Y-20.5X29Y-20.5X29Y20.5X27.5Y20.5X27.5Y-20.5G00Z2X12.379Y0G01Z-2F50X0Y12.379F150X-0.711Y11.667X11.667Y-0.711X10.607Y-1.772X-1.772Y10.607X-2.833Y9.546X9.546Y-2.833X8.485Y-3.893X-3.893Y8.485X-4.954Y7.425X7.425Y-4.954X6.364Y-6.015X-6.015Y6.364X-7.075Y5.303X5.303Y-7.075X4.243Y-8.136X-8.136Y4.243X-9.197Y3.182X3.182Y-9.197X2.121Y-10.57X-10.257Y2.121X-11.318Y1.061X1.061Y-11.318X0Y-12.379X-12.379Y0G00Z2X12.379Y0G01Z-4F50X0Y12.379F150X-0.711Y11.667X11.667Y-0.711X10.607Y-1.772X-1.772Y10.607X-2...
