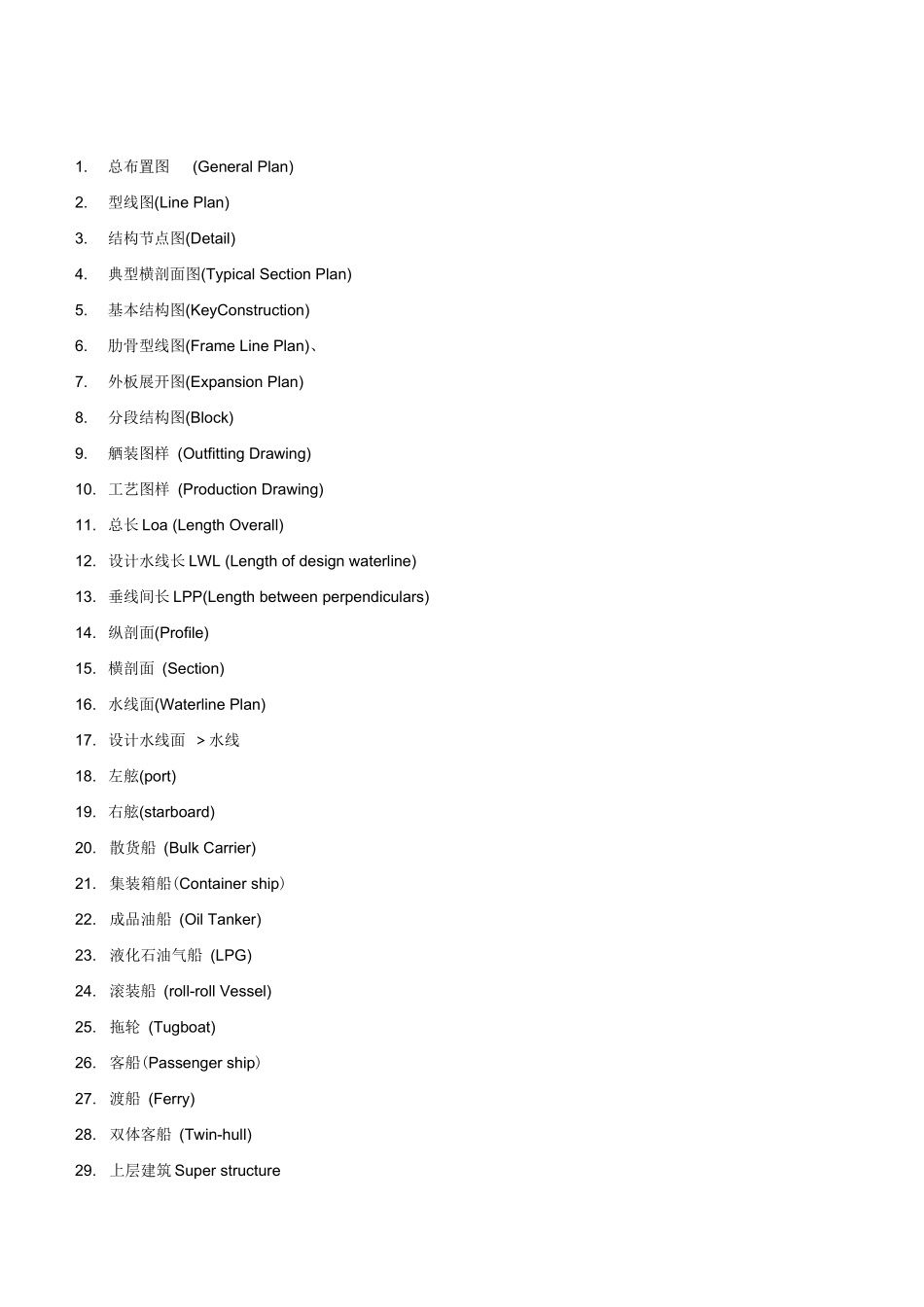

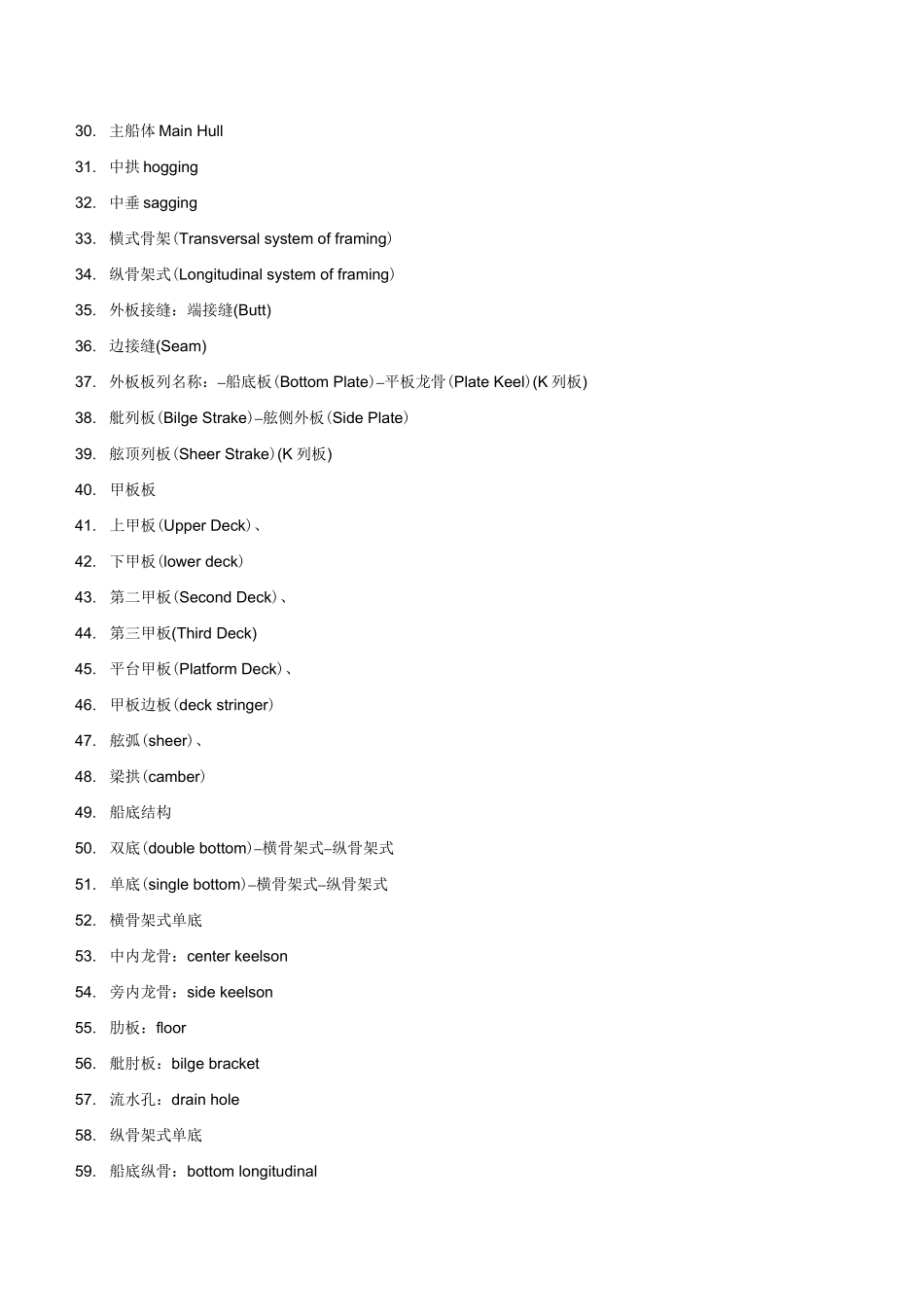

1.总布置图(General Plan)2.型线图(Line Plan)3.结构节点图(Detail)4.典型横剖面图(Typical Section Plan)5.基本结构图(KeyConstruction)6.肋骨型线图(Frame Line Plan)、7.外板展开图(Expansion Plan)8.分段结构图(Block)9.舾装图样 (Outfitting Drawing)10. 工艺图样 (Production Drawing)11. 总长 Loa (Length Overall)12. 设计水线长 LWL (Length of design waterline)13. 垂线间长 LPP(Length between perpendiculars)14. 纵剖面(Profile)15. 横剖面 (Section)16. 水线面(Waterline Plan)17. 设计水线面 ＞水线18. 左舷(port)19. 右舷(starboard)20.散货船 (Bulk Carrier)21.集装箱船(Container ship)22.成品油船 (Oil Tanker)23.液化石油气船 (LPG)24.滚装船 (roll-roll Vessel)25.拖轮 (Tugboat)26.客船(Passenger ship)27.渡船 (Ferry)28.双体客船 (Twin-hull)29.上层建筑 Super structure30.主船体 Main Hull31.中拱 hogging32.中垂 sagging33.横式骨架(Transversal system of framing)34.纵骨架式(Longitudinal system of framing)35.外板接缝：端接缝(Butt)36.边接缝(Seam)37.外板板列名称：–船底板(Bottom Plate)–平板龙骨(Plate Keel)(K 列板)38.舭列板(Bilge Strake)–舷侧外板(Side Plate)39.舷顶列板(Sheer Strake)(K 列板)40.甲板板41.上甲板(Upper Deck)、42.下甲板(lower deck)43.第二甲板(Second Deck)、44.第三甲板(Third Deck)45.平台甲板(Platform Deck)、46.甲板边板(deck stringer)47.舷弧(sheer)、48.梁拱(camber)49.船底结构50.双底(double bottom)–横骨架式–纵骨架式51.单底(single bottom)–横骨架式–纵骨架式52.横骨架式单底53.中内龙骨：center keelson54.旁内龙骨：side keelson55.肋板：floor56.舭肘板：bilge bracket57.流水孔：drain hole58.纵骨架式单底59.船底纵骨：bottom longitudinal60.横骨架式双底61.中底桁：bottom center girder62.旁底桁：bottom side girder63.内底板：inner bottom plate64.主肋板：solid floor65.水密肋板：watertight floor66.框架肋板：bracket floor67.人孔：manhole68.减轻孔：lightening hole69.单壳横骨架式舷侧结构70.主肋骨：main frame71.甲板间肋骨：tween-deck frame72.强肋骨：web frame73.中间肋骨：intermediate frame74.舷侧纵桁：side stringer75.纵骨架式...
