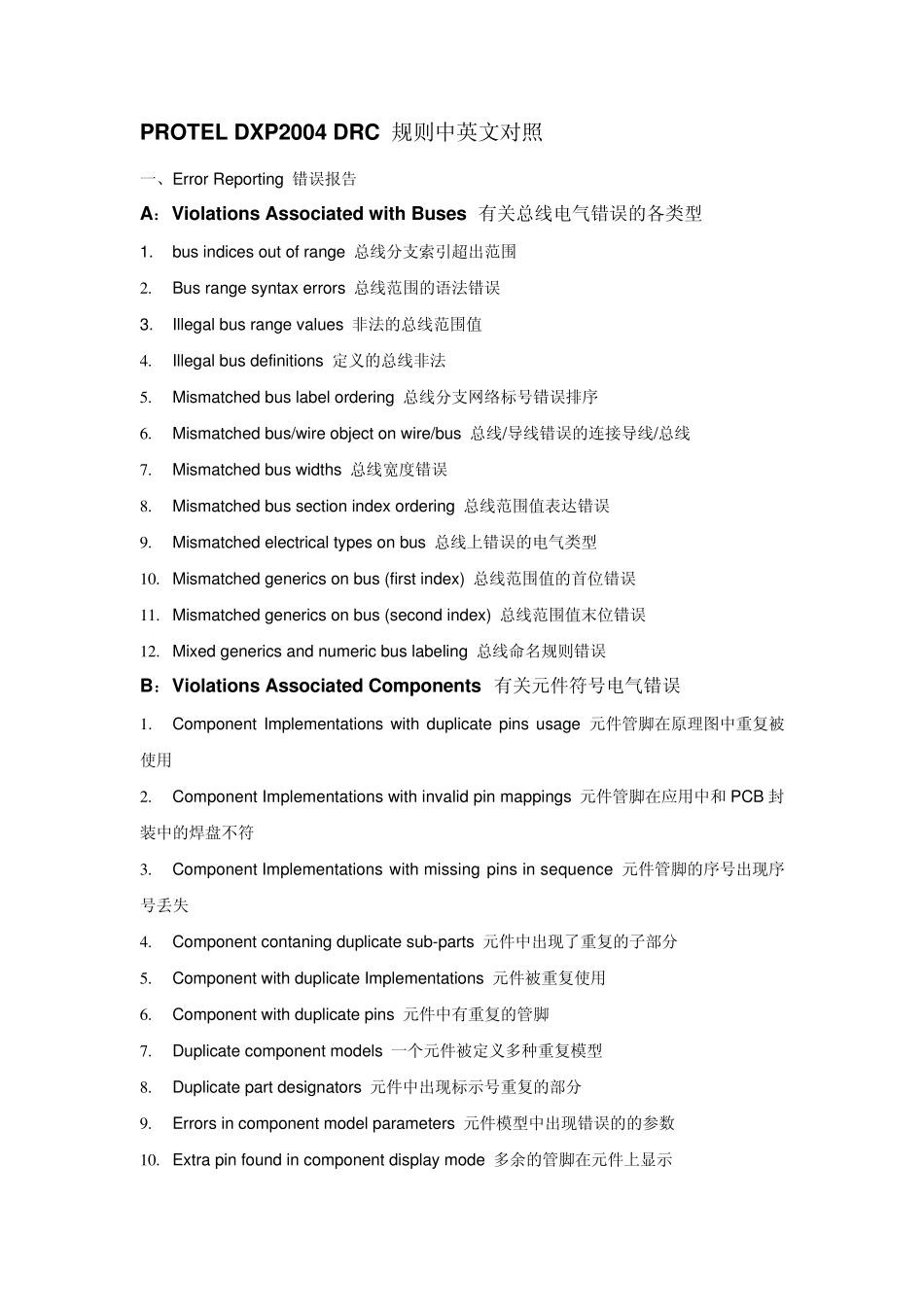

PROTEL DXP2004 DRC 规则中英文对照 一、Error Reporting 错误报告 A：Violations Associated w ith Buses 有关总线电气错误的各类型 1. bus indices out of range 总线分支索引超出范围 2 . Bus range syntax errors 总线范围的语法错误 3. Illegal bus range values 非法的总线范围值 4 . Illegal bus definitions 定义的总线非法 5 . Mismatched bus label ordering 总线分支网络标号错误排序 6 . Mismatched bus/wire object on wire/bus 总线/导线错误的连接导线/总线 7 . Mismatched bus widths 总线宽度错误 8 . Mismatched bus section index ordering 总线范围值表达错误 9 . Mismatched electrical types on bus 总线上错误的电气类型 1 0 . Mismatched generics on bus (first index) 总线范围值的首位错误 1 1 . Mismatched generics on bus (second index) 总线范围值末位错误 1 2 . Mixed generics and numeric bus labeling 总线命名规则错误 B：Violations Associated Components 有关元件符号电气错误 1 . Component Implementations with duplicate pins usage 元件管脚在原理图中重复被使用 2 . Component Implementations with invalid pin mappings 元件管脚在应用中和 PCB 封装中的焊盘不符 3 . Component Implementations with missing pins in sequence 元件管脚的序号出现序号丢失 4 . Component contaning duplicate sub-parts 元件中出现了重复的子部分 5 . Component with duplicate Implementations 元件被重复使用 6 . Component with duplicate pins 元件中有重复的管脚 7 . Duplicate component models 一个元件被定义多种重复模型 8 . Duplicate part designators 元件中出现标示号重复的部分 9 . Errors in component model parameters 元件模型中出现错误的的参数 1 0 . Extra pin found in component display mode 多余的管脚在元件上显示 1 1 . Mismatched hidden pin component 元件隐藏管脚的连接不匹配 1 2 . Mismatched pin visibility 管脚的可视性不匹配 1 3 . Missing component model parameters 元件模型参数丢失 1 4 . Missing component models 元件模型丢失...
