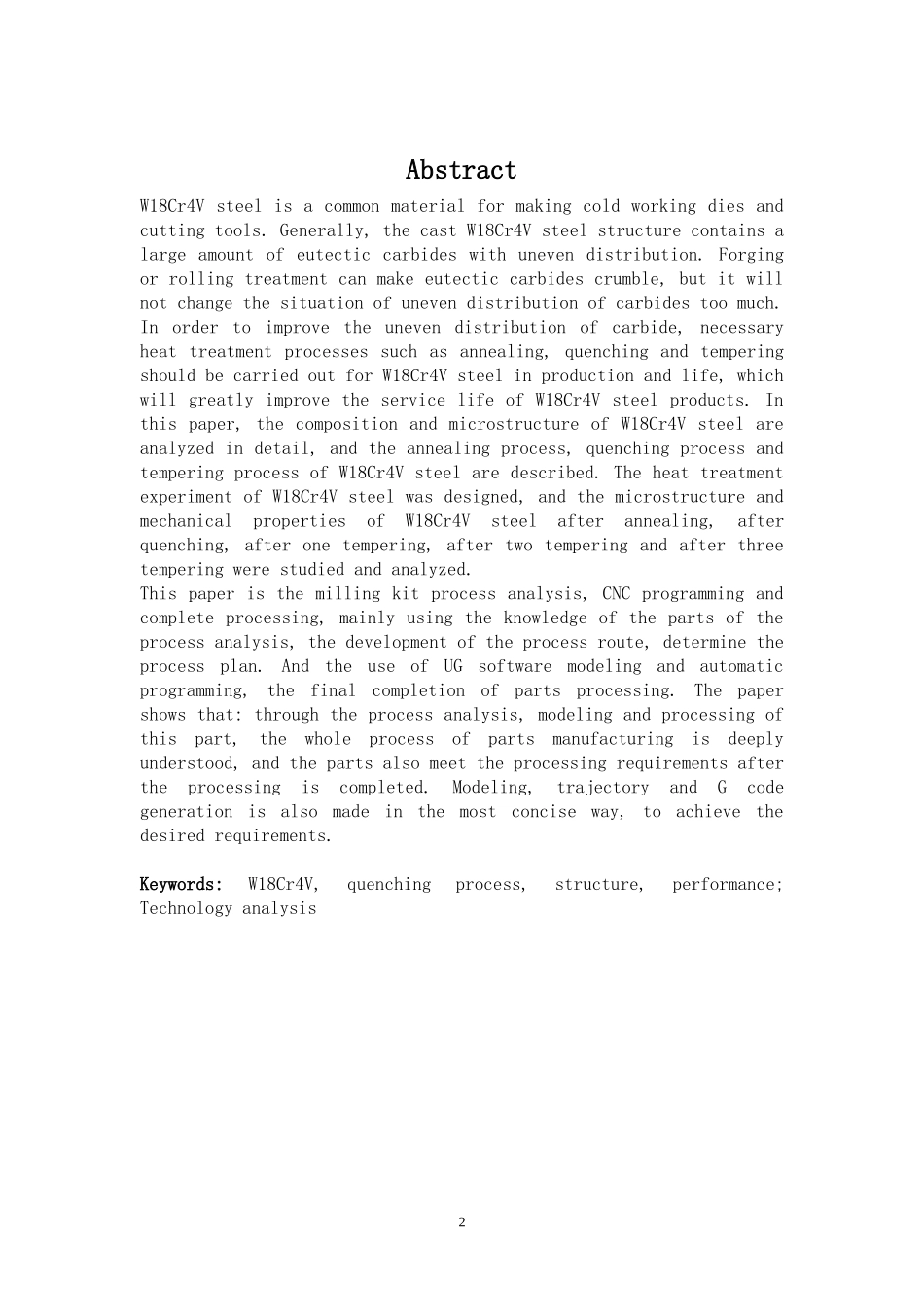

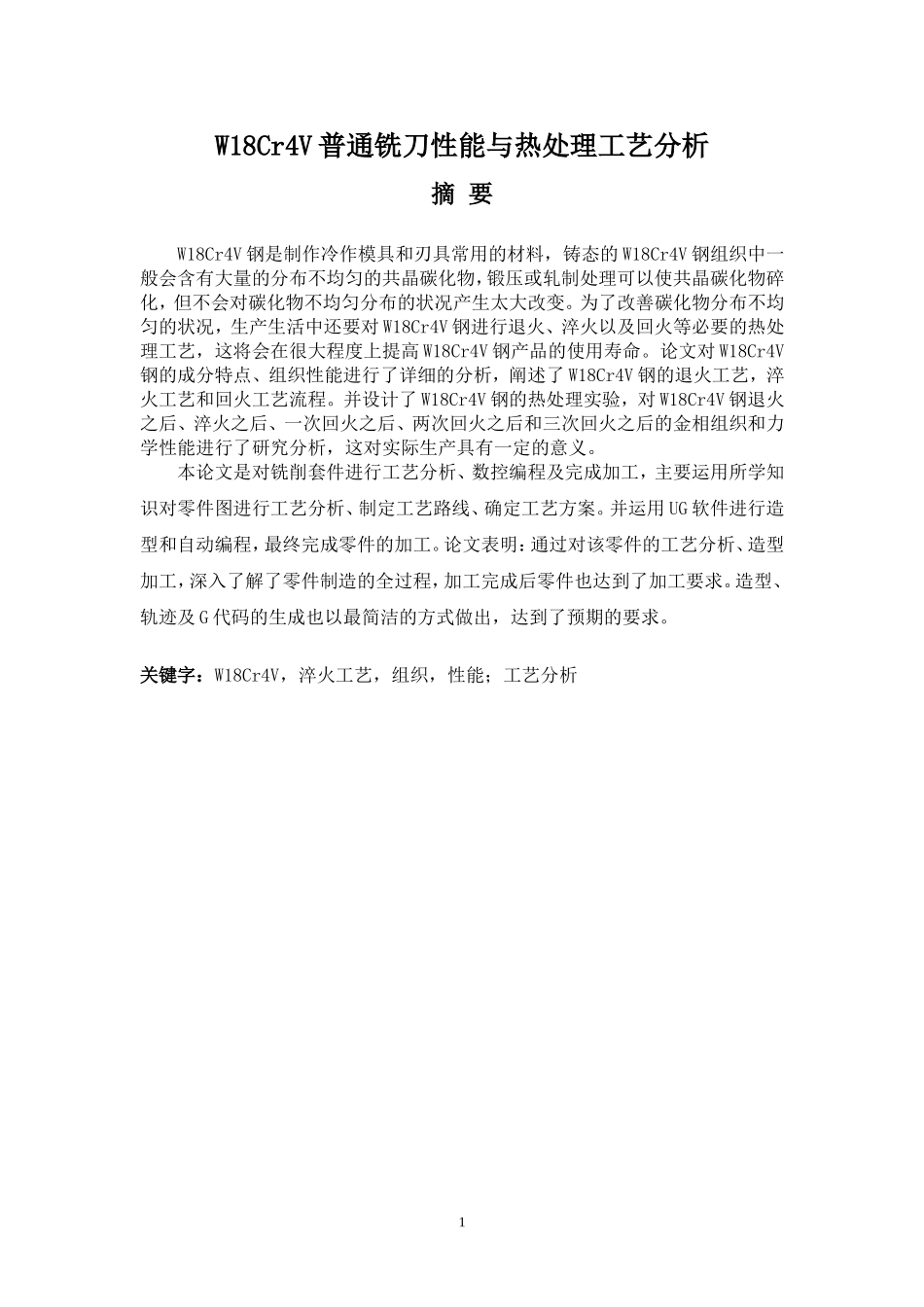

1W18Cr4V 普通铣刀性能与热处理工艺分析摘 要W18Cr4V 钢是制作冷作模具和刃具常用的材料,铸态的 W18Cr4V 钢组织中一般会含有大量的分布不均匀的共晶碳化物,锻压或轧制处理可以使共晶碳化物碎化,但不会对碳化物不均匀分布的状况产生太大改变。为了改善碳化物分布不均匀的状况,生产生活中还要对 W18Cr4V 钢进行退火、淬火以及回火等必要的热处理工艺,这将会在很大程度上提高 W18Cr4V 钢产品的使用寿命。论文对 W18Cr4V钢的成分特点、组织性能进行了详细的分析,阐述了 W18Cr4V 钢的退火工艺,淬火工艺和回火工艺流程。并设计了 W18Cr4V 钢的热处理实验,对 W18Cr4V 钢退火之后、淬火之后、一次回火之后、两次回火之后和三次回火之后的金相组织和力学性能进行了研究分析,这对实际生产具有一定的意义。本论文是对铣削套件进行工艺分析、数控编程及完成加工,主要运用所学知识对零件图进行工艺分析、制定工艺路线、确定工艺方案。并运用 UG 软件进行造型和自动编程,最终完成零件的加工。论文表明:通过对该零件的工艺分析、造型加工,深入了解了零件制造的全过程,加工完成后零件也达到了加工要求。造型、轨迹及 G 代码的生成也以最简洁的方式做出,达到了预期的要求。关键字:W18Cr4V,淬火工艺,组织,性能;工艺分析2AbstractW18Cr4V steel is a common material for making cold working dies and cutting tools. Generally, the cast W18Cr4V steel structure contains a large amount of eutectic carbides with uneven distribution. Forging or rolling treatment can make eutectic carbides crumble, but it will not change the situation of uneven distribution of carbides too much. In order to improve the uneven distribution of carbide, necessary heat treatment processes such as annealing, quenching and tempering should be carried out for W18Cr4V steel in production and life, which will greatly improve the service life of W18Cr4V steel products. In this paper, the composition and microstructure of W18Cr4V steel are analyzed in detail, and the annealing process, quenching process and tempering process of W18Cr4V steel are described. ...
