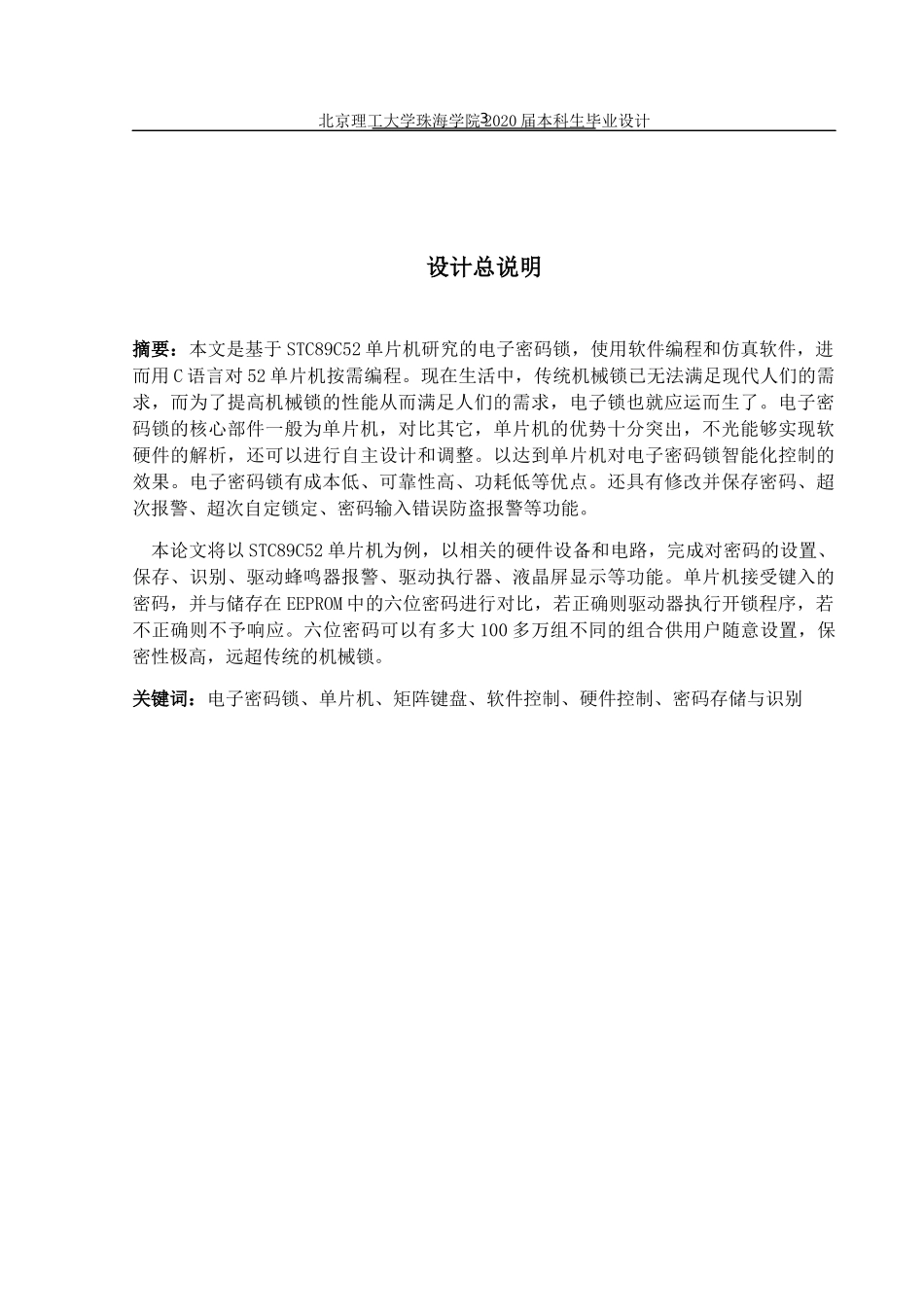

1北京理工大学珠海学院 2020 届本科生毕业设计3北京理工大学珠海学院 2020 届本科生毕业设计设计总说明摘要：本文是基于 STC89C52 单片机研究的电子密码锁，使用软件编程和仿真软件，进而用 C 语言对 52 单片机按需编程。现在生活中，传统机械锁已无法满足现代人们的需求，而为了提高机械锁的性能从而满足人们的需求，电子锁也就应运而生了。电子密码锁的核心部件一般为单片机，对比其它，单片机的优势十分突出，不光能够实现软硬件的解析，还可以进行自主设计和调整。以达到单片机对电子密码锁智能化控制的效果。电子密码锁有成本低、可靠性高、功耗低等优点。还具有修改并保存密码、超次报警、超次自定锁定、密码输入错误防盗报警等功能。本论文将以 STC89C52 单片机为例，以相关的硬件设备和电路，完成对密码的设置、保存、识别、驱动蜂鸣器报警、驱动执行器、液晶屏显示等功能。单片机接受键入的密码，并与储存在 EEPROM 中的六位密码进行对比，若正确则驱动器执行开锁程序，若不正确则不予响应。六位密码可以有多大 100 多万组不同的组合供用户随意设置，保密性极高，远超传统的机械锁。关键词：电子密码锁、单片机、矩阵键盘、软件控制、硬件控制、密码存储与识别3北京理工大学珠海学院 2020 届本科生毕业设计INTRODUCTIONAbstract: This paper mainly studies the electronic combination lock based on STC89C52 microcontroller, and uses simulation software and software programming software to program the microcontroller on demand using programming language. In today's life, traditional mechanical locks can no longer meet the needs of modern people. In order to improve the performance of mechanical locks to meet people's needs, electronic locks have emerged. Electronic coded locks generally use single chip microcomputer as the core component. Compared with other components, single chip microcomputer has great advantages, which can not only realize software and hardware analysis, but also design and debug. So as to realize the intelligent control of the electronic coded lock by using the singlechip. The combination lock has t...
