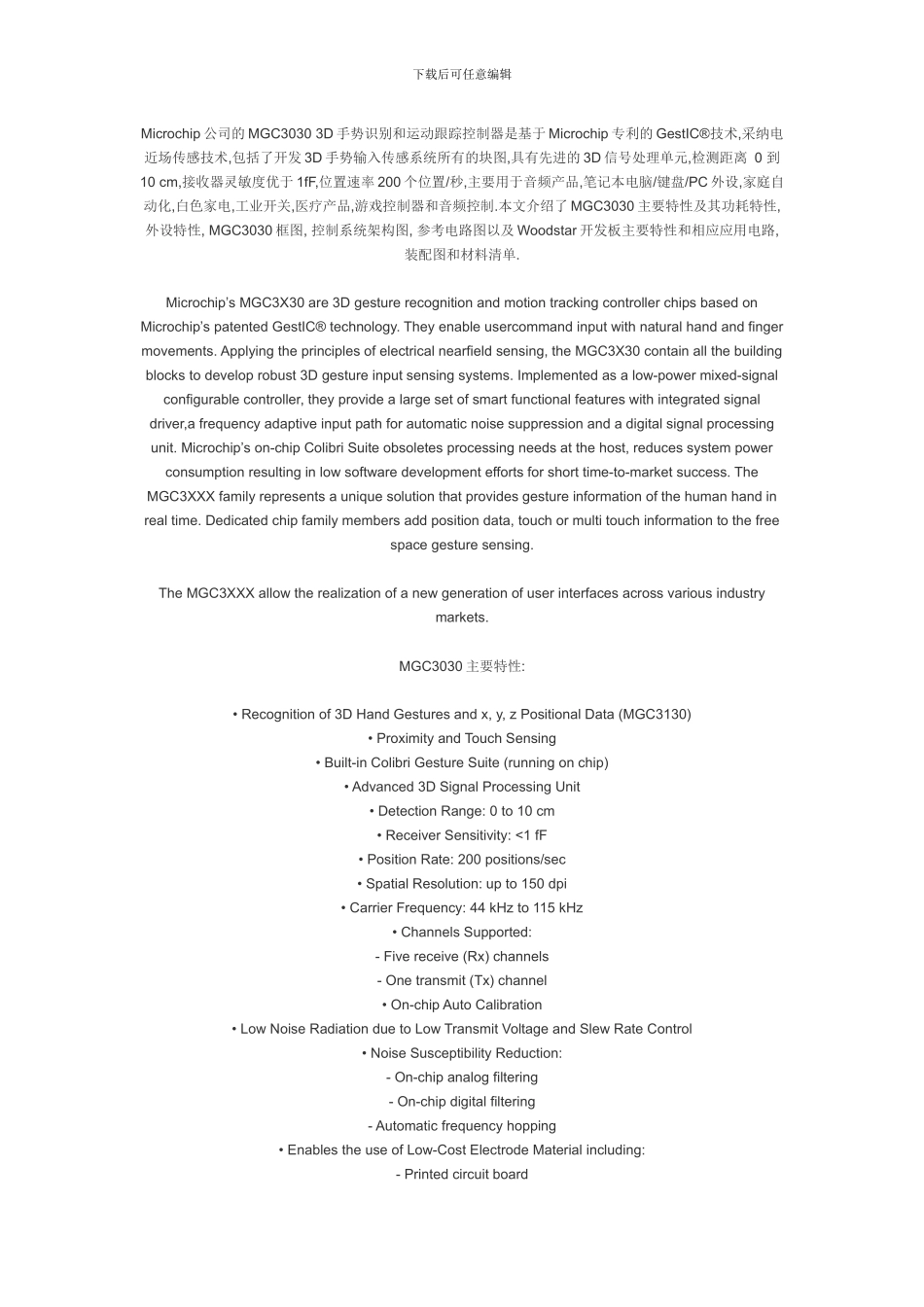

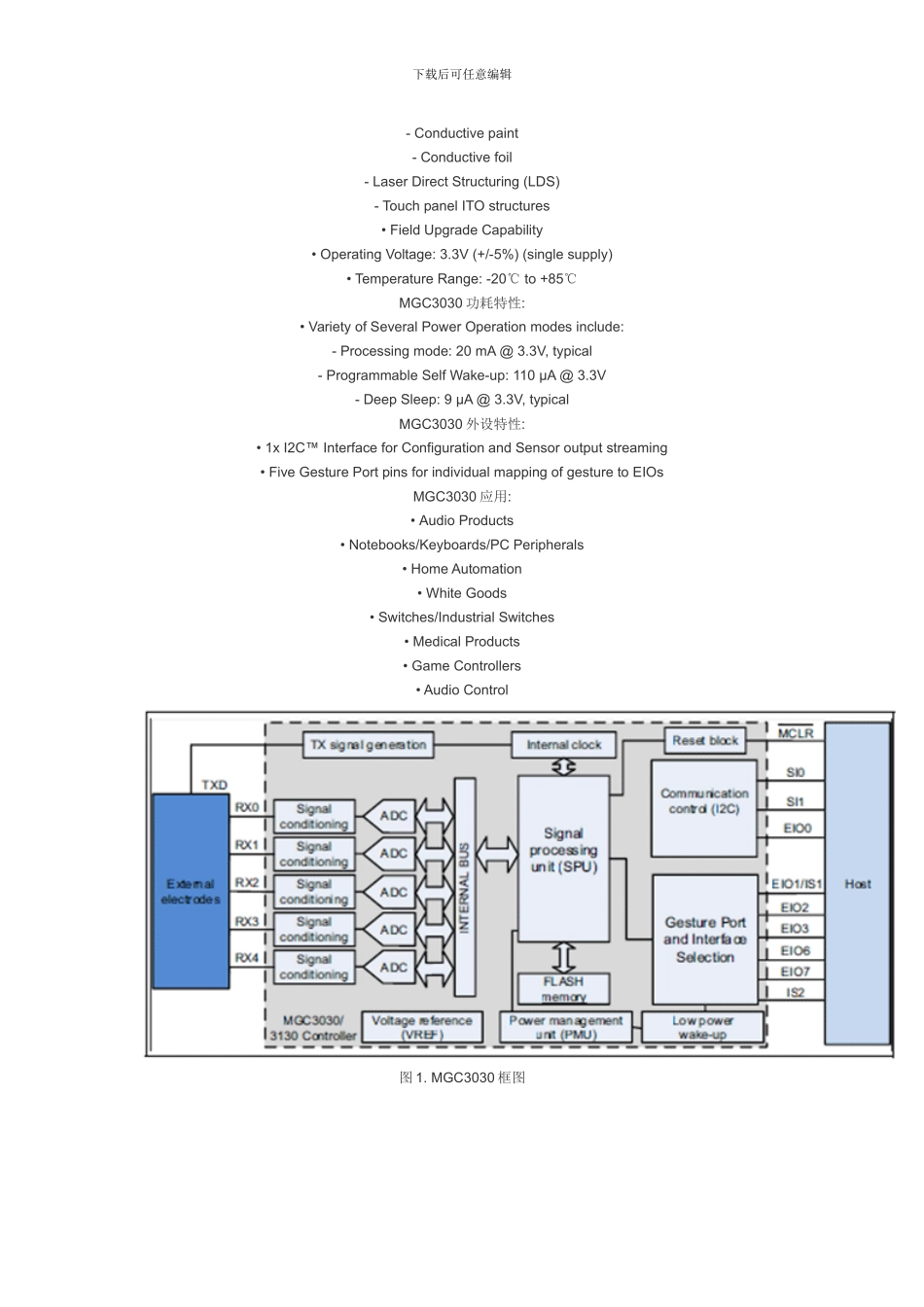

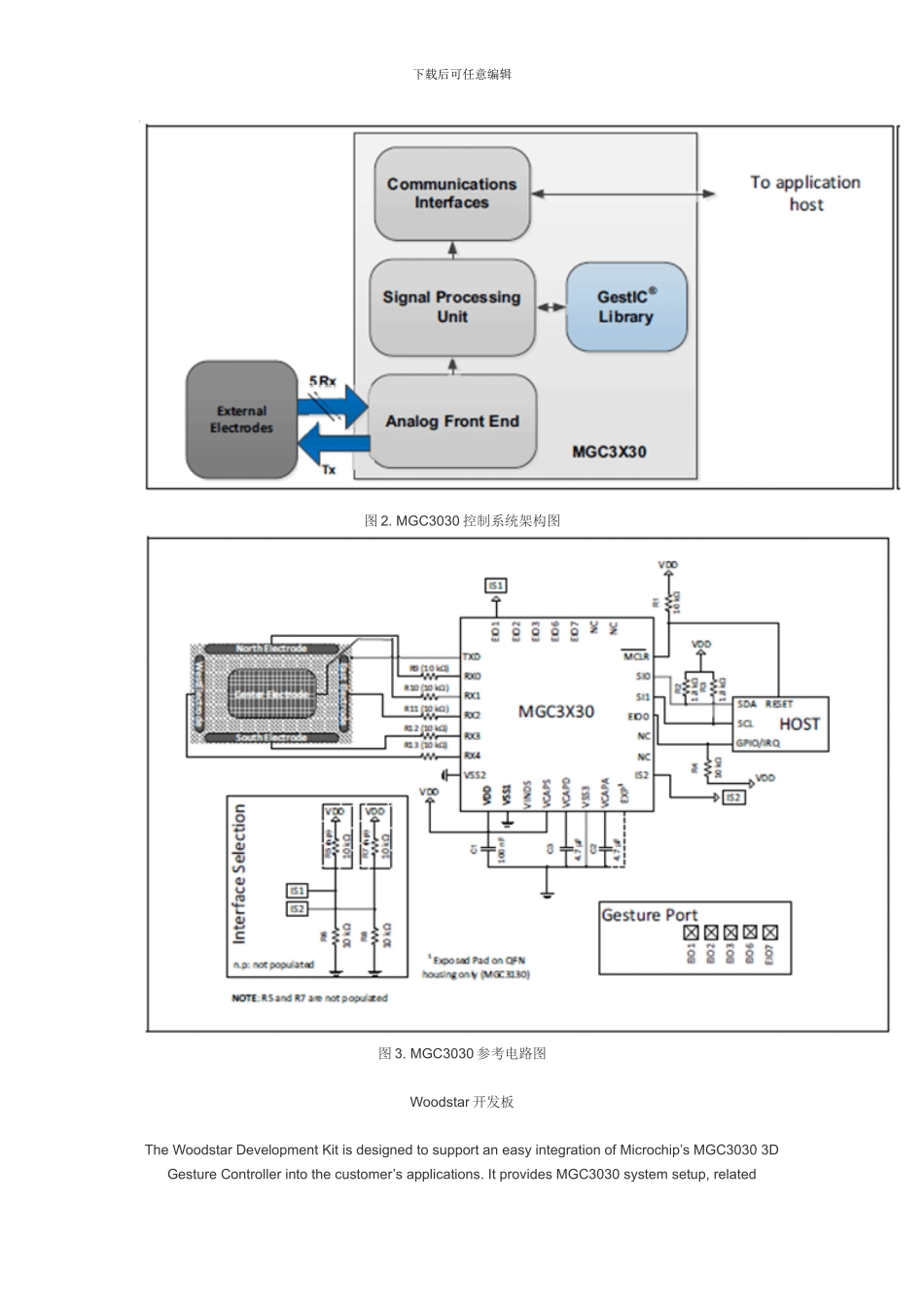

下载后可任意编辑Microchip 公司的 MGC3030 3D 手势识别和运动跟踪控制器是基于 Microchip 专利的 GestIC®技术,采纳电近场传感技术,包括了开发 3D 手势输入传感系统所有的块图,具有先进的 3D 信号处理单元,检测距离 0 到10 cm,接收器灵敏度优于 1fF,位置速率 200 个位置/秒,主要用于音频产品,笔记本电脑/键盘/PC 外设,家庭自动化,白色家电,工业开关,医疗产品,游戏控制器和音频控制.本文介绍了 MGC3030 主要特性及其功耗特性,外设特性, MGC3030 框图, 控制系统架构图, 参考电路图以及 Woodstar 开发板主要特性和相应应用电路,装配图和材料清单.Microchip’s MGC3X30 are 3D gesture recognition and motion tracking controller chips based on Microchip’s patented GestIC® technology. They enable usercommand input with natural hand and finger movements. Applying the principles of electrical nearfield sensing, the MGC3X30 contain all the building blocks to develop robust 3D gesture input sensing systems. Implemented as a low-power mixed-signal configurable controller, they provide a large set of smart functional features with integrated signal driver,a frequency adaptive input path for automatic noise suppression and a digital signal processing unit. Microchip’s on-chip Colibri Suite obsoletes processing needs at the host, reduces system power consumption resulting in low software development efforts for short time-to-market success. The MGC3XXX family represents a unique solution that provides gesture information of the human hand in real time. Dedicated chip family members add position data, touch or multi touch information to the free space gesture sensing.The MGC3XXX allow the realization of a new generation of user interfaces across various industry markets.傲壹电子(AO-Electronics) 官网：www.aoelectronics.com/main.php 中文网：www.aoelectronics.cnMGC3030 主要特性:• Recognition of 3D Hand Gestures and x, y, z Position...
