20100402汽车用低压屏蔽线试验规范1VIP免费

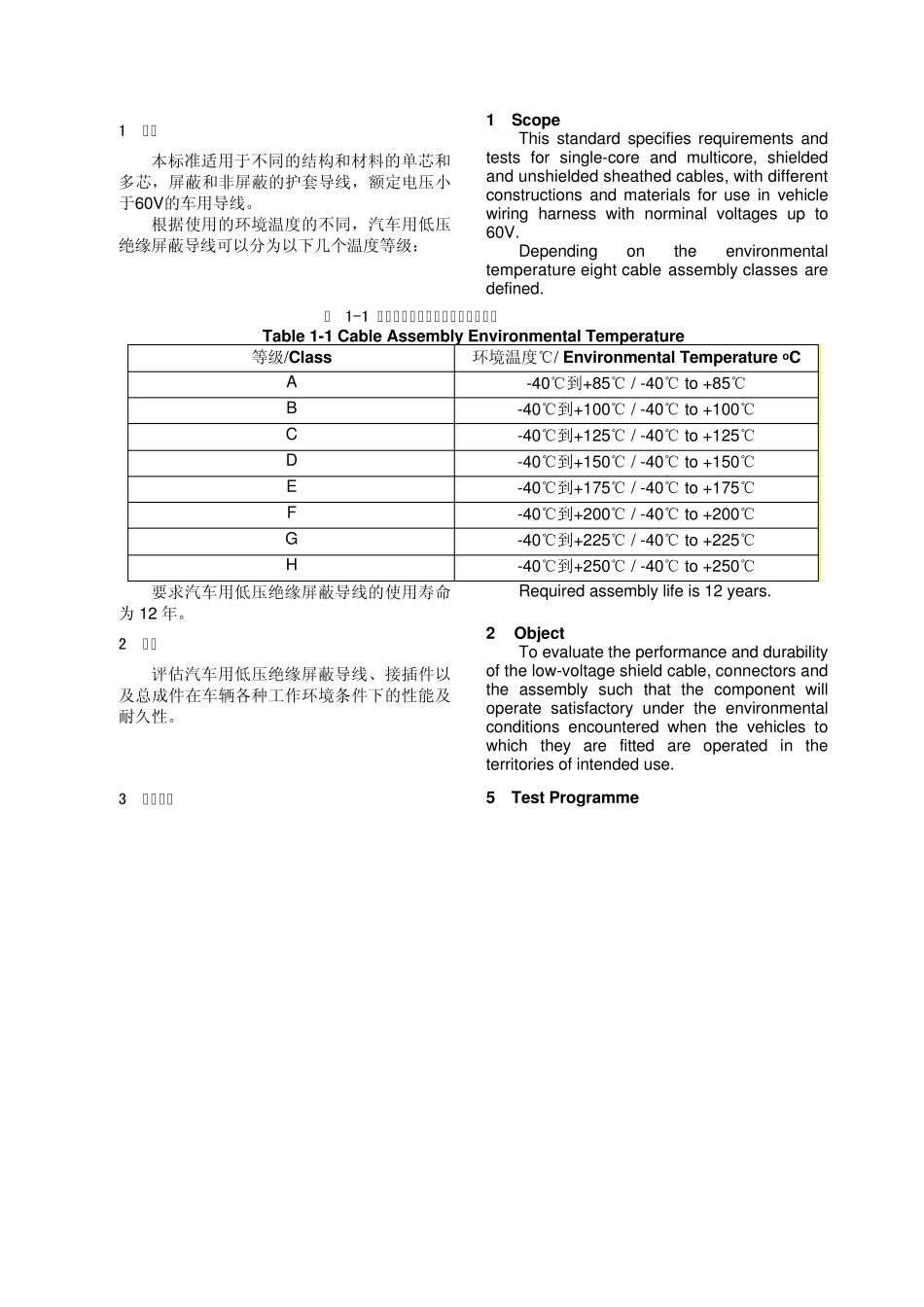

20100402汽车用低压屏蔽线试验规范1_第1页
1/22

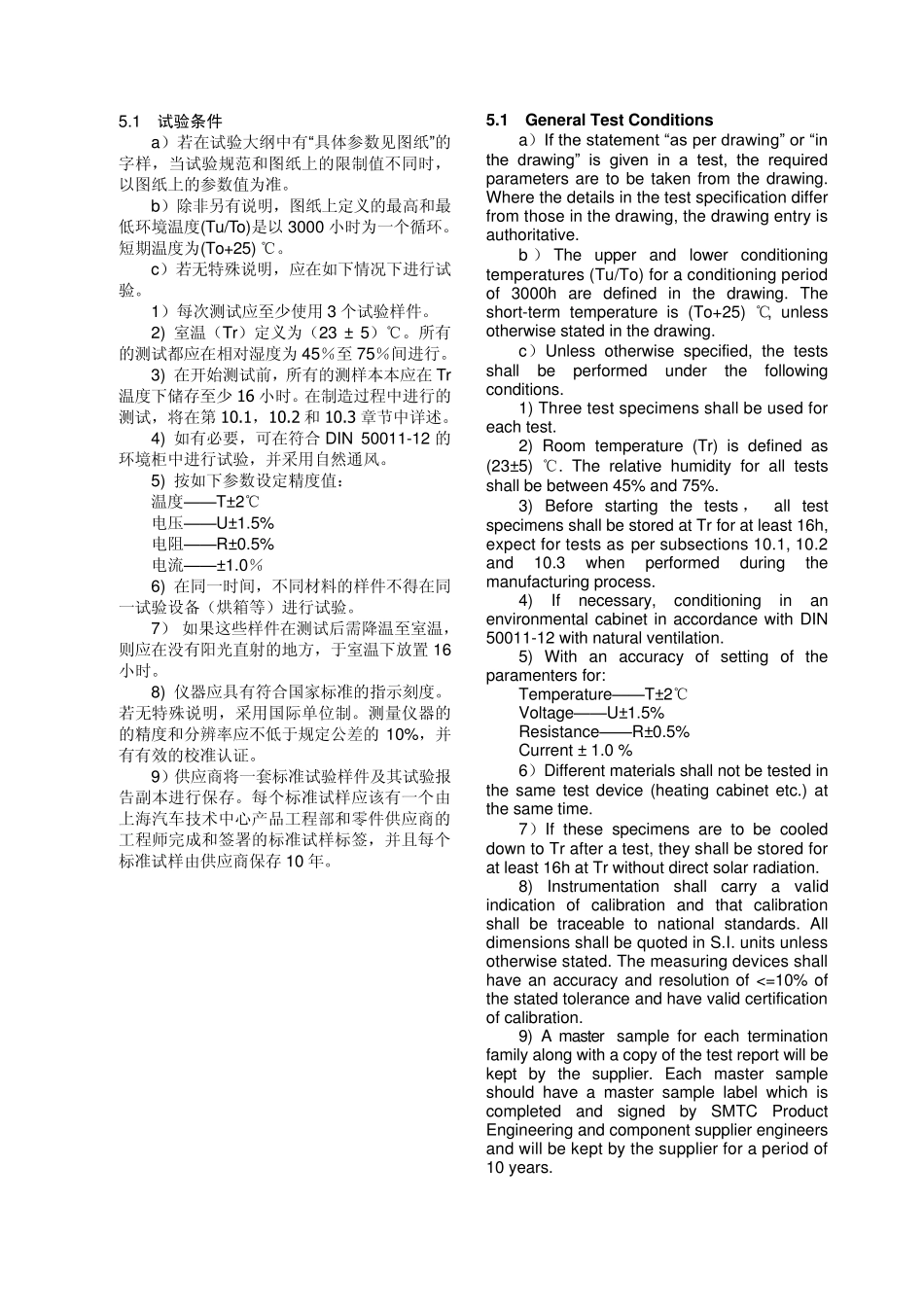

20100402汽车用低压屏蔽线试验规范1_第2页
2/22

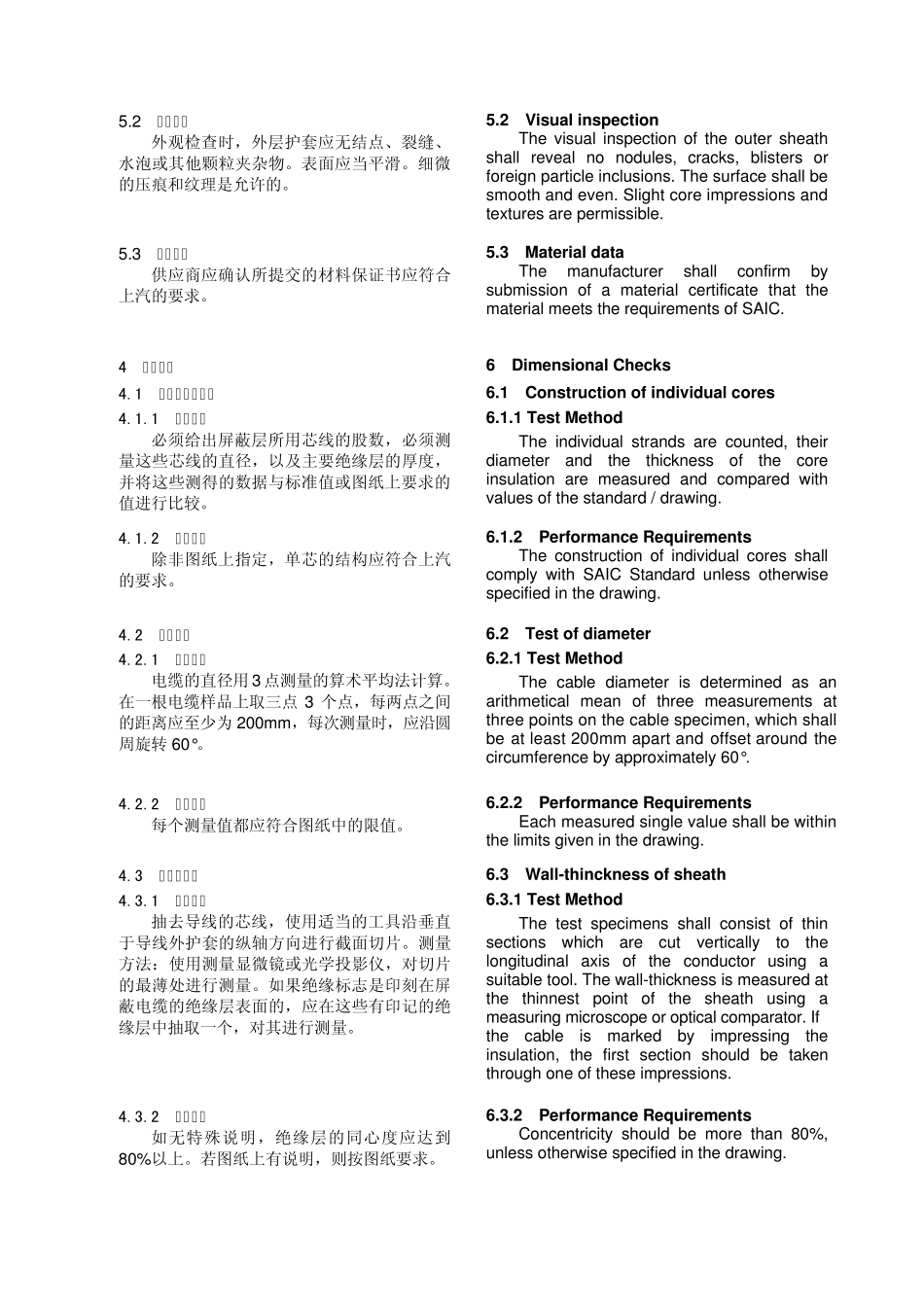

20100402汽车用低压屏蔽线试验规范1_第3页
3/22
1 范围 本标准适用于不同的结构和材料的单芯和多芯,屏蔽和非屏蔽的护套导线,额定电压小于60V的车用导线。 根据使用的环境温度的不同,汽车用低压绝缘屏蔽导线可以分为以下几个温度等级: 1 Scope This standard specifies requirements and tests for single-core and multicore, shielded and unshielded sheathed cables, with different constructions and materials for use in vehicle wiring harness with norminal voltages up to 60V. Depending on the environmental temperature eight cable assembly classes are defined. 表 1-1 汽车用低压绝缘屏蔽导线温度等级 Table 1-1 Cable Assembly Environmental Temperature 等级/Class 环境温度℃/ Environmental Temperature oC A -40℃到+85℃ / -40℃ to +85℃ B -40℃到+100℃ / -40℃ to +100℃ C -40℃到+125℃ / -40℃ to +125℃ D -40℃到+150℃ / -40℃ to +150℃ E -40℃到+175℃ / -40℃ to +175℃ F -40℃到+200℃ / -40℃ to +200℃ G -40℃到+225℃ / -40℃ to +225℃ H -40℃到+250℃ / -40℃ to +250℃ 要求汽车用低压绝缘屏蔽导线的使用寿命为12 年。 Required assembly life is 12 years. 2 目标 评估汽车用低压绝缘屏蔽导线、接插件以及总成件在车辆各种工作环境条件下的性能及耐久性。 2 Object To evaluate the performance and durability of the low-voltage shield cable, connectors and the assembly such that the component will operate satisfactory under the environmental conditions encountered when the vehicles to which they are fitted are operated in the territories of intended use. 3 试验程序 5 Test Programme 5.1 试验条件 a)若在试验大纲中有“具体参数见图纸” 的字样,当试验规范和图纸上的限制值不同时,以图纸上的参数值为准。 b)除非另有说明,图纸上定义的最高和最低环境温度(Tu/To)是以3000 小时为一个循环。短期温度为(To+25) ℃。 c)若无特殊说明,应在如下情况下进行试验。 1)每次测试应至少使用 3 个试验样件。 2) 室温(Tr)定义为(23 ± 5)℃。所有的测试都应在相对湿度为45%至 75%间进行。 3) 在开始测试前,...
