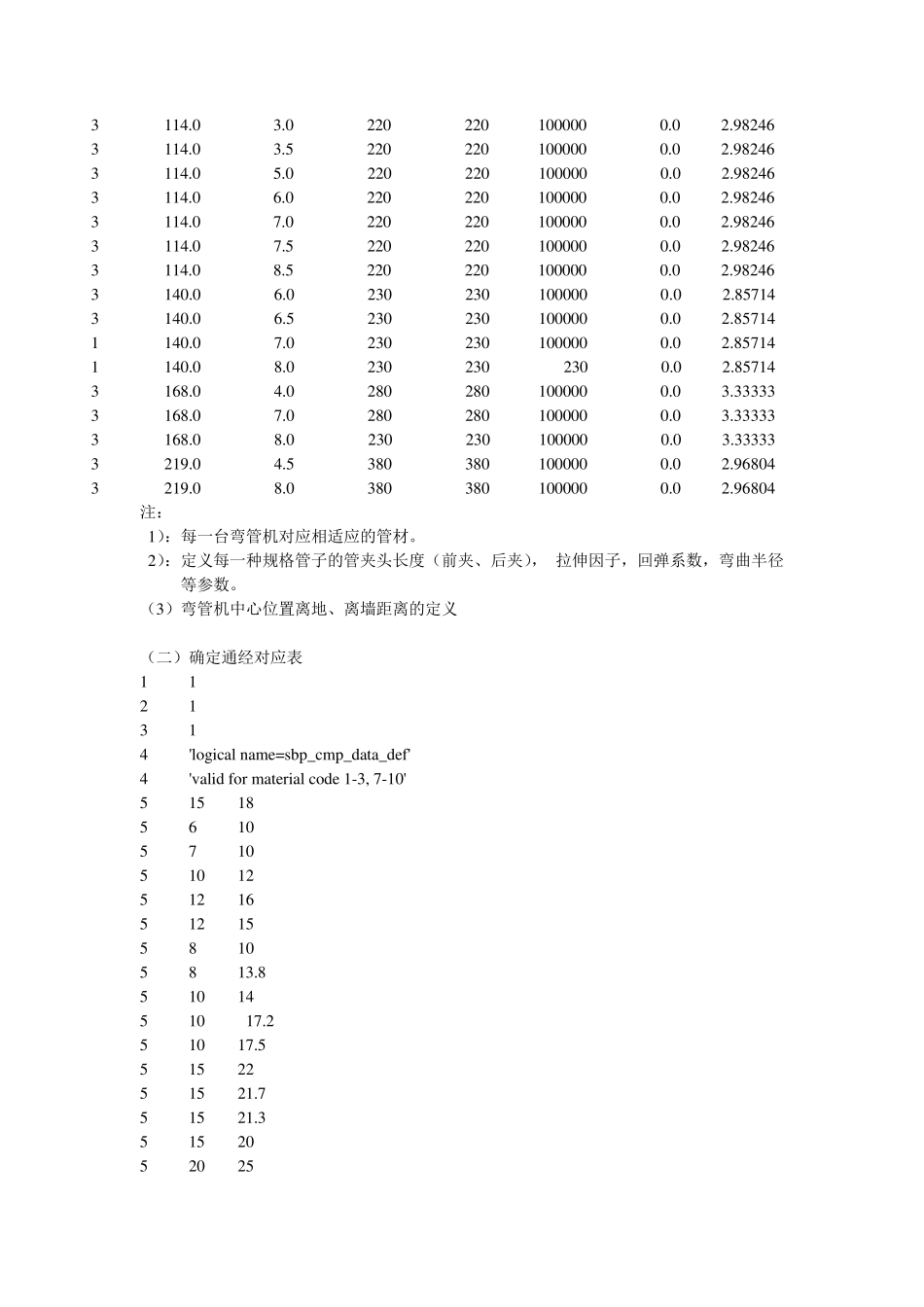

管系建模设绘通则 第一部分 管子建模前的准备工作（产品主管负责）： （一）：建立弯管机特性参数 DIMENSION TABLE OBJECT NAME : $MACH$BEND Machine Ou ter Wall- Bending No diameter thickness G-measu re L1-measu re L2-measu re FC-measu re Radiu s -------------------------------------------------------------------------------------------- 1 22.0 2.5 80 80 100000 0.0 2.95455 1 22.0 3.0 80 80 100000 0.0 2.95455 1 27.0 2.5 80 80 100000 0.0 2.77778 1 27.0 3.0 80 80 10000 0.0 2.77778 1 27.0 4.5 80 80 100000 0.0 2.77778 1 34.0 3.0 100 100 100000 0.0 2.79412 1 34.0 3.5 100 100 100000 0.0 2.79412 1 34.0 4.5 100 100 100000 0.0 2.79412 1 42.0 3.0 120 120 100000 0.0 2.97619 1 42.0 3.5 120 120 100000 0.0 2.97619 1 42.0 4.0 120 120 100000 0.0 2.97619 1 42.0 4.5 120 120 100000 0.0 2.97619 1 42.0 5.0 120 120 100000 0.0 2.97619 2 48.0 3.0 120 120 100000 0.0 3.02083 2 48.0 4.0 120 120 100000 0.0 3.02083 2 48.0 4.5 120 120 100000 0.0 3.02083 2 48.0 5.0 120 120 100000 0.0 3.02083 2 60.0 3.0 120 120 100000 0.0 3.00000 2 60.0 4.0 120 120 100000 0.0 3.00000 2 60.0 4.5 120 120 100000 0.0 3.00000 2 60.0 5.0 120 120 100000 0.0 3.00000 2 60.0 6.0 120 120 100000 0.0 3.00000 2 76.0 4.5 200 200 100000 0.0 3.02632 2 76.0 5.0 200 200 100000 0.0 3.02632 2 76.0 6.0 200 200 100000 0.0 3.02632 2 76.0 8.0 200 200 100000 0.0 3.02632 2 89.0 3.0 220 220 100000 0.0 3.03371 2 89.0 5.0 220 220 100000 0.0 3.03371 2 89.0 5.5 220 220 100000 0.0 3.03371 2 89.0 6.0 220 200 100000 0.0 3.03371 2 89.0 7.0 220 220 100000 0.0 3.03371 2 89.0 7.5 220 220 100000 0.0 3.03371 3 114.0 3.0 220 220 100000 0.0 2.98246 3 114.0 3.5 220 220 100000 0.0 2.98246 3 114.0 5.0 220 220 100000 0.0 2.98246 3 114.0 6.0 220 220 100000 0...
