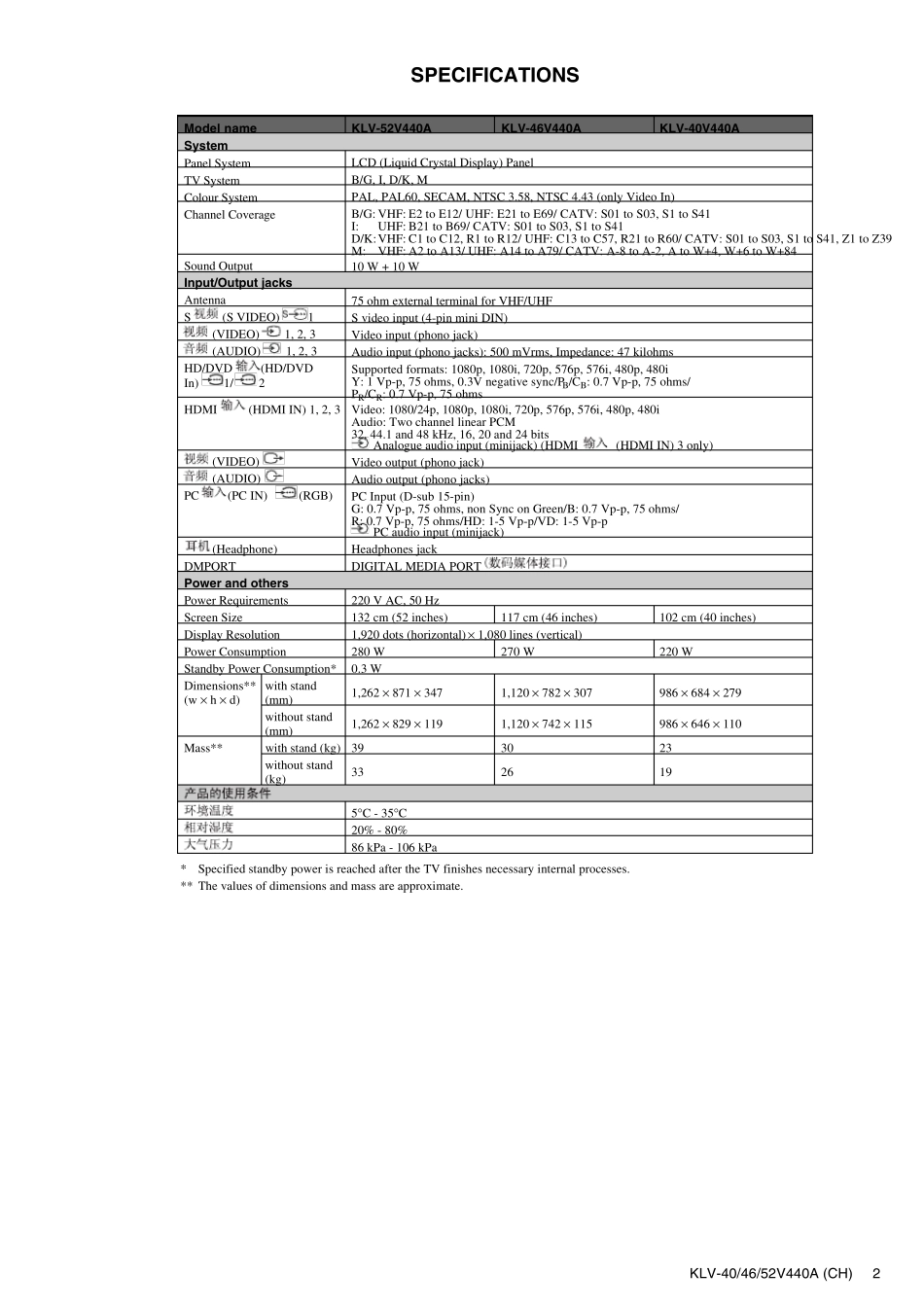

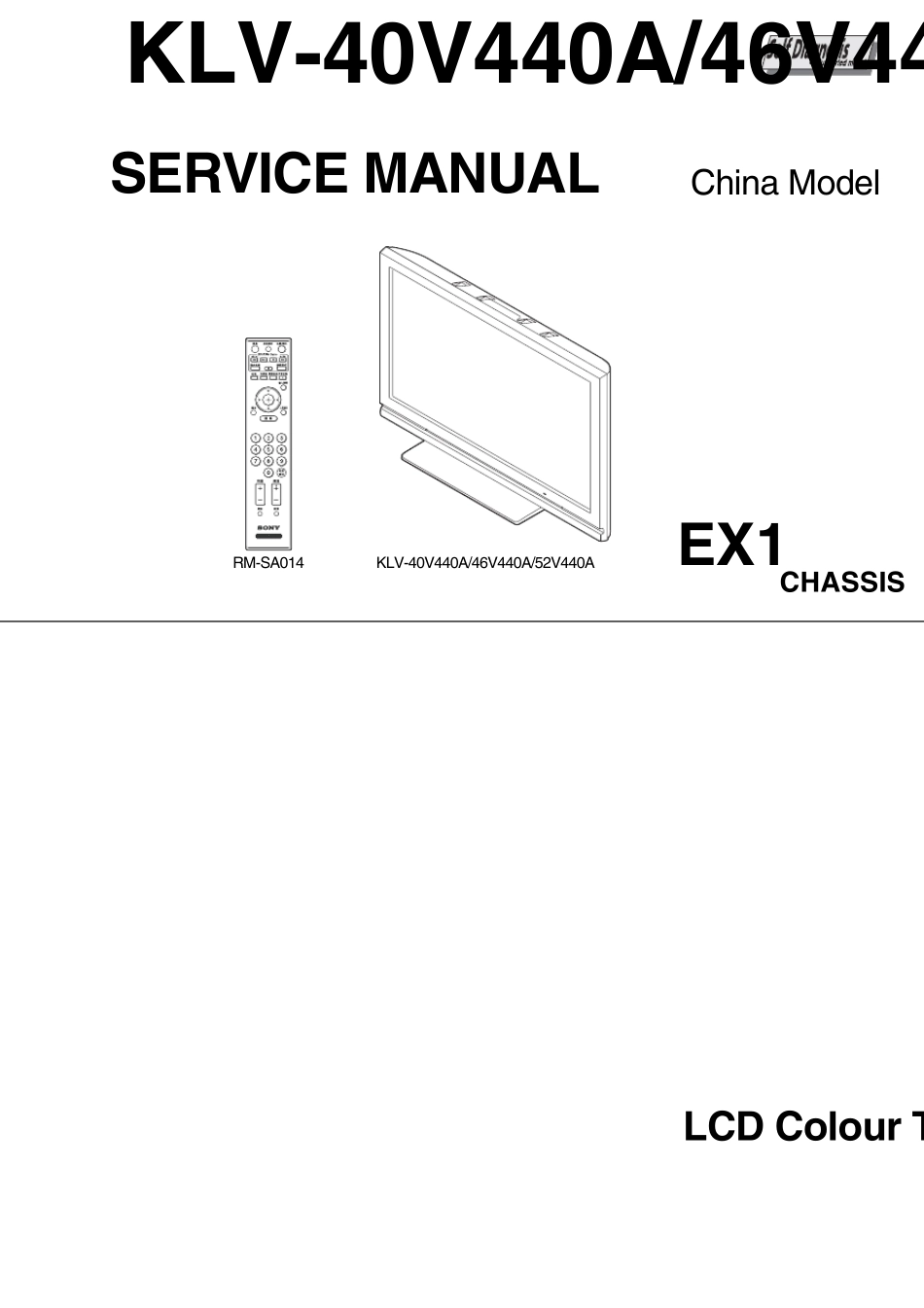

SERVICE MANUALLCD Colou r TVChin a Mo delEX1 CHASSISKLV-40V440A/46V440A/52V440ARM-SA014KLV-40V440A/46V440A/52V440AKLV-40/46/52V440A (CH) 2SPECIFICATIONSPanel SystemTV SystemColour SystemChannel CoverageSound OutputInput/Output jacksAntennaS (S VIDEO) 1 (VIDEO) 1, 2, 3 (AUDIO) 1, 2, 3HD/DVD (HD/DVDIn) 1/ 2HDMI (HDMI IN) 1, 2, 3 (VIDEO) (AUDIO)PC (PC IN) (RGB) (Headphone)DMPORTPower and othersPower RequirementsScreen SizeDisplay ResolutionPower ConsumptionStandby Power Consumption*Dimensions** with stand(w × h × d) (mm) without stand (mm)Mass** with stand (kg) without stand (kg)LCD (Liquid Crystal Display) PanelB/G, I, D/K, MPAL, PAL60, SECAM, NTSC 3.58, NTSC 4.43 (only Video In)B/G: VHF: E2 to E12/ UHF: E21 to E69/ CATV: S01 to S03, S1 to S41I: UHF: B21 to B69/ CATV: S01 to S03, S1 to S41D/K:VHF: C1 to C12, R1 to R12/ UHF: C13 to C57, R21 to R60/ CATV: S01 to S03, S1 to S41, Z1 to Z39M: VHF: A2 to A13/ UHF: A14 to A79/ CATV: A-8 to A-2, A to W+4, W+6 to W+8410 W + 10 W75 ohm external terminal for VHF/UHFS video input (4-pin mini DIN)Video input (phono jack)Audio input (phono jacks): 500 mVrms, Impedance: 47 kilohmsSupported formats: 1080p, 1080i, 720p, 576p, 576i, 480p, 480iY: 1 Vp-p, 75 ohms, 0.3V negative sync/PB/CB: 0.7 Vp-p, 75 ohms/PR/CR: 0.7 Vp-p, 75 ohmsVideo: 1080/24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480iAudio: Two channel linear PCM32, 44.1 and 48 kHz, 16, 20 and 24 bitsAnalogue audio input (minijack) (HDMI (HDMI IN) 3 only)Video output (phono jack) Audio output (phono jacks)PC Input (D-sub 15-pin) G: 0.7 Vp-p, 75 ohms, non Sync on Green/B: 0.7 Vp-p, 75 ohms/R: 0.7 Vp-p, 75 ohms/HD: 1-5 Vp-p/VD: 1-5 Vp-pPC audio input (minijack)Headphones jackDIGITAL MEDIA PORT 220 V AC, 50 Hz132 cm ...
