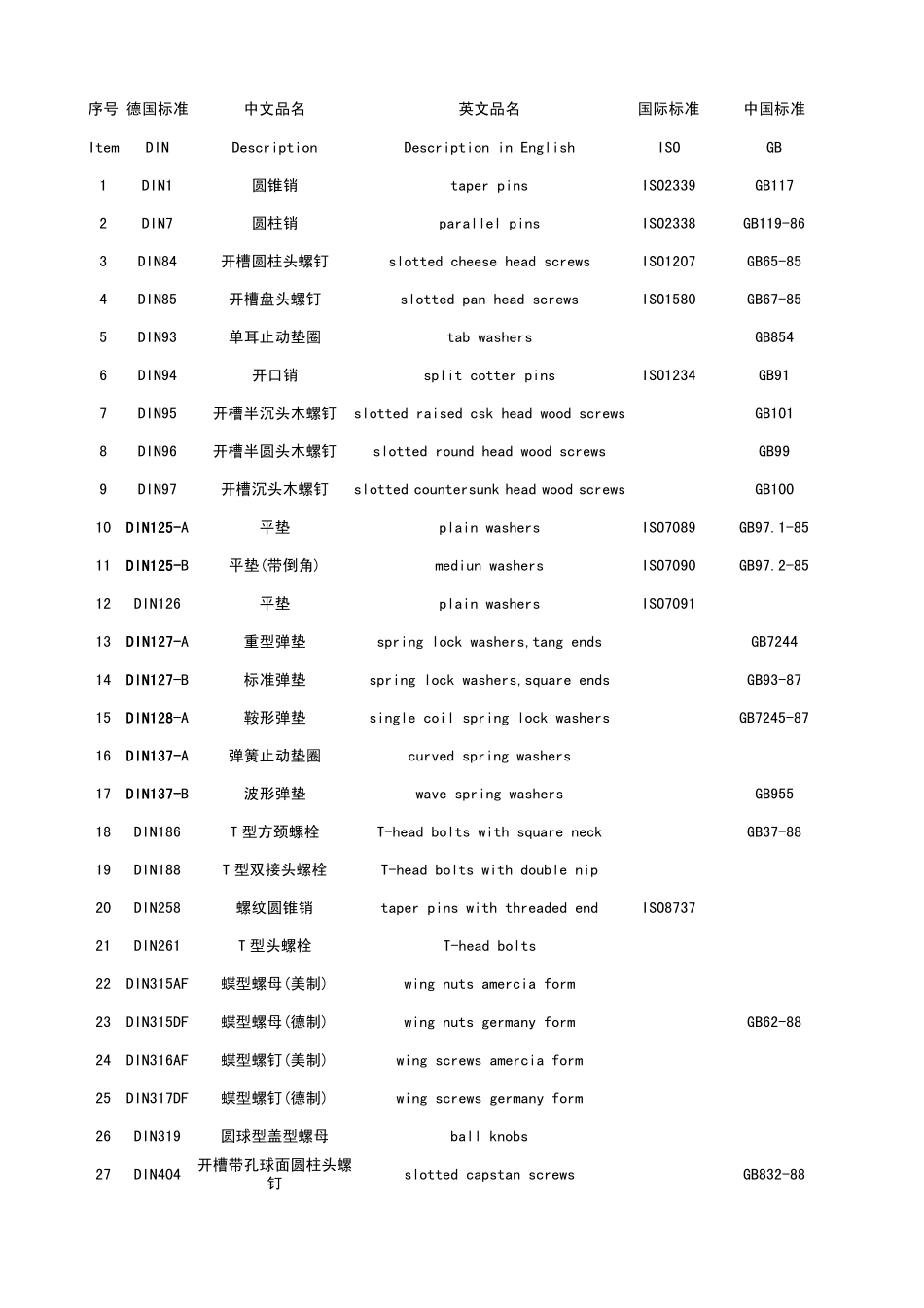

序号 德国标准 中文品名 英文品名 国际标准 中国标准 Item DIN Description Description in English ISO GB 1 DIN1 圆锥销 taper pins ISO2339 GB117 2 DIN7 圆柱销 parallel pins ISO2338 GB119-86 3 DIN84 开槽圆柱头螺钉 slotted cheese head screws ISO1207 GB65-85 4 DIN85 开槽盘头螺钉 slotted pan head screws ISO1580 GB67-85 5 DIN93 单耳止动垫圈 tab washers GB854 6 DIN94 开口销 split cotter pins ISO1234 GB91 7 DIN95 开槽半沉头木螺钉 slotted raised csk head wood screws GB101 8 DIN96 开槽半圆头木螺钉 slotted round head wood screws GB99 9 DIN97 开槽沉头木螺钉 slotted countersunk head wood screws GB100 10 DIN125DIN125--A 平垫 plain washers ISO7089 GB97.1-85 11 DIN125DIN125--B 平垫(带倒角) mediun washers ISO7090 GB97.2-85 12 DIN126 平垫 plain washers ISO7091 13 DIN127DIN127--A 重型弹垫 spring lock washers,tang ends GB7244 14 DIN127DIN127--B 标准弹垫 spring lock washers,square ends GB93-87 15 DIN128DIN128--A 鞍形弹垫 single coil spring lock washers GB7245-87 16 DIN137DIN137--A 弹簧止动垫圈 curved spring washers 17 DIN137DIN137--B 波形弹垫 wave spring washers GB955 18 DIN186 T 型方颈螺栓 T-head bolts with square neck GB37-88 19 DIN188 T 型双接头螺栓 T-head bolts with double nip 20 DIN258 螺纹圆锥销 taper pins with threaded end ISO8737 21 DIN261 T 型头螺栓 T-head bolts 22 DIN315AF 蝶型螺母(美制) wing nuts amercia form 23 DIN315DF 蝶型螺母(德制) wing nuts germany form GB62-88 24 DIN316AF 蝶型螺钉(美制) wing screws amercia form 25 DIN317DF 蝶型螺钉(德制) wing screws germany form 26 DIN319 圆球型盖型螺母 ball knobs 27 DIN404 开槽带孔球面圆柱头螺钉 slotted capstan screws GB832-88 28 DIN417 开槽长圆柱端紧定螺钉 slotted set srews with full dog pointISO7435 GB75-85 29 DIN427 开槽平端紧定螺钉(半牙) slotted set srews with chamfered endISO2342 GB73-85 30 DI...
