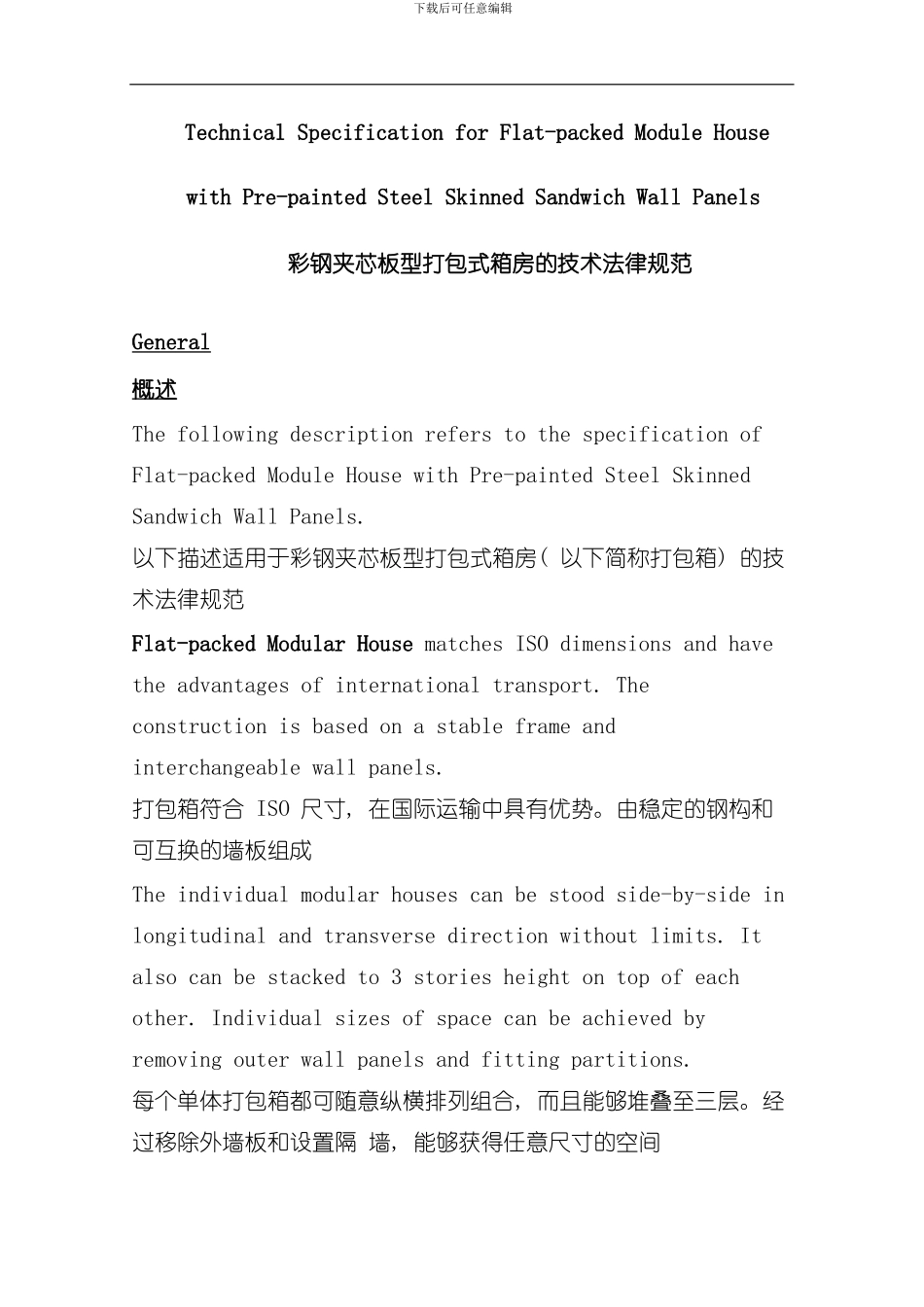

下载后可任意编辑Technical Specification for Flat-packed Module Housewith Pre-painted Steel Skinned Sandwich Wall Panels彩钢夹芯板型打包式箱房的技术法律规范General概述The following description refers to the specification of Flat-packed Module House with Pre-painted Steel Skinned Sandwich Wall Panels.以下描述适用于彩钢夹芯板型打包式箱房( 以下简称打包箱) 的技术法律规范Flat-packed Modular House matches ISO dimensions and have the advantages of international transport. The construction is based on a stable frame and interchangeable wall panels.打包箱符合 ISO 尺寸, 在国际运输中具有优势。由稳定的钢构和可互换的墙板组成The individual modular houses can be stood side-by-side in longitudinal and transverse direction without limits. It also can be stacked to 3 stories height on top of each other. Individual sizes of space can be achieved by removing outer wall panels and fitting partitions.每个单体打包箱都可随意纵横排列组合, 而且能够堆叠至三层。经过移除外墙板和设置隔 墙, 能够获得任意尺寸的空间下载后可任意编辑The flat-packed modular houses can be delivered assembled or individually — in packages 647mm high.打包箱能够整箱运输, 也能够打包运输——打包成 647mm 高Standard measurements and weights of flat-packed Modular House:打包箱的标准尺寸和重量 : External dimensions (mm)Internal dimensions (mm)外尺寸( mm) 内尺寸( mm) Weights (kg)LengthWidthHeightLengthWidthHeight重量( kg) 长度宽度高度长度宽度高度6058243828005856223625051970Flat-packed Modular House can also be delivered in dimensions which are exactly adapted to the individual use or to the available space.打包箱也能够根据个人需求和实际可用空间进行尺寸定制下载后可任意编辑SPECIFICATION DETAILS: 具体法律规范 : 1) BASE 底框 : Frame construction: 4mm cold rolled steel profiles, 3mm cold formed cross members welded together into a rigid ladder fram...
