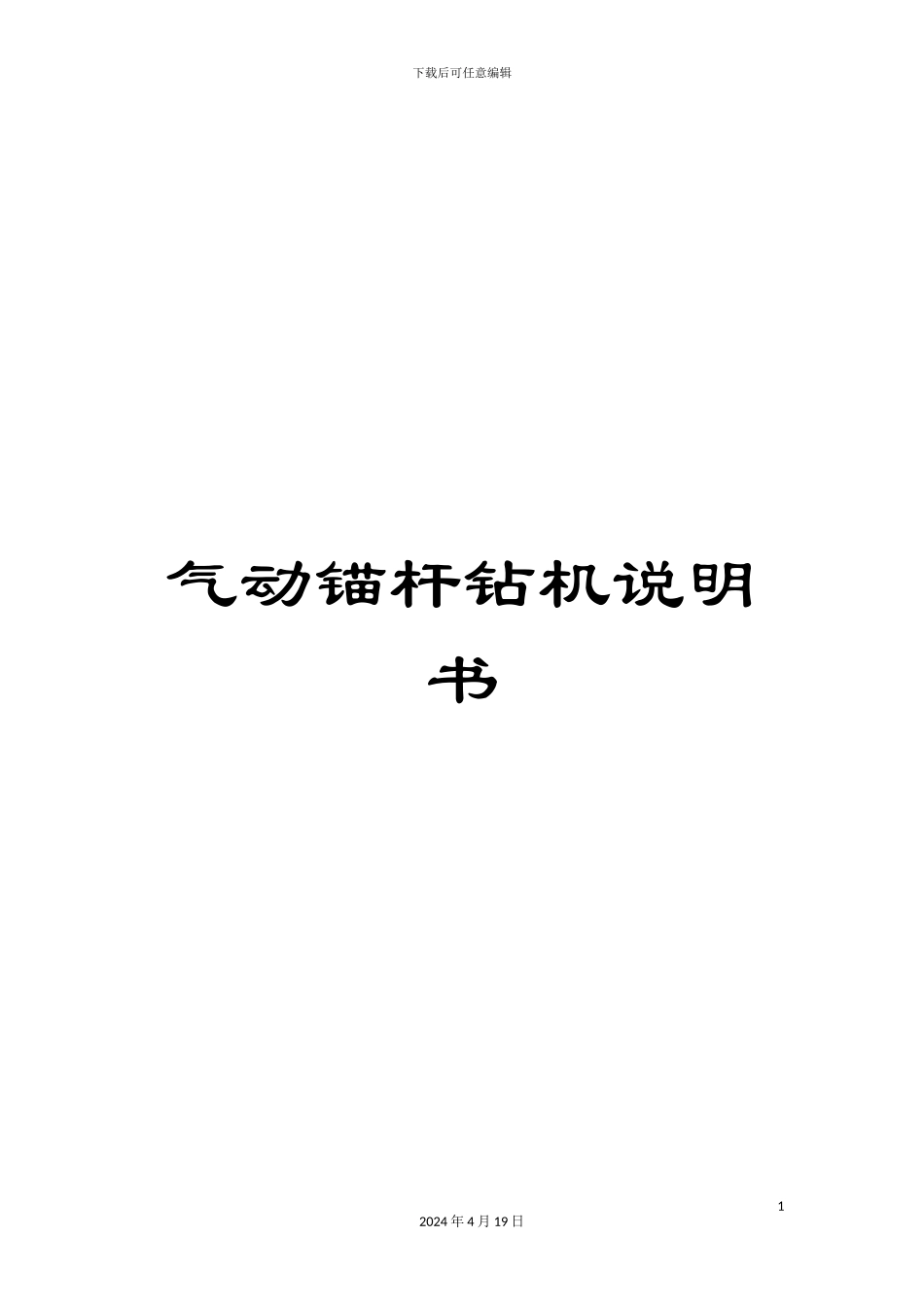

气动锚杆钻机说明书

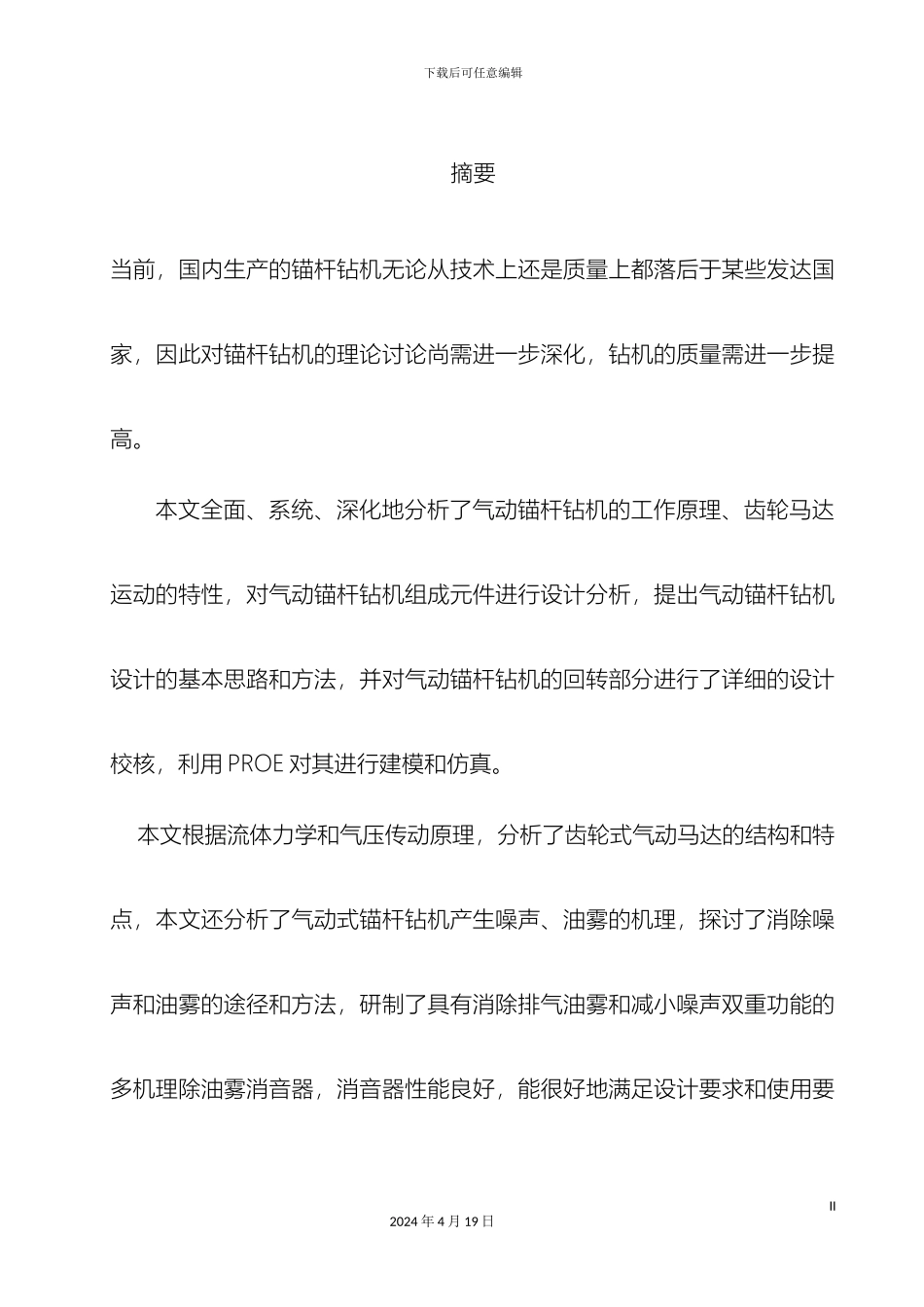

下载后可任意编辑气动锚杆钻机说明书12024 年 4 月 19 日下载后可任意编辑摘要当前，国内生产的锚杆钻机无论从技术上还是质量上都落后于某些发达国家，因此对锚杆钻机的理论讨论尚需进一步深化，钻机的质量需进一步提高。本文全面、系统、深化地分析了气动锚杆钻机的工作原理、齿轮马达运动的特性，对气动锚杆钻机组成元件进行设计分析，提出气动锚杆钻机设计的基本思路和方法，并对气动锚杆钻机的回转部分进行了详细的设计校核，利用 PROE 对其进行建模和仿真。 本文根据流体力学和气压传动原理，分析了齿轮式气动马达的结构和特点，本文还分析了气动式锚杆钻机产生噪声、油雾的机理，探讨了消除噪声和油雾的途径和方法，研制了具有消除排气油雾和减小噪声双重功能的多机理除油雾消音器，消音器性能良好，能很好地满足设计要求和使用要II2024 年 4 月 19 日下载后可任意编辑求。关键词:气动锚杆钻机、齿轮马达、回转部分、强度校核、消音器、支腿、操纵臂、建模、仿真ABSTRACTAt present, the domestic production of the jumbolter no matter from technology and quality are behind some developed countries, so III2024 年 4 月 19 日下载后可任意编辑the jumbolter to the study of the theory of the pending further deepening, the quality of the drilling rig to further improveThis paper, system, a further study on the working principle of the jumbolter pneumatic, gear motor sports characteristics, the jumbolter to pneumatic components design analysis, it puts forward the jumbolter pneumatic design basic idea and method, and the jumbolter to pneumatic rotating parts of detailed design respectively,Using PROE the modeling and simulation.In this paper, according to the principle of fluid mechanics and pneumatic transmission, this paper analyzes the gear type structure and characteristics of the pneumatic motor, this paper also analyzes the pneumatic type the jumbolter to produce noise, the mechanism of oil mist, and probes into the oil mist eliminate noise and the way and the IV2024 年 ...
