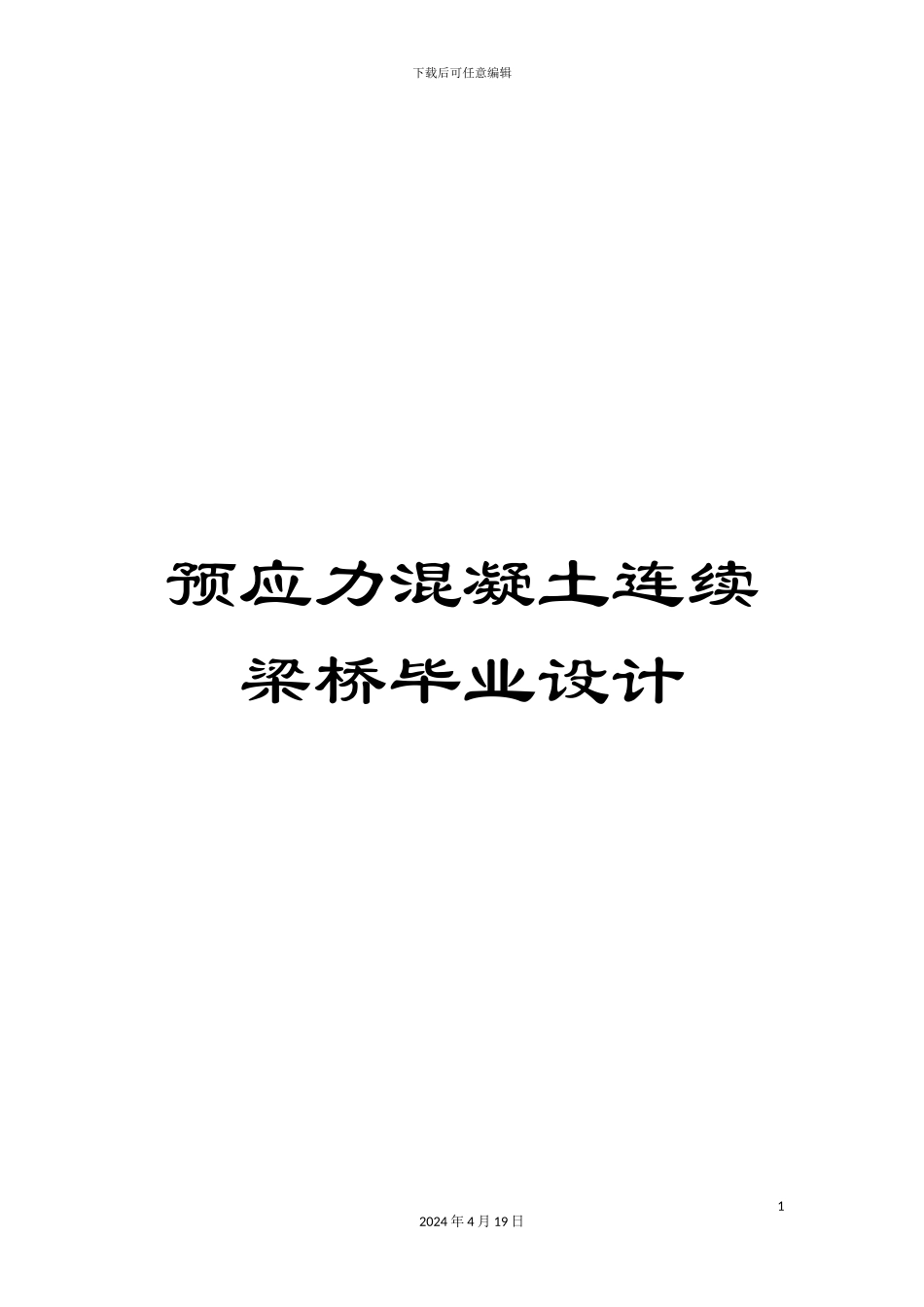

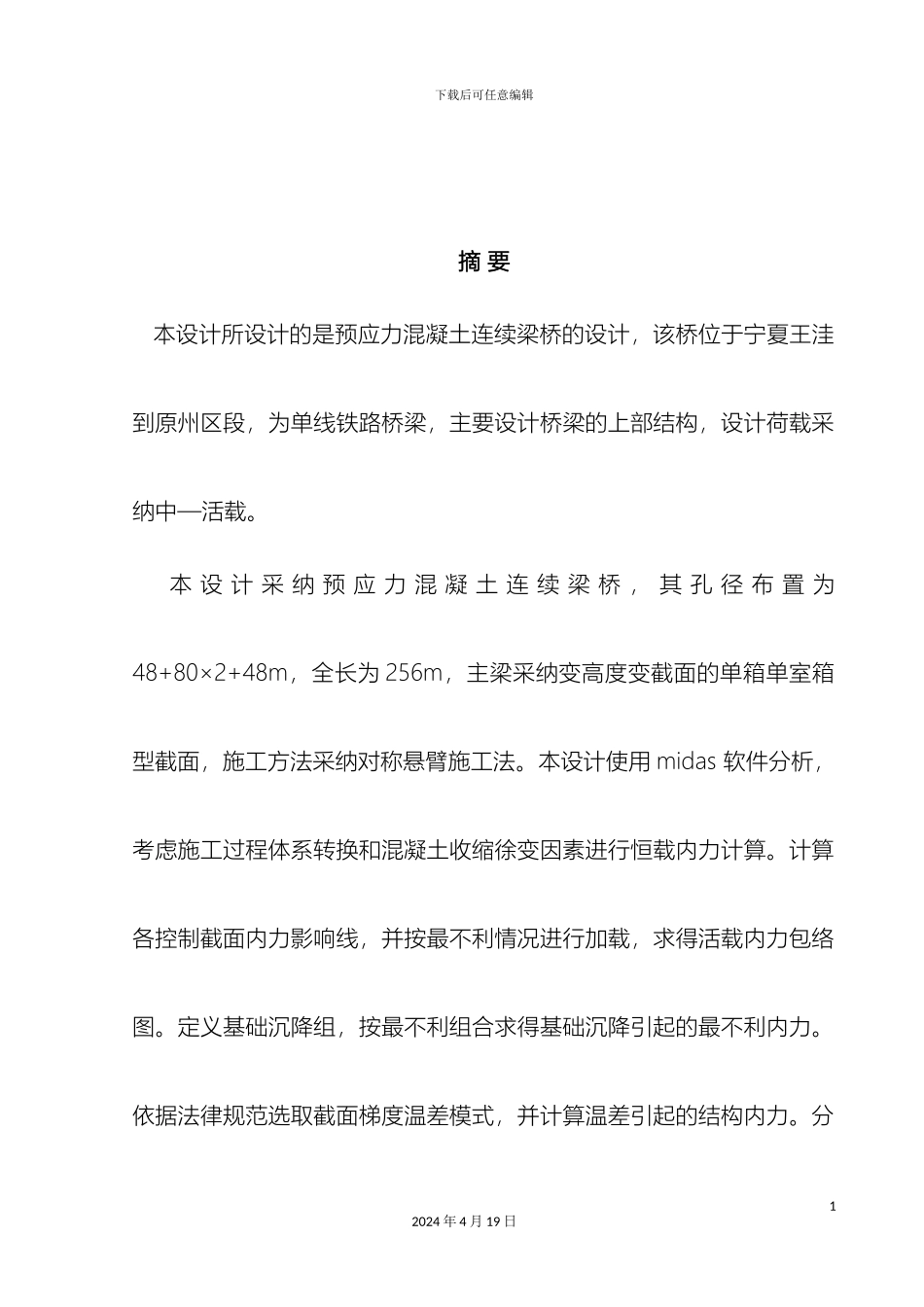

下载后可任意编辑预应力混凝土连续梁桥毕业设计12024 年 4 月 19 日下载后可任意编辑摘 要 本设计所设计的是预应力混凝土连续梁桥的设计,该桥位于宁夏王洼到原州区段,为单线铁路桥梁,主要设计桥梁的上部结构,设计荷载采纳中—活载。本 设 计 采 纳 预 应 力 混 凝 土 连 续 梁 桥 , 其 孔 径 布 置 为48+80×2+48m,全长为 256m,主梁采纳变高度变截面的单箱单室箱型截面,施工方法采纳对称悬臂施工法。本设计使用 midas 软件分析,考虑施工过程体系转换和混凝土收缩徐变因素进行恒载内力计算。计算各控制截面内力影响线,并按最不利情况进行加载,求得活载内力包络图。定义基础沉降组,按最不利组合求得基础沉降引起的最不利内力。依据法律规范选取截面梯度温差模式,并计算温差引起的结构内力。分12024 年 4 月 19 日下载后可任意编辑别按主力组合和主力附加力进行荷载组合,并得到结构组合内力包络图。根据各控制截面内力进行了估束和配筋计算,并绘制了梁体钢束布置图。最后,对各控制截面进行了强度、抗裂性、应力和变形验算,各项检算均满足法律规范对全预应力结构的要求。关键词:连续梁; 内力计算; 预应力混凝土; 检算;22024 年 4 月 19 日下载后可任意编辑AbstractWhat I designed at the undergraduate design is a prestressed concrete continuous beam bridge .It lies in Wangwa to Yuanzhou , Ningxia province .It is a single line railway .I mainly designed the superstructure of the bridge. The load for design is the “zhonghuo”load.I adopt a prestressed concrete continuous beam bridge with four spans of 48+80×2+48m ,Its total span is 256m . First the size of girder is determined; highly variable for the variable beam cross-section single-Box Single girder and balanced cantilever construction is used . Then the Midas program is used to calculate the internal force caused by dead load of the first stage , considering the 32024 年 4 月 19 日下载后可任意编辑construction stage , after imposing the second stage dead load on the complete system . The internal force of...
