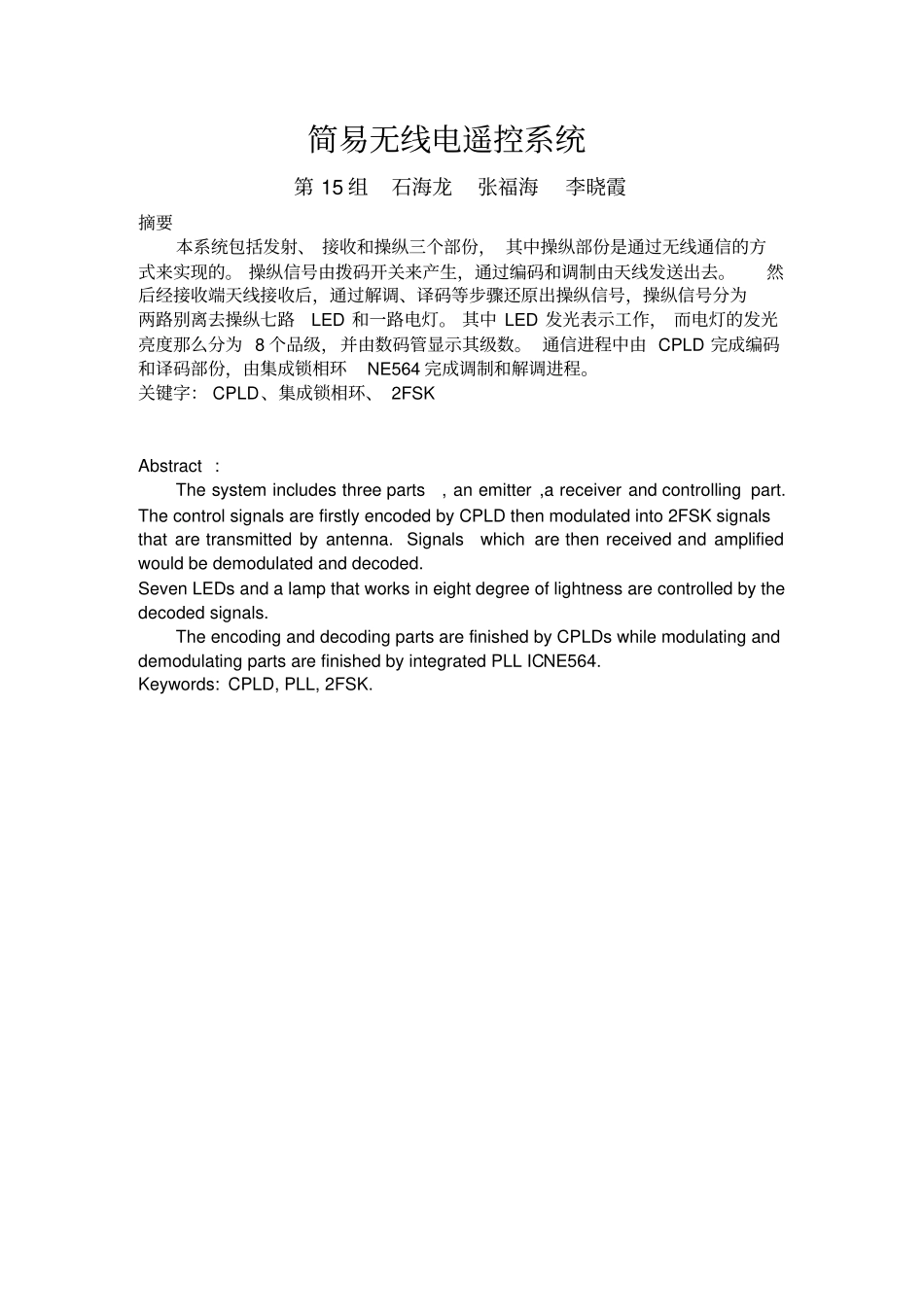

简易无线电遥控系统第 15 组石海龙张福海李晓霞摘要本系统包括发射、 接收和操纵三个部份, 其中操纵部份是通过无线通信的方式来实现的。 操纵信号由拨码开关来产生,通过编码和调制由天线发送出去。然后经接收端天线接收后,通过解调、译码等步骤还原出操纵信号,操纵信号分为两路别离去操纵七路LED 和一路电灯。 其中 LED 发光表示工作, 而电灯的发光亮度那么分为 8 个品级,并由数码管显示其级数。 通信进程中由 CPLD 完成编码和译码部份,由集成锁相环NE564 完成调制和解调进程。关键字: CPLD、集成锁相环、 2FSK Abstract : The system includes three parts , an emitter ,a receiver and controlling part. The control signals are firstly encoded by CPLD then modulated into 2FSK signals that are transmitted by antenna. Signals which are then received and amplified would be demodulated and decoded. Seven LEDs and a lamp that works in eight degree of lightness are controlled by the decoded signals. The encoding and decoding parts are finished by CPLDs while modulating and demodulating parts are finished by integrated PLL IC NE564. Keywords: CPLD, PLL, 2FSK. 目录系统设计 · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 一、设计要求· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 二、设计思路· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 3、方案论证· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·...
