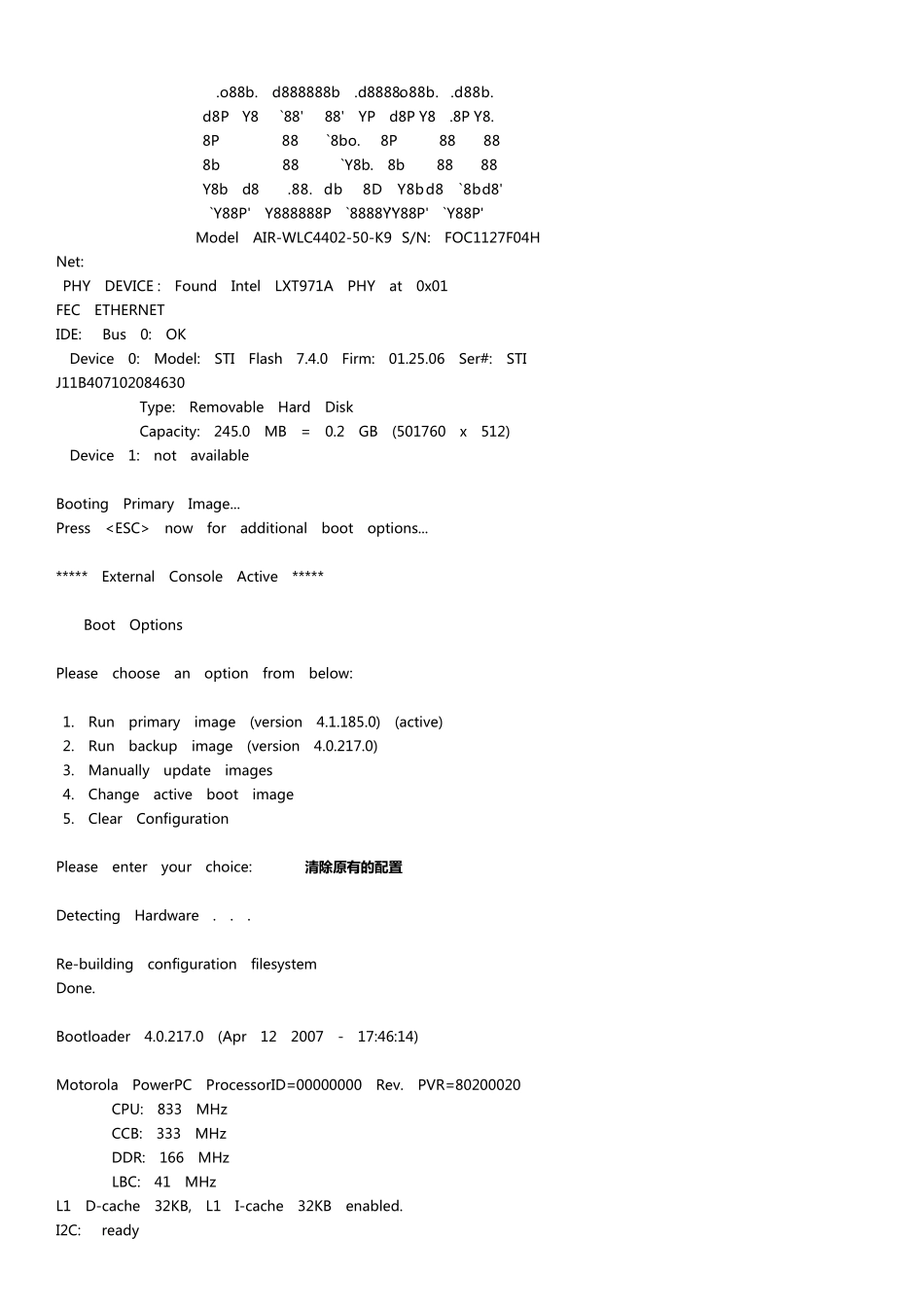

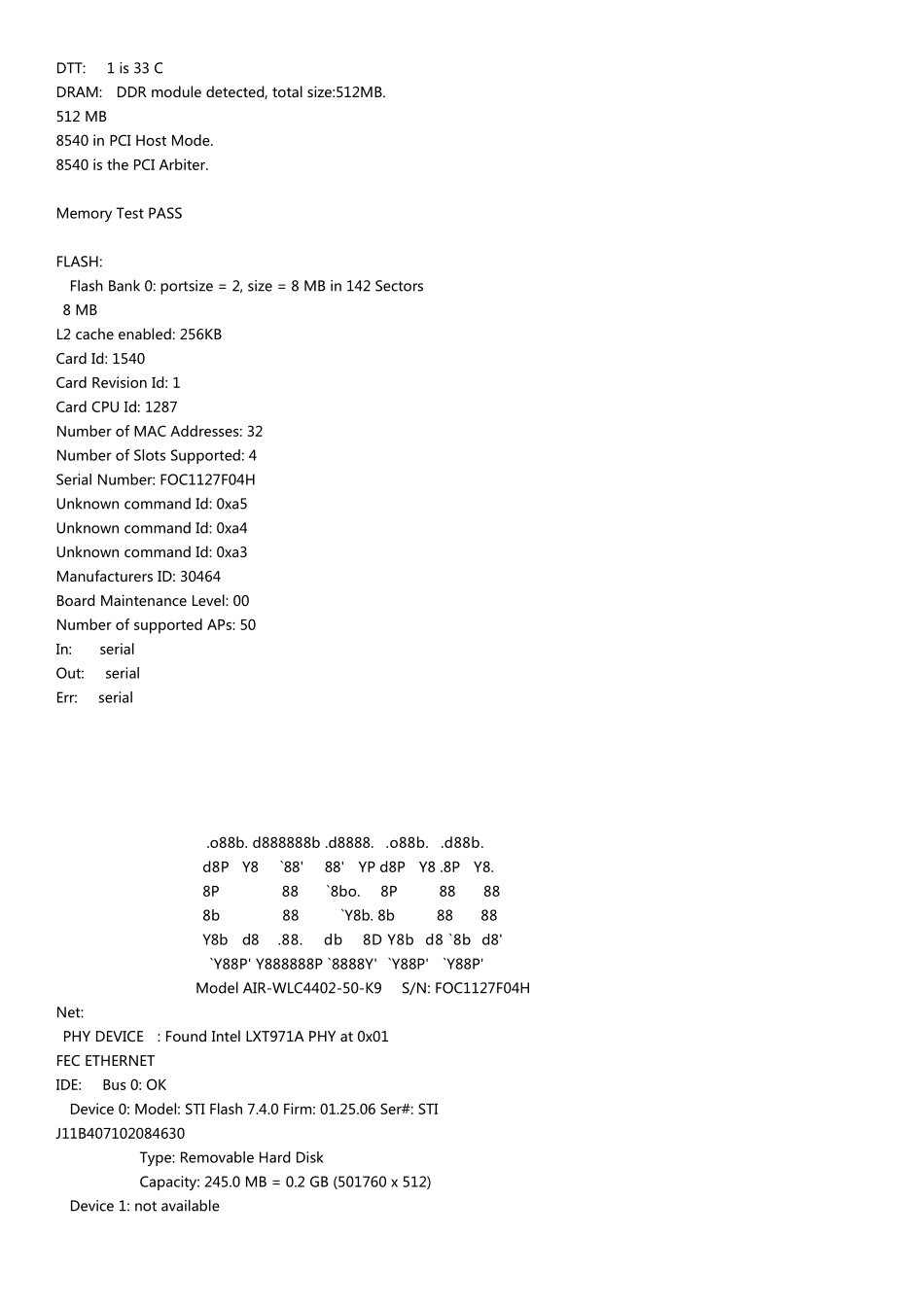

无 线 基 本 配 置 手 册 （ CT5508+AP1142N） 1、初始化控制器 初始化准备：控制器的 console口与电脑的串口连接好，打开超级终端(默认)，给控制器通电，按住电脑的《esc》键进入配 置 向导，配 置 实例为 CISCO WLC4402的配 置 ，CT5508配 置 同 WLC4402； System will now restart! Bootloader 4.0.217.0 (Apr 12 2007 - 17:46:14) Motorola PowerPC ProcessorID=00000000 Rev. PVR=80200020 CPU: 833 MHz CCB: 333 MHz DDR: 166 MHz LBC: 41 MHz L1 D-cache 32KB, L1 I-cache 32KB enabled. I2C: ready DTT: 1 is 33 C DRAM: DDR module detected, total size:512MB. 512 MB 8540 in PCI Host Mode. 8540 is the PCI Arbiter. Memory Test PASS FLASH: Flash Bank 0: portsize = 2, size = 8 MB in 142 Sectors 8 MB L2 cache enabled: 256KB Card Id: 1540 Card Revision Id: 1 Card CPU Id: 1287 Number of MAC Addresses: 32 Number of Slots Supported: 4 Serial Number: FOC1127F04H Unknown command Id: 0xa5 Unknown command Id: 0xa4 Unknown command Id: 0xa3 Manufacturers ID: 30464 Board Maintenance Level: 00 Number of supported APs: 50 In: serial Out: serial Err: serial .o88b. d888888b .d8888. .o88b. .d88b. d8P Y8 `88' 88' YP d8P Y8 .8P Y8. 8P 88 `8bo. 8P 88 88 8b 88 `Y8b. 8b 88 88 Y8b d8 .88. db 8D Y8b d8 `8b d8' `Y88P' Y888888P `8888Y' `Y88P' `Y88P' Model AIR-WLC4402-50-K9 S/N: FOC1127F04H Net: PHY DEVICE : Found Intel LXT971A PHY at 0x01 FEC ETHERNET IDE: Bus 0: OK Device 0: Model: STI Flash 7.4.0 Firm: 01.25.06 Ser#: STI J11B407102084630 Type: Removable Hard Disk Capacity: 245.0 MB = 0.2 GB (501760 x 512) Device 1: not available Booting Primary Image... Press now for additional boot options... ***** External Console Active ***** Boot Options Please choose an option from below: 1. Run primary image (version 4.1.185.0) (active) 2. Run backup im...
