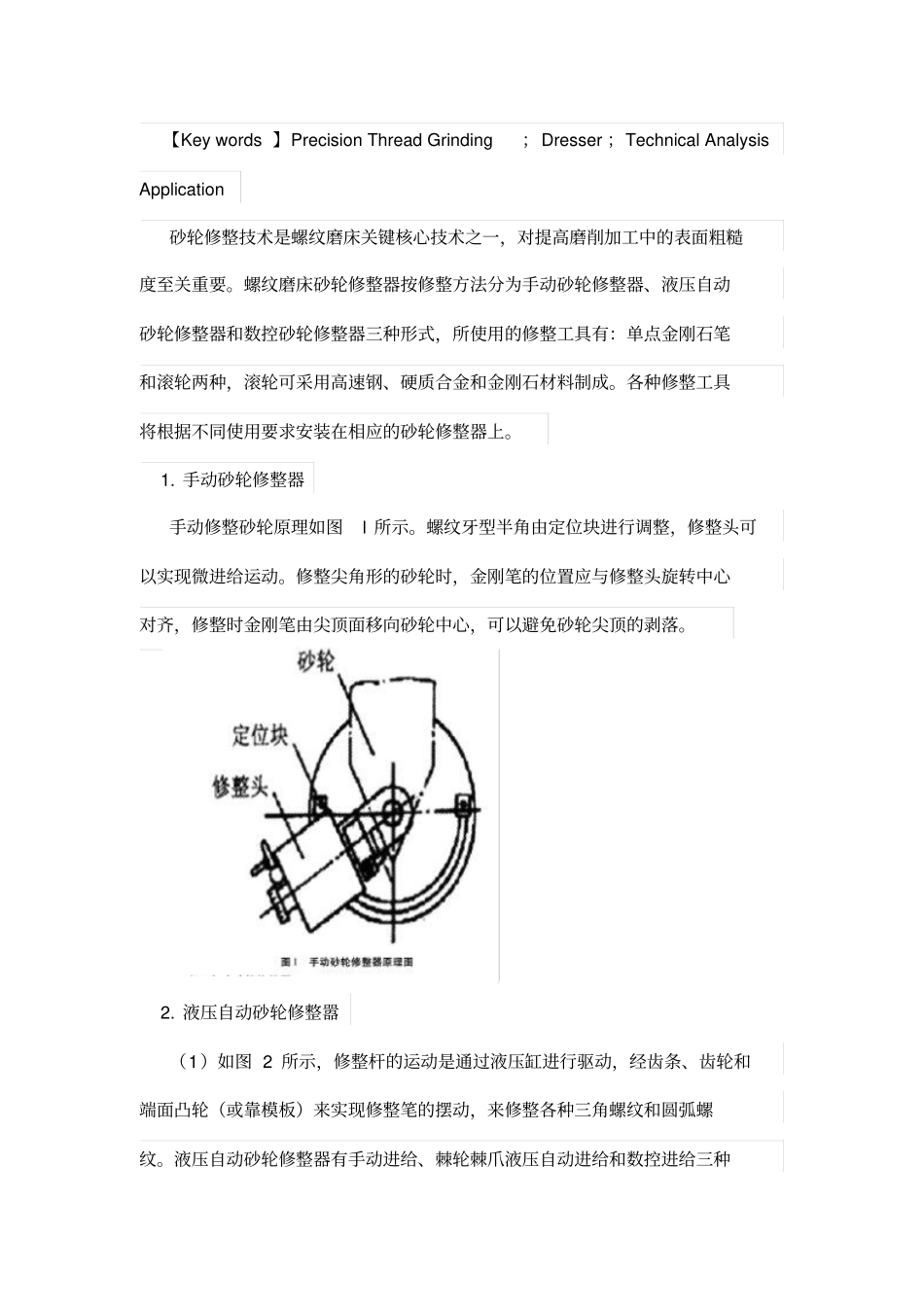

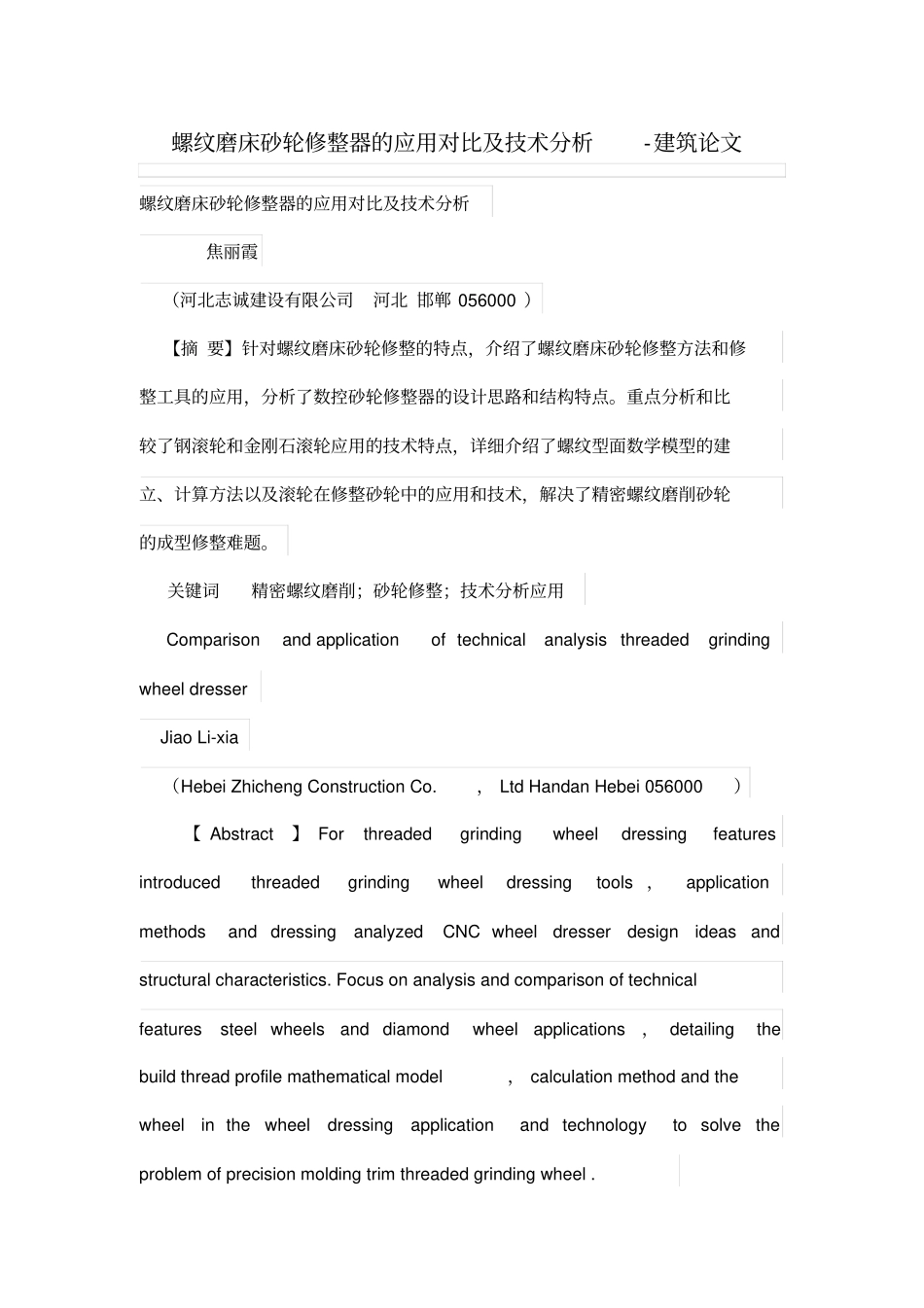

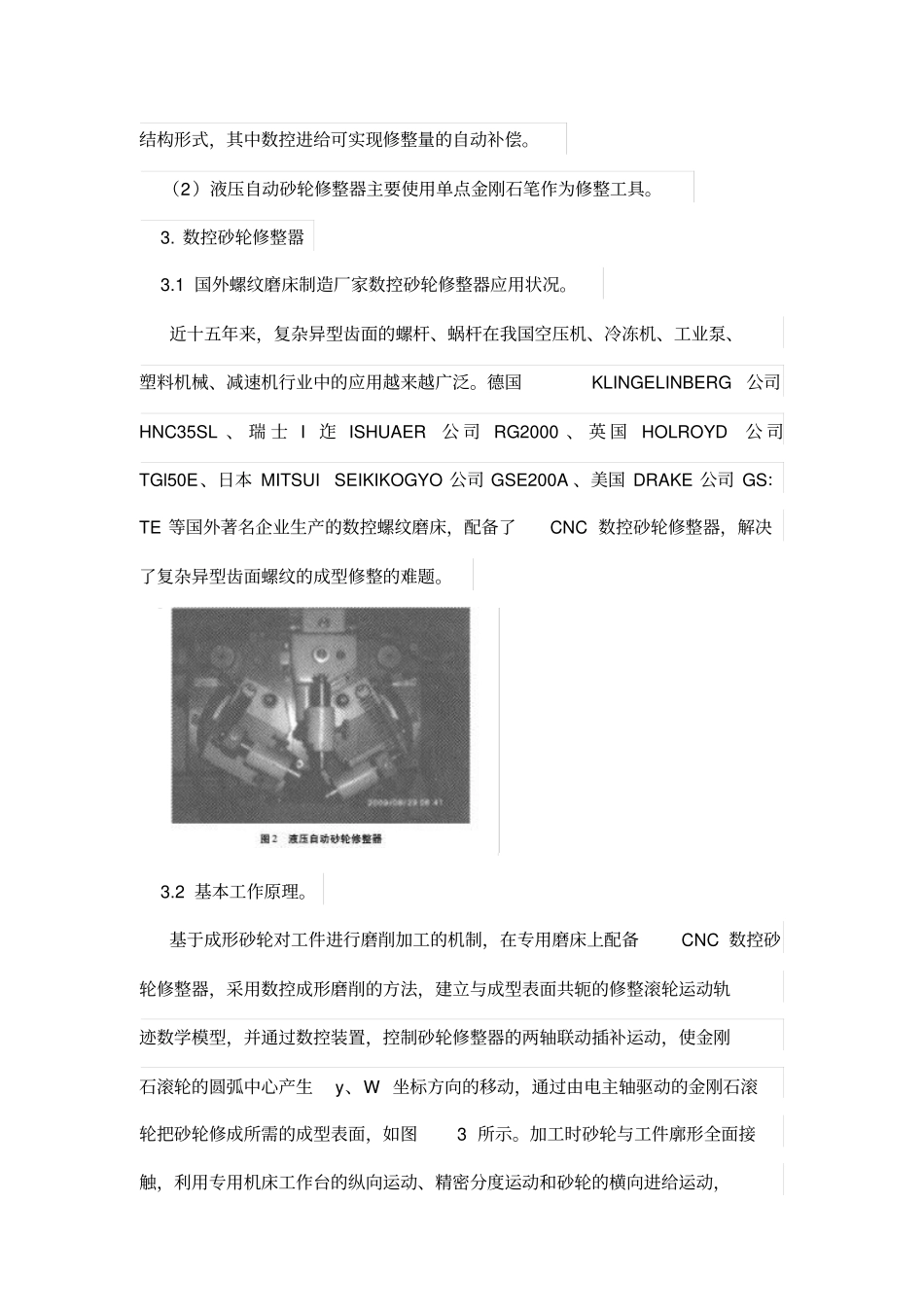

螺纹磨床砂轮修整器的应用对比及技术分析-建筑论文螺纹磨床砂轮修整器的应用对比及技术分析焦丽霞(河北志诚建设有限公司河北 邯郸 056000 )【摘 要】针对螺纹磨床砂轮修整的特点,介绍了螺纹磨床砂轮修整方法和修整工具的应用,分析了数控砂轮修整器的设计思路和结构特点。重点分析和比较了钢滚轮和金刚石滚轮应用的技术特点,详细介绍了螺纹型面数学模型的建立、计算方法以及滚轮在修整砂轮中的应用和技术,解决了精密螺纹磨削砂轮的成型修整难题。关键词精密螺纹磨削;砂轮修整;技术分析应用Comparison and application of technical analysis threaded grinding wheel dresser Jiao Li-xia (Hebei Zhicheng Construction Co., Ltd Handan Hebei 056000)【 Abstract】 For threaded grinding wheel dressing features introduced threaded grinding wheel dressing tools ,application methods and dressing analyzed CNC wheel dresser design ideas and structural characteristics. Focus on analysis and comparison of technical features steel wheels and diamond wheel applications, detailing the build thread profile mathematical model, calculation method and the wheel in the wheel dressing application and technology to solve the problem of precision molding trim threaded grinding wheel . 【Key words 】Precision Thread Grinding;Dresser ;Technical Analysis Application 砂轮修整技术是螺纹磨床关键核心技术之一,对提高磨削加工中的表面粗糙度至关重要。螺纹磨床砂轮修整器按修整方法分为手动砂轮修整器、液压自动砂轮修整器和数控砂轮修整器三种形式,所使用的修整工具有:单点金刚石笔和滚轮两种,滚轮可采用高速钢、硬质合金和金刚石材料制成。各种修整工具将根据不同使用要求安装在相应的砂轮修整器上。 1. 手动砂轮修整器手动修整砂轮原理如图l 所示。螺纹牙型半角由定位块进行调整,修整头可以实现微进给运动。修整尖角形的砂轮时,金刚笔的位置应与修整头旋转中心对齐,修整时金刚笔由尖顶面移向砂轮中心,可以避免砂轮尖顶的剥落。 2. 液压自动砂轮修整嚣(1)如图 2 所示,修整杆的运动是通过液压缸进行驱动,经齿条、齿轮和端面凸轮(或靠模板)来实现修整笔的摆动,来...
