VB串口通信附图教程VIP专享

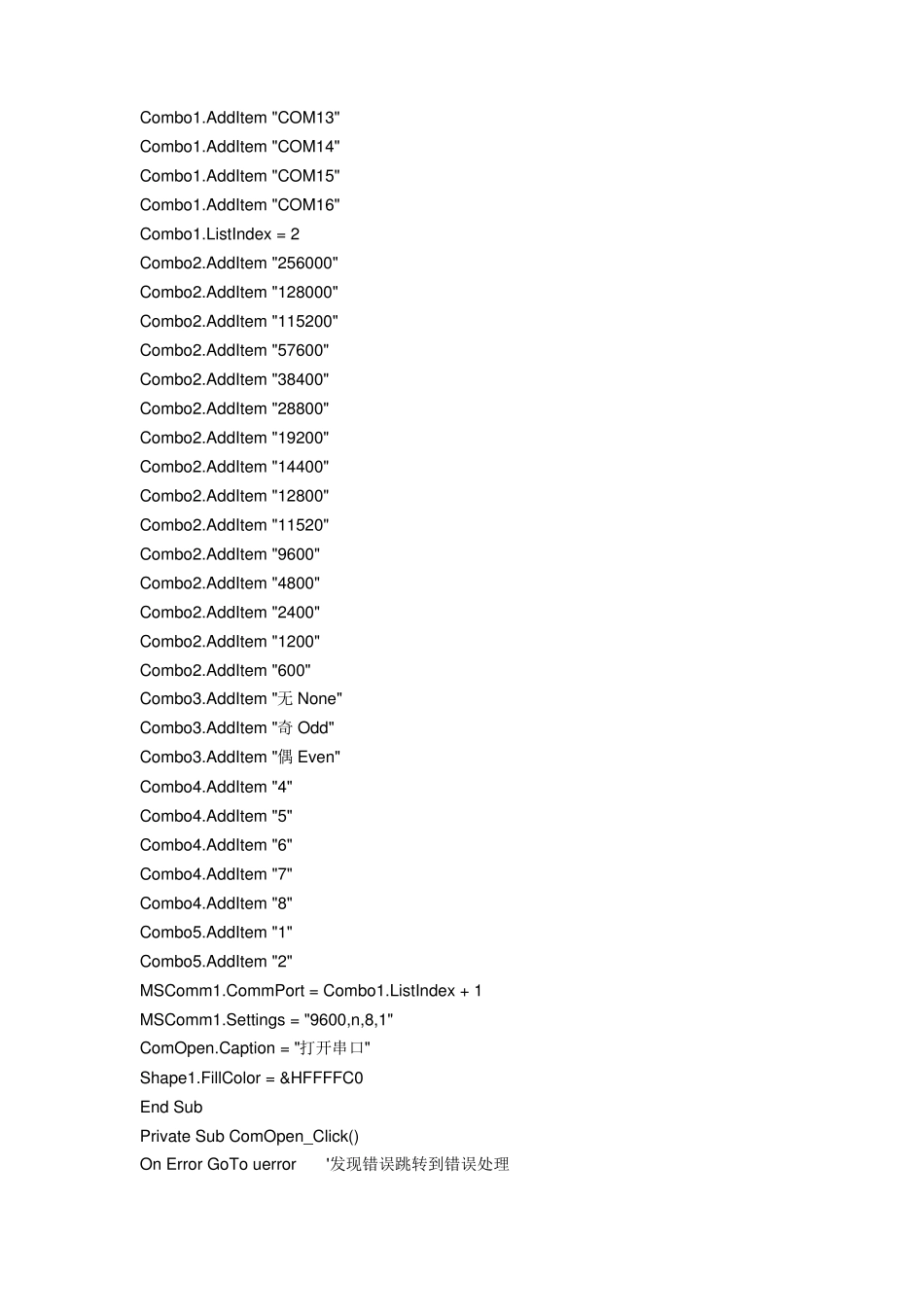

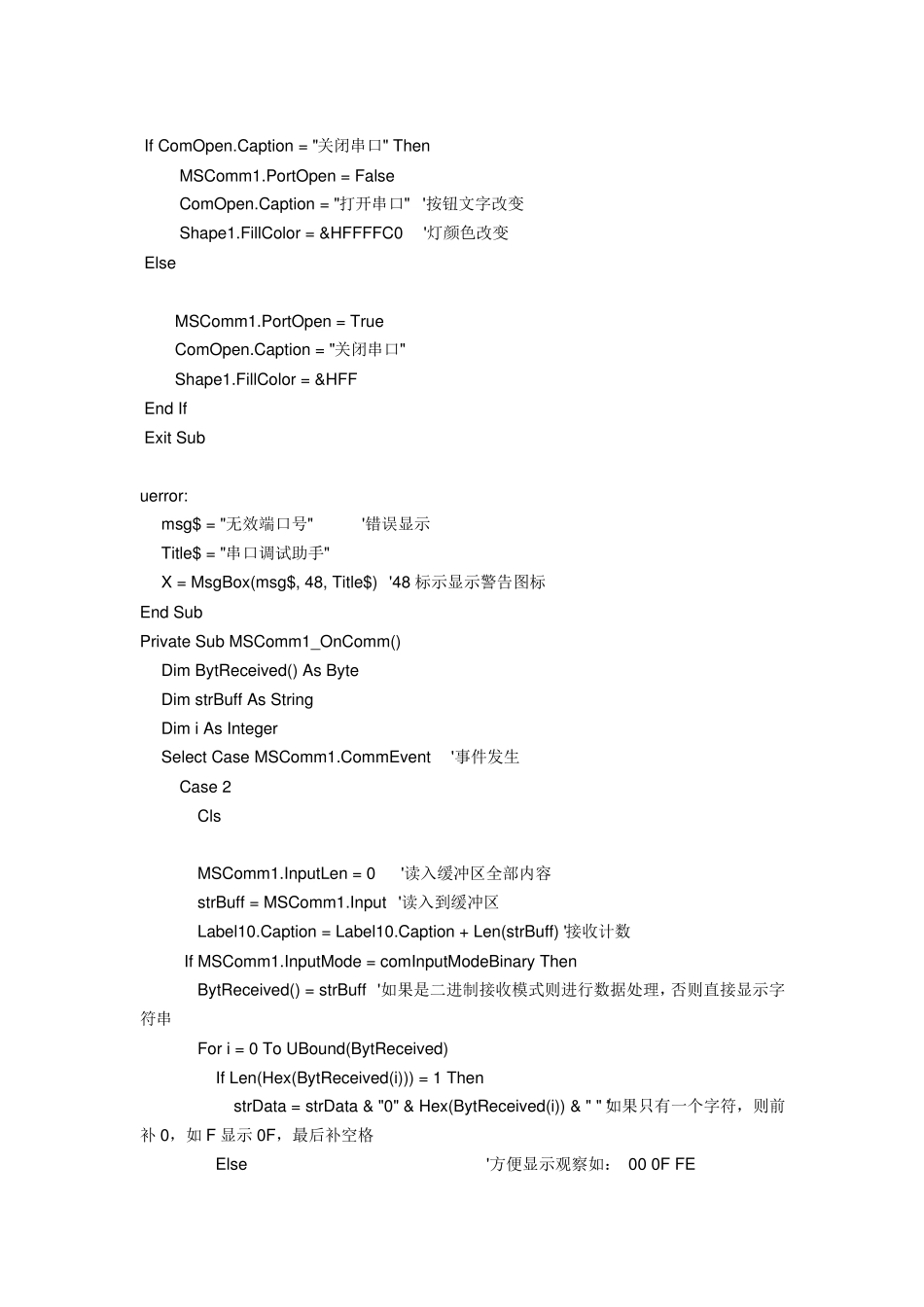

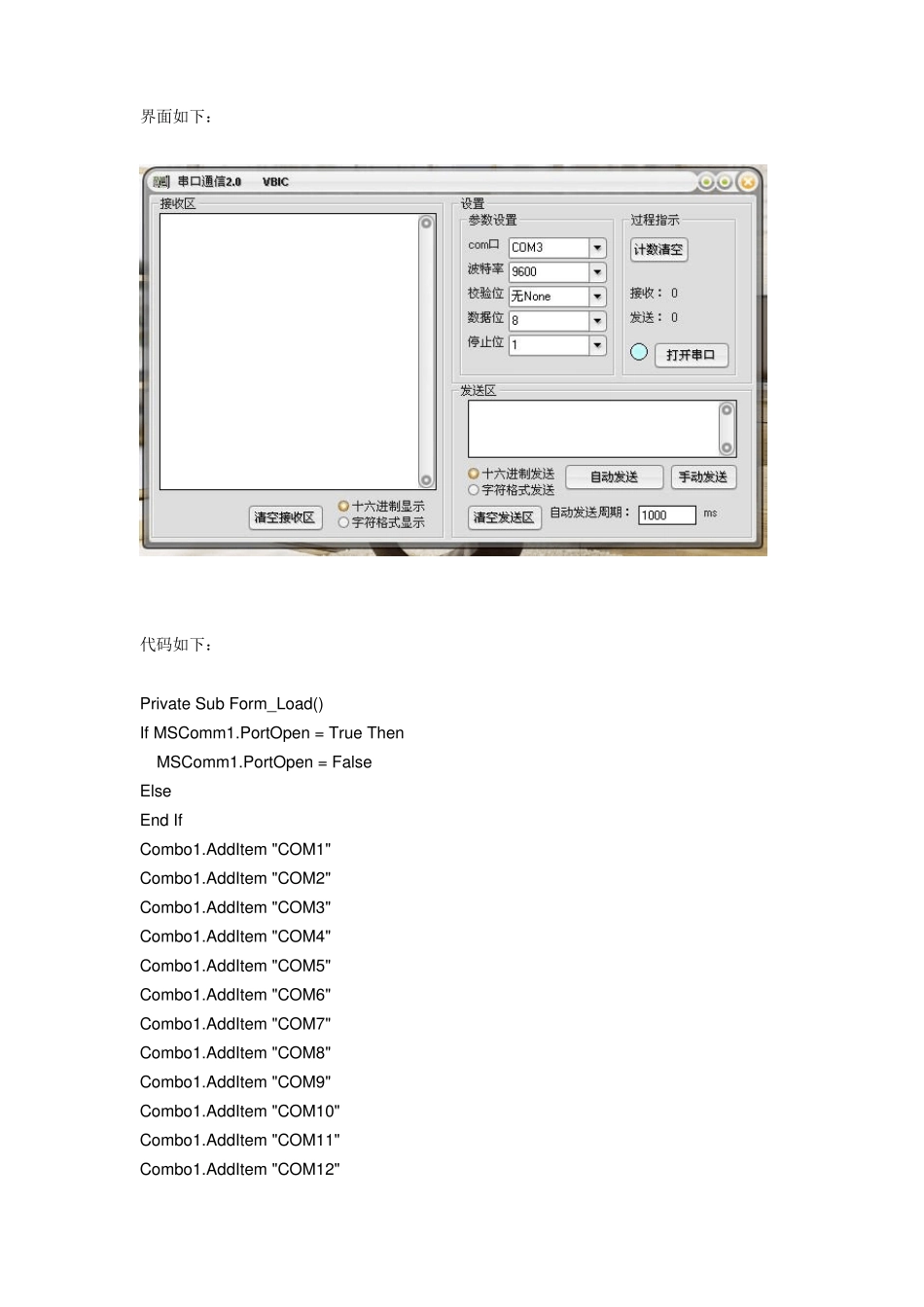

界面如下：代码如下：Private Sub Form_Load()If MSComm1.PortOpen = True ThenMSComm1.PortOpen = FalseElseEnd IfCombo1.AddItem "COM1"Combo1.AddItem "COM2"Combo1.AddItem "COM3"Combo1.AddItem "COM4"Combo1.AddItem "COM5"Combo1.AddItem "COM6"Combo1.AddItem "COM7"Combo1.AddItem "COM8"Combo1.AddItem "COM9"Combo1.AddItem "COM10"Combo1.AddItem "COM11"Combo1.AddItem "COM12"Combo1.AddItem "COM13"Combo1.AddItem "COM14"Combo1.AddItem "COM15"Combo1.AddItem "COM16"Combo1.ListIndex = 2Combo2.AddItem "256000"Combo2.AddItem "128000"Combo2.AddItem "115200"Combo2.AddItem "57600"Combo2.AddItem "38400"Combo2.AddItem "28800"Combo2.AddItem "19200"Combo2.AddItem "14400"Combo2.AddItem "12800"Combo2.AddItem "11520"Combo2.AddItem "9600"Combo2.AddItem "4800"Combo2.AddItem "2400"Combo2.AddItem "1200"Combo2.AddItem "600"Combo3.AddItem "无 None"Combo3.AddItem "奇 Odd"Combo3.AddItem "偶 Even"Combo4.AddItem "4"Combo4.AddItem "5"Combo4.AddItem "6"Combo4.AddItem "7"Combo4.AddItem "8"Combo5.AddItem "1"Combo5.AddItem "2"MSComm1.CommPort = Combo1.ListIndex + 1MSComm1.Settings = "9600,n,8,1"ComOpen.Caption = "打开串口"Shape1.FillColor = &HFFFFC0End SubPrivate Sub ComOpen_Click()On Error GoTo uerror'发现错误跳转到错误处理 If ComOpen.Caption = "关闭串口" ThenMSComm1.PortOpen = FalseComOpen.Caption = "打开串口" '按钮文字改变Shape1.FillColor = &HFFFFC0'灯颜色改变 ElseMSComm1.PortOpen = TrueComOpen.Caption = "关闭串口"Shape1.FillColor = &HFF End If Exit Subuerror:msg$ = "无效端口号"'错误显示Title$ = "串口调试助手"X = MsgBox(msg$, 48, Title$) '48 标示显示警告图标End SubPrivate Sub MSComm1_OnComm()Dim BytReceived() As ByteDim strBuff As StringDim i As IntegerSelect Case MSComm1.CommEvent'事件发生Case 2ClsMSComm1.InputLen = 0'读入缓冲区全部内容strBuff = MSComm1.Input '读入到缓冲区Label10.Caption = Label10.Caption + Len(strBuff) '接收计数If MSComm1.InputMode = comInputModeBinary Then...
