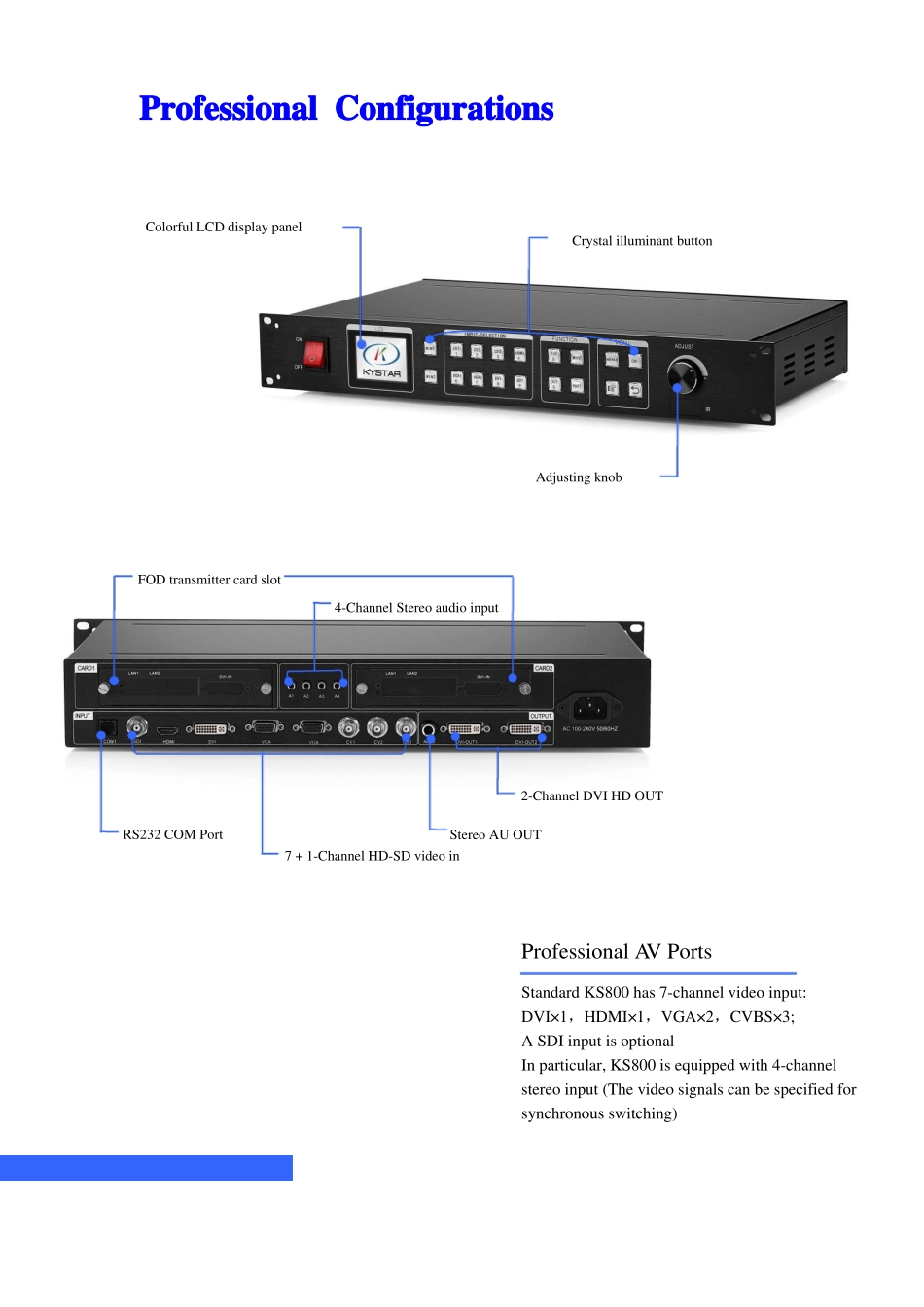

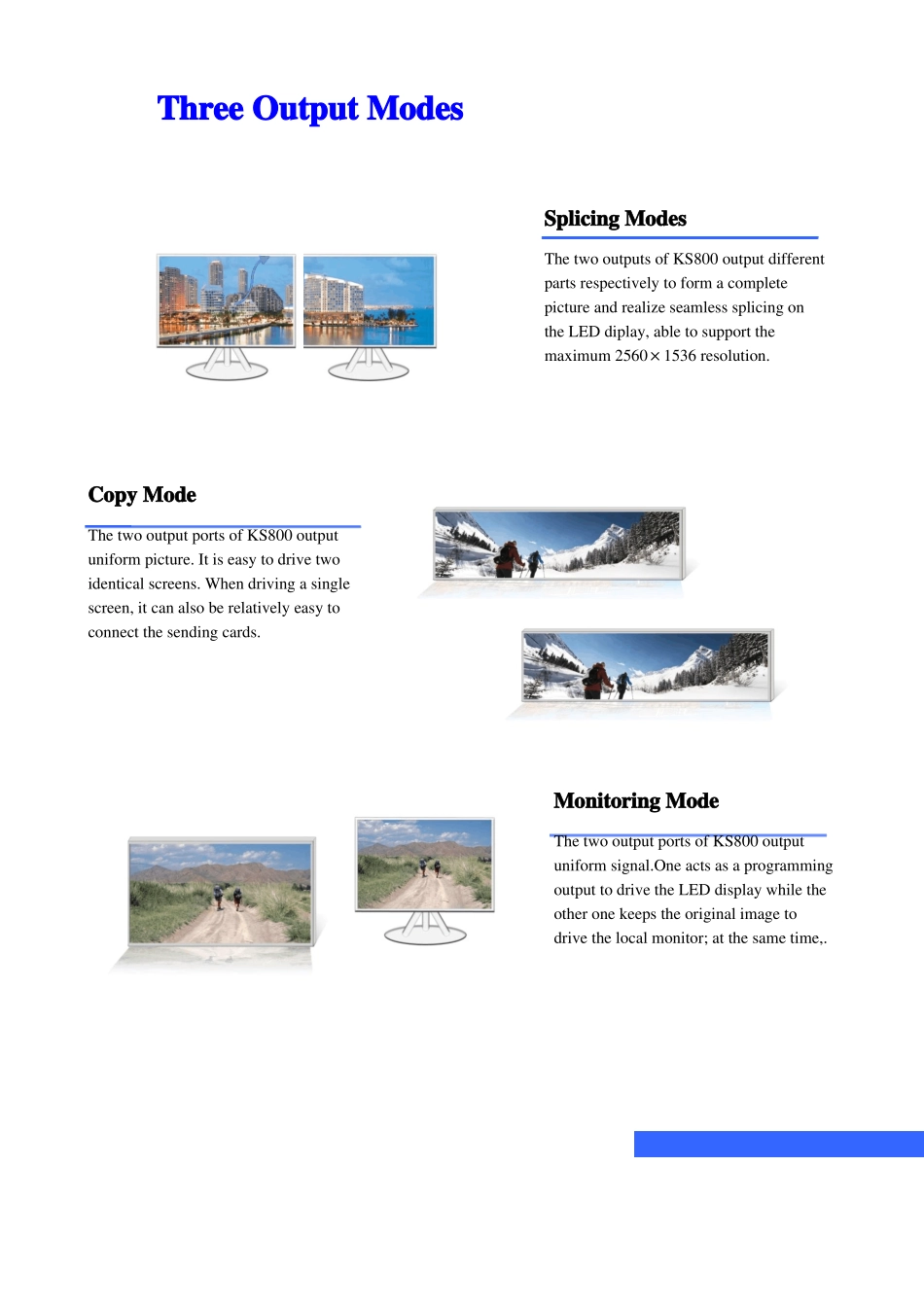

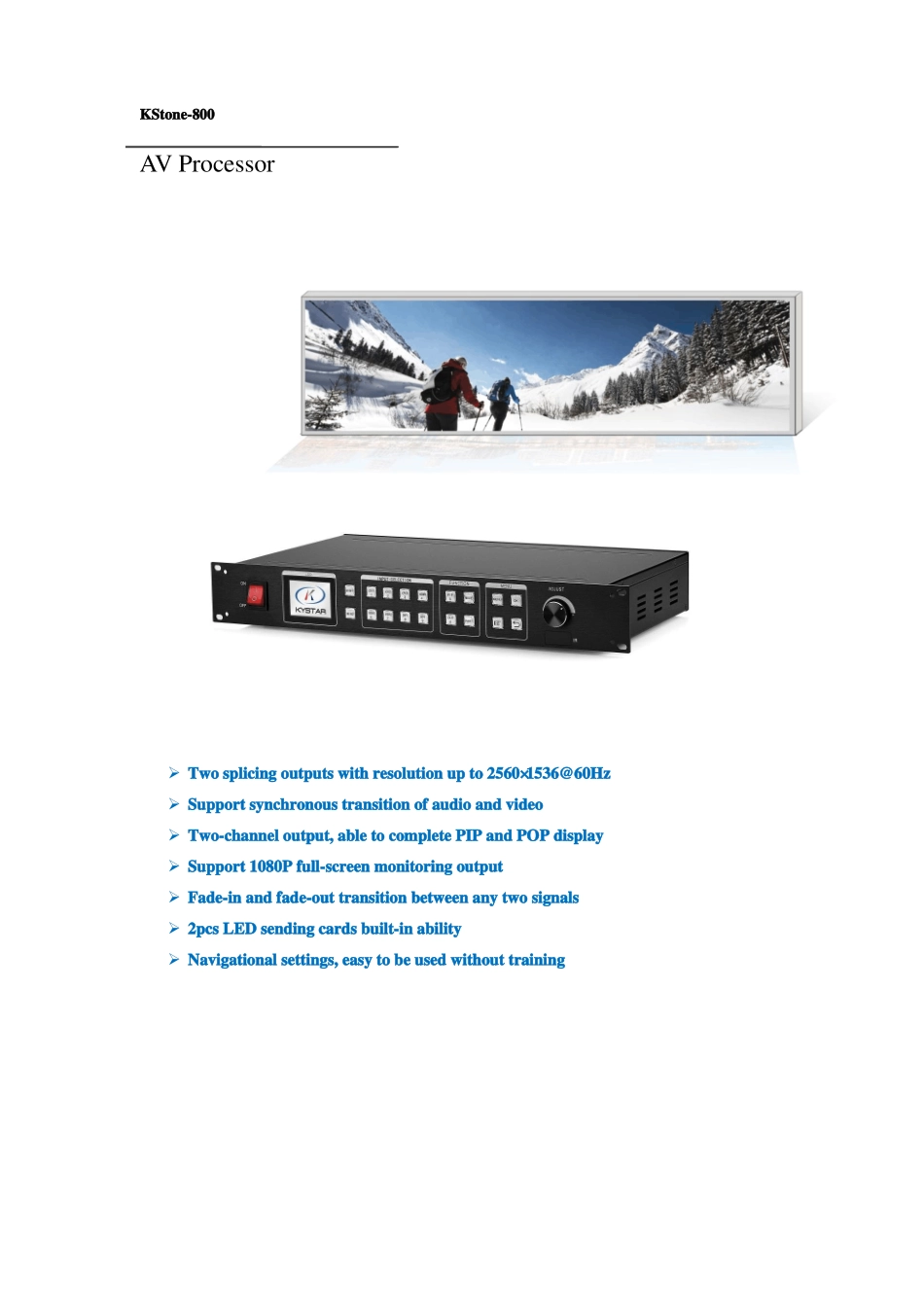

KStone-800AV Processor Two splicing outputs with resolution up to 2560×1536@60Hz Support synchronous transition of audio and video Two-channel output, able to complete PIP and POP display Support 1080P full-screen monitoring output Fade-in and fade-out transition between any two signals 2pcs LED sending cards built-in ability Navigational settings, easy to be used without trainingProfessional ConfigurationsColorful LCD display panelCrystal illuminant buttonAdjusting knobFOD transmitter card slot4-Channel Stereo audio input2-Channel DVI HD OUTRS232 COM PortStereo AU OUT7 + 1-Channel HD-SD video inProfessional AV PortsStandard KS800 has 7-channel video input:DVI×1，HDMI×1，VGA×2，CVBS×3;A SDI input is optionalIn particular, KS800 is equipped with 4-channelstereo input (The video signals can be specified forsynchronous switching)Three Output ModesCopy ModeThe two output ports of KS800 outputuniform picture. It is easy to drive twoidentical screens. When driving a singlescreen, it can also be relatively easy toconnect the sending cards.Splicing ModesThe two outputs of KS800 output differentparts respectively to form a completepicture and realize seamless splicing onthe LED diplay, able to support themaximum 2560×1536 resolution.Monitoring ModeThe two output ports of KS800 outputuniform signal.One acts as a programmingoutput to drive the LED display while theother one keeps the original image todrive the local monitor; at the same time,.High-Performance Iamge ProcessingKS800 can support Super Resolution zoom technology, able toSuper Resolution Zoom-in TechnologyTraditional Interpolation Zoom-in TechnologySuper Resolution and LED Intelligent Balancingzoom in/out images by any size and simultaneously enhance theimage details. In a...
