AB公司触摸屏PanelView_Plus中文字体显示

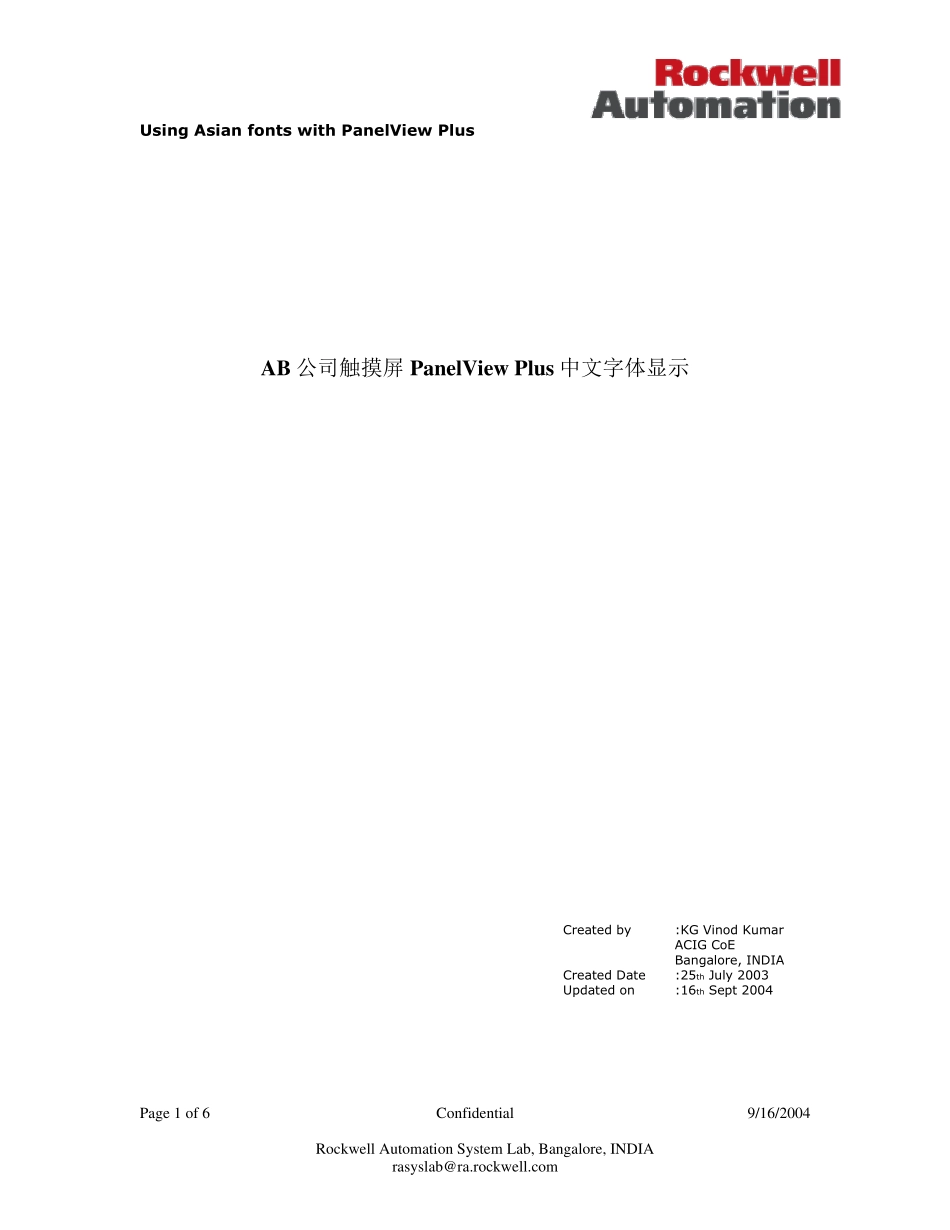

AB公司触摸屏PanelView_Plus中文字体显示_第1页
1/6

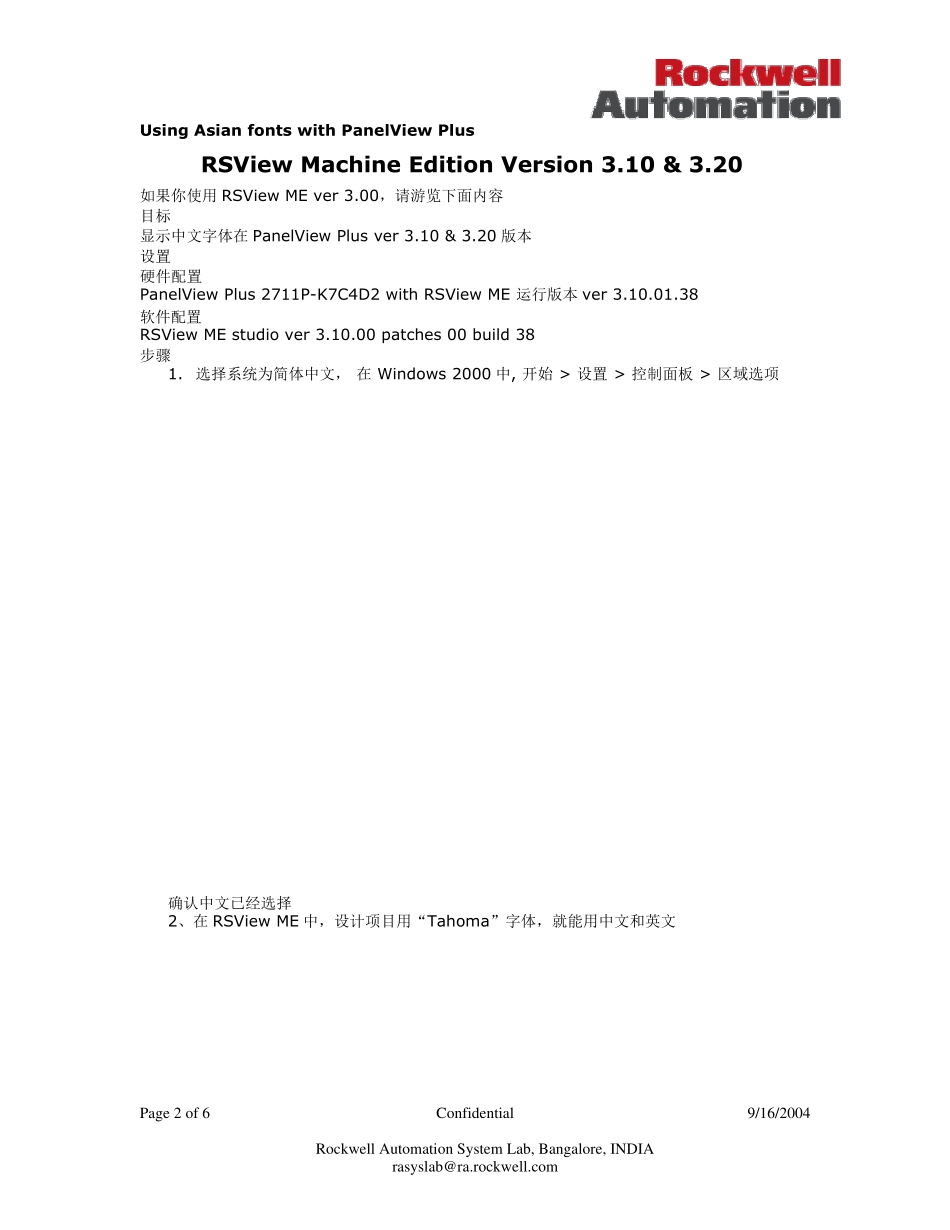

AB公司触摸屏PanelView_Plus中文字体显示_第2页
2/6

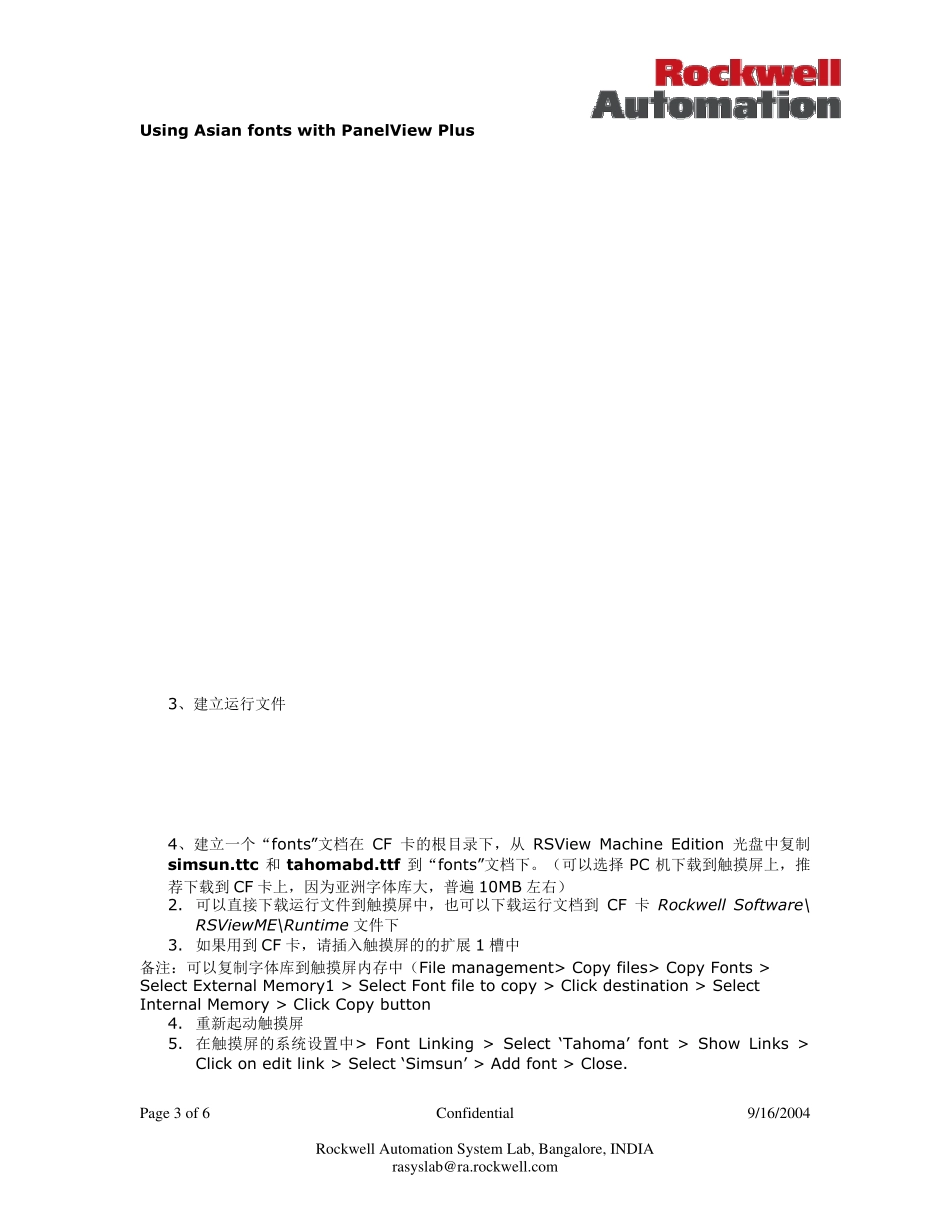

AB公司触摸屏PanelView_Plus中文字体显示_第3页
3/6
Using Asian fonts w ith PanelView Plus Page 1 of 6 Confidential 9/16/2004 Rockwell Automation System Lab, Bangalore, INDIA rasyslab@ra.rockwell.com AB 公司触摸屏PanelView Plus 中文字体显示 Created by :KG Vinod Kumar ACIG CoE Bangalore, INDIA Created Date :25th July 2003 Updated on :16th Sept 2004 Using Asian fonts w ith PanelView Plus Page 2 of 6 Confidential 9/16/2004 Rockwell Automation System Lab, Bangalore, INDIA rasyslab@ra.rockwell.com RSView Machine Edition Version 3.10 & 3.20 如果你使用RSView ME ver 3.00,请游览下面内容 目标 显示中文字体在PanelView Plus ver 3.10 & 3.20 版本 设置 硬件配置 PanelView Plus 2711P-K7C4D2 w ith RSView ME 运行版本ver 3.10.01.38 软件配置 RSView ME studio ver 3.10.00 patches 00 build 38 步骤 1. 选择系统为简体中文, 在 Window s 2000 中, 开始 > 设置 > 控制面板 > 区域选项 确认中文已经选择 2、在RSView ME 中,设计项目用“Tahoma”字体,就能用中文和英文 Using Asian fonts w ith PanelView Plus Page 3 of 6 Confidential 9/16/2004 Rockwell Automation System Lab, Bangalore, INDIA rasyslab@ra.rockwell.com 3、建立运行文件 4、建立一个“fonts”文档在 CF 卡的根目录下,从 RSView Machine Edition 光盘中复制simsun.ttc 和 tahomabd.ttf 到“fonts”文档下。(可以选择 PC 机下载到触摸屏上,推荐下载到 CF 卡上,因为亚洲字体库大,普遍 10MB 左右) 2. 可以直接下载运行文件到触摸屏中,也可以下载运行文档到 CF 卡 Rockw ell Softw are\ RSView ME\Runtime 文件下 3. 如果用到 CF 卡,请插入触摸屏的的扩展 1 槽中 备注:可以复制字体库到触摸屏内存中(File management> Copy files> Copy Fonts > Select External Memory1 > Select Font file to copy > Click destination > Select Internal Memory > Click Copy button 4. 重新起动触摸屏 5. 在触摸屏的系统设置中> Font Linking > Select ‘Tahoma’ font > Show Links > Click on edit link > Select ‘Simsun’ > Add font > Clos...
