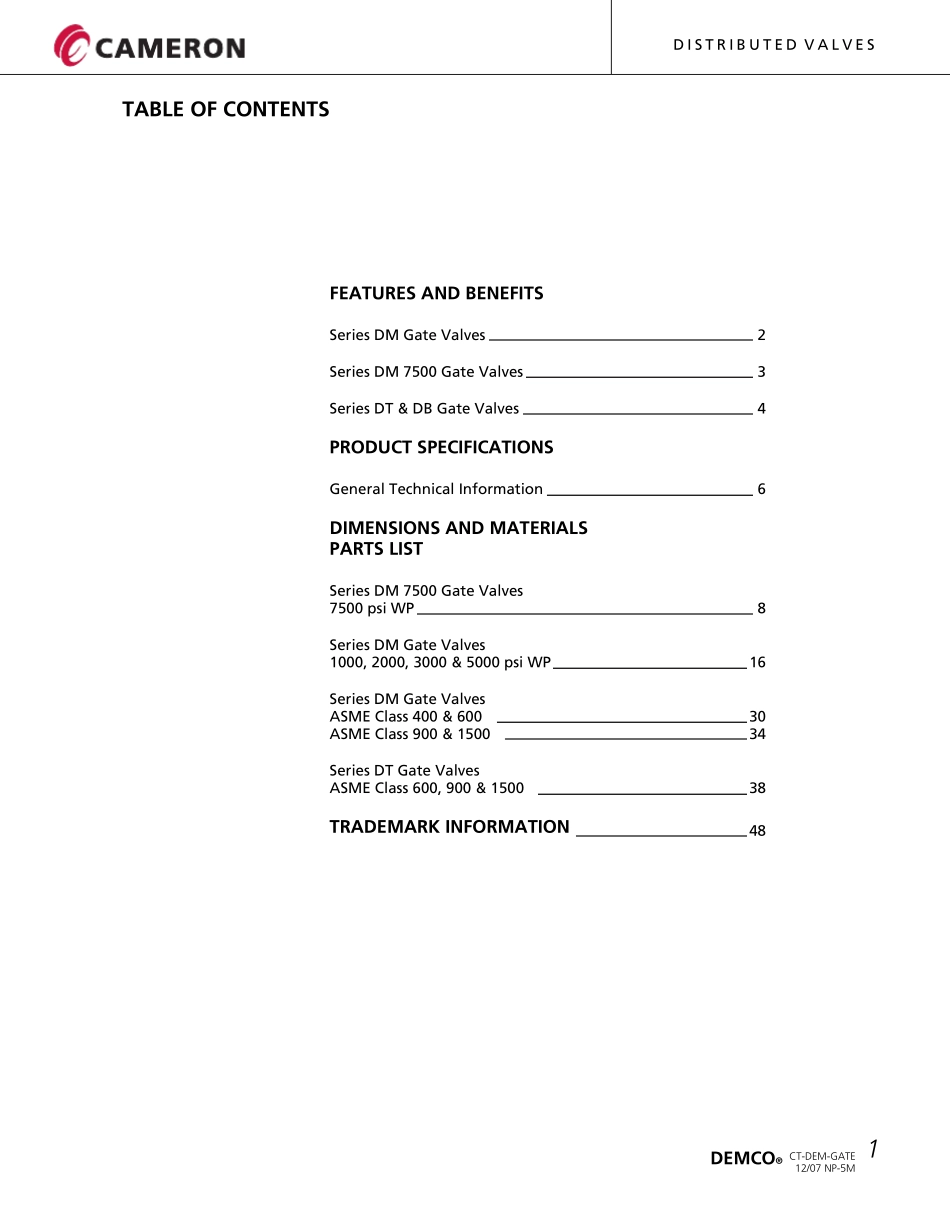

®DEMCO Gate ValvesD I S T R I B U T E D V A L V E S®DEMCOD I S T R I B U T E D V A L V E SCT-DEM-GATE12/07 NP-5M 1D I S T R I B U T E D V A L V E S®DEMCOTABLE OF CONTENTSFEATURES AND BENEFITSSeries DM Gate Valves2Series DM 7500 Gate Valves3Series DT & DB Gate Valves4PRODUCT SPECIFICATIONSGeneral Technical Information6DIMENSIONS AND MATERIALSPARTS LISTSeries DM 7500 Gate Valves7500 psi WP8Series DM Gate Valves1000, 2000, 3000 & 5000 psi WP16Series DM Gate ValvesASME Class 400 & 60030ASME Class 900 & 150034Series DT Gate ValvesASME Class 600, 900 & 150038TRADEMARK INFORMATION48D I S T R I B U T E D V A L V E SCT-DEM-GATE12/07 NP-5M2®DEMCODEMCO Series DM Gate Valves, the premier designed Gate Valve in the oil and gas drillingmarket, specifically engineered for the rigorous requirements of oilfield applications.Designed for dependable, heavy duty performance in abrasive service conditions, DEMCO DM gate valves arecommonly selected for a number of oilfield applications, including:• Drilling standpipe manifold • Pump manifold block valves • High pressure mud mixing lines• High pressure drilling system block valves • Wellheads • Well treating and frac service• Production manifolds • Production gathering systems • Production flow linesThe DEMCO Series DM Gate Valves are available in ASME Classes 400, 600, 900 and 1500.Also available in API working pressures 2000, 3000 and 5000 psig. (Not API Monogrammed).SERIES DM GATE VALVESFEATURES AND BENEFITSIN LINE FIELD REPAIRABILITYThe bonnet is easily removed for internal parts inspection and/orreplacement without removing the valve from the line.This design simplicity permits fast and easy service without the needfor special tools.FLEXIBLE TRIM ...
