基于单片机的智能温室大棚控制系统

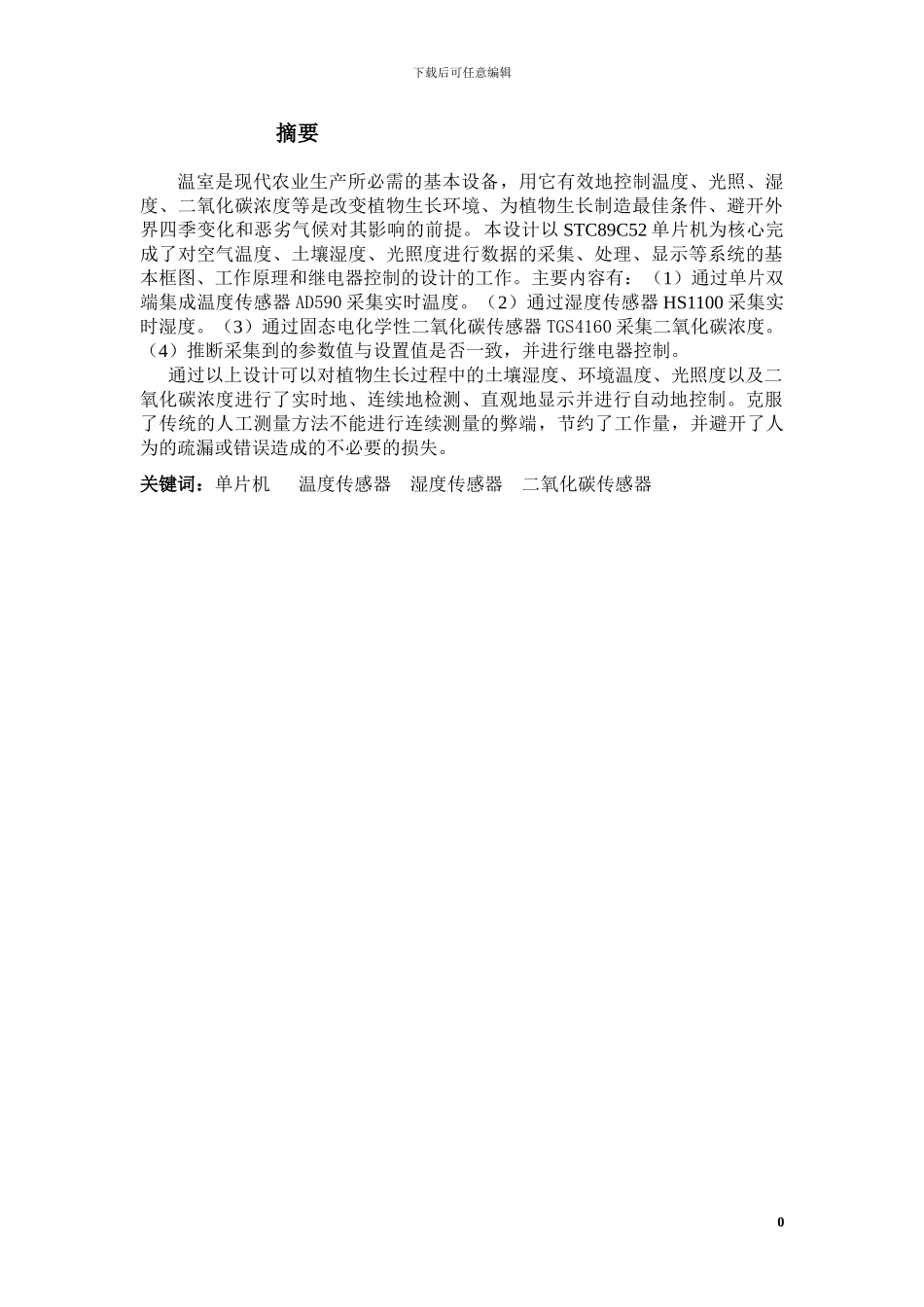

基于单片机的智能温室大棚控制系统_第1页
1/36

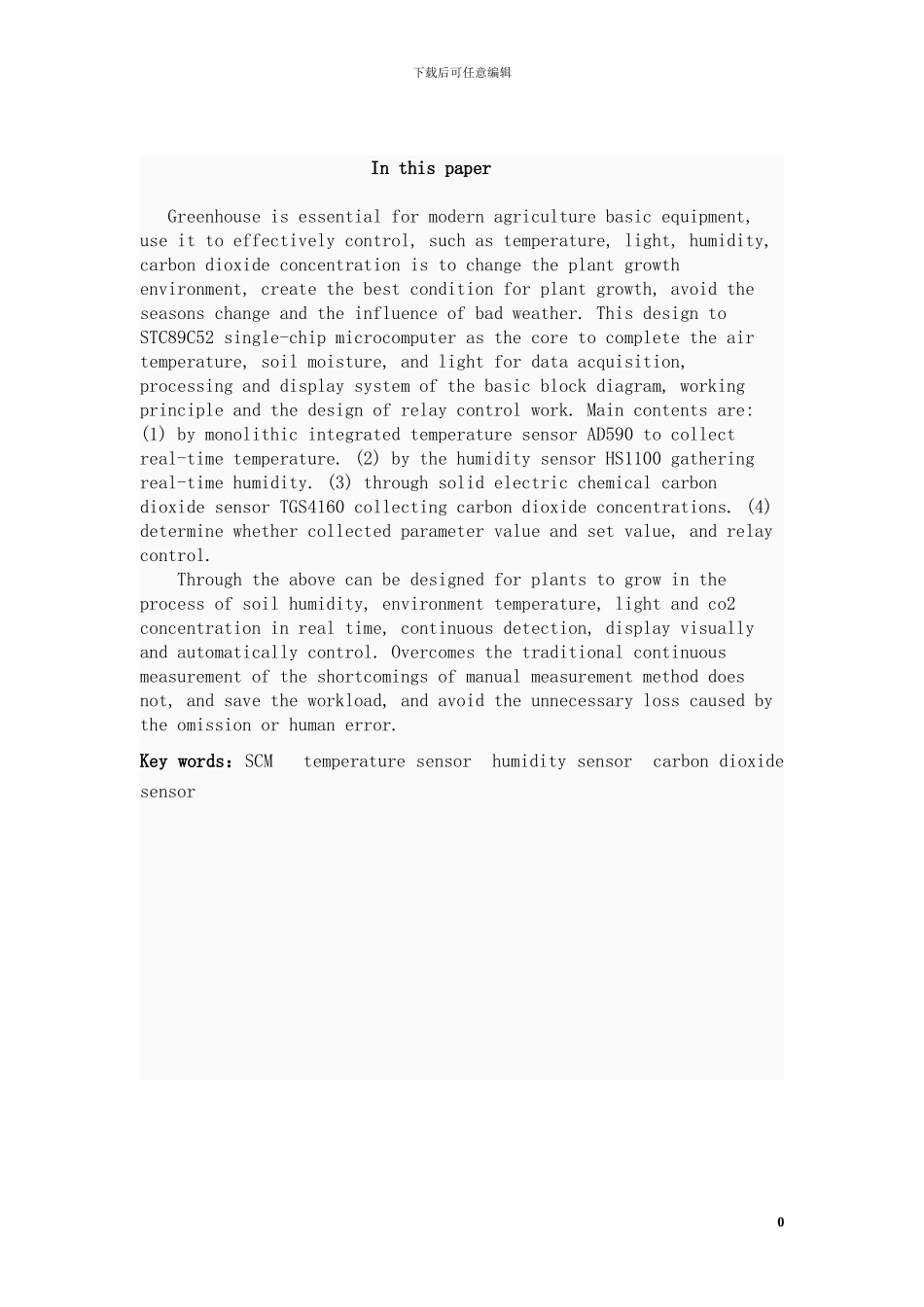

基于单片机的智能温室大棚控制系统_第2页
2/36

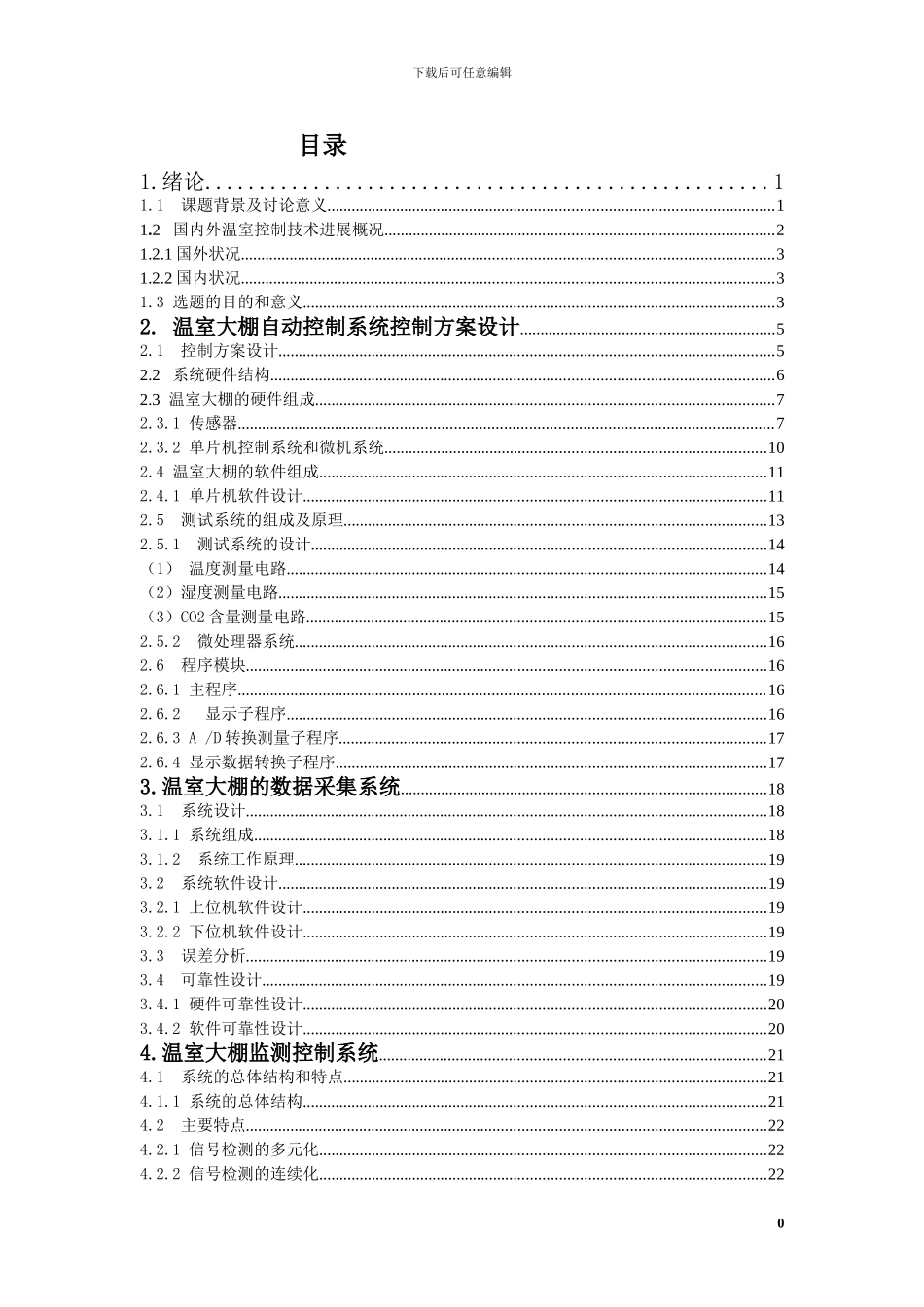

基于单片机的智能温室大棚控制系统_第3页
3/36
0下载后可任意编辑 摘要温室是现代农业生产所必需的基本设备,用它有效地控制温度、光照、湿度、二氧化碳浓度等是改变植物生长环境、为植物生长制造最佳条件、避开外界四季变化和恶劣气候对其影响的前提。本设计以 STC89C52 单片机为核心完成了对空气温度、土壤湿度、光照度进行数据的采集、处理、显示等系统的基本框图、工作原理和继电器控制的设计的工作。主要内容有:(1)通过单片双端集成温度传感器 AD590 采集实时温度。(2)通过湿度传感器 HS1100 采集实时湿度。(3)通过固态电化学性二氧化碳传感器 TGS4160 采集二氧化碳浓度。(4)推断采集到的参数值与设置值是否一致,并进行继电器控制。 通过以上设计可以对植物生长过程中的土壤湿度、环境温度、光照度以及二氧化碳浓度进行了实时地、连续地检测、直观地显示并进行自动地控制。克服了传统的人工测量方法不能进行连续测量的弊端,节约了工作量,并避开了人为的疏漏或错误造成的不必要的损失。关键词:单片机 温度传感器 湿度传感器 二氧化碳传感器0下载后可任意编辑In this paperGreenhouse is essential for modern agriculture basic equipment, use it to effectively control, such as temperature, light, humidity, carbon dioxide concentration is to change the plant growth environment, create the best condition for plant growth, avoid the seasons change and the influence of bad weather. This design to STC89C52 single-chip microcomputer as the core to complete the air temperature, soil moisture, and light for data acquisition, processing and display system of the basic block diagram, working principle and the design of relay control work. Main contents are: (1) by monolithic integrated temperature sensor AD590 to collect real-time temperature. (2) by the humidity sensor HS1100 gathering real-time humidity. (3) through solid electric chemical carbon dioxide sensor TGS4160 collecting carbon dioxide concentrations. (4) determine whether collected parameter value and set value, and relay control. Through the above can be designed for plan...
