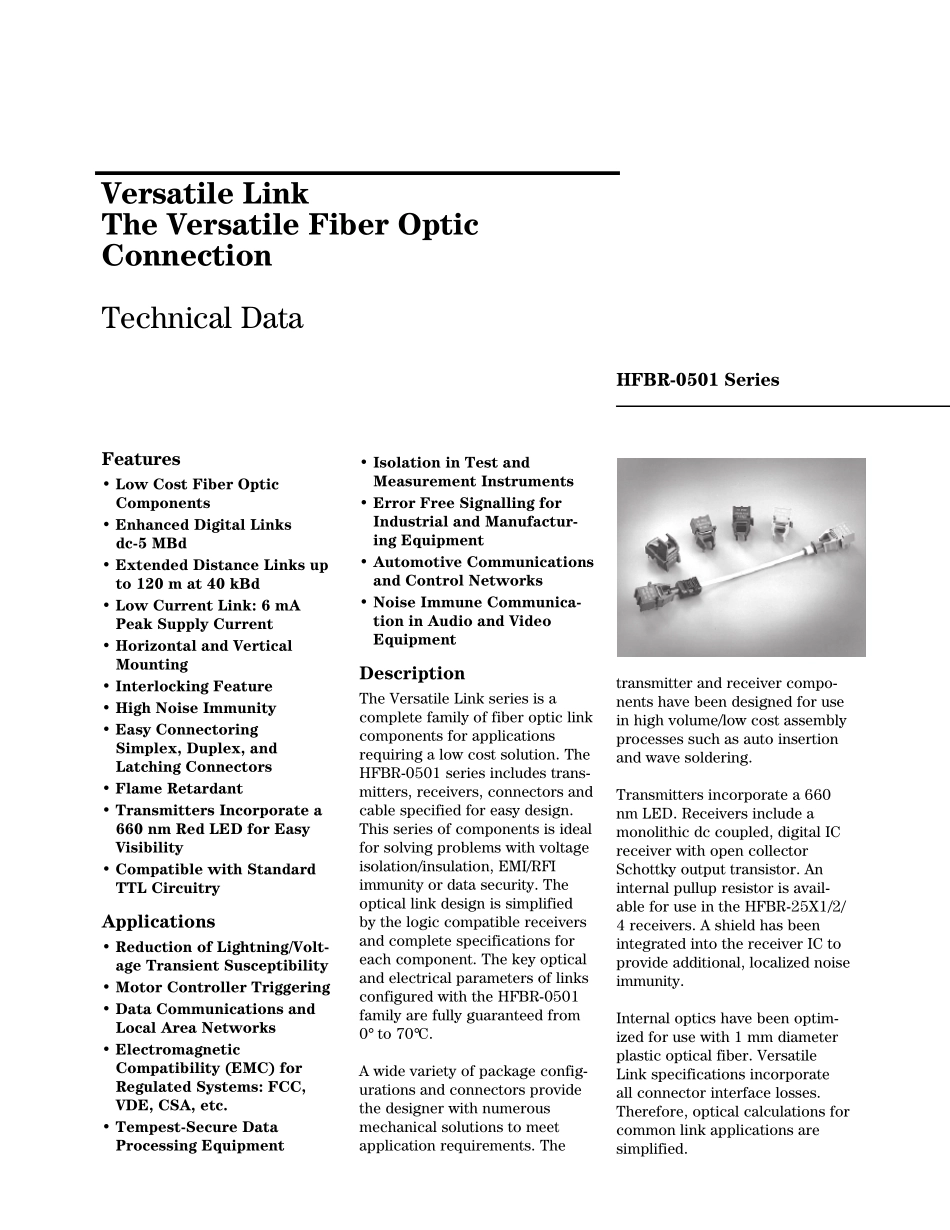

Versatile LinkThe Versatile Fiber OpticConnectionTechnical DataHFBR-0501 SeriesFeatures• Low Cost Fiber OpticComponents• Enhanced Digital Linksdc-5 MBd• Extended Distance Links upto 120 m at 40 kBd• Low Current Link: 6 mAPeak Supply Current• Horizontal and VerticalMounting• Interlocking Feature• High Noise Immunity• Easy ConnectoringSimplex, Duplex, andLatching Connectors• Flame Retardant• Transmitters Incorporate a660 nm Red LED for EasyVisibility• Compatible with StandardTTL CircuitryApplications• Reduction of Lightning/Volt-age Transient Susceptibility• Motor Controller Triggering• Data Communications andLocal Area Networks• ElectromagneticCompatibility (EMC) forRegulated Systems: FCC,VDE, CSA, etc.• Tempest-Secure DataProcessing Equipment• Isolation in Test andMeasurement Instruments• Error Free Signalling forIndustrial and Manufactur-ing Equipment• Automotive Communicationsand Control Networks• Noise Immune Communica-tion in Audio and VideoEquipmentDescriptionThe Versatile Link series is acomplete family of fiber optic linkcomponents for applicationsrequiring a low cost solution. TheHFBR-0501 series includes trans-mitters, receivers, connectors andcable specified for easy design.This series of components is idealfor solving problems with voltageisolation/insulation, EMI/RFIimmunity or data security. Theoptical link design is simplifiedby the logic compatible receiversand complete specifications foreach component. The key opticaland electrical parameters of linksconfigured with the HFBR-0501family are fully guaranteed from0° to 70°C.A wide variety of package config-urations and connectors providethe designer with numerousmechanical solutions to meetapplication requirements. Thetransmitter and receiver compo-nents have been designed for usein hi...
