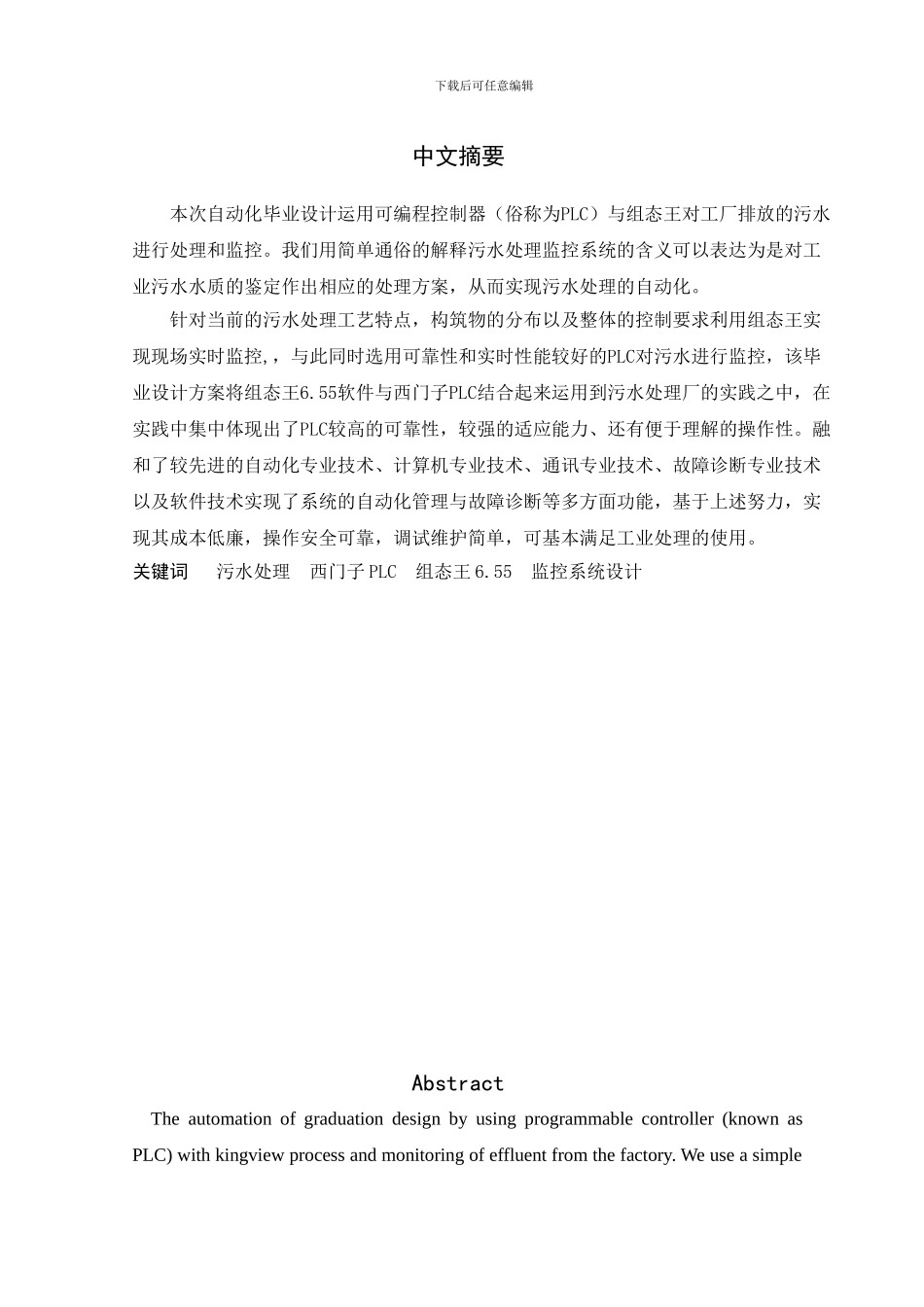

下载后可任意编辑中文摘要本次自动化毕业设计运用可编程控制器（俗称为PLC）与组态王对工厂排放的污水进行处理和监控。我们用简单通俗的解释污水处理监控系统的含义可以表达为是对工业污水水质的鉴定作出相应的处理方案，从而实现污水处理的自动化。针对当前的污水处理工艺特点，构筑物的分布以及整体的控制要求利用组态王实现现场实时监控,，与此同时选用可靠性和实时性能较好的PLC对污水进行监控，该毕业设计方案将组态王6.55软件与西门子PLC结合起来运用到污水处理厂的实践之中，在实践中集中体现出了PLC较高的可靠性，较强的适应能力、还有便于理解的操作性。融和了较先进的自动化专业技术、计算机专业技术、通讯专业技术、故障诊断专业技术以及软件技术实现了系统的自动化管理与故障诊断等多方面功能，基于上述努力，实现其成本低廉，操作安全可靠，调试维护简单，可基本满足工业处理的使用。关键词 污水处理 西门子 PLC 组态王 6.55 监控系统设计AbstractThe automation of graduation design by using programmable controller (known as PLC) with kingview process and monitoring of effluent from the factory. We use a simple popular explanation of sewage treatment is the meaning of the monitoring system can be expressed as the industrial sewage water quality appraisal make corresponding treatment scheme, so as to realize the automation of wastewater treatment. For the current sewage treatment process characteristics, the distribution of structures and control requirement of the whole scene by using kingview, real-time monitoring, and at the same time to choose better reliability and real-time performance monitor PLC in sewage, the graduation design of kingview 6.55 software will be combined with Siemens PLC applied to the practice of the sewage treatment plant, in practice focus reflects the reliability of PLC is higher, the stronger ability to adapt, and easy to understand. Harmony of advanced automation technology, computer professional technology, communication technology, fault...
