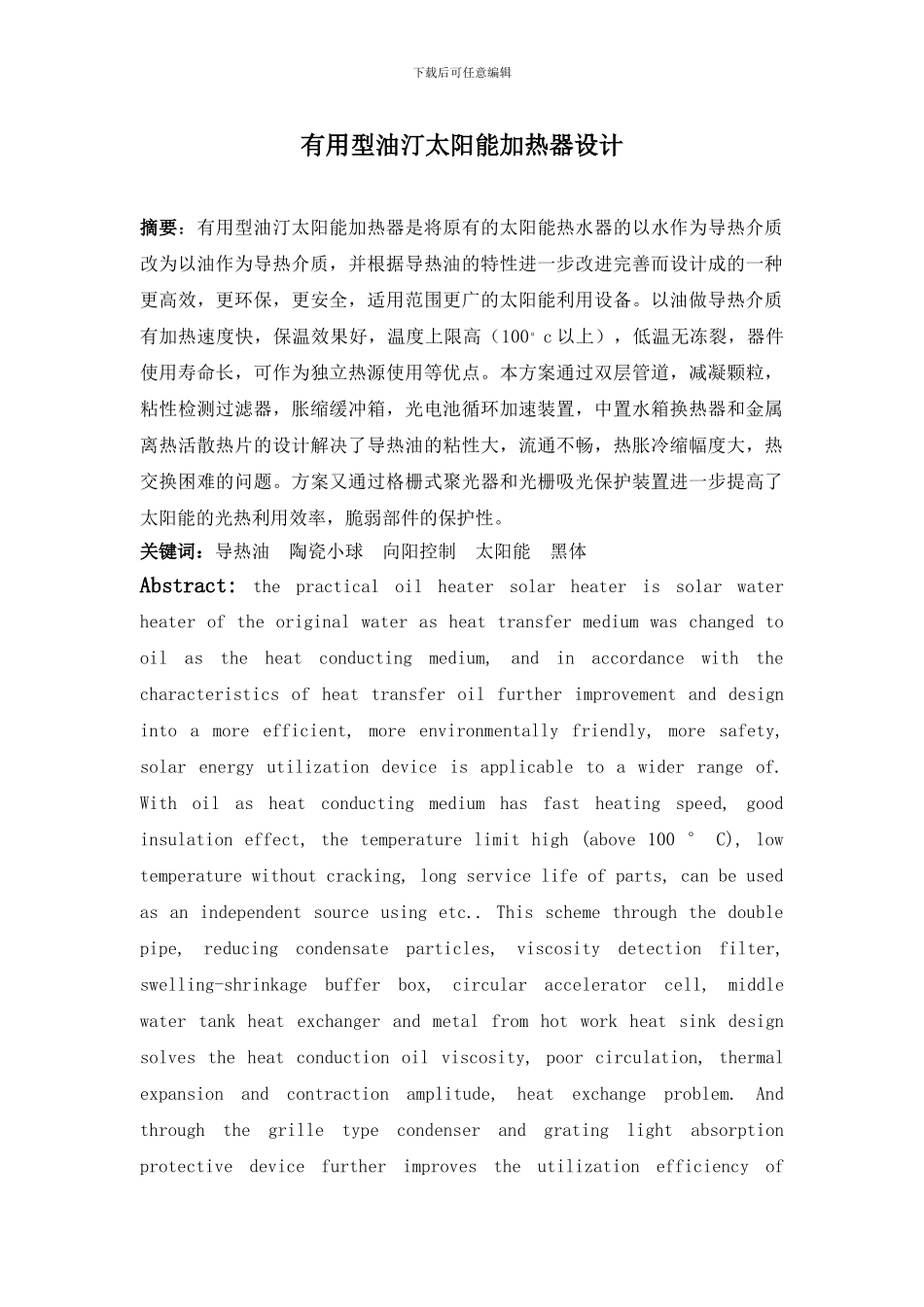

下载后可任意编辑有用型油汀太阳能加热器设计 摘要：有用型油汀太阳能加热器是将原有的太阳能热水器的以水作为导热介质改为以油作为导热介质，并根据导热油的特性进一步改进完善而设计成的一种更高效，更环保，更安全，适用范围更广的太阳能利用设备。以油做导热介质有加热速度快，保温效果好，温度上限高（100°c 以上），低温无冻裂，器件使用寿命长，可作为独立热源使用等优点。本方案通过双层管道，减凝颗粒，粘性检测过滤器，胀缩缓冲箱，光电池循环加速装置，中置水箱换热器和金属离热活散热片的设计解决了导热油的粘性大，流通不畅，热胀冷缩幅度大，热交换困难的问题。方案又通过格栅式聚光器和光栅吸光保护装置进一步提高了太阳能的光热利用效率，脆弱部件的保护性。关键词：导热油 陶瓷小球 向阳控制 太阳能 黑体Abstract: the practical oil heater solar heater is solar water heater of the original water as heat transfer medium was changed to oil as the heat conducting medium, and in accordance with the characteristics of heat transfer oil further improvement and design into a more efficient, more environmentally friendly, more safety, solar energy utilization device is applicable to a wider range of. With oil as heat conducting medium has fast heating speed, good insulation effect, the temperature limit high (above 100 ° C), low temperature without cracking, long service life of parts, can be used as an independent source using etc.. This scheme through the double pipe, reducing condensate particles, viscosity detection filter, swelling-shrinkage buffer box, circular accelerator cell, middle water tank heat exchanger and metal from hot work heat sink design solves the heat conduction oil viscosity, poor circulation, thermal expansion and contraction amplitude, heat exchange problem. And through the grille type condenser and grating light absorption protective device further improves the utilization efficiency of 下载后可任意编辑solar energy ...
