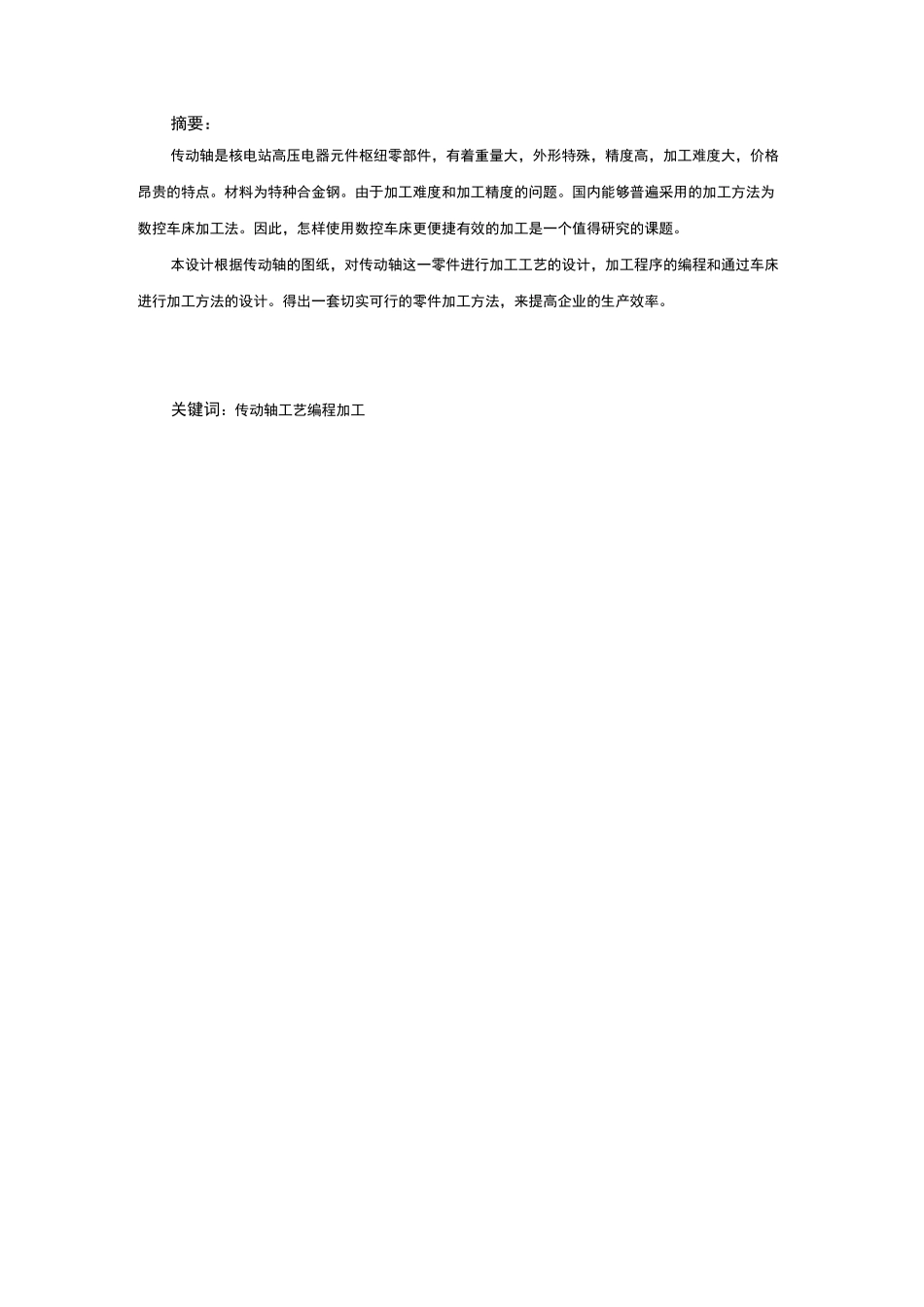

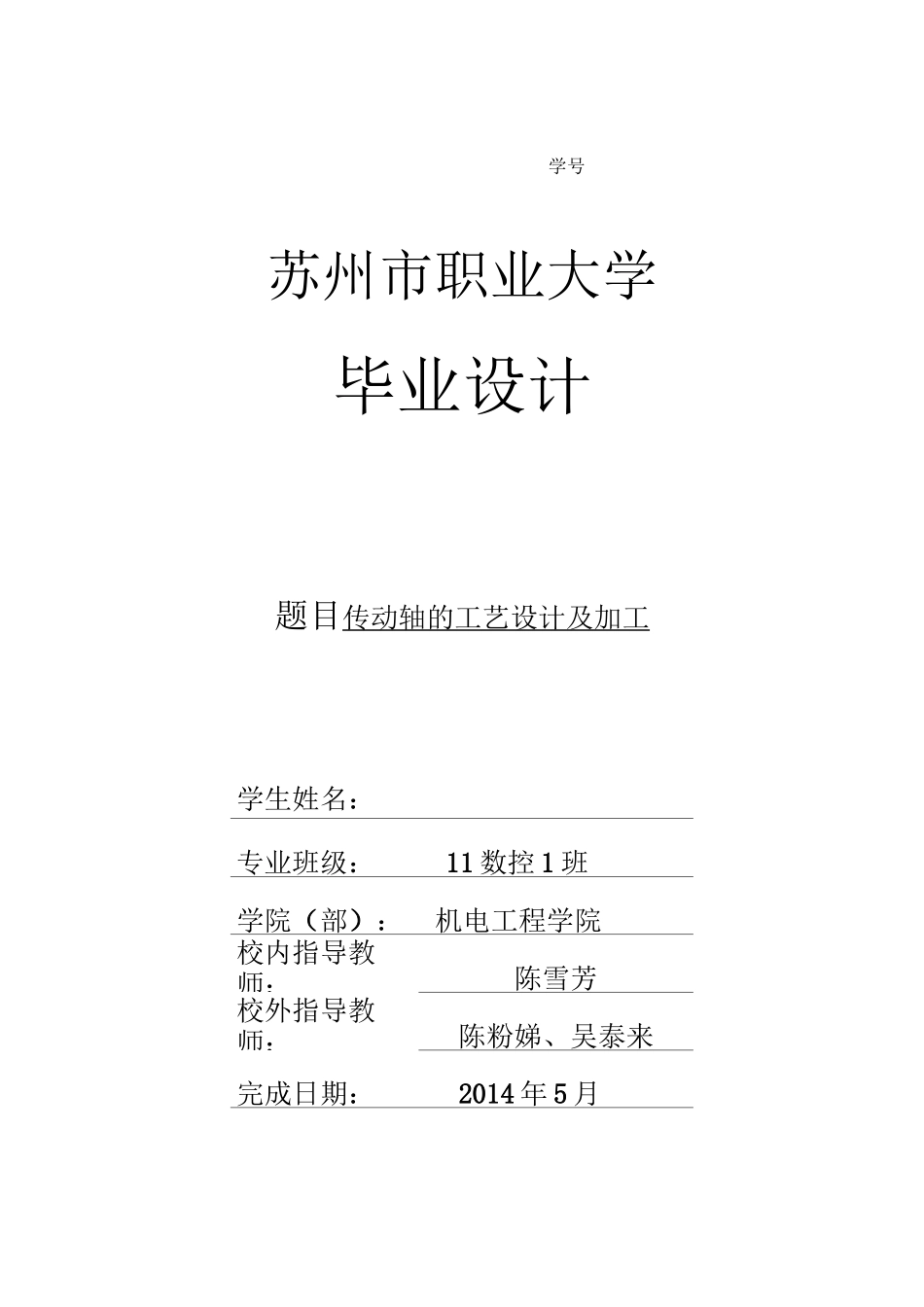

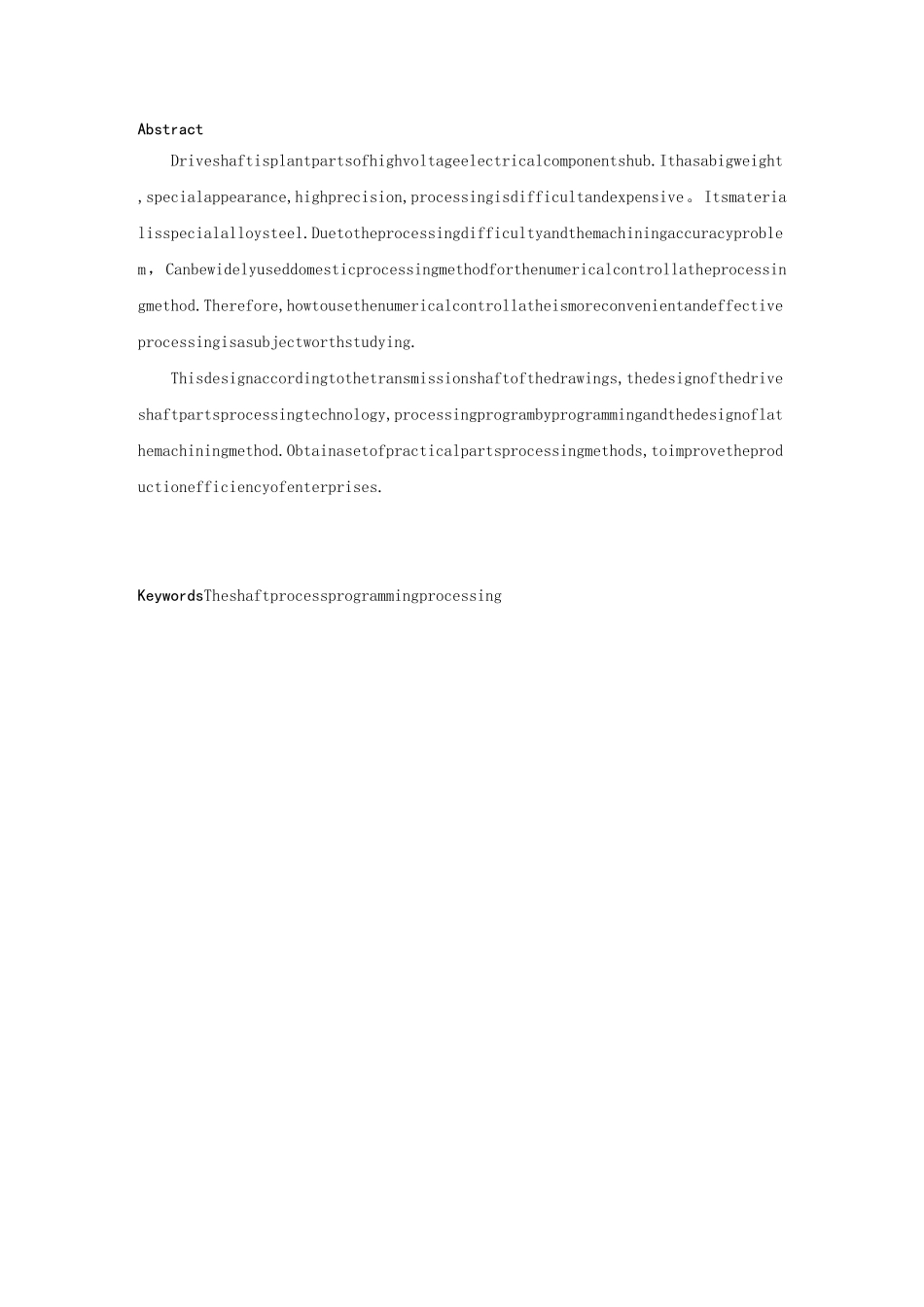

学号苏州市职业大学毕业设计题目传动轴的工艺设计及加工学生姓名:专业班级:11 数控 1 班学院(部):机电工程学院校内指导教师:陈雪芳校外指导教师:陈粉娣、吴泰来完成日期:2014 年 5 月摘要:传动轴是核电站高压电器元件枢纽零部件,有着重量大,外形特殊,精度高,加工难度大,价格昂贵的特点。材料为特种合金钢。由于加工难度和加工精度的问题。国内能够普遍采用的加工方法为数控车床加工法。因此,怎样使用数控车床更便捷有效的加工是一个值得研究的课题。本设计根据传动轴的图纸,对传动轴这一零件进行加工工艺的设计,加工程序的编程和通过车床进行加工方法的设计。得出一套切实可行的零件加工方法,来提高企业的生产效率。关键词:传动轴工艺编程加工AbstractDriveshaftisplantpartsofhighvoltageelectricalcomponentshub.Ithasabigweight,specialappearance,highprecision,processingisdifficultandexpensive。Itsmaterialisspecialalloysteel.Duetotheprocessingdifficultyandthemachiningaccuracyproblem,Canbewidelyuseddomesticprocessingmethodforthenumericalcontrollatheprocessingmethod.Therefore,howtousethenumericalcontrollatheismoreconvenientandeffectiveprocessingisasubjectworthstudying.Thisdesignaccordingtothetransmissionshaftofthedrawings,thedesignofthedriveshaftpartsprocessingtechnology,processingprogrambyprogrammingandthedesignoflathemachiningmethod.Obtainasetofpracticalpartsprocessingmethods,toimprovetheproductionefficiencyofenterprises.KeywordsTheshaftprocessprogrammingprocessing目次1 引言…………………………………………………………………………………12 传动轴的加工工艺设计……………………………………………………………22.1 传动轴的图纸分析 22.2 传动轴加工方法的选择 22.3 加工工艺路线的制定 33 传动轴加工工序设计………………………………………………………………33.1 P1 加工工序设计 73.2 P2 加工工序设计 93.3 P3 加工工序设计 113.4 P4 加工工序设计 133.5 P5 加工工序设计 153.6 P6 加工工序设计 173.7 P7 加工工序设计 194 传动轴的加工程序编制…………………………………………………………204.1 工序 P1 的程序 204.2 工序 P2 的程序 224.3 工序 P3 的程序 234.4 工序 P4 的程序 244.5 工序...
