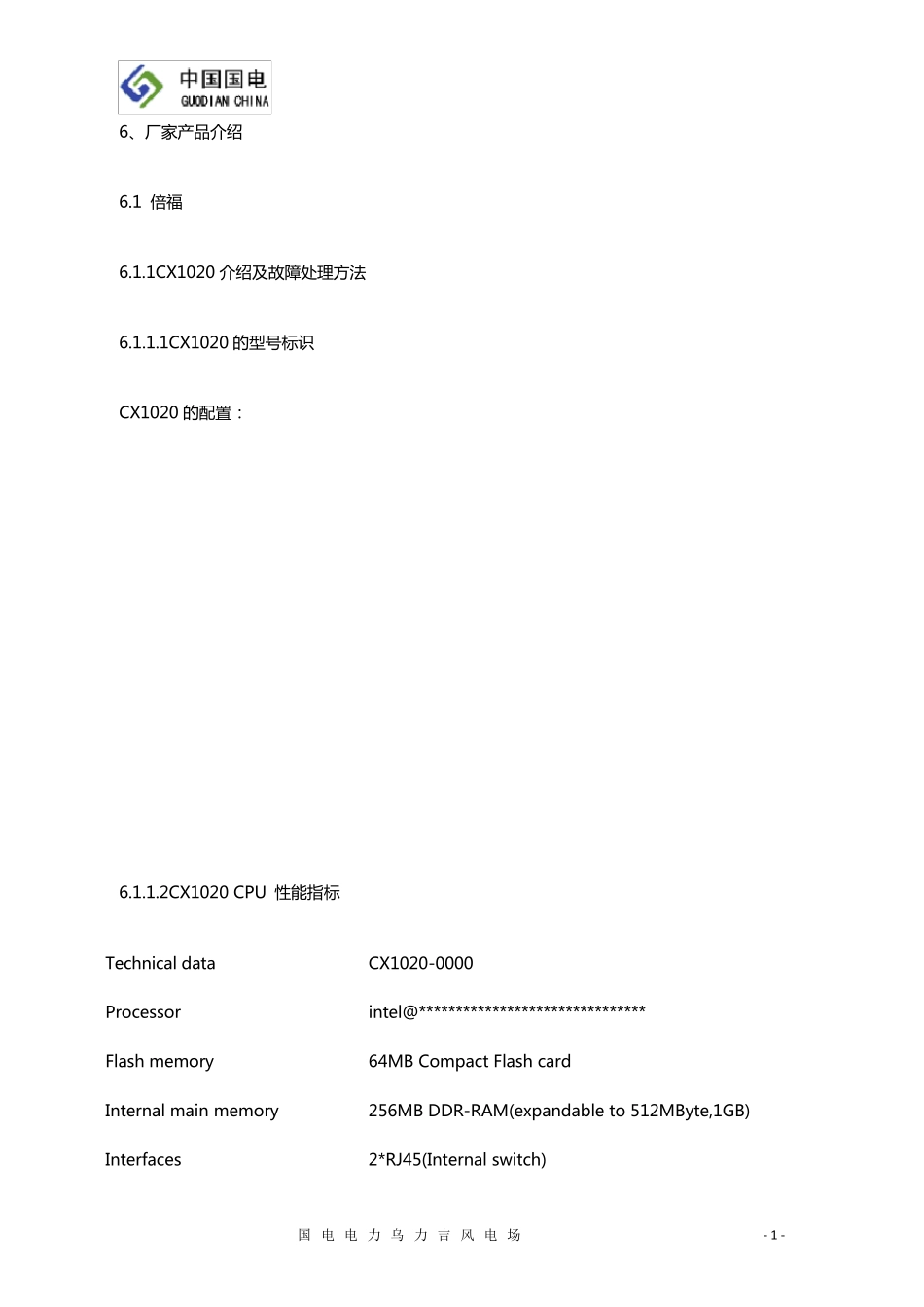

国电电力乌 力吉 风 电场 - 1 - 6、厂家产品介绍 6.1 倍福 6.1.1CX1020 介绍及故障处理方法 6.1.1.1CX1020 的型号标识 CX1020 的配置: 6.1.1.2CX1020 CPU 性能指标 Technical data CX1020-0000 Processor intel@*******************************Flash memory 64MB Compact Flash card Internal main memory 256MB DDR-RAM(expandable to 512MByte,1GB) Interfaces 2*RJ45(Internal switch) 国电电力乌 力吉 风 电场 - 2 - Diagnosion LED 1*Power,2*LAN link/activity,1*TC,1*flash access Expansion slot 1*Compact Flash typeⅠ +Ⅱ insert with eject mechanism Clock Internal battery-backed clock for time and date Operating system Microsoft Windows CE.NET or Microsoft Windows XP Embedded Control software TwinCAT PLC Runtime,TwinCAT NC PTP Runtime oder TwinCAT NCI Runtime System bus 16Bit ISA(PC104 standard) Power supply via system bus(through power supply module CX1100-000x) Max.power loss 11W(including CX1100-N0xx systeminterfaces) Dimensions(WxHxD) 96mm*112mm*99mm Wight app.550 g Operating/storagetemperafure 0℃...+50℃/-25℃...+80℃ Relative humidity 95% no condensation Vibration/shockresistance Conforms to EN60068-2-6/EN 60068-2-27/29 EMCresistanceburst/ESD Congorms to EN 61000-6-2/EN61000-6-4 protection class IP 20 6.1.1.3 模块外观 国电电力乌 力吉 风 电场 - 3 - 6.1.1.4 电 源 模 块 与 CPU 的组装 国电电力乌 力吉 风 电场 - 4 - 国电电力乌 力吉 风 电场 - 5 - 将 模 块 安 装 到 导 轨 上 : a、在装 到 导 轨 之前将 模 块 下白色锁紧机构拉下,使其不起作用。(如下图) b、将 模 块 后的卡槽对准导 轨 轻轻按下,然后推上 白色紧锁机构,至此 CPU 和模 块 的机械安 装 完毕。 c、将 模 块 安 装 到 导 轨 上 。 d、CF 卡的安 装 方法 国电电力乌 力吉 风 电场 - 6 - 6.1.1.5 CPU 诊 断 初 步 ——指 示 灯 TC 指 示 灯 饿 几 种 状 态 , 直 接 反 映 了 TwinCAT 的 运 行 状 态 。(CX1020-0000...
