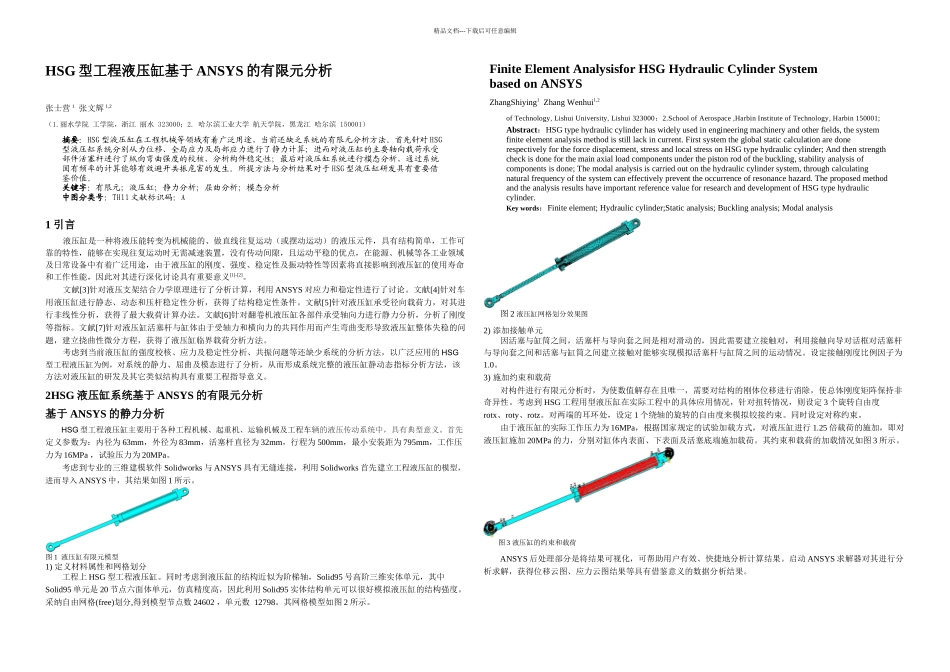

HSG型工程液压缸基于ANSYS的有限元分析

精品文档---下载后可任意编辑HSG 型工程液压缸基于 ANSYS 的有限元分析张士营 1 张文辉 1,2（1.丽水学院 工学院，浙江 丽水 323000；2. 哈尔滨工业大学 航天学院，黑龙江 哈尔滨 150001）摘要：HSG 型液压缸在工程机械等领域有着广泛用途，当前还缺乏系统的有限元分析方法。首先针对 HSG型液压缸系统分别从力位移、全局应力及局部应力进行了静力计算；进而对液压缸的主要轴向载荷承受部件活塞杆进行了纵向弯曲强度的校核，分析构件稳定性；最后对液压缸系统进行模态分析，通过系统固有频率的计算能够有效避开共振危害的发生。所提方法与分析结果对于 HSG 型液压缸研发具有重要借鉴价值。关键字：有限元；液压缸；静力分析；屈曲分析；模态分析中图分类号：TH11 文献标识码：AFinite Element Analysisfor HSG Hydraulic Cylinder System based on ANSYSZhangShiying1 Zhang Wenhui1,2 of Technology, Lishui University, Lishui 323000；2.School of Aerospace ,Harbin Institute of Technology, Harbin 150001;Abstract：HSG type hydraulic cylinder has widely used in engineering machinery and other fields, the system finite element analysis method is still lack in current. First system the global static calculation are done respectively for the force displacement, stress and local stress on HSG type hydraulic cylinder; And then strength check is done for the main axial load components under the piston rod of the buckling, stability analysis of components is done; The modal analysis is carried out on the hydraulic cylinder system, through calculating natural frequency of the system can effectively prevent the occurrence of resonance hazard. The proposed method and the analysis results have important reference value for research and development of HSG type hydraulic cylinder.Key words：Finite element; Hydraulic cylinder;Static analysis; Buckling analysis; Modal analysis1 引言液压缸是一种将液压能转变为机械能的、做直线往复运动（或摆动运动）的液压元件，具有结构简单，工作可靠的特...
