InGaAsSb半导体激光器欧姆接触的研究的开题报告

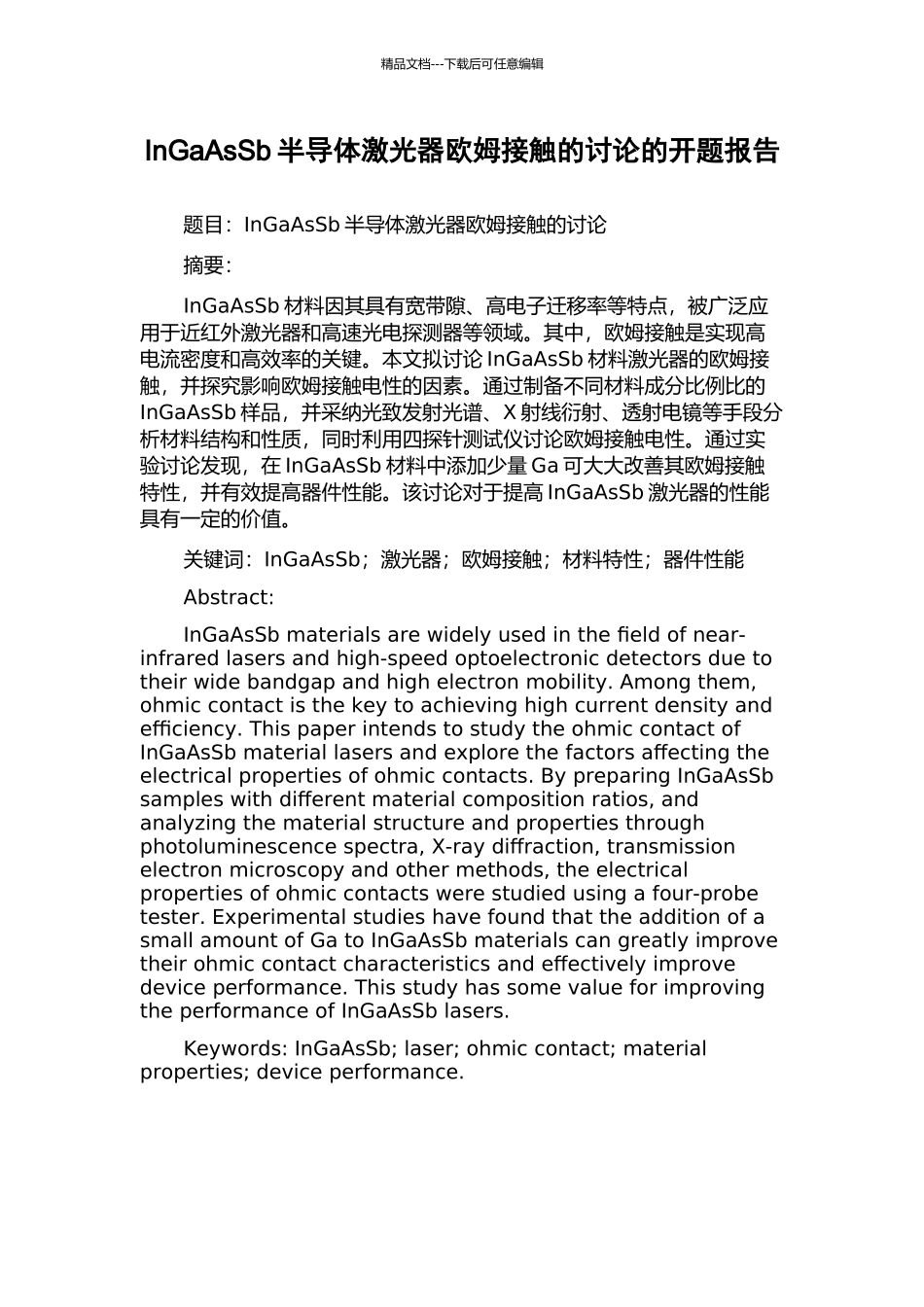

InGaAsSb半导体激光器欧姆接触的研究的开题报告_第1页
1/1
精品文档---下载后可任意编辑InGaAsSb 半导体激光器欧姆接触的讨论的开题报告题目:InGaAsSb 半导体激光器欧姆接触的讨论摘要:InGaAsSb 材料因其具有宽带隙、高电子迁移率等特点,被广泛应用于近红外激光器和高速光电探测器等领域。其中,欧姆接触是实现高电流密度和高效率的关键。本文拟讨论 InGaAsSb 材料激光器的欧姆接触,并探究影响欧姆接触电性的因素。通过制备不同材料成分比例比的InGaAsSb 样品,并采纳光致发射光谱、X 射线衍射、透射电镜等手段分析材料结构和性质,同时利用四探针测试仪讨论欧姆接触电性。通过实验讨论发现,在 InGaAsSb 材料中添加少量 Ga 可大大改善其欧姆接触特性,并有效提高器件性能。该讨论对于提高 InGaAsSb 激光器的性能具有一定的价值。关键词:InGaAsSb;激光器;欧姆接触;材料特性;器件性能Abstract:InGaAsSb materials are widely used in the field of near-infrared lasers and high-speed optoelectronic detectors due to their wide bandgap and high electron mobility. Among them, ohmic contact is the key to achieving high current density and efficiency. This paper intends to study the ohmic contact of InGaAsSb material lasers and explore the factors affecting the electrical properties of ohmic contacts. By preparing InGaAsSb samples with different material composition ratios, and analyzing the material structure and properties through photoluminescence spectra, X-ray diffraction, transmission electron microscopy and other methods, the electrical properties of ohmic contacts were studied using a four-probe tester. Experimental studies have found that the addition of a small amount of Ga to InGaAsSb materials can greatly improve their ohmic contact characteristics and effectively improve device performance. This study has some value for improving the performance of InGaAsSb lasers.Keywords: InGaAsSb; laser; ohmic contact; material properties; device performance.
