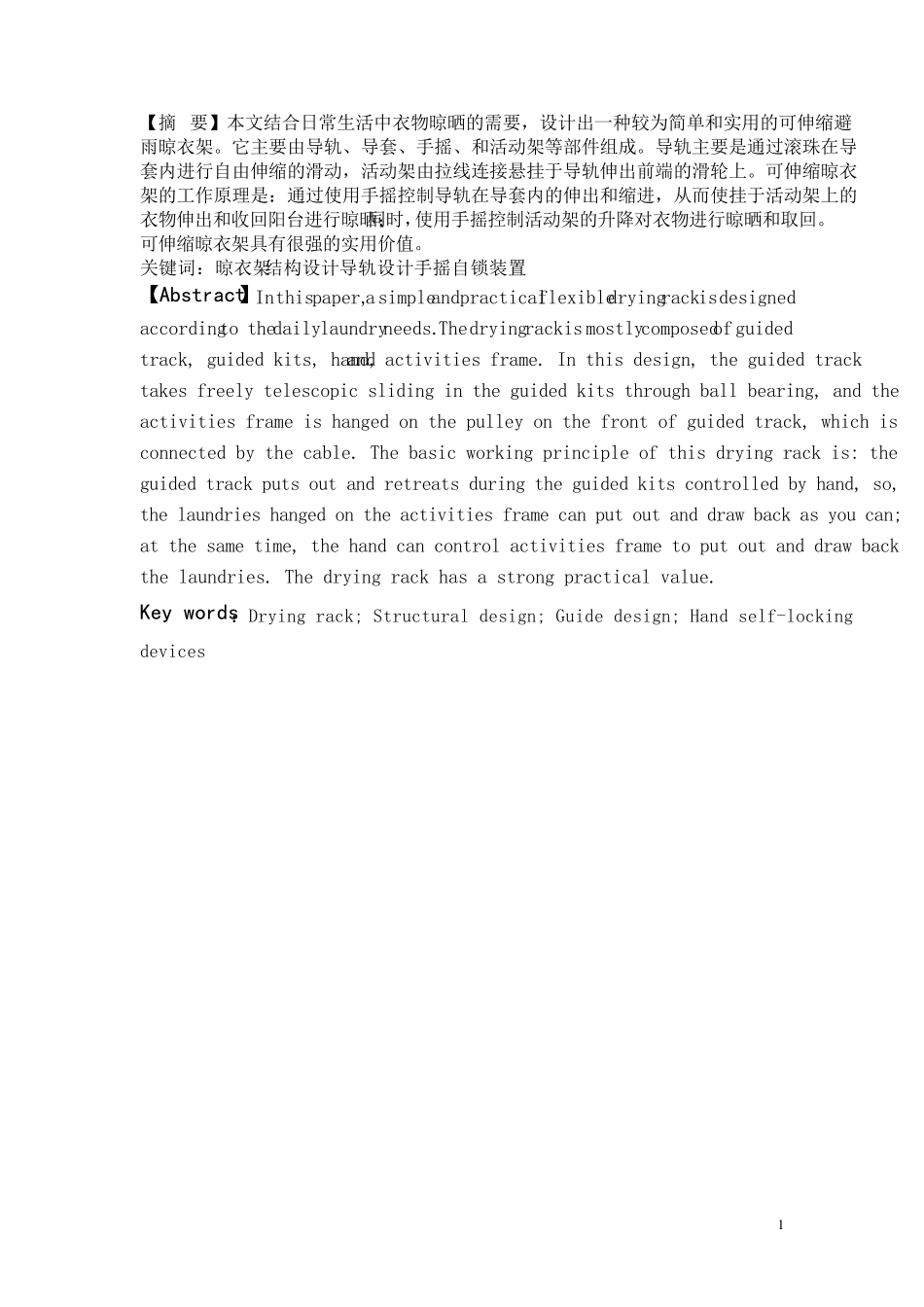

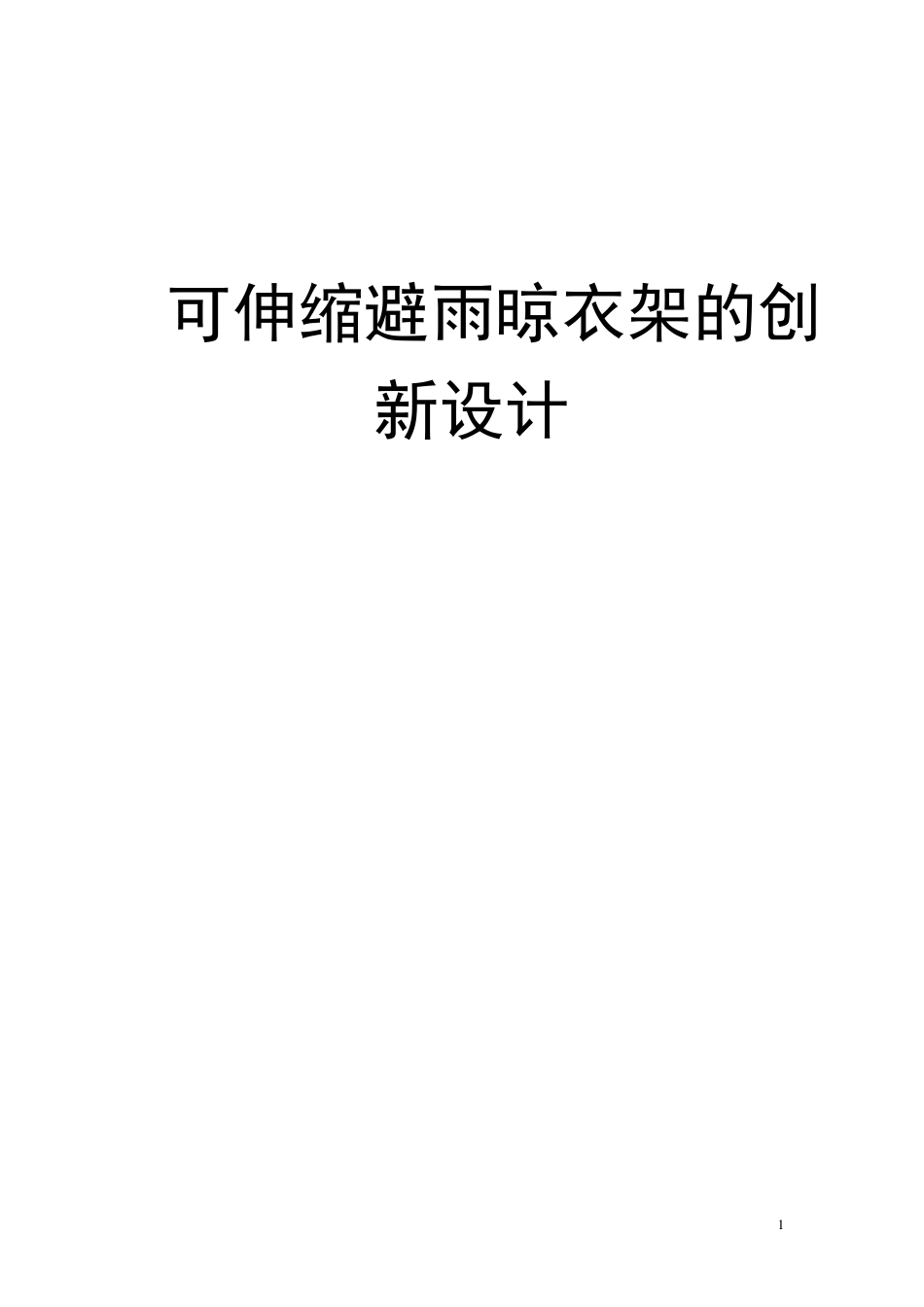

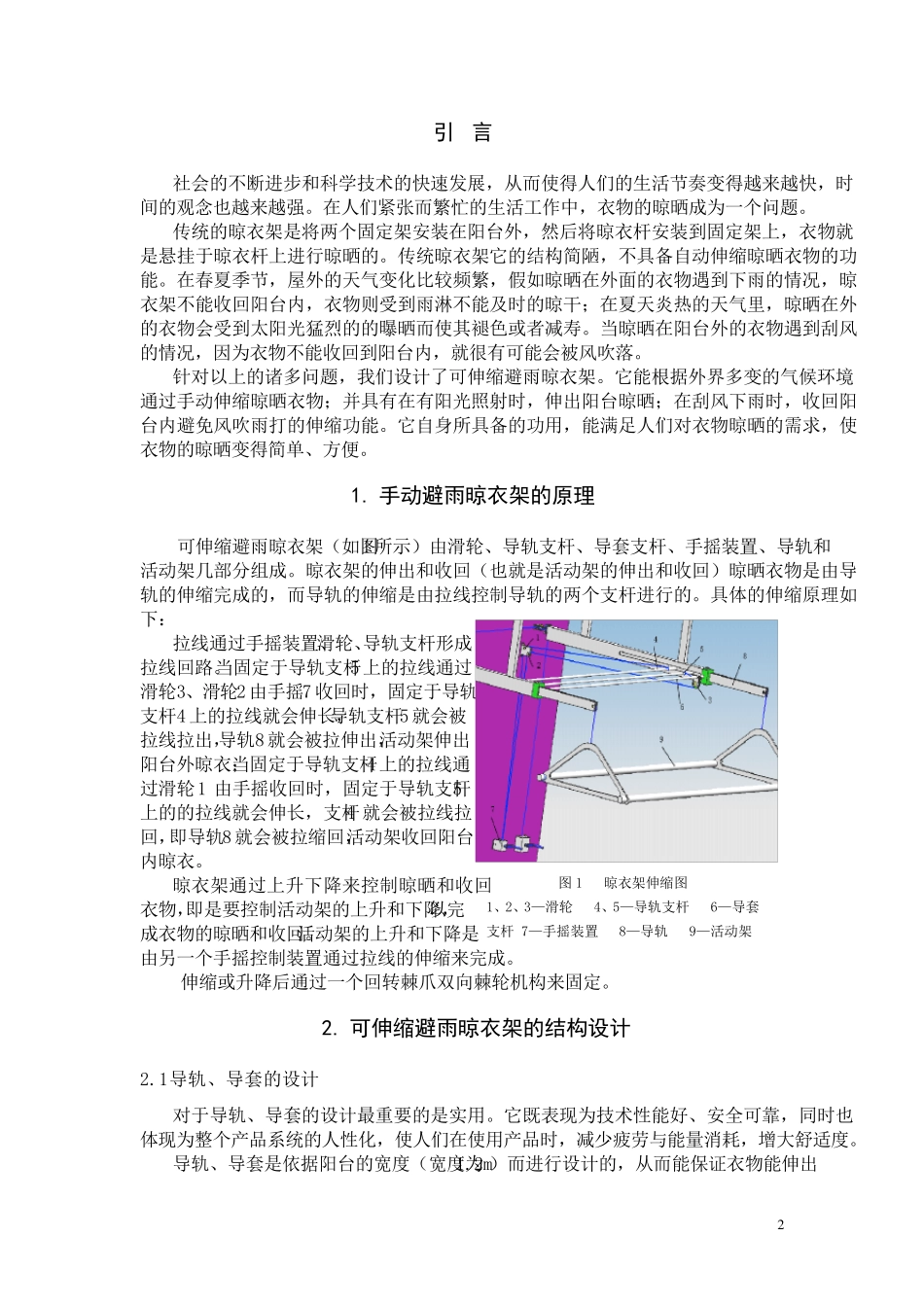

1 可伸缩避雨晾衣架的创新设计 1 【摘 要】本文结合日常生活中衣物晾晒的需要,设计出一种较为简单和实用的可伸缩避雨晾衣架。它主要由导轨、导套、手摇、和活动架等部件组成。导轨主要是通过滚珠在导套内进行自由伸缩的滑动,活动架由拉线连接悬挂于导轨伸出前端的滑轮上。可伸缩晾衣架的工作原理是:通过使用手摇控制导轨在导套内的伸出和缩进,从而使挂于活动架上的衣物伸出和收回阳台进行晾晒;同时,使用手摇控制活动架的升降对衣物进行晾晒和取回。可伸缩晾衣架具有很强的实用价值。 关键词:晾衣架 结构设计 导轨设计 手摇自锁装置 【Abstract】In this paper, a simple and practical flexible drying rack is designed according to the daily laundry needs. The drying rack is mostly composed of guided track, guided kits, hand, and activities frame. In this design, the guided track takes freely telescopic sliding in the guided kits through ball bearing, and the activities frame is hanged on the pulley on the front of guided track, which is connected by the cable. The basic working principle of this drying rack is: the guided track puts out and retreats during the guided kits controlled by hand, so, the laundries hanged on the activities frame can put out and draw back as you can; at the same time, the hand can control activities frame to put out and draw back the laundries. The drying rack has a strong practical value. Key words:Drying rack; Structural design; Guide design; Hand self-locking devices 2 引 言 社 会 的 不 断 进 步 和 科 学 技 术 的 快 速 发 展 , 从 而 使 得 人 们 的 生 活 节 奏 变 得 越 来 越 快 , 时间 的 观 念 也 越 来 越 强 。 在 人 们 紧 张 而 繁 忙 的 生 活 工 作 中 , 衣 物 的 晾 晒 成 为 一 个 问 题 。 传 统 的 晾 衣 架 是 将 两 个 固 定 架 安 装 在 阳 台 外 , 然 后 将 晾 衣 杆 安 装 到 固 定 架 上 , 衣 物 就是 悬 挂...
