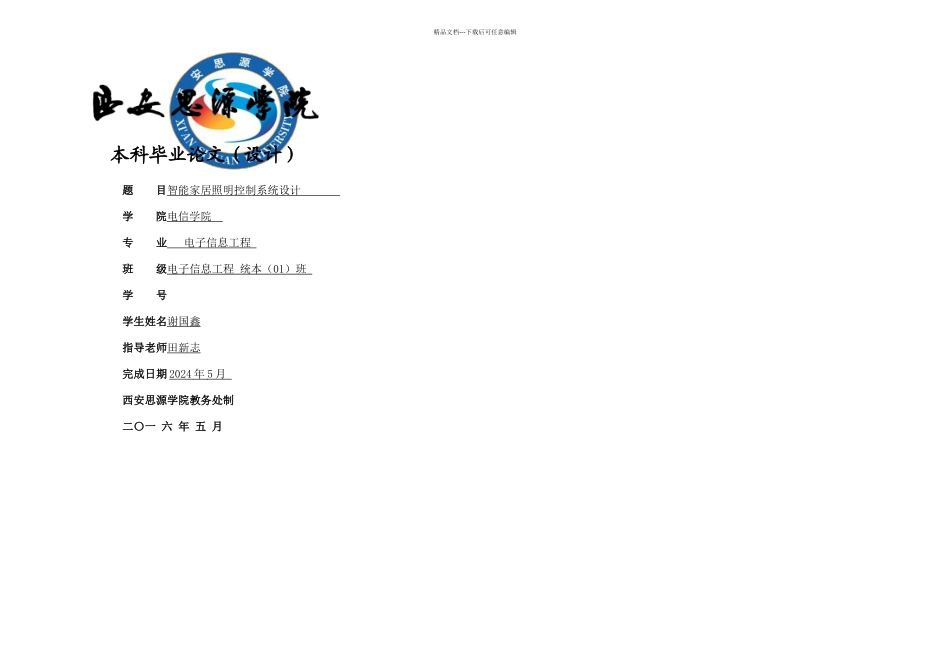

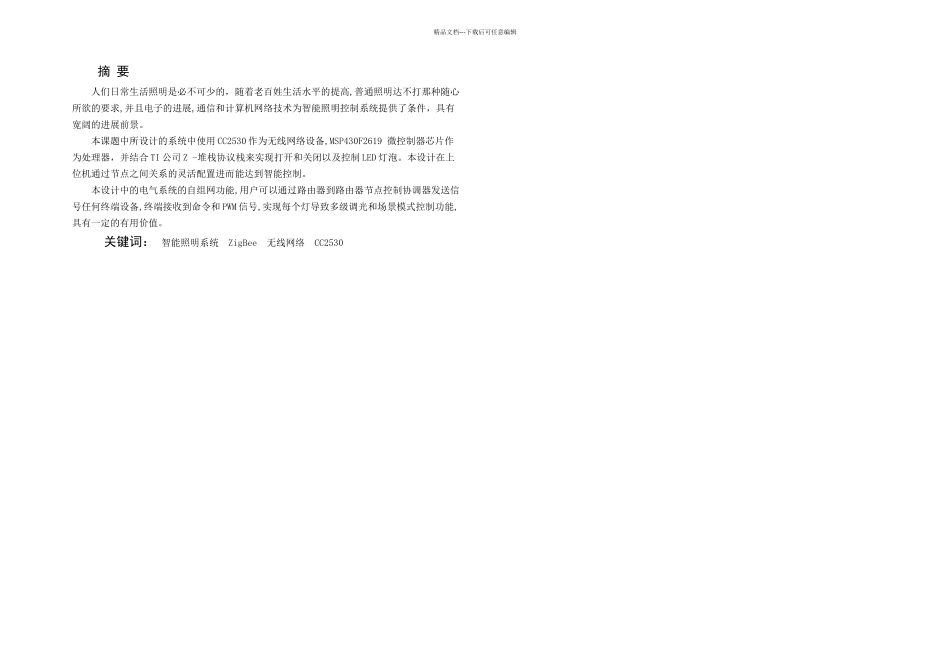

精品文档---下载后可任意编辑本科毕业论文(设计)题 目智能家居照明控制系统设计 学 院电信学院 专 业 电子信息工程 班 级电子信息工程 统本( 01 )班 学 号学生姓名谢国鑫指导老师田新志完成日期 2024 年 5 月 西安思源学院教务处制二〇一 六 年 五 月精品文档---下载后可任意编辑摘 要人们日常生活照明是必不可少的,随着老百姓生活水平的提高,普通照明达不打那种随心所欲的要求,并且电子的进展,通信和计算机网络技术为智能照明控制系统提供了条件,具有宽阔的进展前景。本课题中所设计的系统中使用 CC2530 作为无线网络设备,MSP430F2619 微控制器芯片作为处理器,并结合 TI 公司 Z -堆栈协议栈来实现打开和关闭以及控制 LED 灯泡。本设计在上位机通过节点之间关系的灵活配置进而能达到智能控制。本设计中的电气系统的自组网功能,用户可以通过路由器到路由器节点控制协调器发送信号任何终端设备,终端接收到命令和 PWM 信号,实现每个灯导致多级调光和场景模式控制功能,具有一定的有用价值。关键词: 智能照明系统 ZigBee 无线网络 CC2530精品文档---下载后可任意编辑Abstract Lighting is essential to People's Daily life, as people living standard rise, the requirements of general lighting up to don't play that follow one's inclinations, and the development of electronic, communication and computer network technology provides conditions for the intelligent lighting control system, has a broad development prospects. This topic in the design of the system used in CC2530 as wireless network equipment, MSP430F2619 microcontroller chip as the processor, and connecting with the TI company Z - stack protocol stack to achieve open and close and control LED bulbs. This design through the node in the upper machine of the relationship between the flexible configuration which can achieve intelligent control. Electrical system in the design of the ad-hoc network function, the user can control the coordinator to send signals through the router to router nodes any terminal, terminal r...
