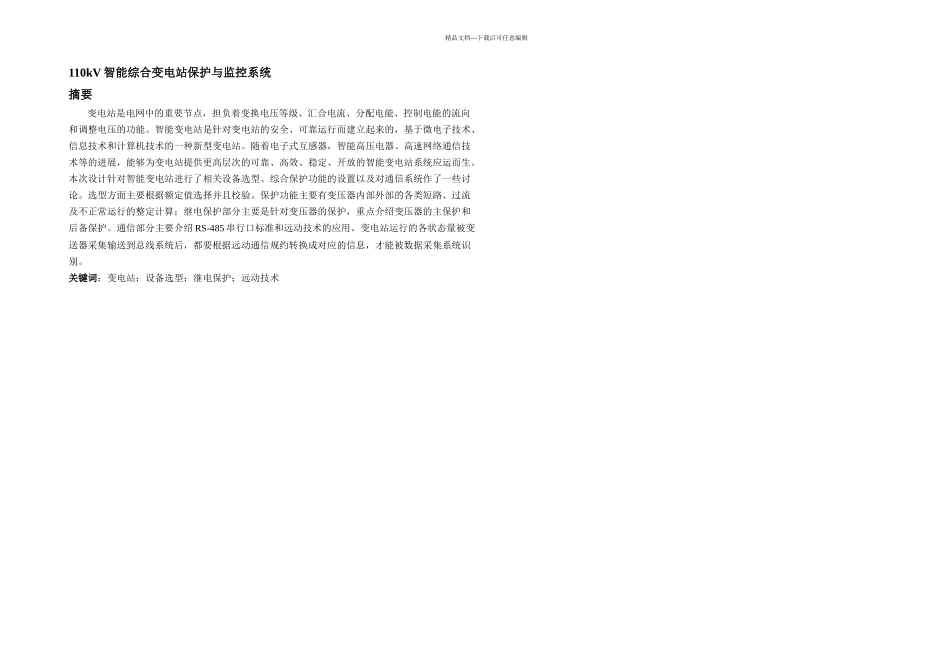

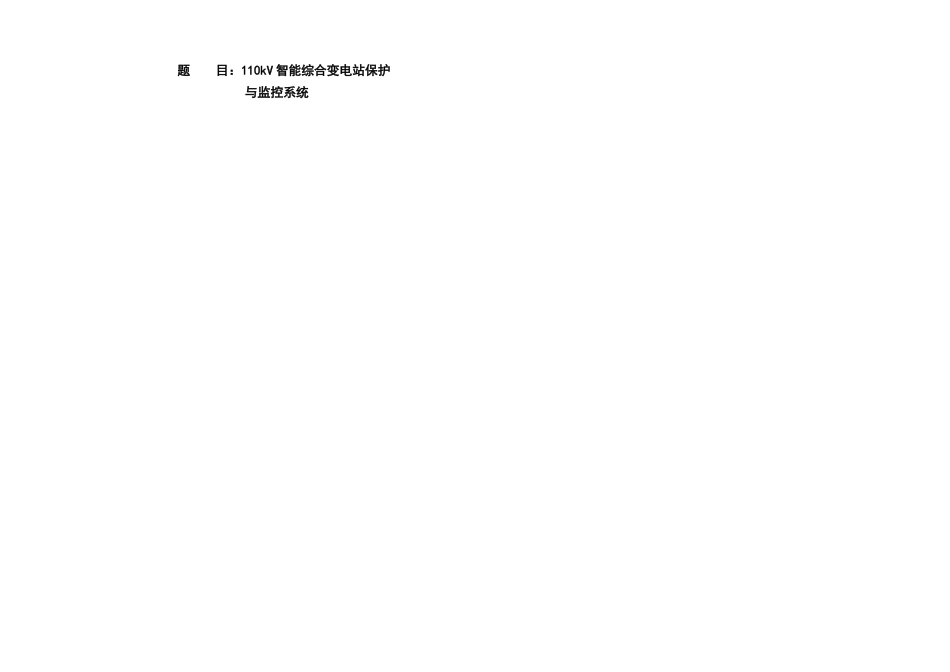

题 目：110kV 智能综合变电站保护与监控系统精品文档---下载后可任意编辑110kV 智能综合变电站保护与监控系统摘要变电站是电网中的重要节点，担负着变换电压等级、汇合电流、分配电能、控制电能的流向和调整电压的功能。智能变电站是针对变电站的安全、可靠运行而建立起来的，基于微电子技术、信息技术和计算机技术的一种新型变电站。随着电子式互感器，智能高压电器、高速网络通信技术等的进展，能够为变电站提供更高层次的可靠、高效、稳定、开放的智能变电站系统应运而生。本次设计针对智能变电站进行了相关设备选型、综合保护功能的设置以及对通信系统作了一些讨论。选型方面主要根据额定值选择并且校验。保护功能主要有变压器内部外部的各类短路、过流及不正常运行的整定计算；继电保护部分主要是针对变压器的保护，重点介绍变压器的主保护和后备保护。通信部分主要介绍 RS-485 串行口标准和远动技术的应用。变电站运行的各状态量被变送器采集输送到总线系统后，都要根据远动通信规约转换成对应的信息，才能被数据采集系统识别。关键词：变电站；设备选型；继电保护；远动技术精品文档---下载后可任意编辑Protection and monitoring system for 110kV smart substationAbstractSubstation is a important node in the network, it shoulders the transformation of voltage, current’s collection, distribution of electricity, control of power flow and adjustvoltage. Smart substation aims tooperate reliablly and establish a new mode of micro-electronics technology, information technology and computer technology. With the development of electronic transformer, the space of intelligent high-voltage electrical appliances and high speed network communication technology,could provide smart substation system require higher level of reliability, efficiency and stablity. The smart substation rely protection function relate to equipment selection, configuration and the communication system. Selection of main ratings and calibration, the main functions of internal and external protection of transformer short circuit, over-current and varioelay prote...
