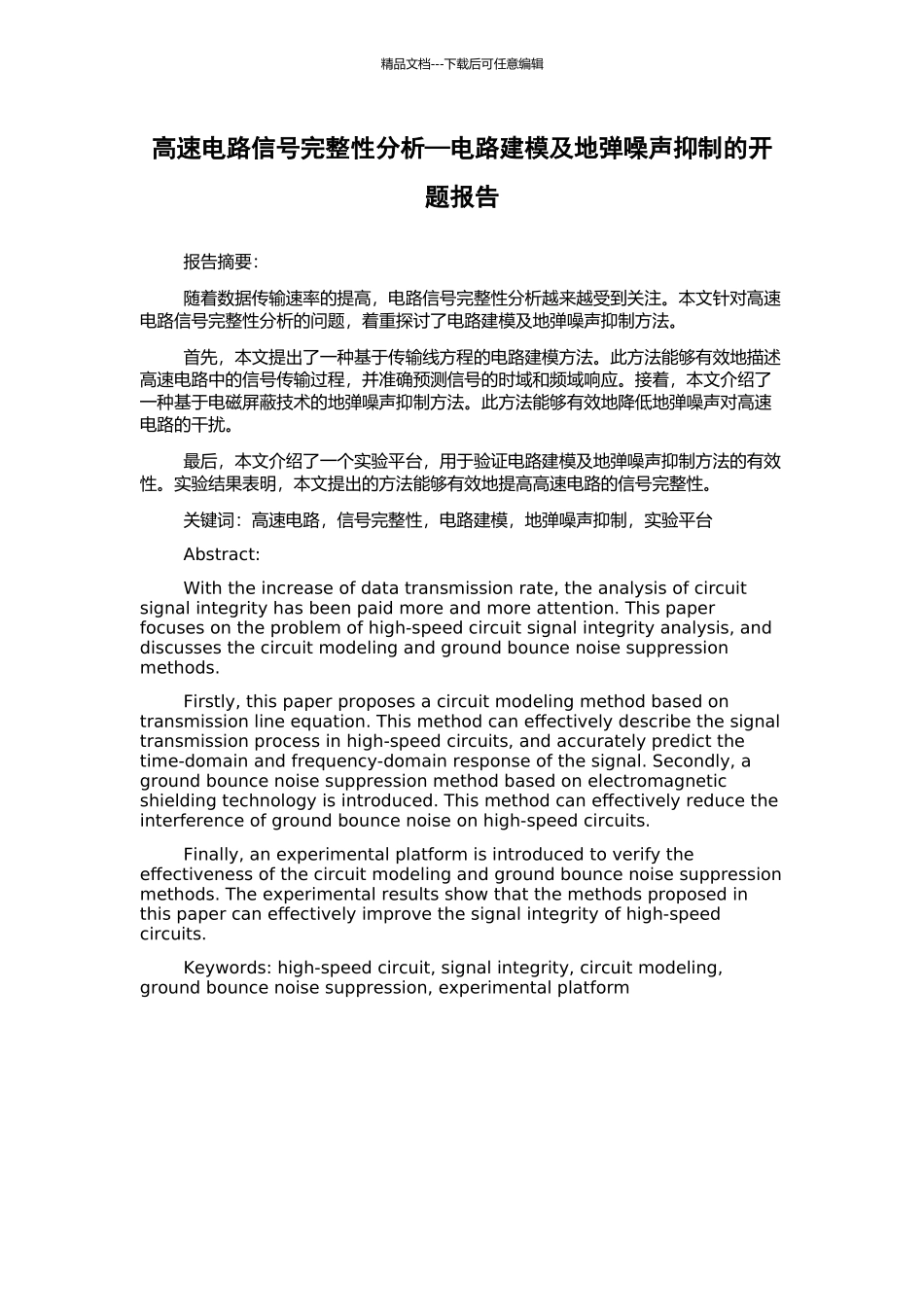

精品文档---下载后可任意编辑高速电路信号完整性分析—电路建模及地弹噪声抑制的开题报告报告摘要:随着数据传输速率的提高,电路信号完整性分析越来越受到关注。本文针对高速电路信号完整性分析的问题,着重探讨了电路建模及地弹噪声抑制方法。首先,本文提出了一种基于传输线方程的电路建模方法。此方法能够有效地描述高速电路中的信号传输过程,并准确预测信号的时域和频域响应。接着,本文介绍了一种基于电磁屏蔽技术的地弹噪声抑制方法。此方法能够有效地降低地弹噪声对高速电路的干扰。最后,本文介绍了一个实验平台,用于验证电路建模及地弹噪声抑制方法的有效性。实验结果表明,本文提出的方法能够有效地提高高速电路的信号完整性。关键词:高速电路,信号完整性,电路建模,地弹噪声抑制,实验平台Abstract:With the increase of data transmission rate, the analysis of circuit signal integrity has been paid more and more attention. This paper focuses on the problem of high-speed circuit signal integrity analysis, and discusses the circuit modeling and ground bounce noise suppression methods.Firstly, this paper proposes a circuit modeling method based on transmission line equation. This method can effectively describe the signal transmission process in high-speed circuits, and accurately predict the time-domain and frequency-domain response of the signal. Secondly, a ground bounce noise suppression method based on electromagnetic shielding technology is introduced. This method can effectively reduce the interference of ground bounce noise on high-speed circuits.Finally, an experimental platform is introduced to verify the effectiveness of the circuit modeling and ground bounce noise suppression methods. The experimental results show that the methods proposed in this paper can effectively improve the signal integrity of high-speed circuits.Keywords: high-speed circuit, signal integrity, circuit modeling, ground bounce noise suppression, experimental platform
