汽轮机详细设计参数

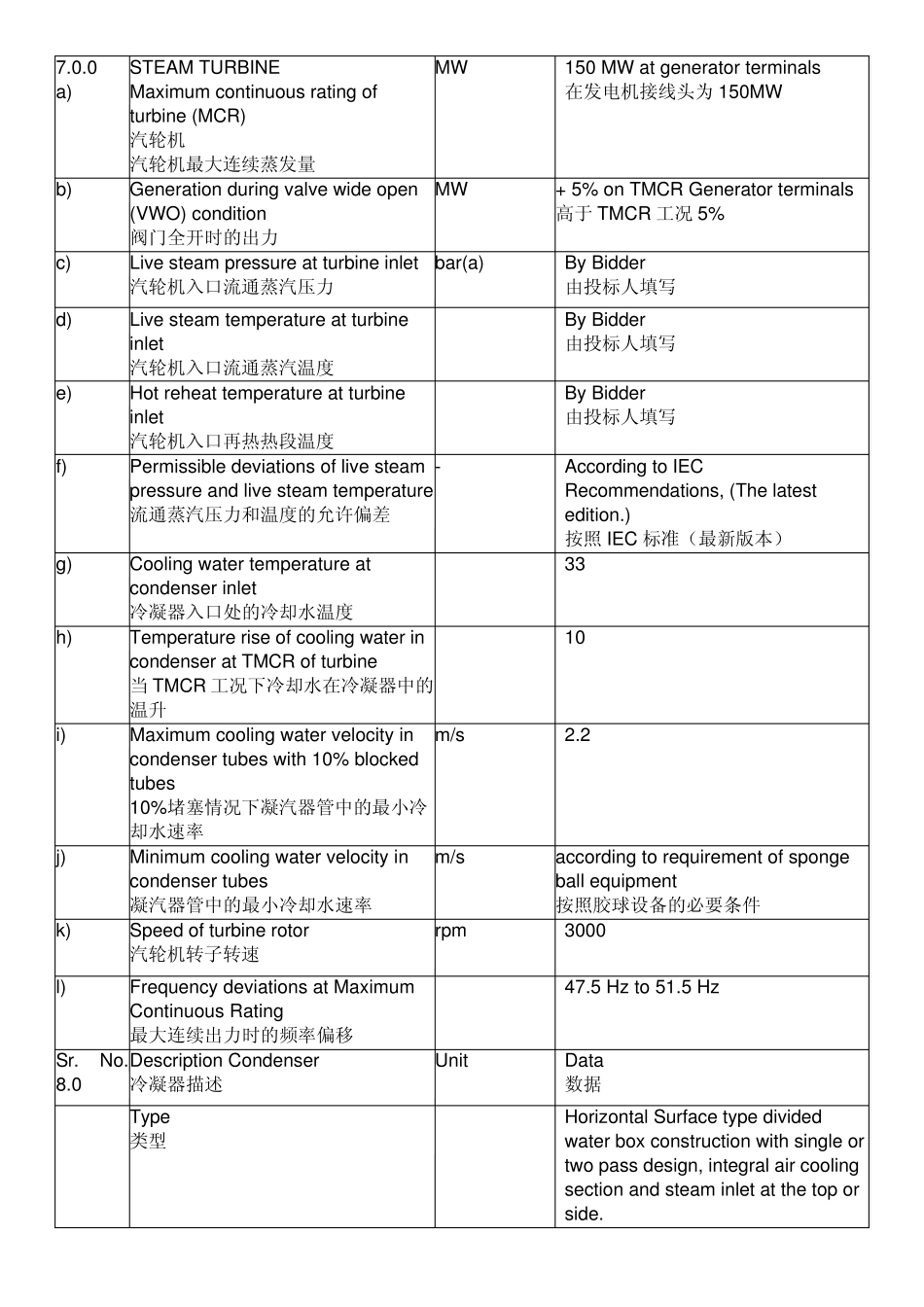

汽轮机详细设计参数_第1页
1/11
汽轮机详细设计参数_第2页
2/11
汽轮机详细设计参数_第3页
3/11
7.0.0 a) STEAM TURBINE Maximum continuous rating of turbine (MCR) 汽轮机 汽轮机最大连续蒸发量 MW 150 MW at generator terminals 在发电机接线头为150MW b) Generation during valve wide open (VWO) condition 阀门全开时的出力 MW + 5% on TMCR Generator terminals 高于TMCR 工况5% c) Live steam pressure at turbine inlet 汽轮机入口流通蒸汽压力 bar(a) By Bidder 由投标人填写 d) Live steam temperature at turbine inlet 汽轮机入口流通蒸汽温度 By Bidder 由投标人填写 e) Hot reheat temperature at turbine inlet 汽轮机入口再热热段温度 By Bidder 由投标人填写 f) Permissible deviations of live steam pressure and live steam temperature 流通蒸汽压力和温度的允许偏差 - According to IEC Recommendations, (The latest edition.) 按照IEC 标准(最新版本) g) Cooling water temperature at condenser inlet 冷凝器入口处的冷却水温度 33 h) Temperature rise of cooling water in condenser at TMCR of turbine 当TMCR 工况下冷却水在冷凝器中的温升 10 i) Maximum cooling water velocity in condenser tubes with 10% blocked tubes 10%堵塞情况下凝汽器管中的最小冷却水速率 m/s 2.2 j) Minimum cooling water velocity in condenser tubes 凝汽器管中的最小冷却水速率 m/s according to requirement of sponge ball equipment 按照胶球设备的必要条件 k) Speed of turbine rotor 汽轮机转子转速 rpm 3000 l) Frequency deviations at Maximum Continuous Rating 最大连续出力时的频率偏移 47.5 Hz to 51.5 Hz Sr. No. 8.0 Description Condenser 冷凝器描述 Unit Data 数据 Type 类型 Horizontal Surface type divided water box construction with single or two pass design, integral air cooling section and steam inlet at the top or side. 水平表面式、有一个或者二个通道的分水室结构、一体的空气冷却区、蒸汽进口在顶部或侧面 Surface area 表面面积 10% over & above the designed surface area 超过设计表面积的或 10% Temperature rise 温升 oC 10 oC Desi...
