舒布洛克砌块施工方法(改进型)

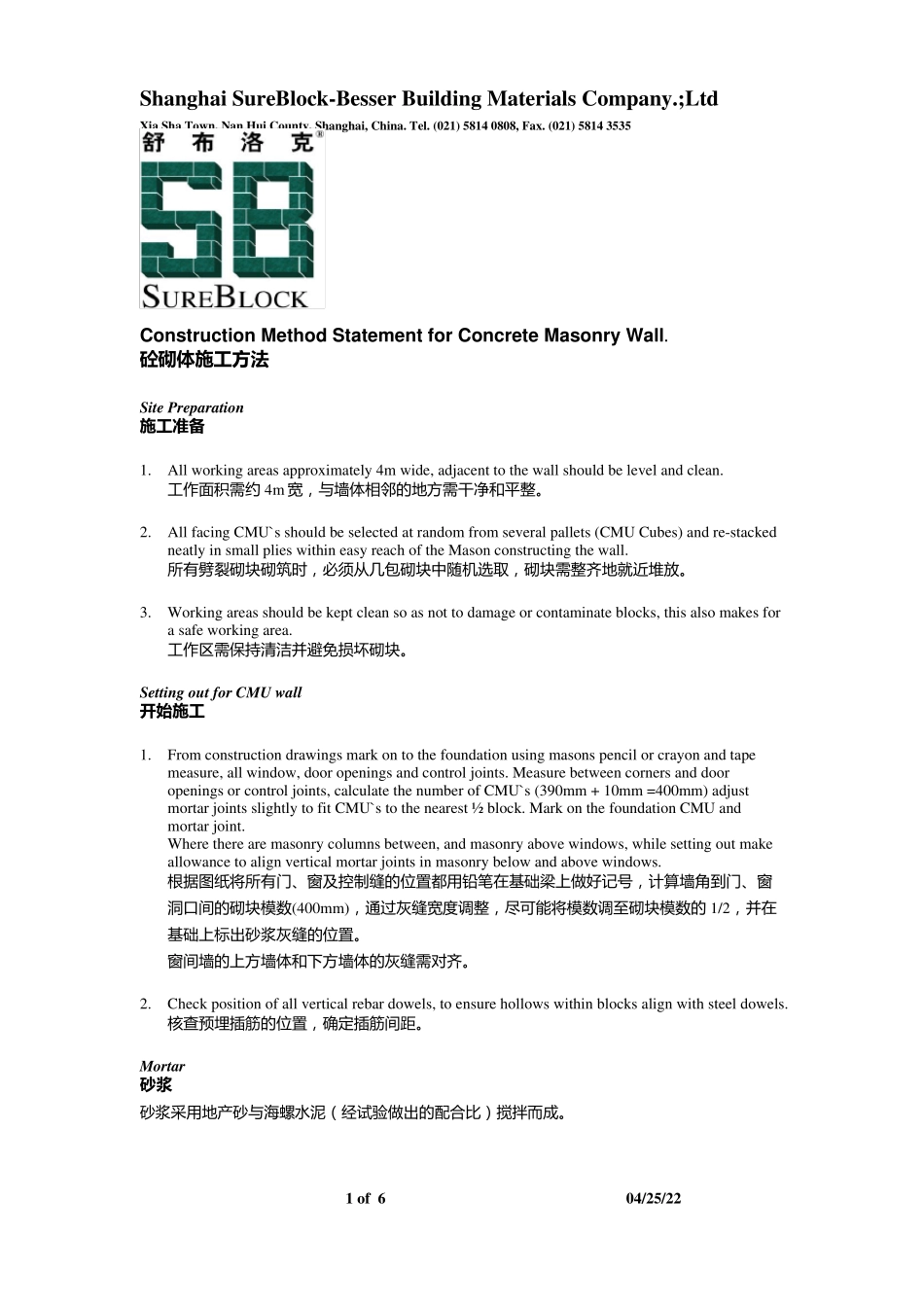

舒布洛克砌块施工方法(改进型)_第1页
1/6

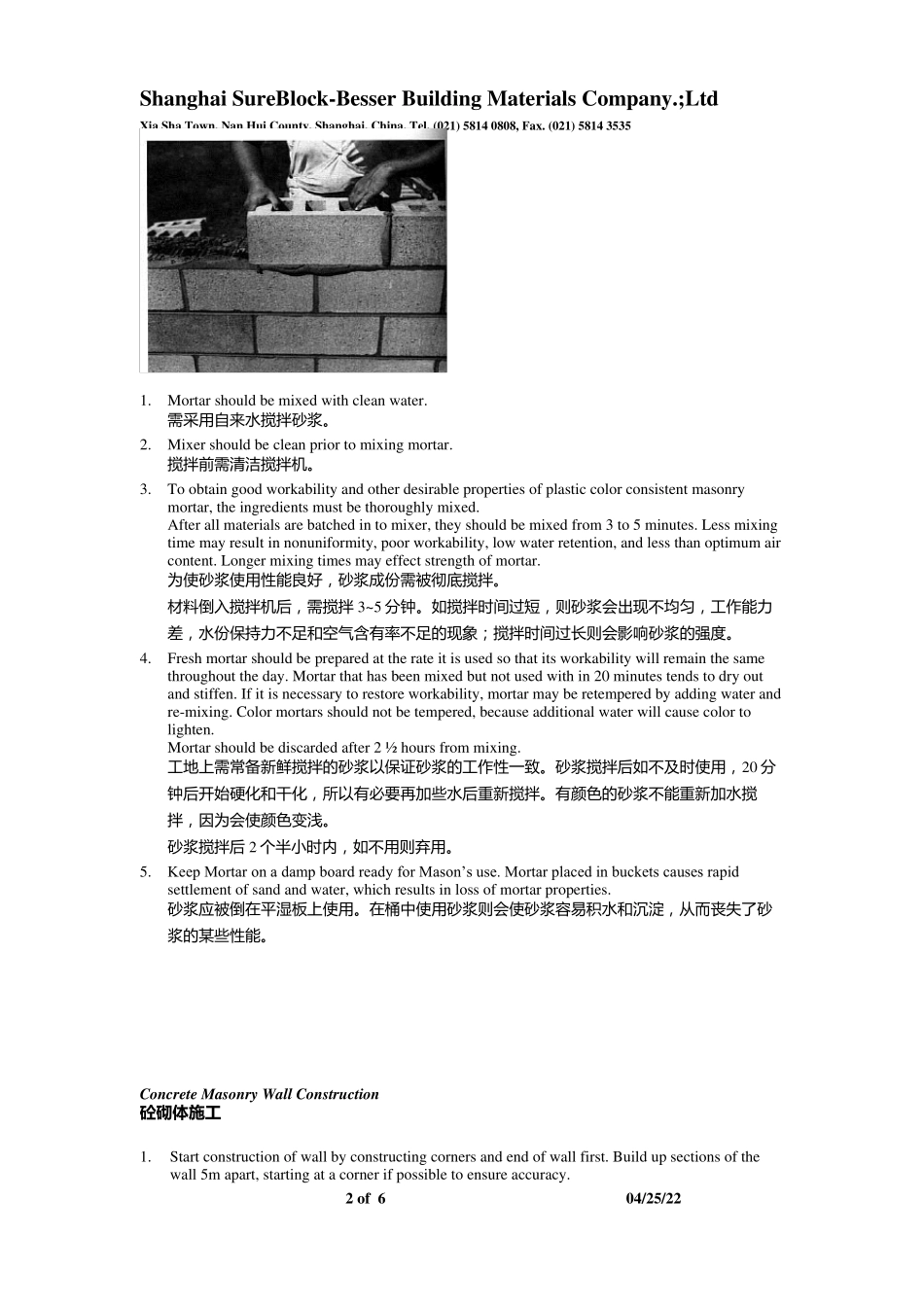

舒布洛克砌块施工方法(改进型)_第2页
2/6

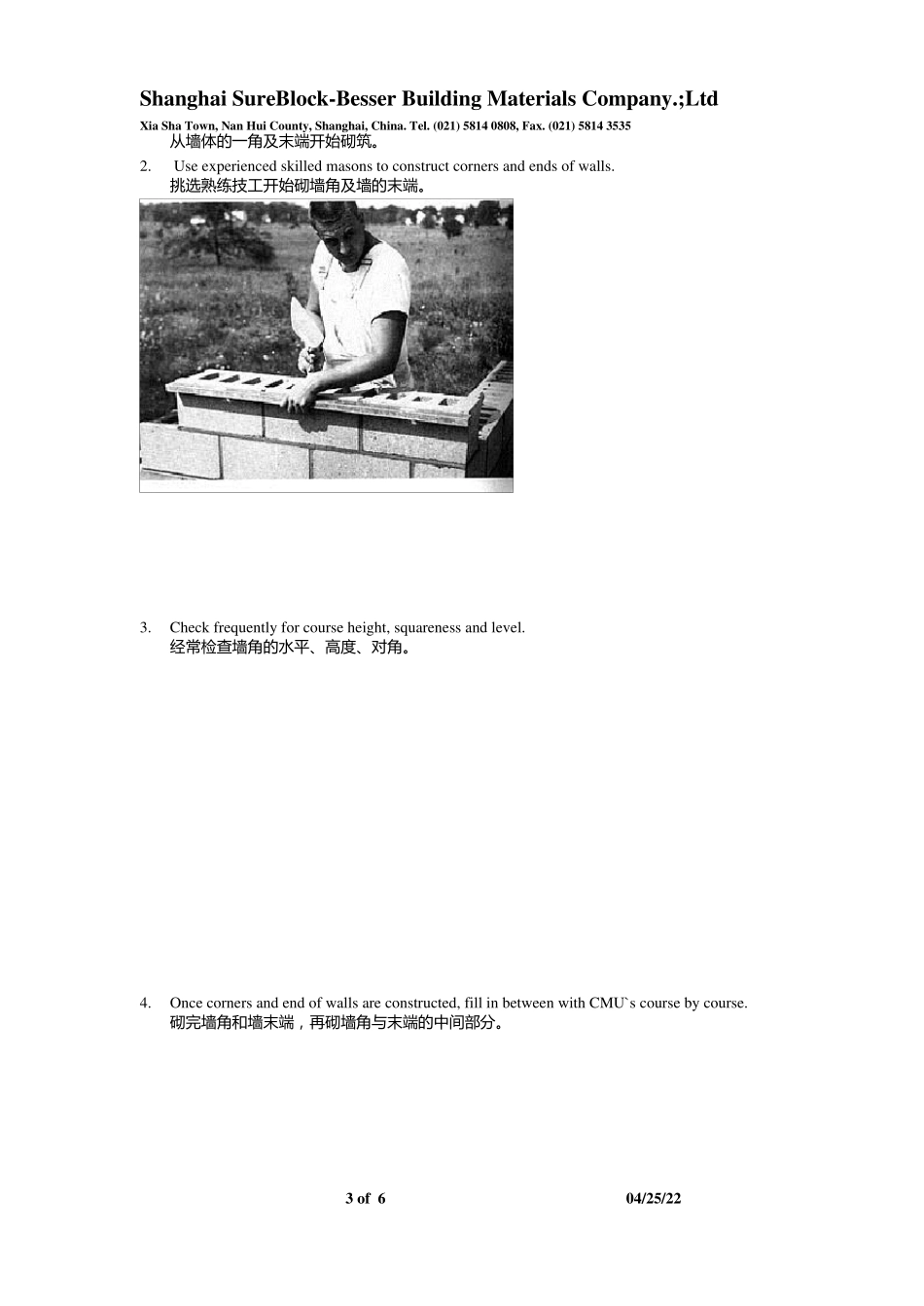

舒布洛克砌块施工方法(改进型)_第3页
3/6
Shanghai SureBlock-Besser Building Materials Company.;Ltd Xia Sha Town, Nan Hui County, Shanghai, China. Tel. (021) 5814 0808, Fax. (021) 5814 3535 1 of 6 04/25/22 Construction Method Statement for Concrete Masonry Wall. 砼 砌 体施工方法 Site Preparation 施工准备 1. All working areas approximately 4m wide, adjacent to the wall should be level and clean. 工 作 面 积 需 约 4m 宽 , 与 墙 体 相 邻 的 地 方 需 干 净 和 平 整 。 2. All facing CMU`s should be selected at random from several pallets (CMU Cubes) and re-stacked neatly in small plies within easy reach of the Mason constructing the wall. 所 有 劈 裂 砌 块 砌 筑 时 , 必 须 从 几 包 砌 块 中 随 机 选 取 , 砌 块 需 整 齐 地 就 近 堆 放 。 3. Working areas should be kept clean so as not to damage or contaminate blocks, this also makes for a safe working area. 工 作 区 需 保 持 清 洁 并 避 免 损 坏 砌 块 。 Setting out for CMU wall 开始施工 1. From construction drawings mark on to the foundation using masons pencil or crayon and tape measure, all window, door openings and control joints. Measure between corners and door openings or control joints, calculate the number of CMU`s (390mm + 10mm =400mm) adjust mortar joints slightly to fit CMU`s to the nearest ½ block. Mark on the foundation CMU and mortar joint. Where there are masonry columns between, and masonry above windows, while setting out make allowance to align vertical mortar joints in masonry below and above windows. 根 据 图 纸 将 所 有 门 、窗及控制缝的 位置都用铅笔在基础梁上做好记号, 计算墙 角到门 、窗洞口间的 砌 块 模数(400mm), 通过灰缝宽 度调整 , 尽可能将 模数调至砌 块 模数的 1/2, 并 在基础上标出砂浆灰缝的 位置。 窗间墙 的 上方 墙 体 和 下方...
