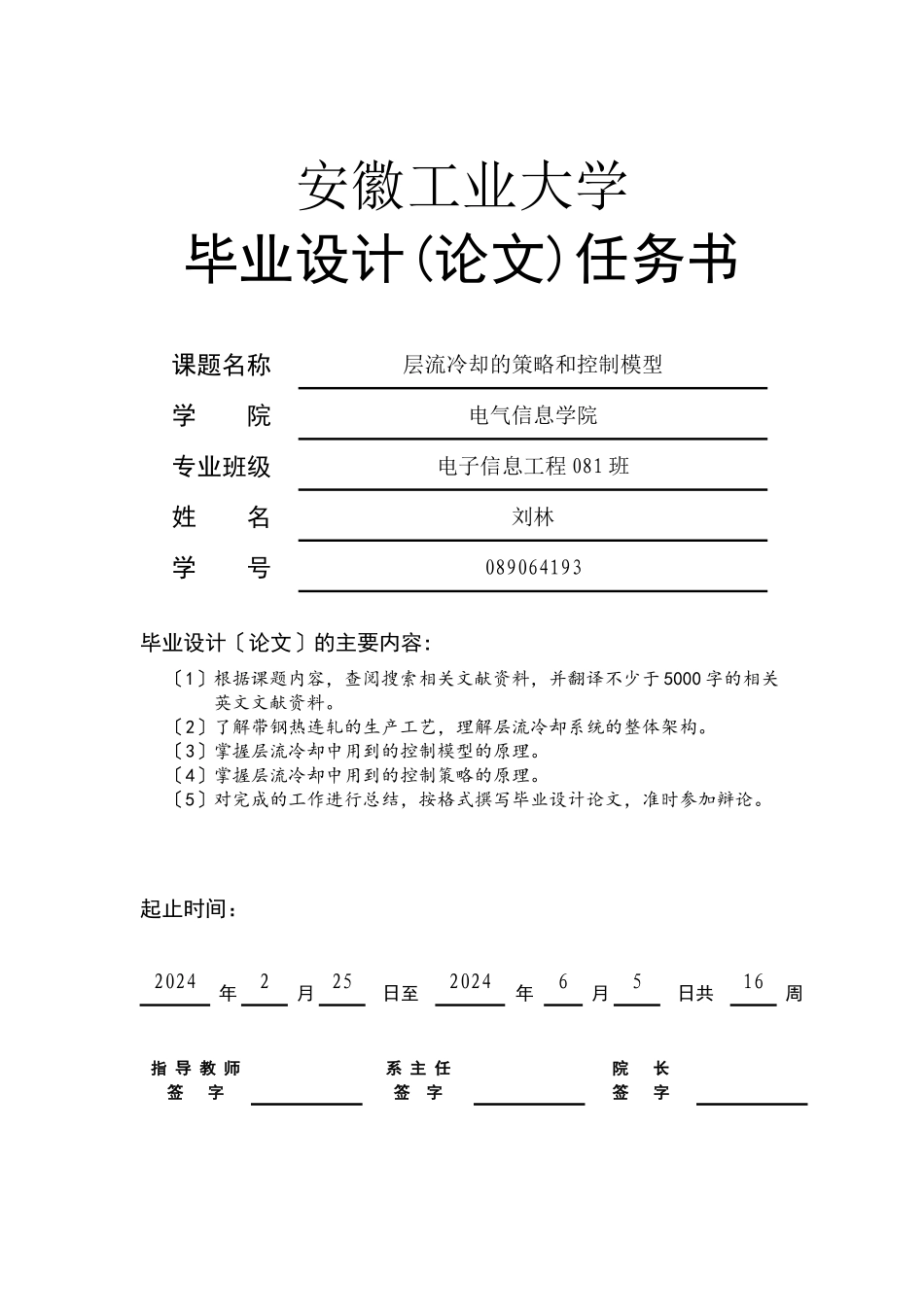

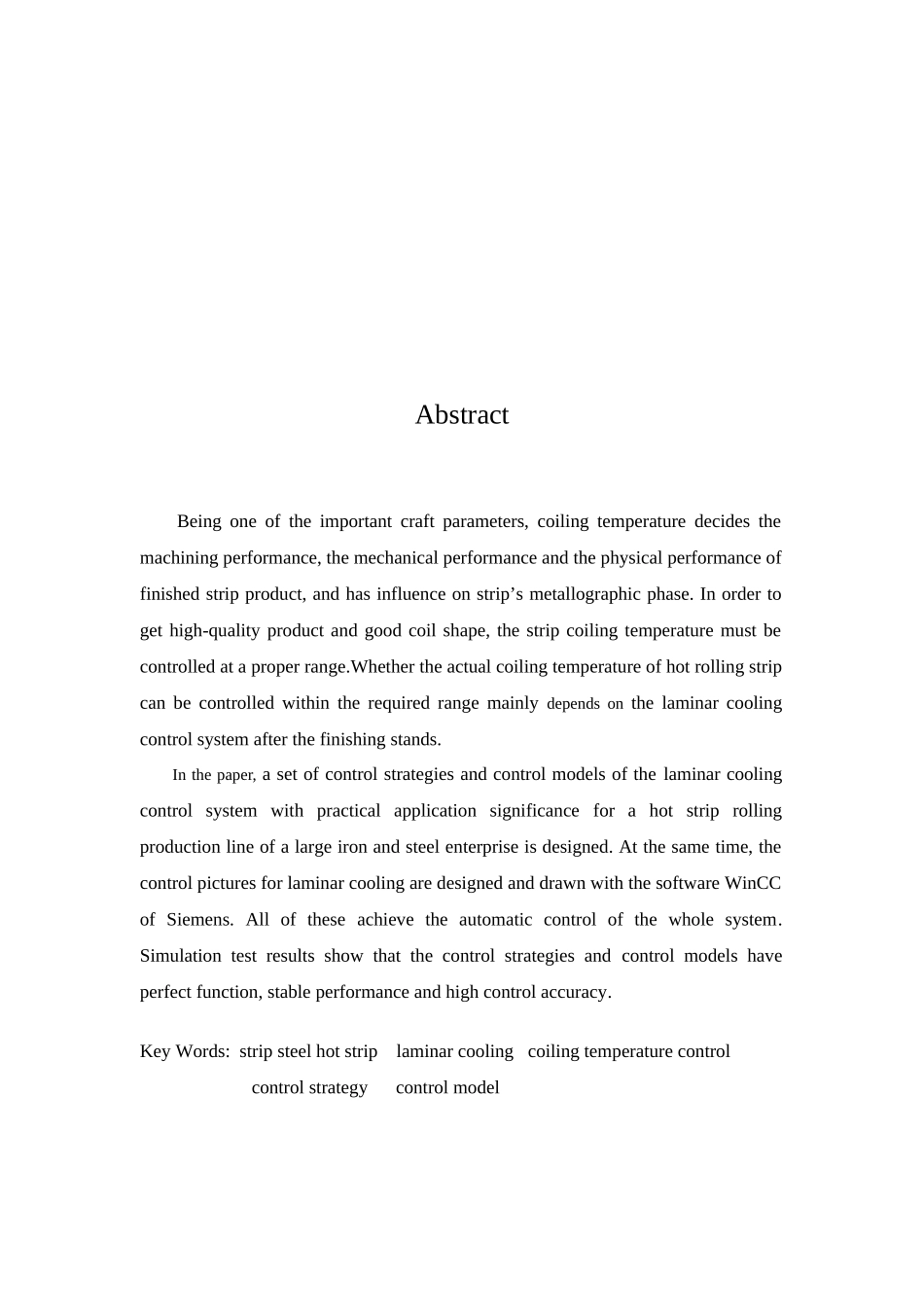

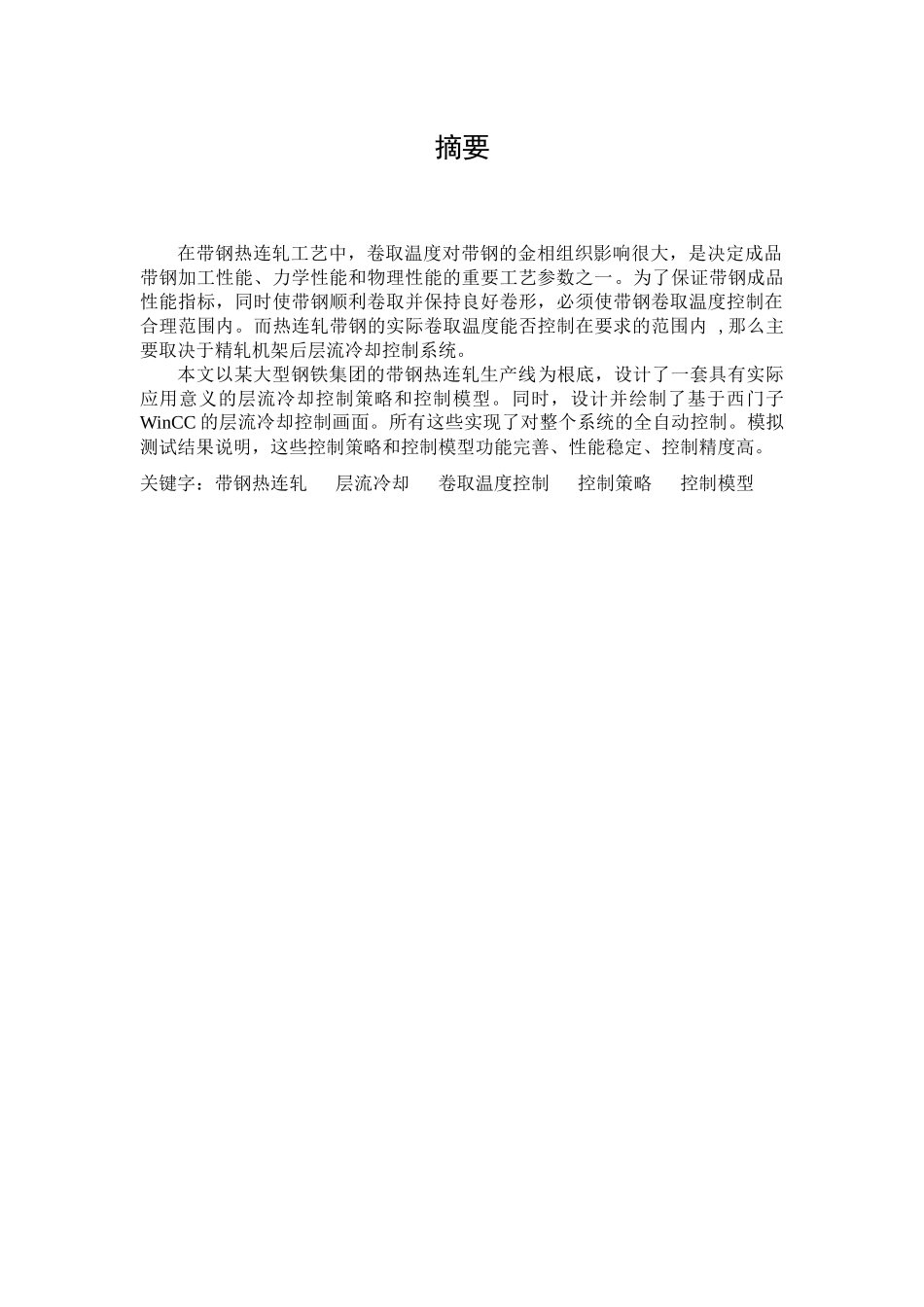

安徽工业大学毕业设计(论文)任务书课题名称层流冷却的策略和控制模型学 院 电气信息学院专业班级电子信息工程 081 班姓 名刘林学 号089064193毕业设计〔论文〕的主要内容:〔1〕根据课题内容,查阅搜索相关文献资料,并翻译不少于 5000 字的相关英文文献资料。〔2〕了解带钢热连轧的生产工艺,理解层流冷却系统的整体架构。〔3〕掌握层流冷却中用到的控制模型的原理。〔4〕掌握层流冷却中用到的控制策略的原理。〔5〕对完成的工作进行总结,按格式撰写毕业设计论文,准时参加辩论。起止时间:2024年2月 25日至2024年6月5日共16周指 导 教 师签 字系 主 任签 字院 长签 字摘要在带钢热连轧工艺中,卷取温度对带钢的金相组织影响很大,是决定成品带钢加工性能、力学性能和物理性能的重要工艺参数之一。为了保证带钢成品性能指标,同时使带钢顺利卷取并保持良好卷形,必须使带钢卷取温度控制在合理范围内。而热连轧带钢的实际卷取温度能否控制在要求的范围内 ,那么主要取决于精轧机架后层流冷却控制系统。本文以某大型钢铁集团的带钢热连轧生产线为根底,设计了一套具有实际应用意义的层流冷却控制策略和控制模型。同时,设计并绘制了基于西门子WinCC 的层流冷却控制画面。所有这些实现了对整个系统的全自动控制。模拟测试结果说明,这些控制策略和控制模型功能完善、性能稳定、控制精度高。关键字:带钢热连轧 层流冷却 卷取温度控制 控制策略 控制模型AbstractBeing one of the important craft parameters, coiling temperature decides the machining performance, the mechanical performance and the physical performance of finished strip product, and has influence on strip’s metallographic phase. In order to get high-quality product and good coil shape, the strip coiling temperature must be controlled at a proper range.Whether the actual coiling temperature of hot rolling strip can be controlled within the required range mainly depends on the laminar cooling control system after the finishing stands.In the paper, a set of control strategies and control models of the laminar cooling control system with practical application significance for a hot strip ro...
