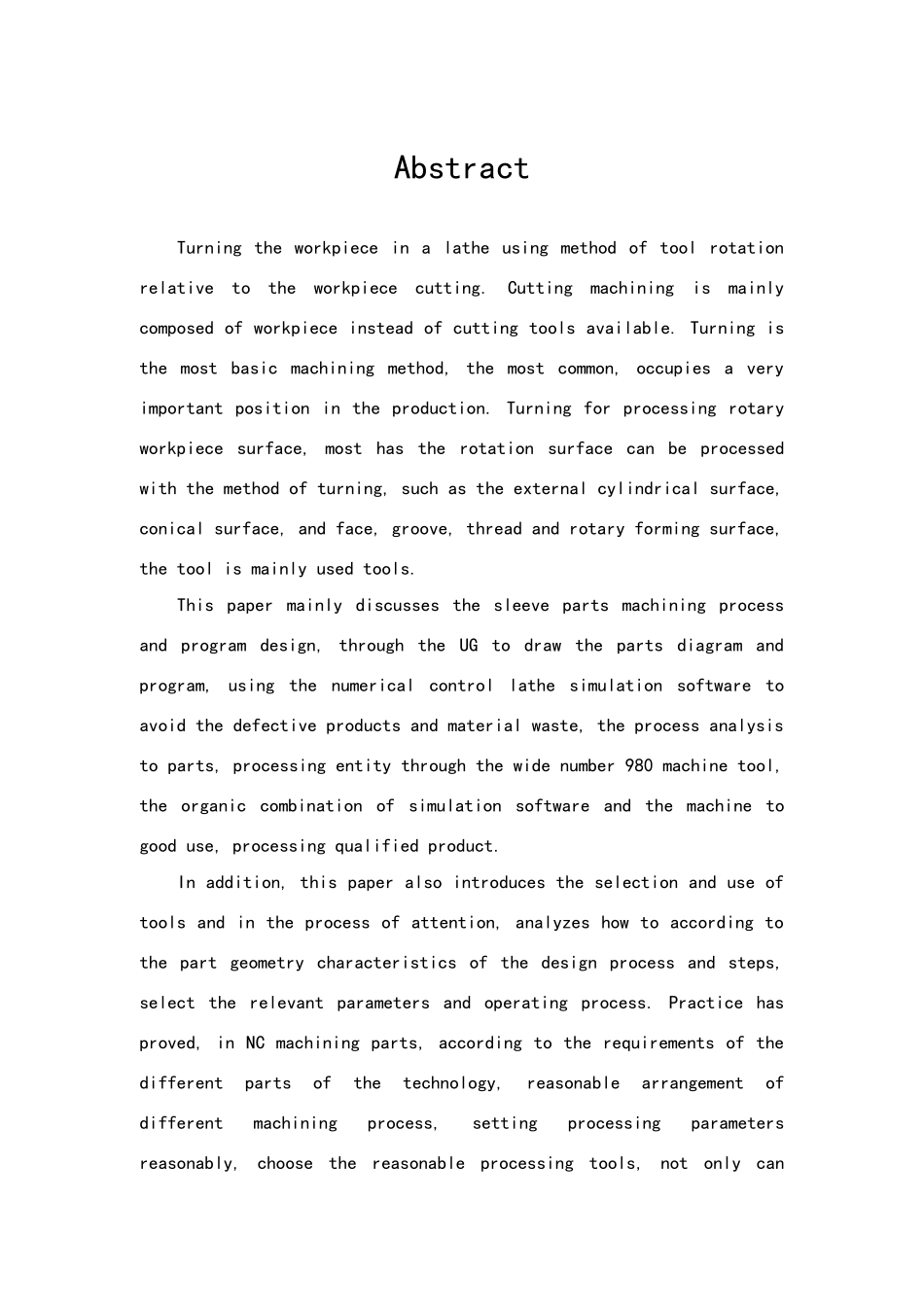

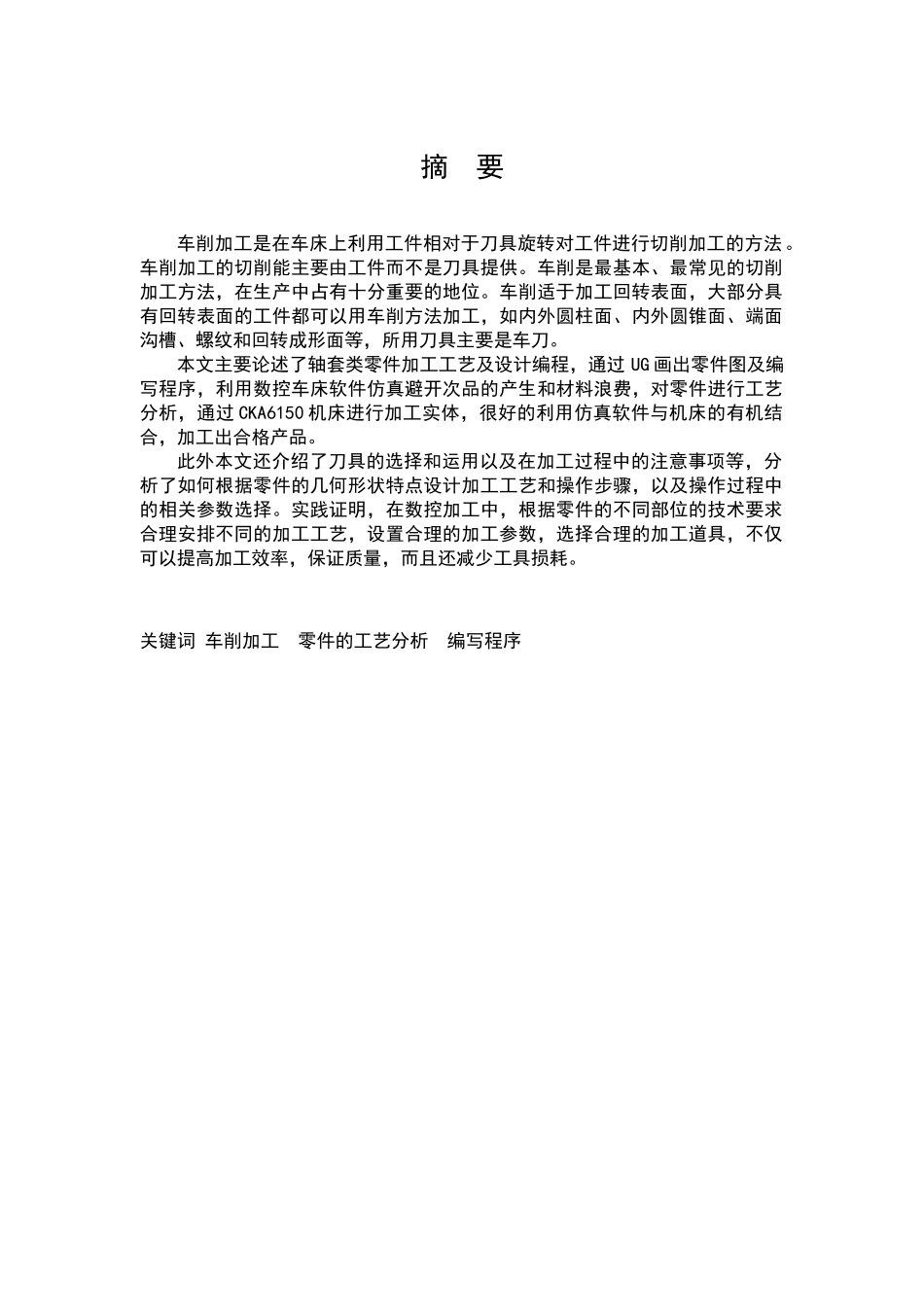

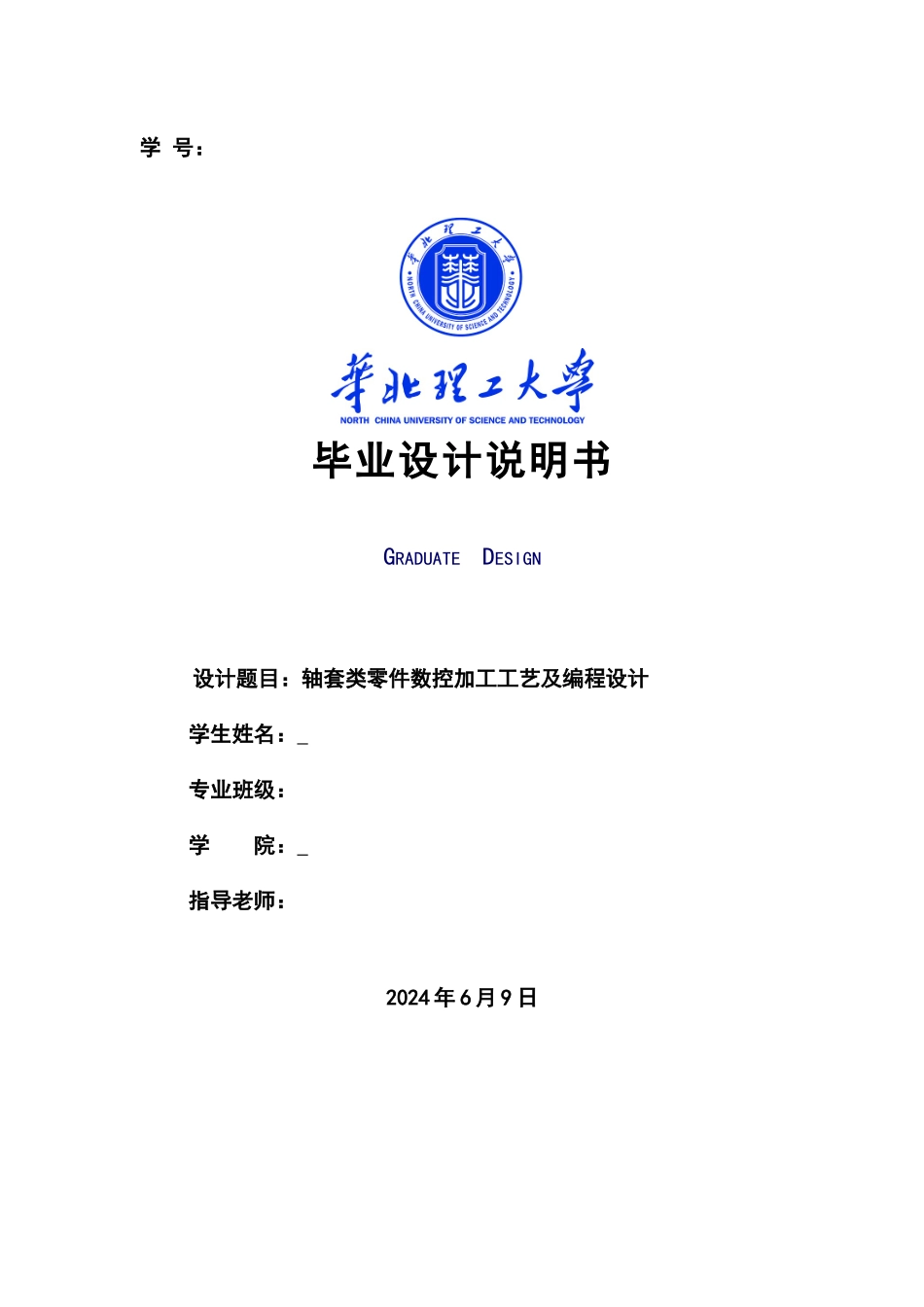

学 号:毕业设计说明书GRADUATE DESIGN设计题目:轴套类零件数控加工工艺及编程设计学生姓名: 专业班级: 学 院: 指导老师: 2024 年 6 月 9 日摘 要车削加工是在车床上利用工件相对于刀具旋转对工件进行切削加工的方法。车削加工的切削能主要由工件而不是刀具提供。车削是最基本、最常见的切削加工方法,在生产中占有十分重要的地位。车削适于加工回转表面,大部分具有回转表面的工件都可以用车削方法加工,如内外圆柱面、内外圆锥面、端面沟槽、螺纹和回转成形面等,所用刀具主要是车刀。本文主要论述了轴套类零件加工工艺及设计编程,通过 UG 画出零件图及编写程序,利用数控车床软件仿真避开次品的产生和材料浪费,对零件进行工艺分析,通过 CKA6150 机床进行加工实体,很好的利用仿真软件与机床的有机结合,加工出合格产品。此外本文还介绍了刀具的选择和运用以及在加工过程中的注意事项等,分析了如何根据零件的几何形状特点设计加工工艺和操作步骤,以及操作过程中的相关参数选择。实践证明,在数控加工中,根据零件的不同部位的技术要求合理安排不同的加工工艺,设置合理的加工参数,选择合理的加工道具,不仅可以提高加工效率,保证质量,而且还减少工具损耗。关键词 车削加工 零件的工艺分析 编写程序AbstractTurning the workpiece in a lathe using method of tool rotation relative to the workpiece cutting. Cutting machining is mainly composed of workpiece instead of cutting tools available. Turning is the most basic machining method, the most common, occupies a very important position in the production. Turning for processing rotary workpiece surface, most has the rotation surface can be processed with the method of turning, such as the external cylindrical surface, conical surface, and face, groove, thread and rotary forming surface, the tool is mainly used tools.This paper mainly discusses the sleeve parts machining process and program design, through the UG to draw the parts diagram and program, using the numerical control lathe simulation software to avoid the defective products and material waste, the...
