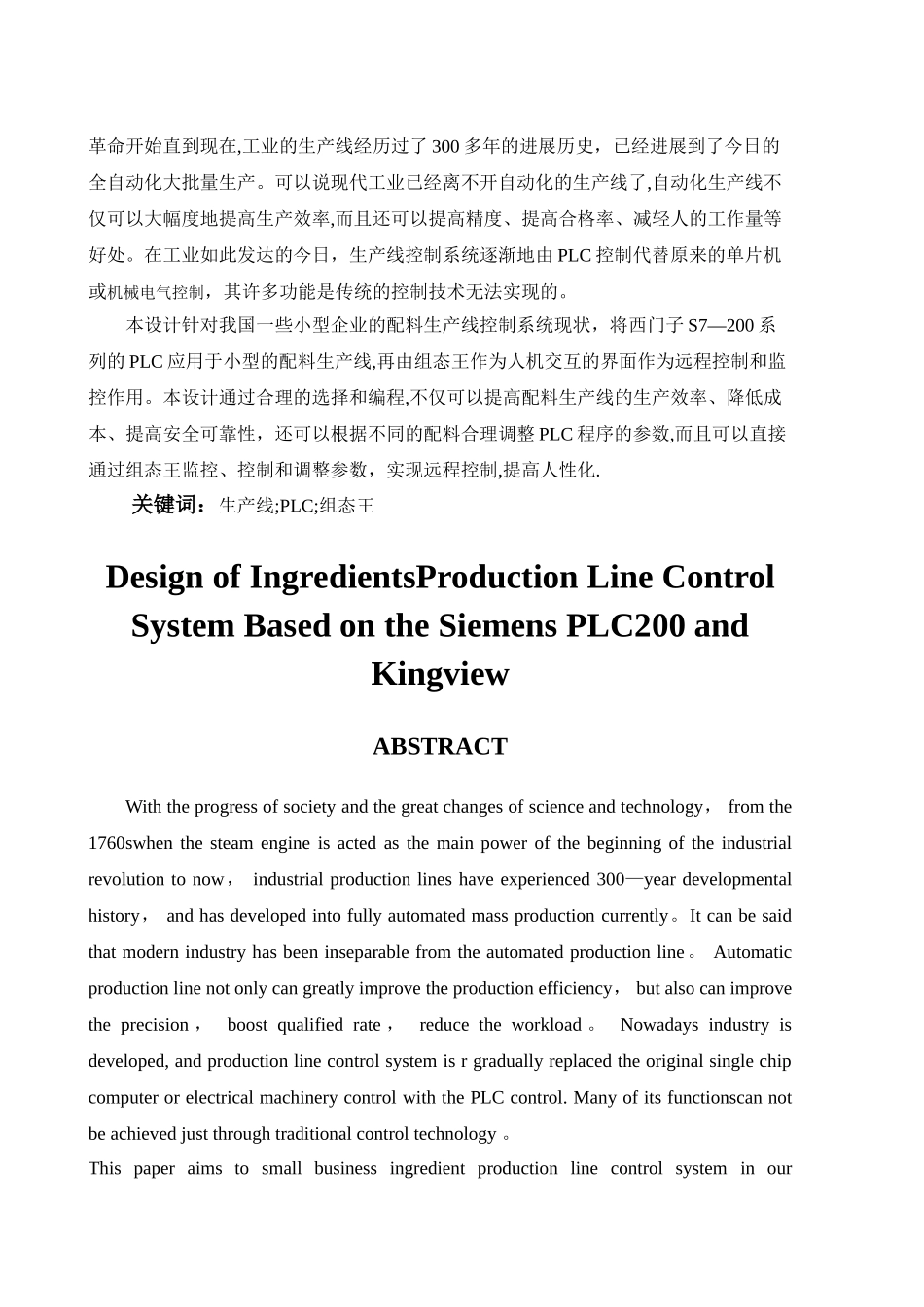

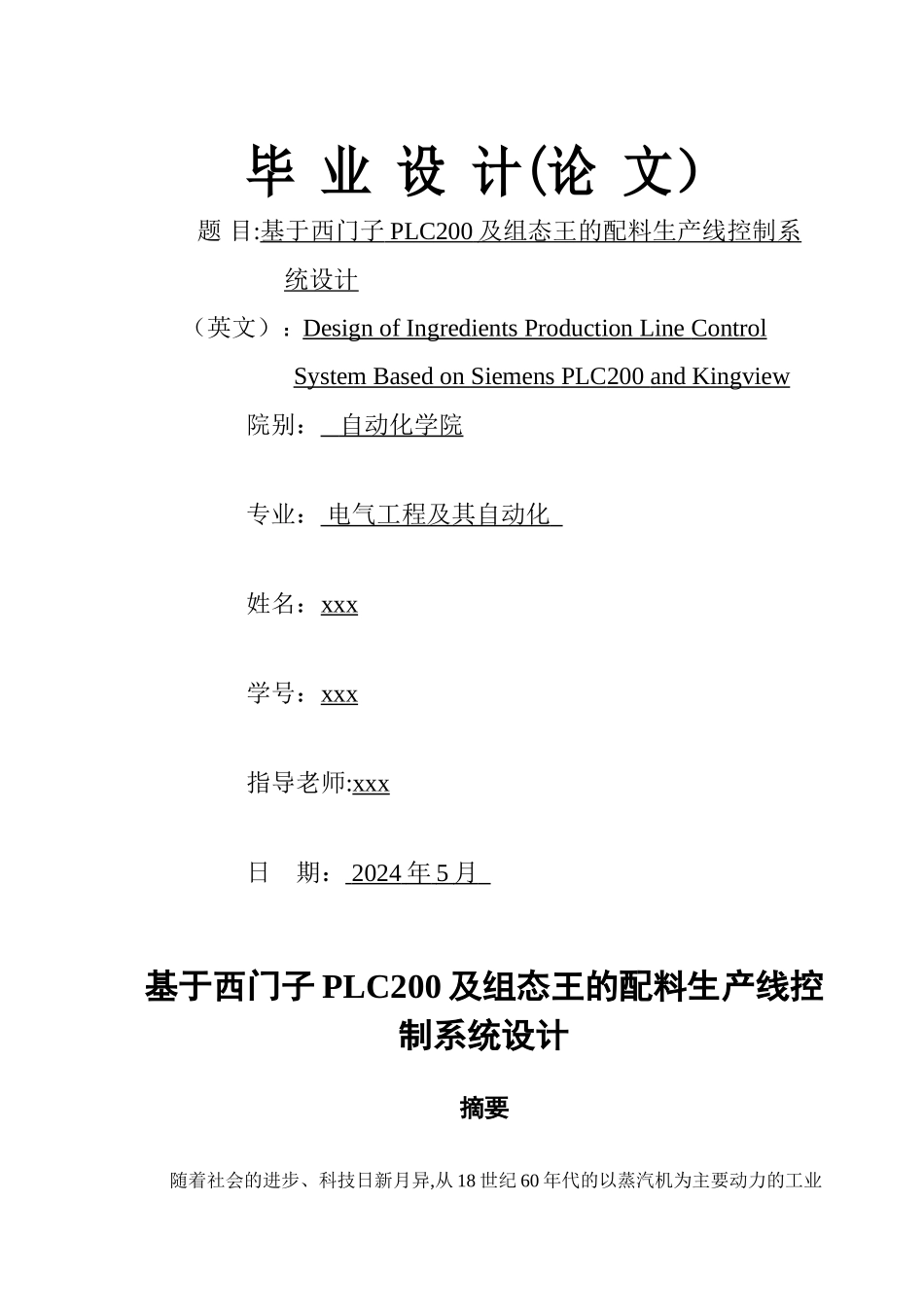

毕 业 设 计(论 文)题 目:基于西门子 PLC200 及组态王的配料生产线控制系 统设计(英文):D esign of Ingredients Production Line Control S ystem Based on Siemens PLC 200 and Kingview 院别: 自动化学院 专业: 电气工程及其自动化 姓名:xxx学号:xxx指导老师:xxx日 期: 2024 年 5 月 基于西门子 PLC200 及组态王的配料生产线控制系统设计摘要随着社会的进步、科技日新月异,从 18 世纪 60 年代的以蒸汽机为主要动力的工业革命开始直到现在,工业的生产线经历过了 300 多年的进展历史,已经进展到了今日的全自动化大批量生产。可以说现代工业已经离不开自动化的生产线了,自动化生产线不仅可以大幅度地提高生产效率,而且还可以提高精度、提高合格率、减轻人的工作量等好处。在工业如此发达的今日,生产线控制系统逐渐地由 PLC 控制代替原来的单片机或机械电气控制,其许多功能是传统的控制技术无法实现的。本设计针对我国一些小型企业的配料生产线控制系统现状,将西门子 S7—200 系列的 PLC 应用于小型的配料生产线,再由组态王作为人机交互的界面作为远程控制和监控作用。本设计通过合理的选择和编程,不仅可以提高配料生产线的生产效率、降低成本、提高安全可靠性,还可以根据不同的配料合理调整 PLC 程序的参数,而且可以直接通过组态王监控、控制和调整参数,实现远程控制,提高人性化.关键词:生产线;PLC;组态王Design of IngredientsProduction Line Control System Based on the Siemens PLC200 and KingviewABSTRACTWith the progress of society and the great changes of science and technology, from the 1760swhen the steam engine is acted as the main power of the beginning of the industrial revolution to now, industrial production lines have experienced 300—year developmental history, and has developed into fully automated mass production currently。It can be said that modern industry has been inseparable from the automated production line。 Automatic production line not only can greatly improve the production efficiency, but also can improve the precision , boost qualified rate , reduce the workload 。 Nowad...
