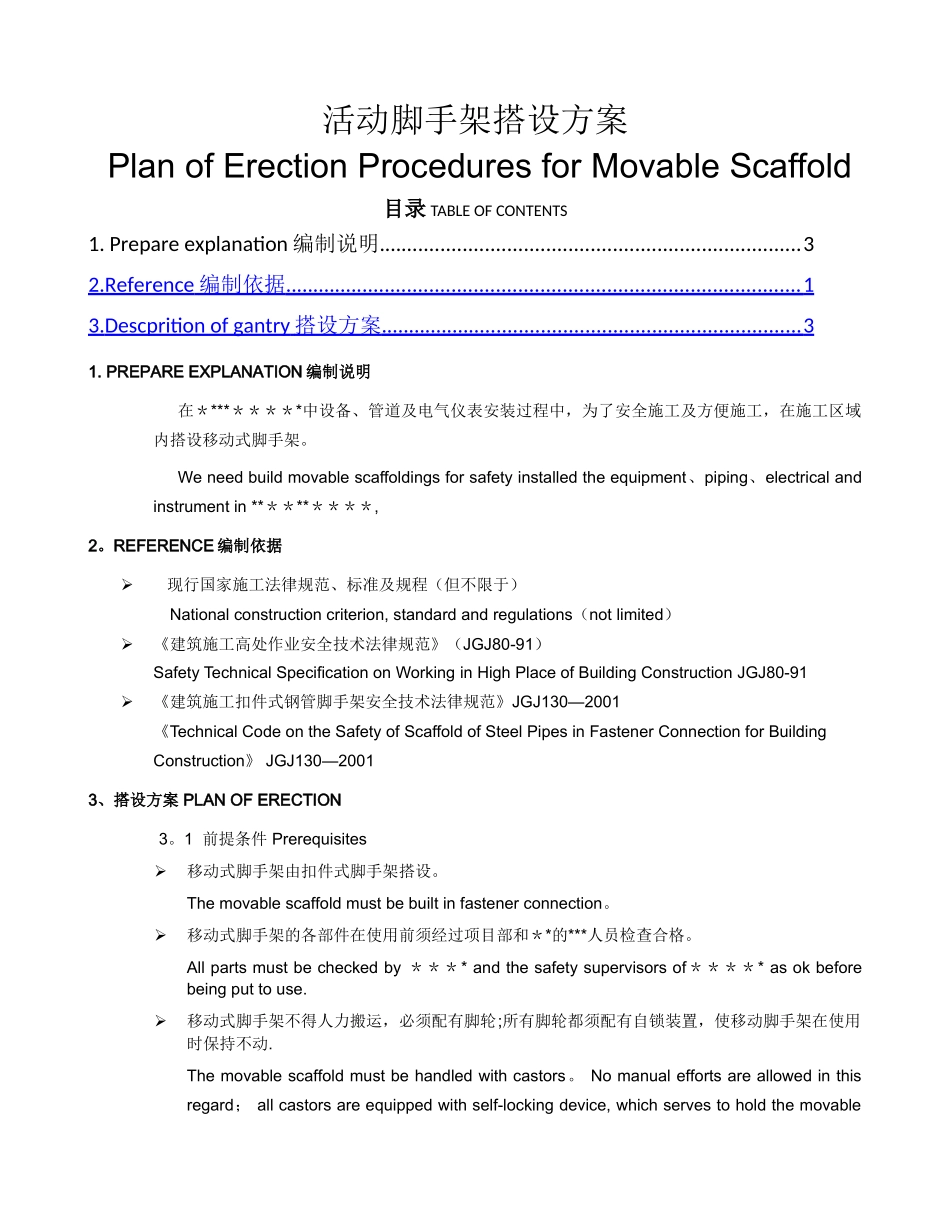

活动脚手架搭设方案

活动脚手架搭设方案 Plan of Erection Procedures for Movable Scaffold目录 TABLE OF CONTENTS1. Prepare explanation 编制说明............................................................................32.Reference 编制依据 ............................................................................................. 1 3. Descprition of gantry 搭设方案 ............................................................................ 3 1. PREPARE EXPLANATION 编制说明在＊***＊＊＊＊*中设备、管道及电气仪表安装过程中，为了安全施工及方便施工，在施工区域内搭设移动式脚手架。We need build movable scaffoldings for safety installed the equipment、piping、electrical and instrument in **＊＊**＊＊＊＊, 2。REFERENCE 编制依据 现行国家施工法律规范、标准及规程（但不限于）National construction criterion, standard and regulations（not limited） 《建筑施工高处作业安全技术法律规范》（JGJ80-91）Safety Technical Specification on Working in High Place of Building Construction JGJ80-91《建筑施工扣件式钢管脚手架安全技术法律规范》JGJ130—2001《Technical Code on the Safety of Scaffold of Steel Pipes in Fastener Connection for Building Construction》 JGJ130—20013、搭设方案 PLAN OF ERECTION 3。1 前提条件 Prerequisites移动式脚手架由扣件式脚手架搭设。The movable scaffold must be built in fastener connection。移动式脚手架的各部件在使用前须经过项目部和＊*的***人员检查合格。All parts must be checked by ＊＊＊* and the safety supervisors of＊＊＊＊* as ok before being put to use.移动式脚手架不得人力搬运，必须配有脚轮;所有脚轮都须配有自锁装置，使移动脚手架在使用时保持不动.The movable scaffold must be handled with castors。 No manual efforts are allowed in this regard； all castors are equipped with self-locking device, which serves to hold the movable scaffold still when it is use。移动式脚手架的作业平台必须满铺脚手板，临边必须搭设踢脚板。Boards must be...
