智能分类垃圾桶识别设计与实现

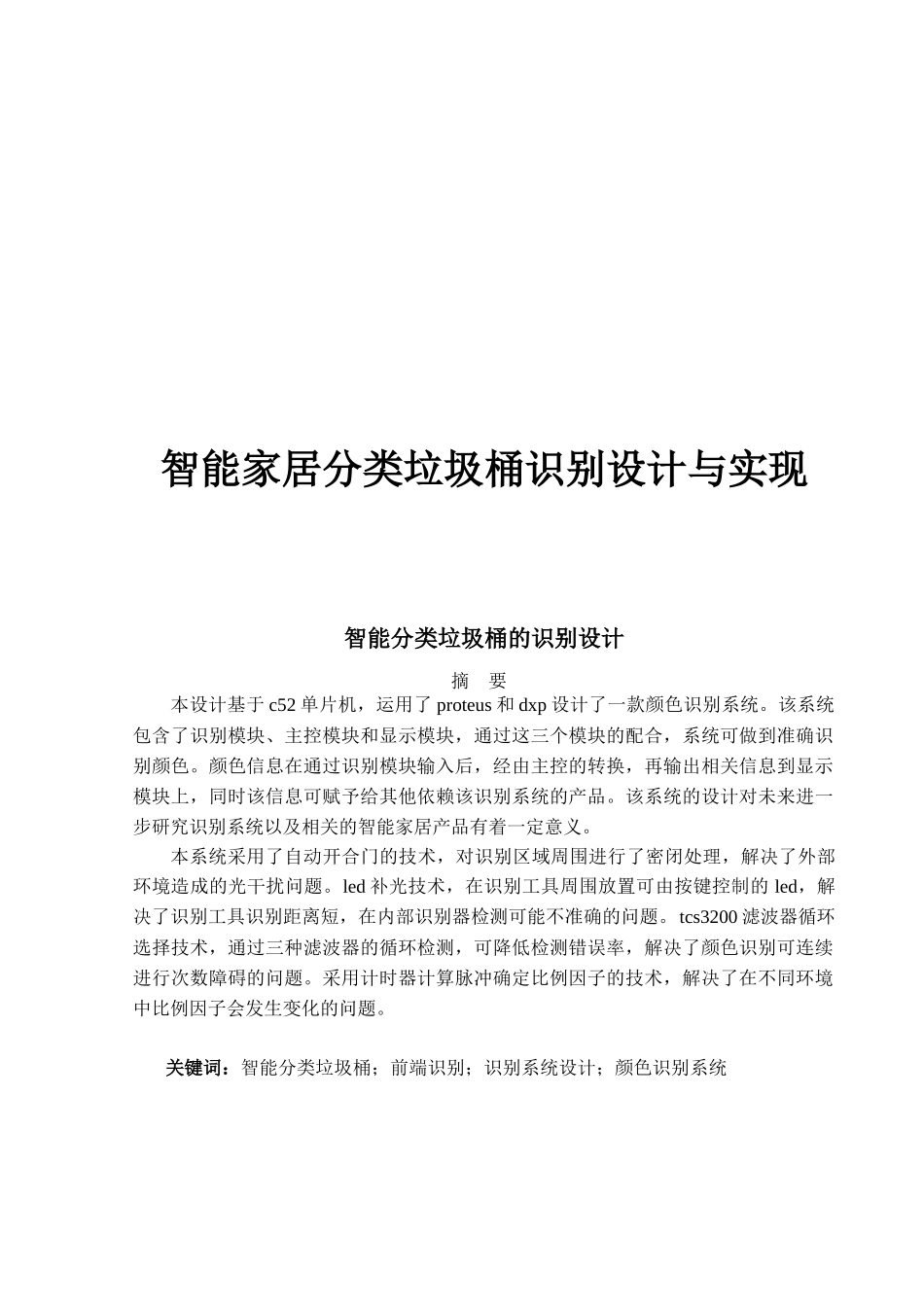

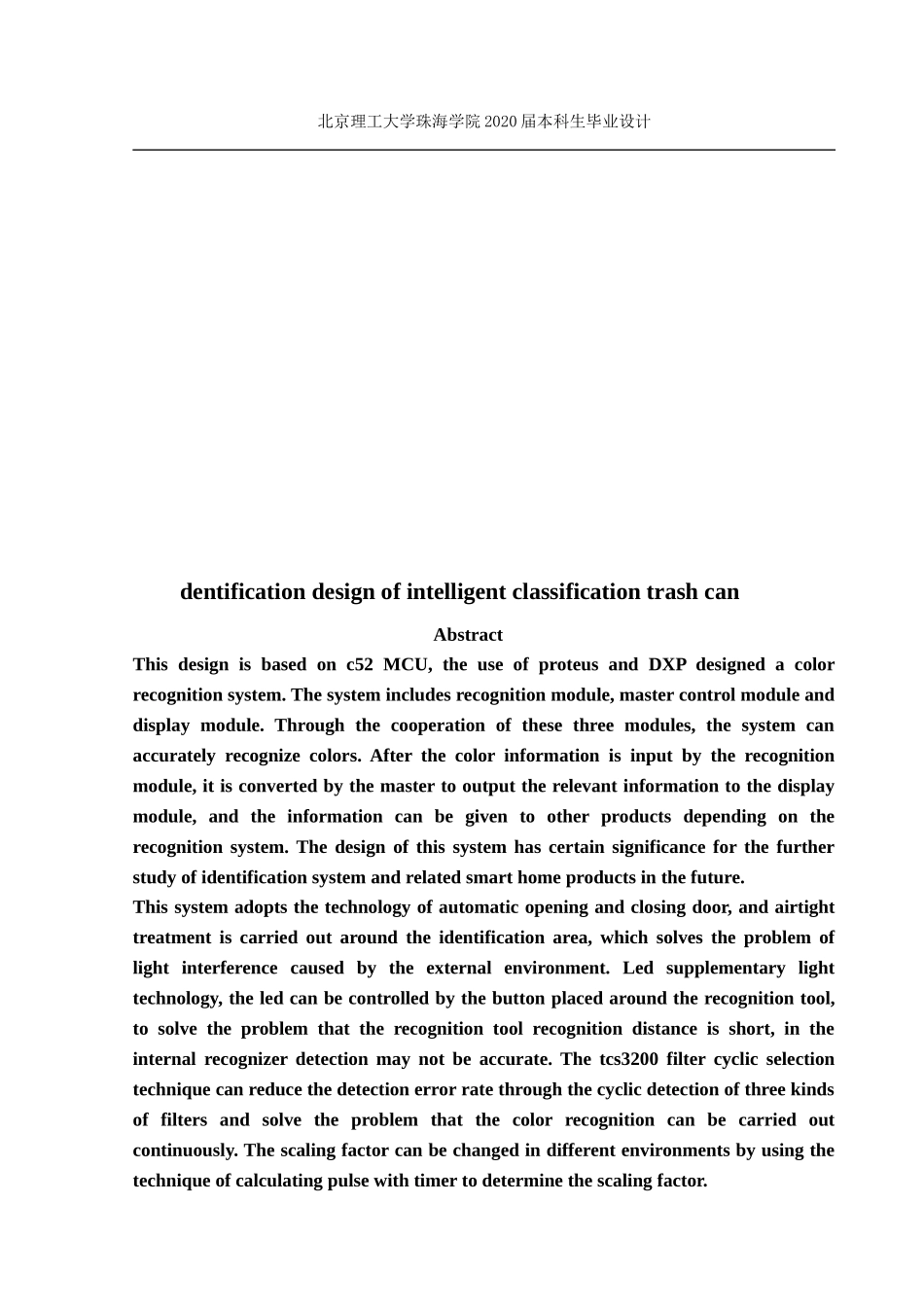

智能家居分类垃圾桶识别设计与实现智能分类垃圾桶的识别设计摘 要本设计基于 c52 单片机，运用了 proteus 和 dxp 设计了一款颜色识别系统。该系统包含了识别模块、主控模块和显示模块，通过这三个模块的配合，系统可做到准确识别颜色。颜色信息在通过识别模块输入后，经由主控的转换，再输出相关信息到显示模块上，同时该信息可赋予给其他依赖该识别系统的产品。该系统的设计对未来进一步研究识别系统以及相关的智能家居产品有着一定意义。本系统采用了自动开合门的技术，对识别区域周围进行了密闭处理，解决了外部环境造成的光干扰问题。led 补光技术，在识别工具周围放置可由按键控制的 led，解决了识别工具识别距离短，在内部识别器检测可能不准确的问题。tcs3200 滤波器循环选择技术，通过三种滤波器的循环检测，可降低检测错误率，解决了颜色识别可连续进行次数障碍的问题。采用计时器计算脉冲确定比例因子的技术，解决了在不同环境中比例因子会发生变化的问题。关键词：智能分类垃圾桶；前端识别；识别系统设计；颜色识别系统北京理工大学珠海学院 2020 届本科生毕业设计dentification design of intelligent classification trash canAbstractThis design is based on c52 MCU, the use of proteus and DXP designed a color recognition system. The system includes recognition module, master control module and display module. Through the cooperation of these three modules, the system can accurately recognize colors. After the color information is input by the recognition module, it is converted by the master to output the relevant information to the display module, and the information can be given to other products depending on the recognition system. The design of this system has certain significance for the further study of identification system and related smart home products in the future.This system adopts the technology of automatic opening and closing door, and airtight treatment is carried out around the identification area, which solves the problem of light interference caused by the external ...
