ABB机器人码垛程序

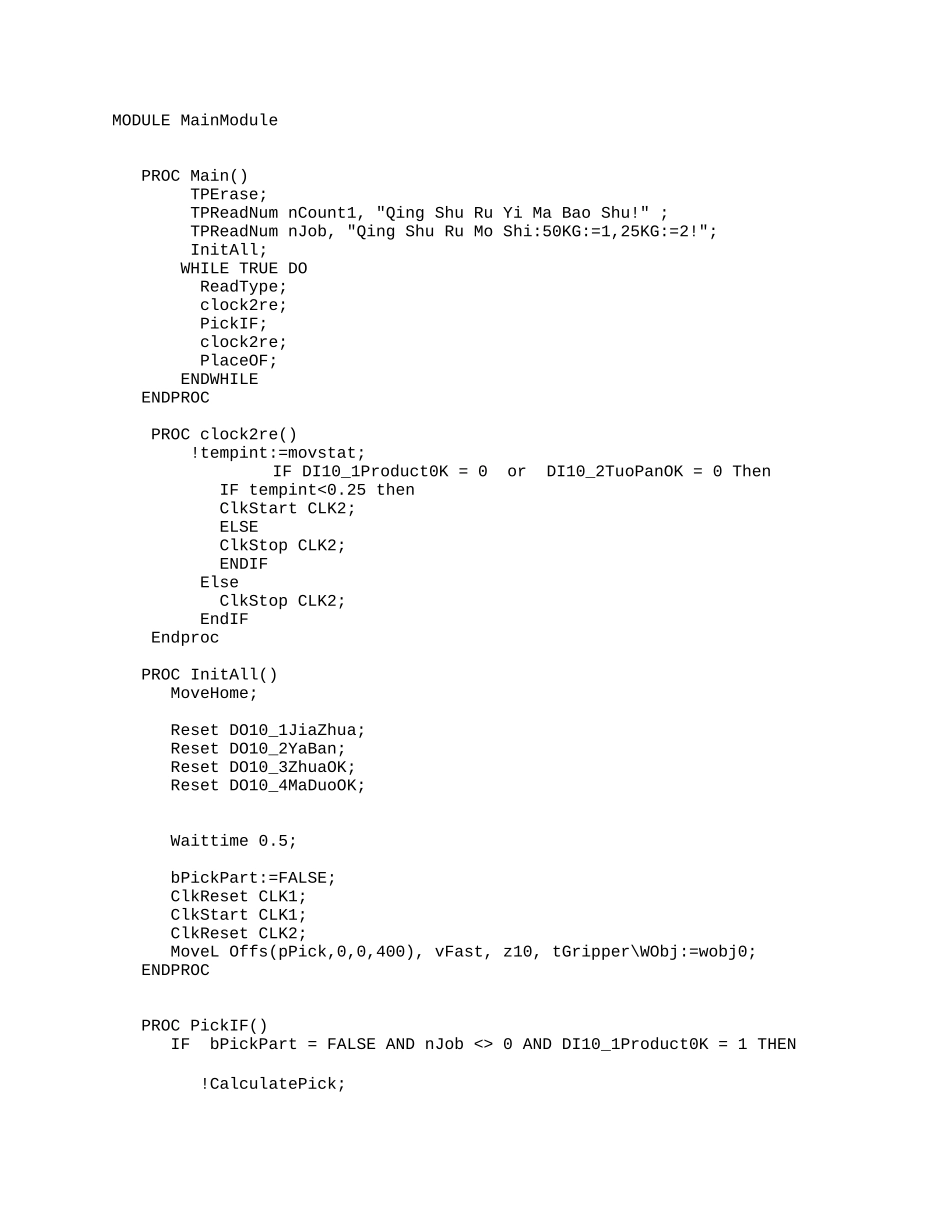

MODULE MainModulePROC Main()TPErase;TPReadNum nCount1, "Qing Shu Ru Yi Ma Bao Shu!" ;TPReadNum nJob, "Qing Shu Ru Mo Shi:50KG:=1,25KG:=2!";InitAll;WHILE TRUE DOReadType;clock2re;PickIF;clock2re;PlaceOF;ENDWHILEENDPROCPROC clock2re()!tempint:=movstat; IF DI10_1Product0K = 0 or DI10_2TuoPanOK = 0 ThenIF tempint<0.25 thenClkStart CLK2;ELSEClkStop CLK2;ENDIFElseClkStop CLK2;EndIFEndprocPROC InitAll()MoveHome;Reset DO10_1JiaZhua;Reset DO10_2YaBan;Reset DO10_3ZhuaOK;Reset DO10_4MaDuoOK;Waittime 0.5;bPickPart:=FALSE;ClkReset CLK1;ClkStart CLK1;ClkReset CLK2;MoveL Offs(pPick,0,0,400), vFast, z10, tGripper\WObj:=wobj0;ENDPROCPROC PickIF()IF bPickPart = FALSE AND nJob <> 0 AND DI10_1Product0K = 1 THEN!CalculatePick;MoveJ Offs(pPick,0,0,400), vFast, z200, tGripper\WObj:=wobj0;!MoveLDO Offs(pPick,0,0,100), vFast, z20, tool0\WObj:=wobj0, DO10_1JiaZhua, 1;MoveL pPick, vFast, fine, tGripper\WObj:=wobj0;Close1;GripLoad LoadFull;Accset 50,50;HandshakeIF;bPickPart:=TRUE;ConfL\Off;MoveJ pAfterPick, vFast, z60, tGripper\WObj:=wobj0;ENDIFENDPROCPROC PlaceOF()IF DI10_2TuoPanOK = 1 AND bPickPart = TRUE THENCalculatePlace;ConfL\Off;!MoveL Offs(pOver,0,0,nOffsZ2), vFast, z200, tGripper;IF bTag=true thenAccset 70, 70;MoveJ pAbovePlace, vFast, z10, tGripper\WObj:=wobj0;elseAccset 90, 90; MoveJ pAbovePlace, vFast, z10, tGripper\WObj:=wobj0; EndifAccset 100,100;! place first boxConfL\Off;!MoveL Offs(pPlace1,nOffsX1,nOffsY1,nOffsZ1),vTurn,z10,tGripper\WObj:=wobj0;MoveL pPlace1, vMiddle, fine, tGripper\WObj:=wobj0;Open1;ConfL\Off;MoveL Offs(pPlace1,0,0,nOffsZ1),vMiddle,z5,tGripper\WObj:=wobj0;GripLoad LoadEmpty;Accset 100,100;bPickPart:=FALSE;Incr nCount1;HandshakeOF;MoveJ pAbovePick, vFast, z200, tGripper\WObj:=wobj0;MoveL Offs(pPick,0,0,400), vFast, z10, tGripper\WObj:=wobj0;!MoveJ pHome, vFast, z200, tGripper;ENDIFENDPROCPROC HandshakeIF()IF nJob=1 THEN!Se...
